Netis AD1101 Ethernet PCI Adapter, 10/100 Mbps

Be the first to review this product...
  • Support 32-bit PCI interface
  • Comply with the IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Support Full-Duplex
  • Achieve up to 20M/200M network bandwidth
Overview
Specs
Reviews
The nets AD-1101 Fast Ethernet PCI Adapter is a highly integrated and cost-effective Adapter that supports 32-bit data transfer and reduces CPU loading using bus master architecture. It also provides WOL and Boot-ROM. The nets Fast Ethernet PCI Adapter keeps low cost and eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. It supports both 10Mbps and 100Mbps network speed both in Half-Duplex and Full-Duplex transfer modes; using Auto-Negotiation technology to detect the network speed. It also can be widely used in most modern Operating System

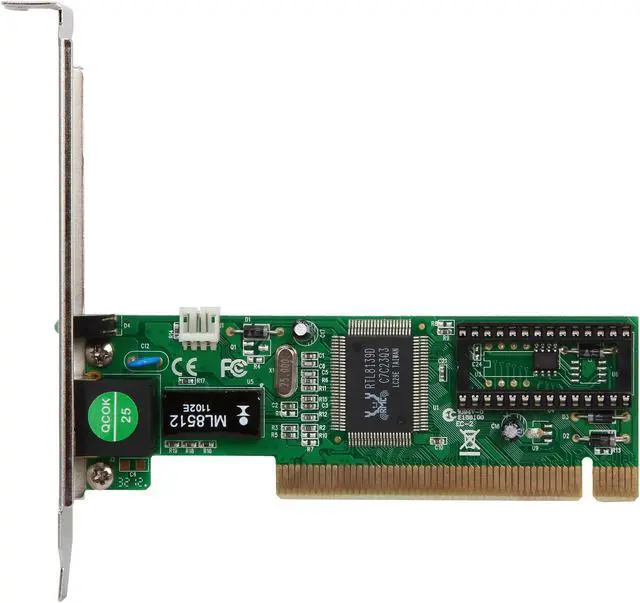

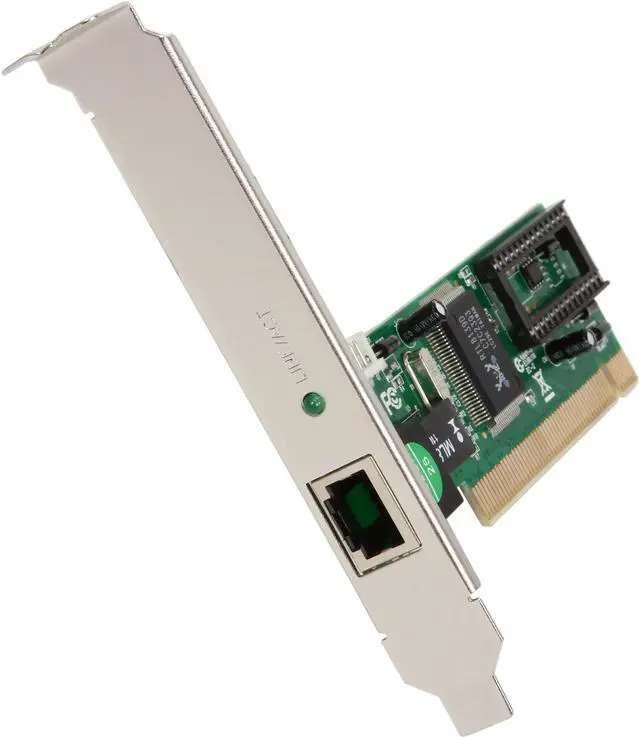

Netis AD-1101 Fast Ethernet PCI Adapter 10/100Mbps PCI 1 x RJ45

What it does

Netis

The Netis AD1101 Fast Ethernet PCI Adapter is a highly integrated and cost-effective Adapter that supports 32-bit data transfer and reduces CPU loading using bus master architecture. It also provides WOL and Boot-ROM. The Netis Fast Ethernet PCI Adapter keeps low cost and eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. It supports both 10Mbps and 100Mbps network speed both in Half-Duplex and Full-Duplex transfer modes, using Auto-Negotiation technology to detect the network speed. It also can be widely used in most modern Operating System

Features


Netis
  • Support 32-bit PCI interface
  • Comply with the IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX specifications
  • Support Full-Duplex, achieve up to 20M/200M network bandwidth
  • Plug and Play
  • Support Windows XP (32/64bits), Window 2000 (32/64bits), Windows 7 (32/64bits); Linux; Mac OS

Specifications


Hardware
Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Interface 32-bit PCI

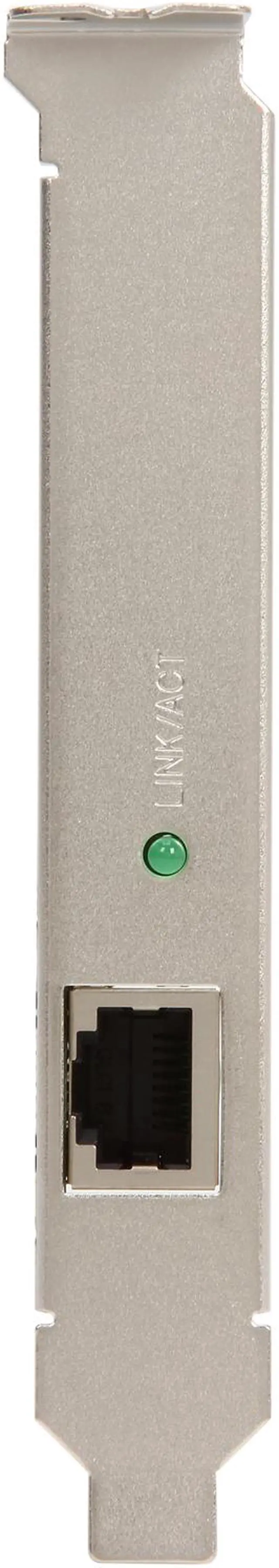

1 x 10/100Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX
LED LNT/ACT
Cabling Type UTP CAT 5
EIA/TIA-568 100-Ohm screened twisted pair (STP)
Data Transmission Rate 10/100Mbps (Half-duplex)
20/200Mbps (Full-duplex)
WOL Supported
BOOT-ROM Supported
Network Driver Windows 98SE, Windows ME, Windows 2000, Windows XP (32/64-bit),
Windows Vista (32/64-bit), Windows 7 (32/64-bit)
MAC OS 9.0 / 10.04 / 10.1 / 10.2
Others
Certifications FCC, CE
Environment Operating Temperature: 32 - 104°F (0 - 40°C)
Storage Temperature: -40 - 158°F (-40 - 70°C)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

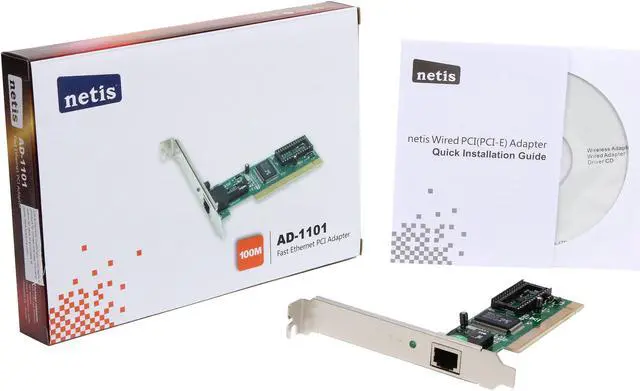

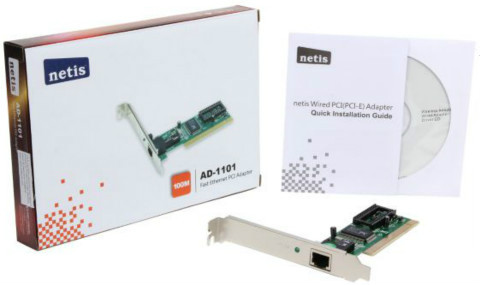

Contents

Netis

  1. AD1101
  2. Low Profile Bracket
  3. Driver CD
  4. Quick Installation Guide
