Display System 0.55" / 1.40 cm DMD DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions Maximum: UXGA - 1600 x 1200
Format NTSC 3.58, 4.43, M
PAL 60, B, D, G, H, I, M, N
SECAM B, D, G, L
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Pixels 786,432
Brightness 3300 Lumens
Aspect Ratio Native: 4:3
Supported: 16:9
Dynamic Contrast Ratio 20000:1
DLP Link 3D Yes
Color Range 1.07 Billion
Scan Horizontal: 15 - 102 kHz
Vertical: 23 - 120 Hz
Lens
Focus Manual
Zoom Manual: 1.3x
Throw Distance 3.94 - 36.1' (1.2 - 11.0 m)
Throw Ratio 1.51 - 1.97:1
Projection Size 30 - 300" / 76.20 - 762.00 cm (Max Diagonal: 300" / 762.00 cm)
Features
Keystone Correction Yes, Vertical: ± 30°
Yes, Horizontal: ± 30°
Ceiling Mountable Yes
Built-in Speaker Yes, 10 W

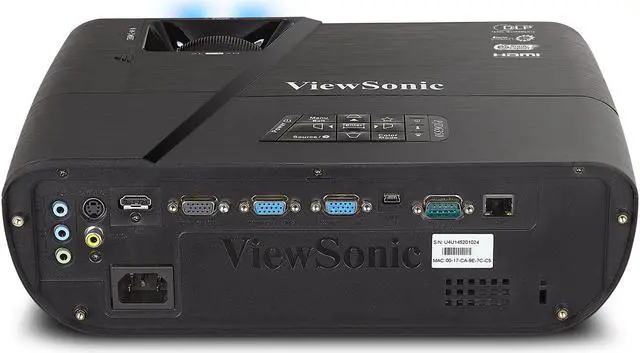

Input/Output Connectors
Inputs/Outputs 2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
2x 15-pin VGA Video (Input)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x RS-232C Control (Input)
1x HDMI Audio/Video (Input)
1x HDMI with MHL Support Audio/Video (Input)
1x Mini-USB Control/Service (Input)
1x 15-pin VGA Video (Output)
1x Ethernet LAN (Input)
General
Watts 190 W
Life Normal Mode: 5000 Hours
Eco Mode: 6000 Hours
Eco+ Mode: 10000 Hours
Fan Noise Normal Mode: 32 dB
Eco Mode: 27 dB
Remote Control Yes
Security Cable Lock Slot
Power Requirements 100-240 VAC, 50/60 Hz
Battery None
Power Consumption Maximum: 315 W
Standby Mode: <.5 W
Altitude 0 - 40000' (0 - 12192 m)
Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 90%
