HUNSN Micro Firewall Appliance 10GbE, Mini PC, PFSense, Mikrotik, Ultra 5 Processor 125H, RJ69, OPNsense, VPN, Router PC, 4 x 2.5GbE LAN, 4 x SFP+ X710, Type-C, 0 RAM, 0 Storage, Barebone No System
- HUNSN RJ69 equipped with core ultra 5 processor 125h, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support aes new instructions
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Compact aluminum, 12v/19v power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance

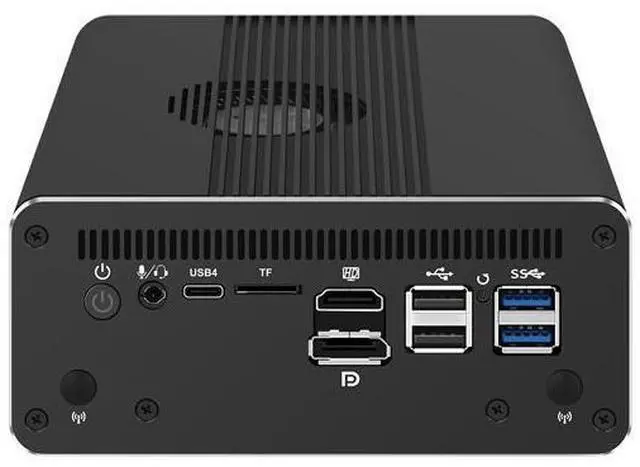

- RJ69 designed with power on/off, audio, type-c usb4 40g full function data/display/pd 19v 120w or above, tf for data storage/some of the system boot, dp1.4a, hdmi2.0, 6 x usb2.0, clr cmos, 2 x usb3.2 10gbps, dc_in, 4 x lan, 4 x sfp+, 155 x 133 x 61mm
- Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ69
CPU: Intel Core Ultra 5 Processor 125H 18M Cache, up to 4.50 GHz
Memory: 2 x SODIMM Up to DDR5 5600 MT/s, Max.96GB RAM
Storage: 1 x M.2 PCIe4.0 x4 NVMe 2280, not support internal SATA SSD/HDD,
support knock-out holes DIY for 1 x external 2.5/3.5 Inch or above SATA SSD/HDD
I/O Interface: Power ON/OFF, Audio, Type-C USB4 40G full function data/display/PD 19V 120W or above, TF for data storage/some of the system boot,

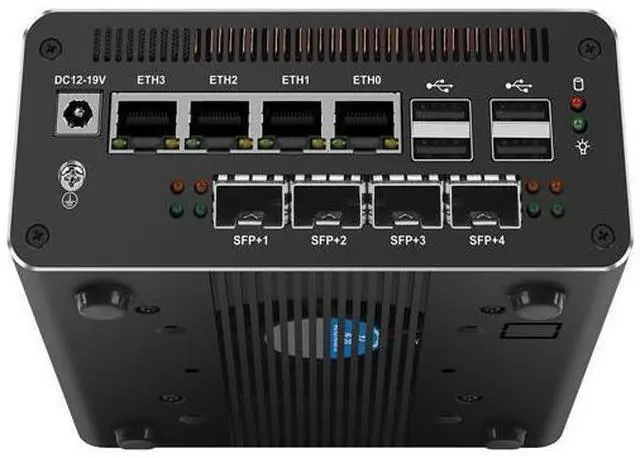

DP1.4a, HDMI2.0, 6 x USB2.0, CLR CMOS, 2 x USB3.2 10Gbps, DC_IN, 4 x LAN, 4 x SFP+ Optical
Network Card: 4 x Intel 2.5GbE I226-V LAN, 4 x SFP+ Optical, the sfp model is 10GbE X710
WAN-LAN Throughput: Throughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 7Gbps or more
Expansion: PCI-E x8 slot PCIe4.0 x4 signal, M.2 E key WiFi slot for CNVi WiFi6e
Expansion PIN: 3 x 12V 4Pin temperature control fan power supply terminal, GPIO, COM, F_PANEL, TPM header
Power: DC100-240V AC/50-60hz, DC 12V-19V wide voltage, 19V6A
Operating Temperature: -0°C~60°C
Relative Humidity: 10%~90% non-condensing
TDP: Basic power consumption 45W
Cooling System: Turbofan pure copper fin radiator active cooling design
Size: 155 x 133 x 61mm
Weight: 1.3kgs
Packing List: HUNSN RJ69 firewall appliance, power supply, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
Model Number: HUNSN RJ69
CPU: Intel Core Ultra 5 Processor 125H 18M Cache, up to 4.50 GHz
Memory: 2 x SODIMM Up to DDR5 5600 MT/s, Max.96GB RAM
Storage: 1 x M.2 PCIe4.0 x4 NVMe 2280, not support internal SATA SSD/HDD,
support knock-out holes DIY for 1 x external 2.5/3.5 Inch or above SATA SSD/HDD
I/O Interface: Power ON/OFF, Audio, Type-C USB4 40G full function data/display/PD 19V 120W or above, TF for data storage/some of the system boot,
DP1.4a, HDMI2.0, 6 x USB2.0, CLR CMOS, 2 x USB3.2 10Gbps, DC_IN, 4 x LAN, 4 x SFP+ Optical
Network Card: 4 x Intel 2.5GbE I226-V LAN, 4 x SFP+ Optical, the sfp model is 10GbE X710
WAN-LAN Throughput: Throughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 7Gbps or more
Expansion: PCI-E x8 slot PCIe4.0 x4 signal, M.2 E key WiFi slot for CNVi WiFi6e
Expansion PIN: 3 x 12V 4Pin temperature control fan power supply terminal, GPIO, COM, F_PANEL, TPM header
Power: DC100-240V AC/50-60hz, DC 12V-19V wide voltage, 19V6A
Operating Temperature: -0°C~60°C
Relative Humidity: 10%~90% non-condensing
TDP: Basic power consumption 45W
Cooling System: Turbofan pure copper fin radiator active cooling design
Size: 155 x 133 x 61mm
Weight: 1.3kgs
Packing List: HUNSN RJ69 firewall appliance, power supply, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
