youyeetoo Banana pi R3 Mini Travel Router Board WiFi 6 OpenWRT MediaTek MT7986A 2G DDR RAM 8G eMMC Flash 2X 2.5GbE Port Onboard (Wireless Network for Streaming Media, Games and Other Applications)

GET START: https://docs.banana-pi.org/en/BPI-R3_Mini/BananaPi_BPI-R3_Mini
High-performance BPI-R3 mini wireless router board powered by MediaTek's quad-core MT7986A chip and Wi-Fi 6. As a travel router, it supports dual-band 2.4/5GHz Wi-Fi 6 for lightning-fast connections on the go.
Equipped with 2GB RAM and 8GB storage, the BPI-R3 mini delivers robust processing for wireless tasks. Enjoy gigabit speeds and low latency with 6GHz bandwidth support ideal for gaming and streaming.
Benefit from strong wireless coverage anywhere via 3 high-gain antennas. The Filogic 830 enables up to 6Gbps throughput for dependable signals at home, office, or on-the-go.
As an open-source board, the versatile BPI-R3 mini supports uses as a router, repeater, NAS device and more for diverse networking and communication needs now and in the future.
OPENWRT Snapshot Image Support

Overview

Specs

Reviews

Palm-sized and Handheld
Internet service Router
Wireless Router
Wireless Repeater
Home security Gateway
Home Automation
Nas device
Soft router
Network and communication applications

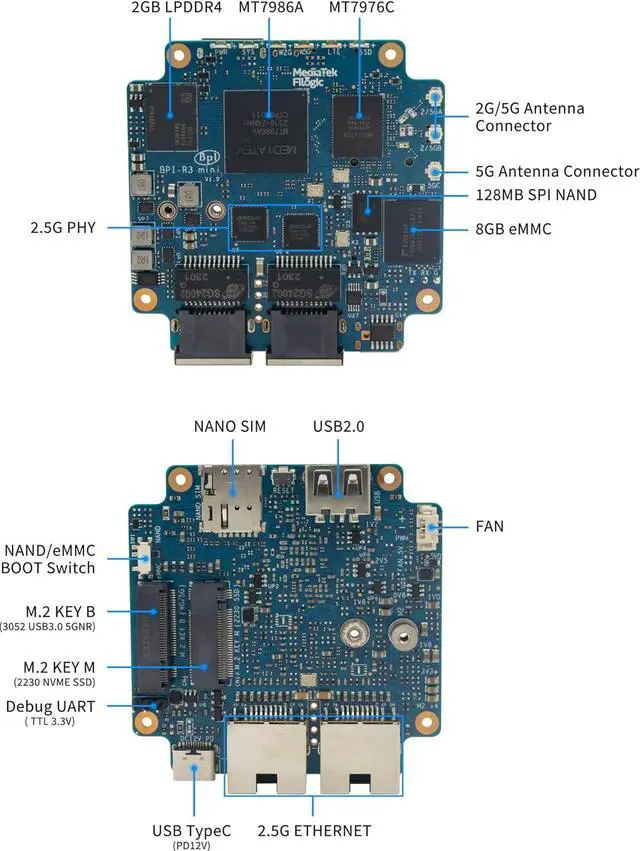

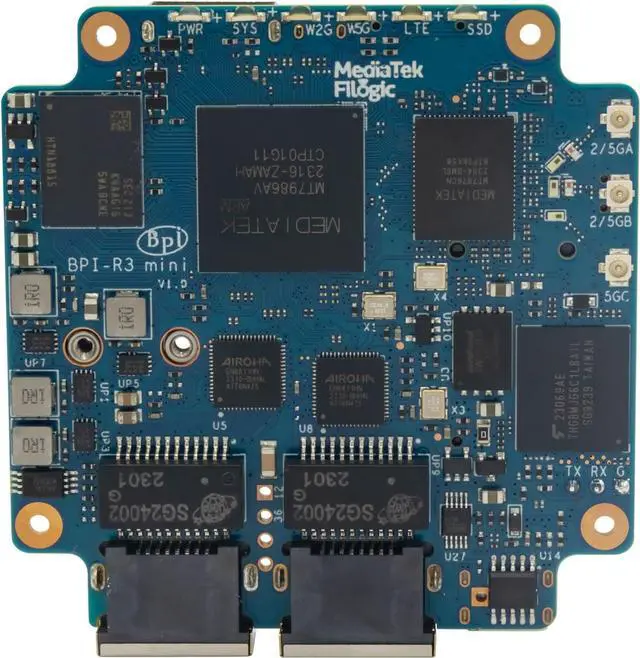

BPI-R3 Mini router board development board using Mediatek MT7986A(Filogic 830) quad-core ARM A53 chip design, onboard 2G DDR memory, 8G eMMC and 128MB SPI NAND storage, is a very high performance open source router development board. It supports Wi-Fi6 2.4G/5G (MT7976C), two 2.5G network ports, NVME SSD(2230), 4G LTE, and 5G network expansion.
MediaTek MT7986A(Filogic 830) Quad core ARM Cortex A53
Wifi 6 2.4G/5GMT7976C
2G DDR RAM;8G eMMC flash
128MB Nand flash
2x 2.5GbE network port
1x M.2 Key B USB interface
1x M.2 KEY M PCIe interface
1x USB2.0 interface
What is BPI-R3 mini
