Fanless 6 LAN Mini PC Firewall Appliance Intel Core i5 8250U Gigabit Ethernet AES-NI pfSense VPN Router Openwrt 32GB RAM 1TB SSD

Be the first to review this product...
  • Intel Core i5-8250U Processor 6M Cache, up to 3.40 GHz
  • 2*DDR4 2133/2400/2666 MHZ, maximum 64GB RAM
  • 1*2.5 inch SATA connector,1*MSATA connector
  • 1*HD display output interface, 6*Intel Gigabit Lan, 1*DC IN, 2*WIFI antenna hole
  • Support pfSense/Windows,10,Server2012/EXSI/Ikuai/WayOS/Mikrotik/Openwrt/Ubuntu/Centos/Lede/Liunx
Overview
Specs
Reviews
image for this item
Processor parameter for referance only



Processors Cores & Threads Cache Base Frequency Max Turbo Frequency Graphics
Celeron 4205U 2 cores, 2 threads 2M 1.80 GHz
 		 Intel UHD Graphics 300MHz-900MHz
Core I3-8130U 2 cores, 4 threads 4M 2.20 GHz 3.40 GHz Intel UHD Graphics 620 300MHz-1.00 GHz
Core I5-8250U 4 cores, 8 threads 6M 1.60 GHz 3.40 GHz Intel UHD Graphics 620 300MHz-1.10GHz
Core i7-8550U 4 cores, 8 threads 8M 1.80 GHz 4.00 GHz Intel UHD Graphics 620 300MHz-1.15GHz





Processors Cores & Threads Cache Base Frequency Max Turbo Frequency Graphics
Celeron 3865U 2 cores, 2 threads 2M 1.80 GHz
 		 Intel HD Graphics 610 300MHz-900MHz
Core I3-10110U 2 cores, 4 threads 4M 2.10 GHz 4.10 GHz Intel UHD Graphics 300MHz-1.00 GHz
Core I5-10210U 4 cores, 8 threads 6M 1.60 GHz 4.20 GHz Intel UHD Graphics 300MHz-1.10GHz
Core i7-10510U 4 cores, 8 threads 8M 1.80 GHz 4.90 GHz Intel UHD Graphics 300MHz-1.15GHz
image for this item
Product Parameters
Processor Intel Celeron 4205U/i3 8130U/i5 8250U/i7 8550U/i3 10110U/i5 10210U/i7 10510U etc.
Memory support Dual slot DDR4 memory, 2133/2400/2666MHz
SSD 1*mSATA solid state drive (supports 2.5-inch hard drive)
Graphics chip Integrated intel HD Graphics 610/620 core graphics

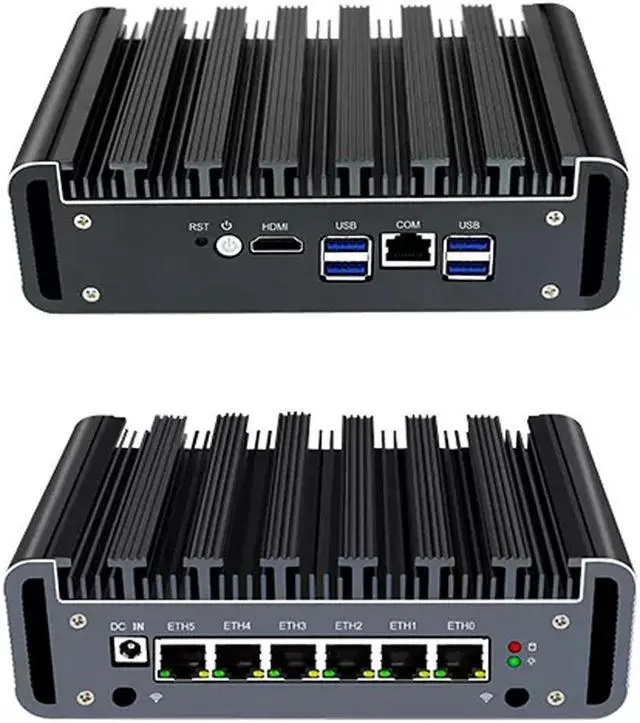

Front I/O interface Reset button*1, power button*1, USB3.0*4, COM*1, HDMI*1

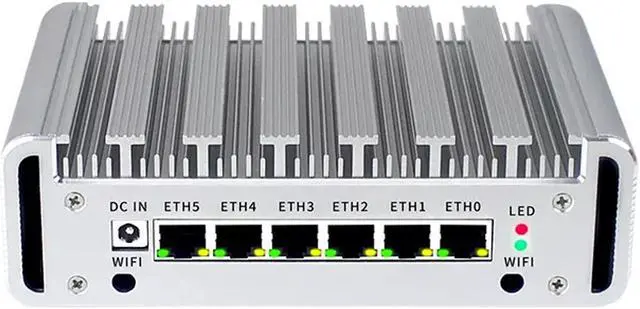

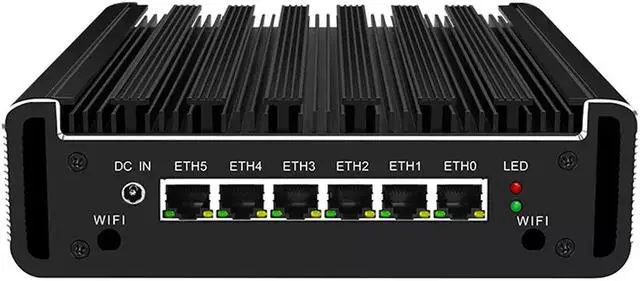

Rear I/O interface Adapter interface*1, LAN*6, WIFI antenna hole*2
NIC chip

Intel 82574L/i211AT 10/100/1000M*6

If you are very concerned about the network card, please contact us before placing an order, each batch may be different.
Expansion slot Support 1 MINI PCIE channel (WIFI/Bluetooth available)
power supply DC12V-4A
Weight 1.6kg
Power on Correndo 24/7
shell material Aluminum alloy shell (no fan silent)

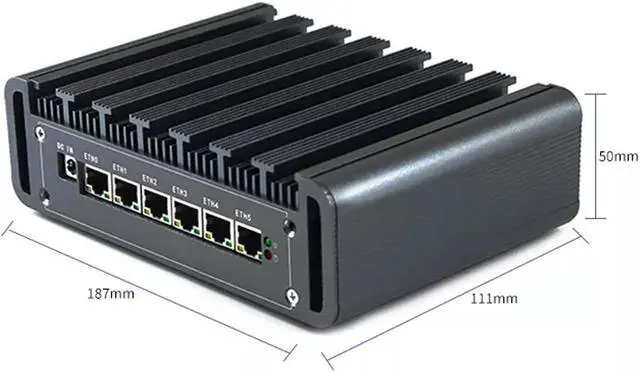

Dimensional  quality 177*121*54(mm)
Operating system Supports operating systems such as iFast, LEDE, ESXI, win7/8/10, etc.
(Support multiple systems, virtual machines, please consult       customer service for other systems)
image for this item
image for this item
image for this item
image for this item
image for this item
image for this item
image for this item
image for this item
Brand: Partaker

CPU: Intel Celeron 4205U/3865U/;Intel Pentium 5405U;Intel Core i3-8130U/i5-7360U/i7-7660U/i5-8250U/i5-10210U/i7-8550U/i7-10510U

Memory:2*DDR4 2133/2400/2666 MHZ, maximum 64GB RAM

Storage:1*2.5 inch SATA connector,1*MSATA connector

Display Chip:Intel HD Graphics

Display Connection:1*HDMI

Front I/O: 6*INTEL Gigabit Network Ports4*USB3.0, 1*CONSOLE, 2*WIFI Antennas

Expansion Connector:USB2.0, Mini PCiePCIeither wifi or 4G

CPU Fan:Fanless Design

Power: External power 12V 4A DC5.5*2.5optional

Operating Systems:Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx

Dimensions:177*121*54mm L*W*H(Internal dust protector)

Accessories:OPS, a power cord, a set of warranty cards
