Question 1

will it support a dvd rw?

Accepted Answer

Yes, as long as your dvd rw drive is SATA and not IDE.  If it looks like a little slot in the back, its Sata.  If it's a big, rectangular spot with visible pins, its IDE

Question 2

Is the onboard audio okay? Using this with a pentium cpu, and a sapphire r7 260x.

Accepted Answer

Oh yea, I am really liking the onboard audio. Has not given me any problems. It may not be the best out their, but I am sure it will get the job done with no problem at all. I used this motherboard for a gaming system. Everything works just fine ever since I built it. I recommend this board :).

Question 3

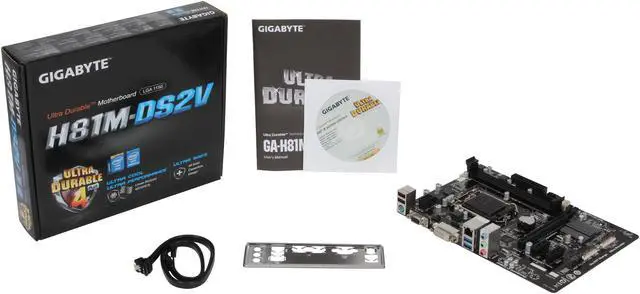

Does this motherboard come with SATA cables to connect to an SSD?

Accepted Answer

Yes, it does, two SATA cables.  In fact I cannot remember buying a motherboard in the past 8 or 9 years that did not come with SATA cables.

Question 4

Can I use a DDR3 1600 Memory?

Is it a big difference compared to the DDR3 1333?

Accepted Answer

there are some difference in native speed, and bigger difference if you OC. if price is not much difference and if you can afford the difference, just get the better one for future proof.

Question 5

can i use a power supply that has two 4-pin aux power connectors instead of an 8-pin for this motherboard?

Accepted Answer

I only connected one 4 pin aux and works fine.

Question 6

Can you OC with this board?

Accepted Answer

Yes, if I recall correctly but even at stock clocks the chipset gets pretty hot so I doubt you'll get a good overclock with it. I used this board for a budget build which is does very well in.

Question 7

Is this motherboard able to support overclocking?

Accepted Answer

This motherboad does support overclocking but it is smart to avoid it as it does not supply enough power and the quality is not built for overclocking

Question 8

Would this motherboard work with one 4 pin 12 volt CPU connector with a low power CPU?

Accepted Answer

I am sorry, I am unsure if this product would work in the manner you want. I had a friend build a system for me and this product has been great. I have had no issues in almost a year and a half.

Question 9

Can I update the BIOS on this board without a CPU? I'm thinking of purchasing an i7-4790 and I've read that H81 needs a BIOS update to support it...

Accepted Answer

No motherboard will post without a cpu--If it does need to be updated sometimes you can get them to send you a cmos chip already updated? I had to do that for a Foxconn barebone mobo recently.

Question 10

does it come with the BIOS update or am i going to have to update it myself?

Accepted Answer

I've never gotten a motherboard that had the latest BIOS installed on it, and this one definitely was not an exception.

Brand	GIGABYTE
Model	GA-H81M-DS2V (rev. 1.0)

CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1600/1333 non-ECC
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express x16	1 x PCI Express x16 slot, running at x16
PCI Express x1	2 x PCI Express x1 slots (All PCI Express slots conform to PCI Express 2.0 standard.)

Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

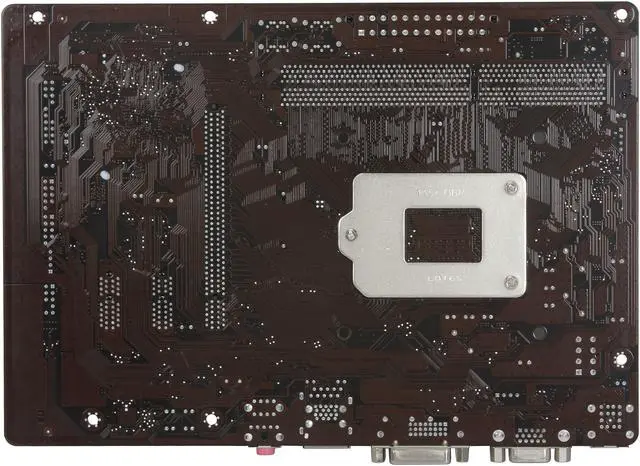

GIGABYTE GA-H81M-DS2V (rev. 1.0) LGA 1150 Intel H81 USB 3.0 Micro ATX Intel Motherboard

Learn more about the GIGABYTE GA-H81M-DS2V (rev. 1.0)

Customer Reviews of the GIGABYTE GA-H81M-DS2V (rev. 1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Back I/O Ports	1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub 1 x DVI-D
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0/2.0 ports
USB 1.1/2.0	2 x USB 2.0/1.1 ports
Audio Ports	3 x audio jacks (Line In, Line Out, Mic In)

Onboard USB	2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x Clear CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 6.7"
Power Pin	24 Pin

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Item#: N82E16813128667
