1ST PC CORP. PFB1212UHE-F00 Case Cooling Fan
- 5500 RPM 252.85 CFM
- Dual Ball Bearing
- 66.5 dBA
Specs
Reviews (94)
Learn more about the 1ST PC CORP. PFB1212UHE-F00
| Brand | 1ST PC CORP. |
|---|---|
| Model | PFB1212UHE-F00 |
| Type | Case Fan |
|---|---|
| Compatibility | Case |
| Bearing Type | Dual Ball Bearing |
| RPM | 5500 RPM |
| Air Flow | 252.85 CFM |
| Noise Level | 66.5 dBA |

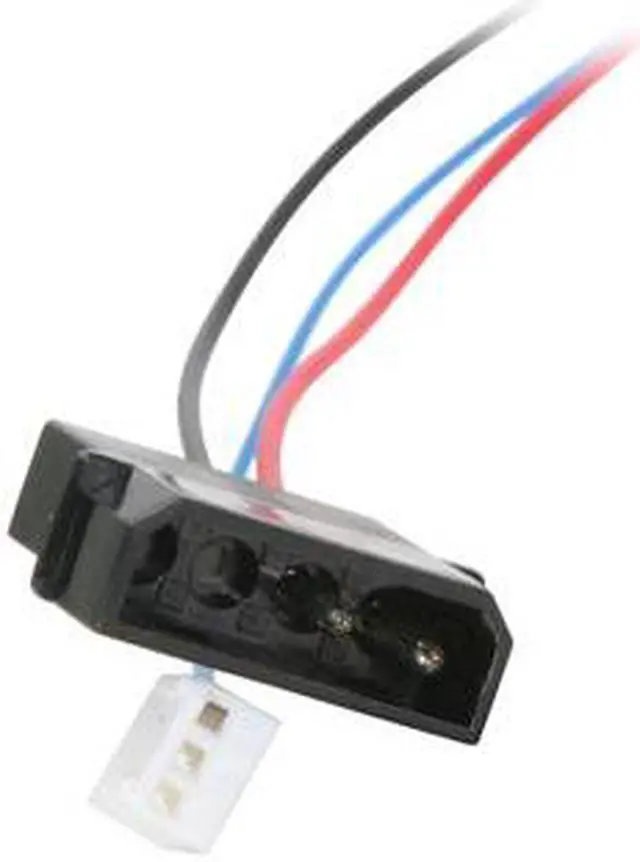

| Power Connector | 3 pin native plus 3 pin to Molex 4 pin cable adapter |
| Color | Black |
| Features | Rated Voltage: 12VDC Operating Voltage Range: 8 - 13.2VDC Input Current: 4.00 Amp (Maximum 4.80 Amp) Input Power: 48W (Maximum 57.60W) Maximum Air Pressure: 35.877 mm H2O or 1.412 inch H2O The Delta PFB1212UHE-F00 is an insanely powerful 120.00 x 120.00 x38.00mm high speed fan, for it pumps out an incredible 252.85 cubic feet of air every minute! At 66.5 dB-A noise level, it is going to be noisy, but who can argue with an amazing near 4:1 airflow to noise ratio, and a 7.16 cubic meter per minute air flow This amazingly powerful fan features a directional fin design that forces air to flow exactly where it's needed and achieve minimum noise under high airflow and air pressure. If you want to tame it down a bit, a fan controller can effectively reduce the noise level by slowing the fan - just make sure it can provide enough power (maximum 57.6W per fan) for the fan. Life expectance is 70,000 hours (or almost 24 years if you operate the fan 8 hours a day) at 40 degree Celsius with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high quality dual ball bearing, all weighing in at a super hefty 0.84 lb. This fan also features Over Current Shut Down function when rotor is locked during operation, thus effectively protects overheating and damaging of the fan. It is also equipped with Motor Start Protection and the fan will start at lower speed, and then reach full speed in about 10 seconds. Operating temperature is -10 to +60 Degree C with 5 - 90% RH. This fan has 3 wires lead with speed sensor output and a standard 3 pin fan connector. A cable adapter (3 pin to Molex 4 pin) so you can power it by a common computer power supply, as most motherboards probably will not be able to provide enough power to this fan through the onboard 3 pin fan headers. You can also power this fan through a fan controller (sold separately) but please make sure the fan controller can provide enough power (48W, or 57.6W at maximum) for this fan. |
|---|
| Dimensions | 120.00 x 120.00 x 38.00mm |
|---|
| Date First Available | April 10, 2009 |
|---|
