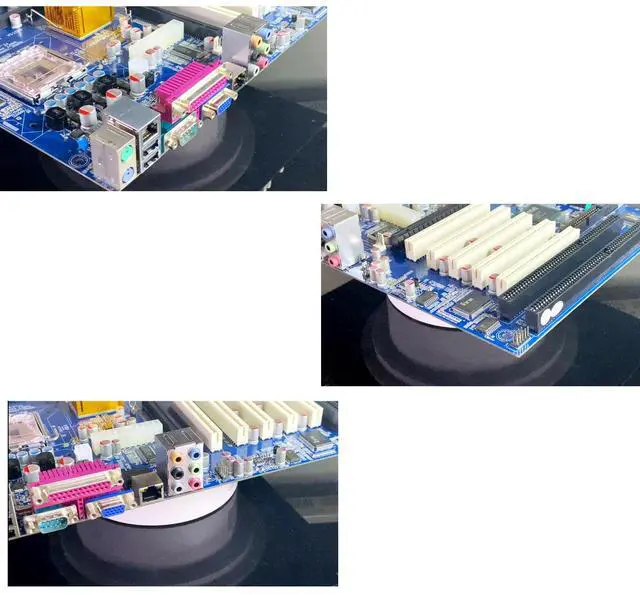

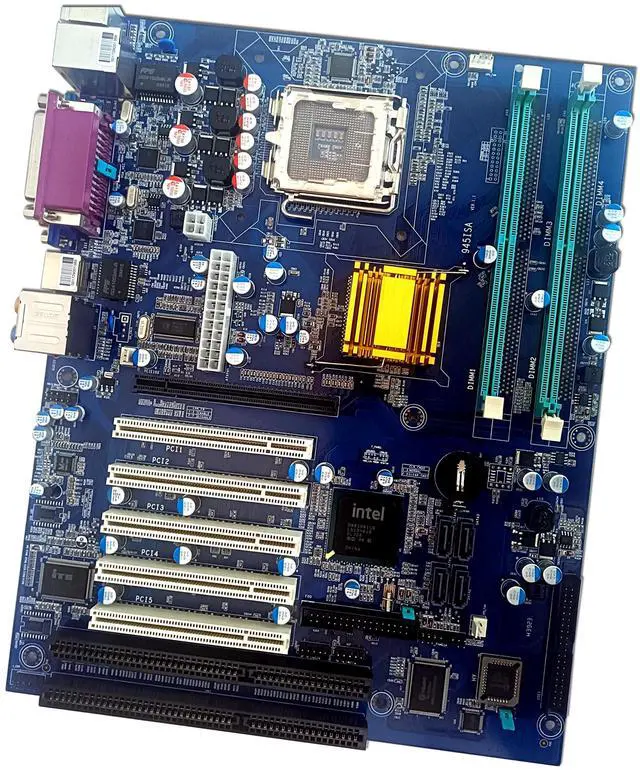

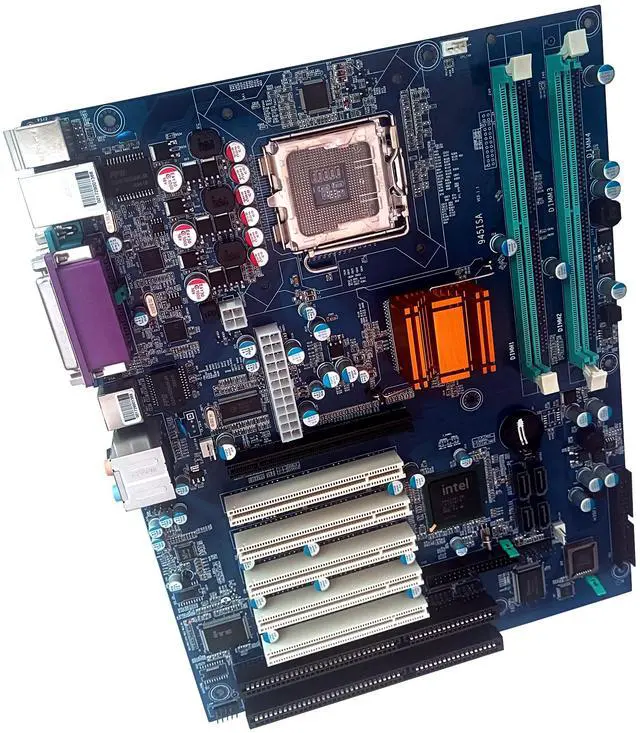

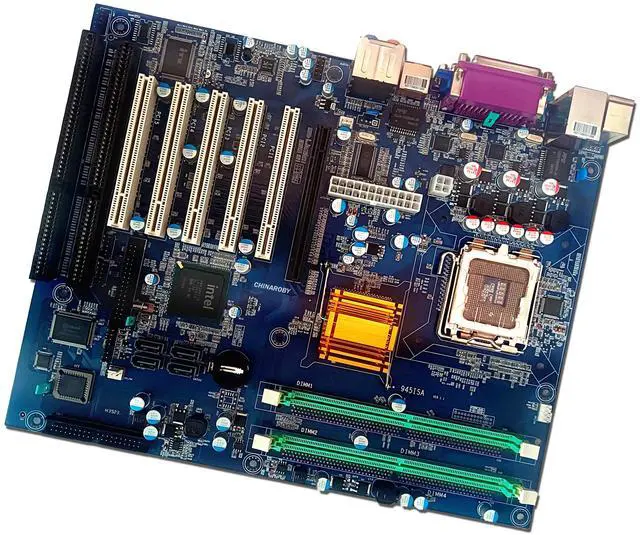

ISA Motherboard 945 945GV ISA Slot Industrial Motherboard LGA775 2* ISA Slots 2* COM 5* PCI 2* RJ45 Ports ISA PCI Mainboard 945GC Replace AIMB-769
- ISA motherboard computer desktop ,945G ATX Board,945GC ISA Slot Mainboard
- ISA Mainboard ATX Motherboard,Compatible devices: Server,PC,Computer
- Chipset type: int. 945GC Chipset
- Cpu model socket: LGA775 for Pentium HT,Pentium D,Pentium 4,Celeron D,Conroce , Conroce L FSB 533/800/1066 CPU , Ram memory technology: 2*DDR2
- PCI Slots:5, PCI-E X16 :1,ISA Slots :2,RTL8111C Ethernet controllers RJ45 LAN ports :2
+
+
Overview
Specs
Reviews

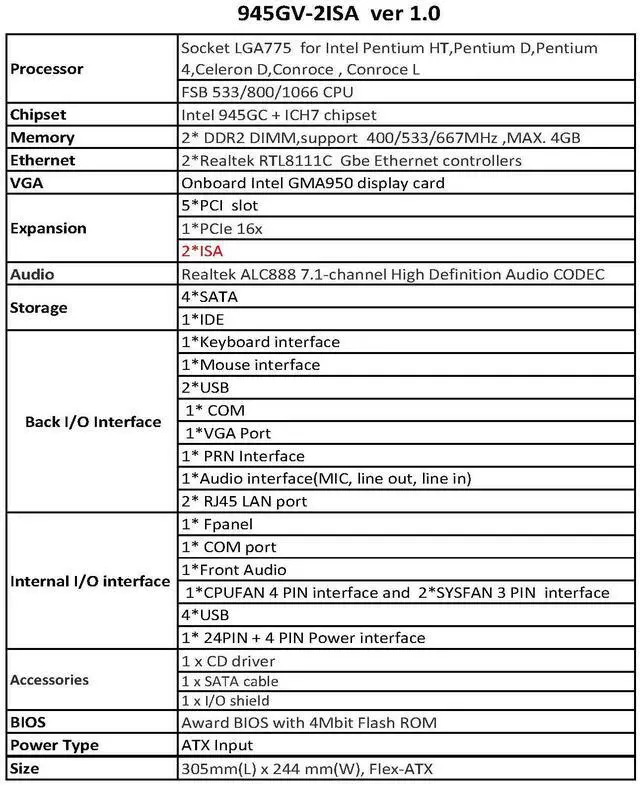

Model No.: 945G-2ISA
Processor CPU
Socket LGA775 for Pentium HT, Pentium D, Pentium 4, Celeron D, Conroce, Conroce L FSB 533/800/1066 CPU
Chipset 945GC + ICH7 chipset
Memory 2* DDR2 DIMM, support 400/533/667MHz, MAX. 4GB
Ethernet 2*Realtek RTL8111C Gbe Ethernet controllers
VGA Onboard GMA950 display card
Expansion 5*PCI slot, 1*PCIe 16x, 2*ISA
Audio Realtek ALC888 7.1 channel High Definition Audio CODEC
Storage 4*SATA, 1*IDE
Back I/O Interface
1*Keyboard interface
1*Mouse interface
2*USB ports
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port
BIOS Award BIOS with 4Mbit Flash ROM
Power Type ATX Input
Size 305mm (L) x 244 mm (W), FlexATX

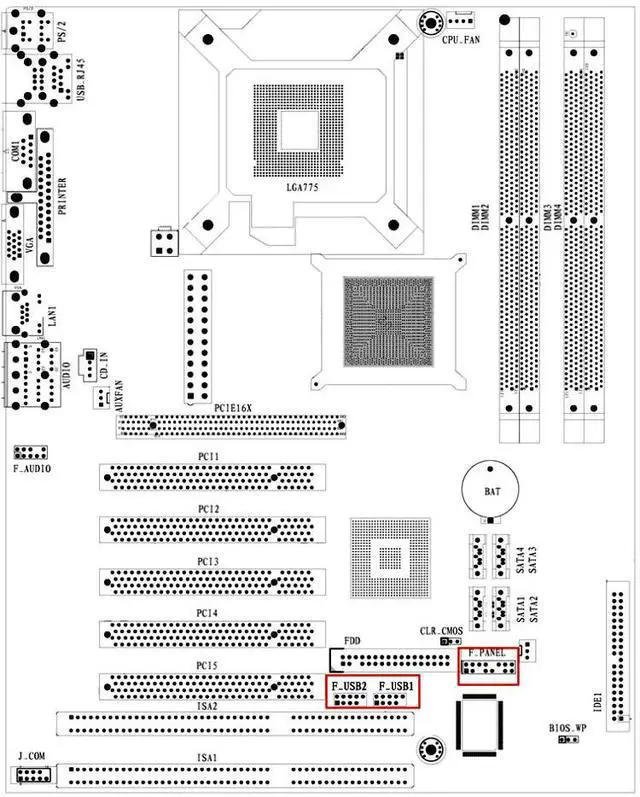

Internal I/O interface
1* Fpanel
1* COM port
1*Front Audio
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
4*USB
1* 24PIN + 4 PIN Power interface
=========
Processor CPU
Socket LGA775 for Pentium HT, Pentium D, Pentium 4, Celeron D, Conroce, Conroce L FSB 533/800/1066 CPU
Chipset 945GC + ICH7 chipset
Memory 2* DDR2 DIMM, support 400/533/667MHz, MAX. 4GB
Ethernet 2*Realtek RTL8111C Gbe Ethernet controllers
VGA Onboard GMA950 display card
Expansion 5*PCI slot, 1*PCIe 16x, 2*ISA
Audio Realtek ALC888 7.1 channel High Definition Audio CODEC
Storage 4*SATA, 1*IDE
Back I/O Interface
1*Keyboard interface
1*Mouse interface
2*USB ports
1* COM
1*VGA Port
1* PRN Interface
1*Audio interface(MIC, line out, line in)
2* RJ45 LAN port
BIOS Award BIOS with 4Mbit Flash ROM
Power Type ATX Input
Size 305mm (L) x 244 mm (W), FlexATX
Internal I/O interface
1* Fpanel
1* COM port
1*Front Audio
1*CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface
4*USB
1* 24PIN + 4 PIN Power interface
=========
