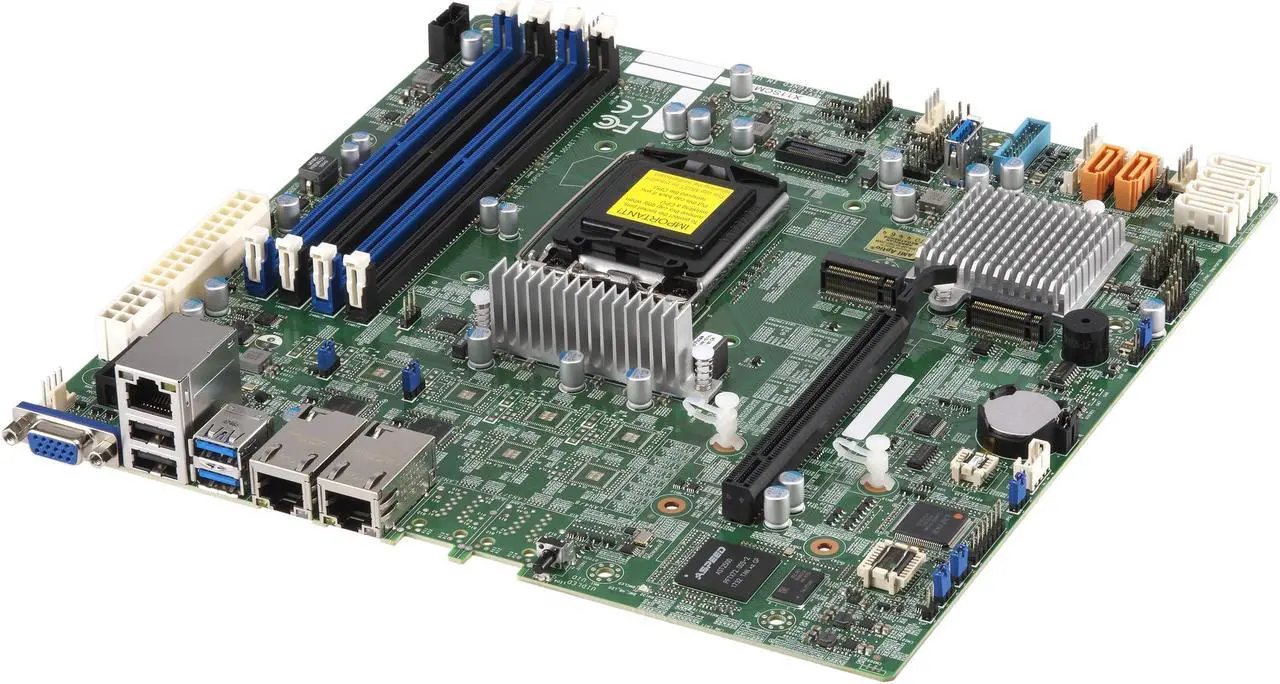

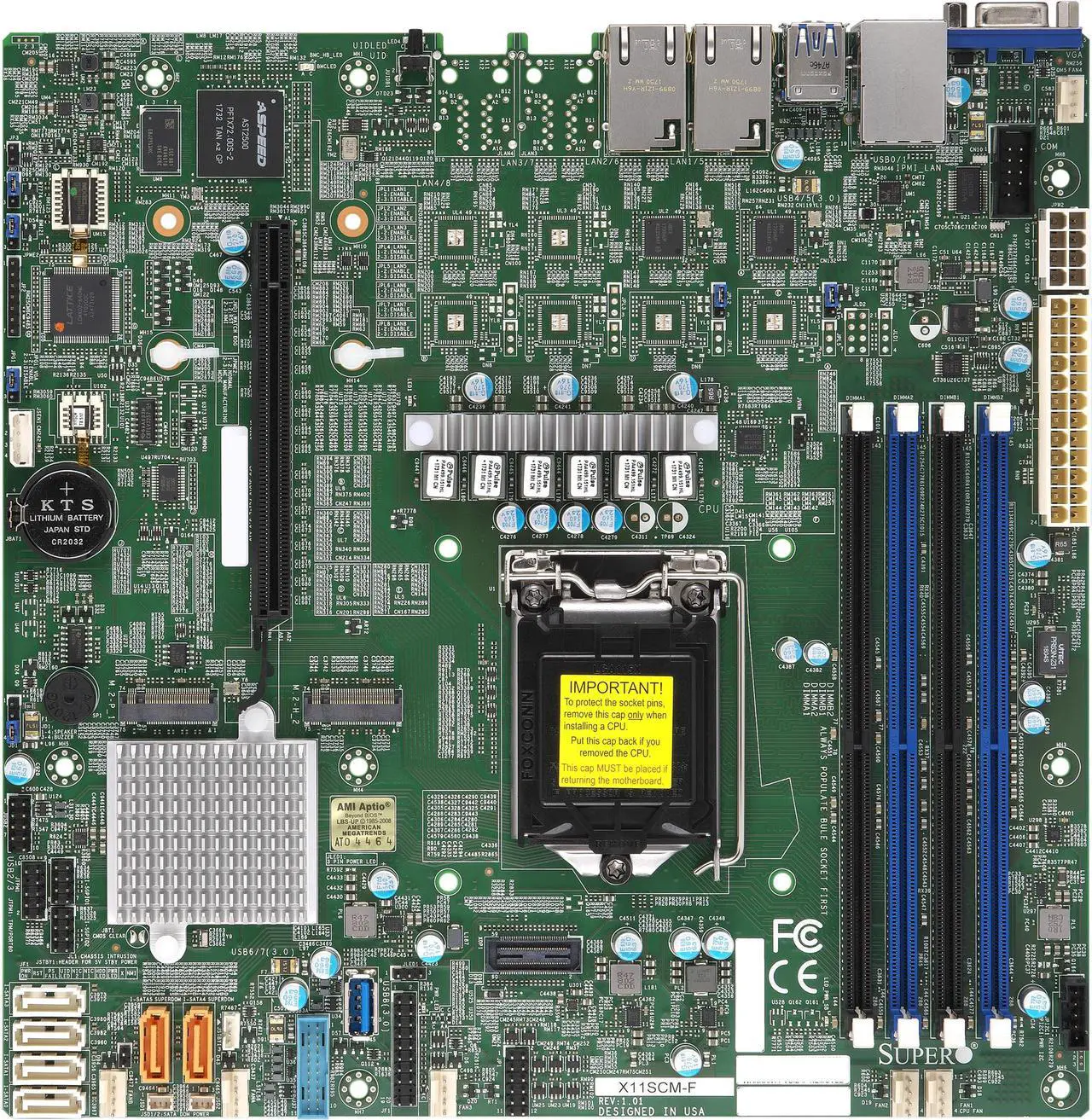

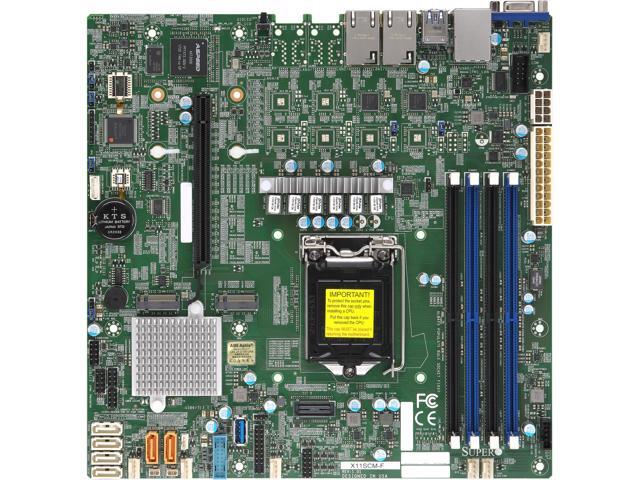

SUPERMICRO MBD-X11SCM-F-O Micro ATX Server Motherboard LGA 1151 Intel C246
- LGA 1151
- Intel C246
+
+
Specs
Reviews
Learn more about the Supermicro MBD-X11SCM-F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SCM-F-O |

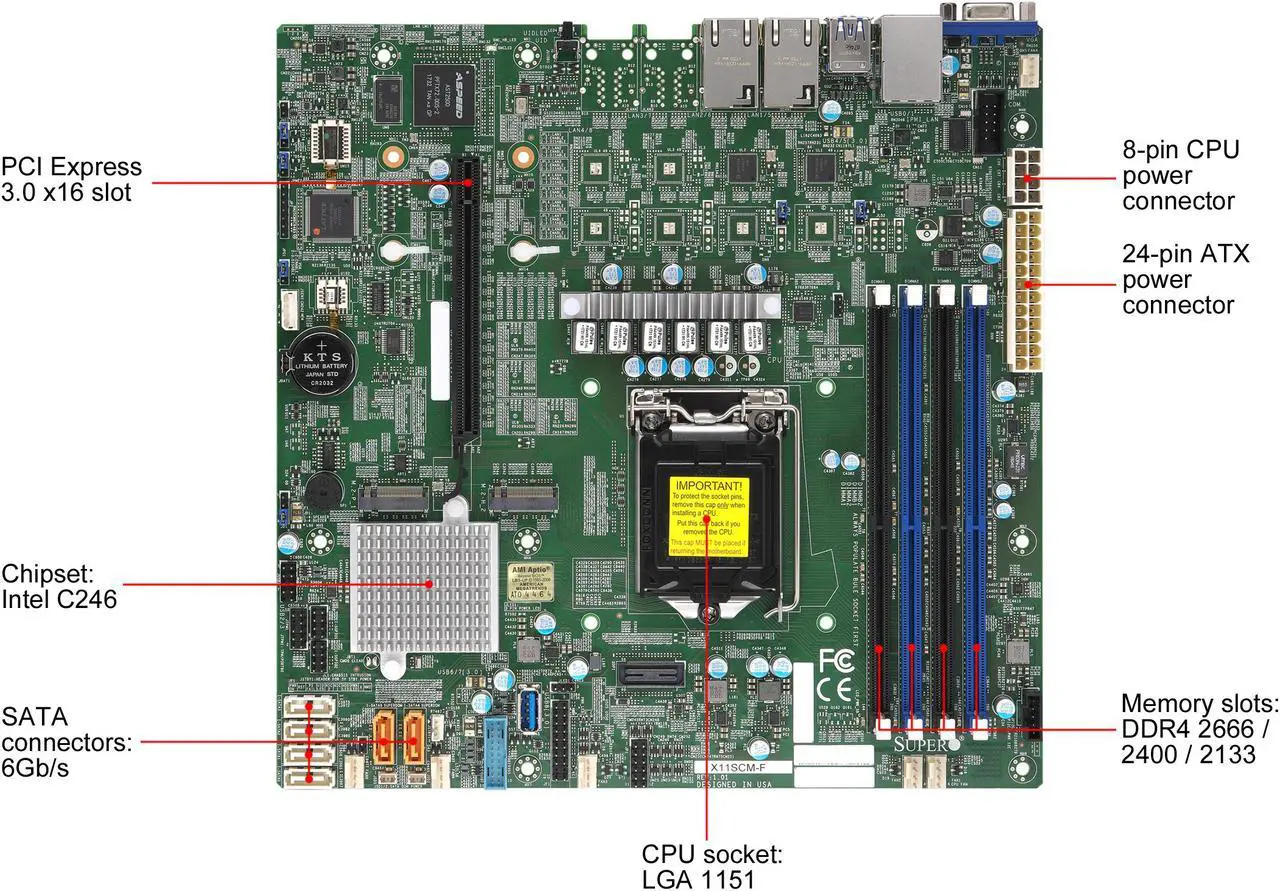

| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | 8th Generation Intel Core i3 / Pentium / Celeron Processor, Intel Xeon Processor E-2100 series. Socket LGA 1151 supported, CPU TDP support Up to 95W TDP |
| North Bridge | Intel C246 |
|---|
| DDR4 Standard | DDR4 2666 / 2400 / 2133 MHz ECC SDRAM 72-bit |
|---|---|
| Maximum Memory Supported | Up to 128GB Unbuffered ECC UDIMM, DDR4-2666 MHz, in 4 x DIMM slots |
| PCI Express 3.0 x16 | 1 x PCI-E 3.0 x16 |
|---|
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

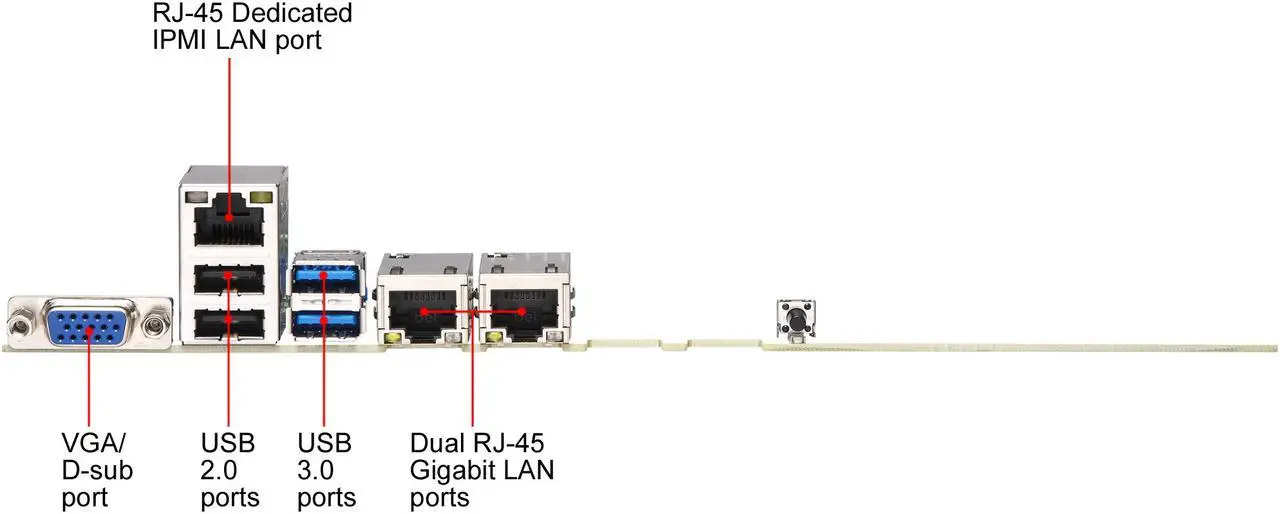

| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.1 | 2 x USB 3.1 |
| Features | 8th Generation Intel Core i3 / Pentium / Celeron Processor, Intel Xeon Processor E-2100 series., Socket LGA 1151 supported, CPU TDP support Up to 95W TDP Intel C246 Up to 128GB Unbuffered ECC UDIMM, DDR4-2666 MHz, in 4 x DIMM slots 1 x PCI-E 3.0 x16 M.2 Interface: 1 x SATA / PCI-E 3.0 x4 and 1 x PCI-E 3.0 x4 M.2 Form Factor: 2280 / 22110 M.2 Key: M-Key Double Height Connector Dual LAN with Intel Ethernet Controller I210-AT Intel C246 controller for 6 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 5 x USB 3.0 ports, 4 x USB 2.0 ports 1 x VGA, 1 x COM, 1 x TPM 2 x SuperDOM with built-in power |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Date First Available | April 03, 2025 |
|---|
