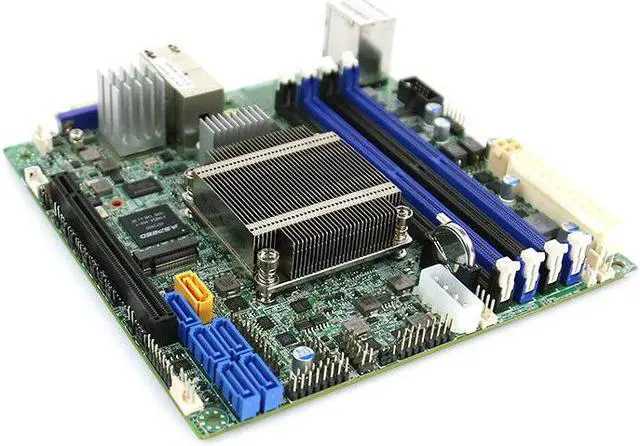

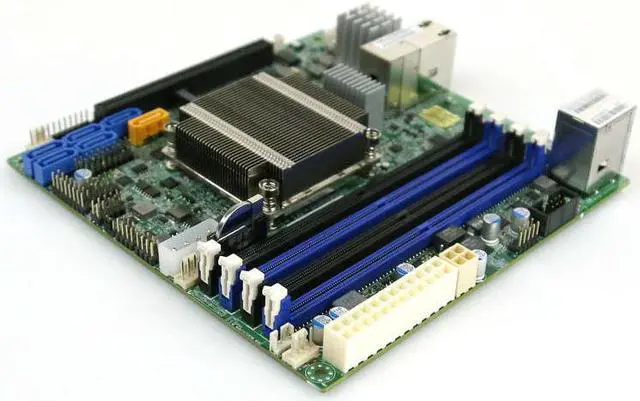

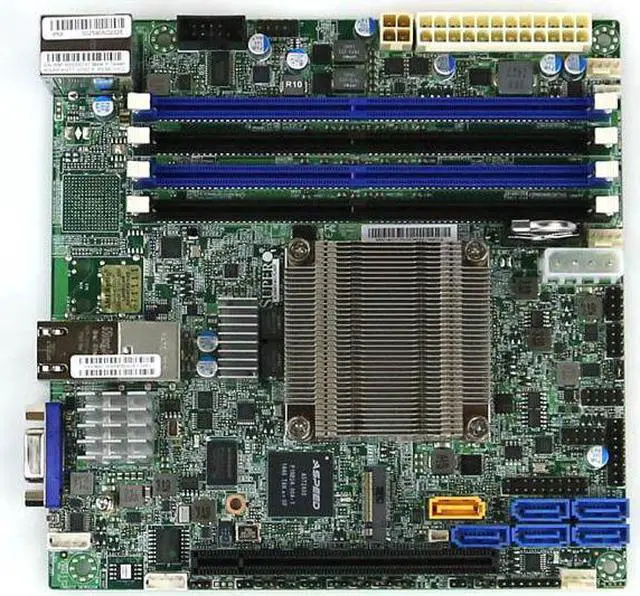

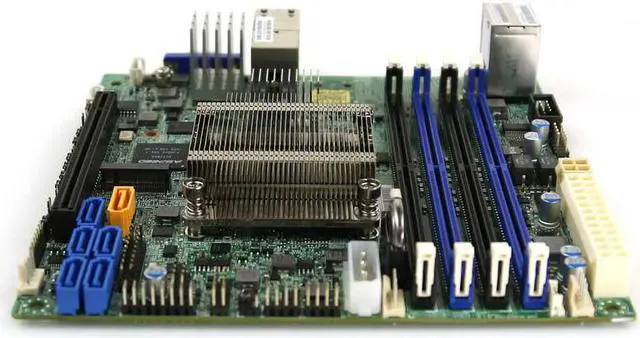

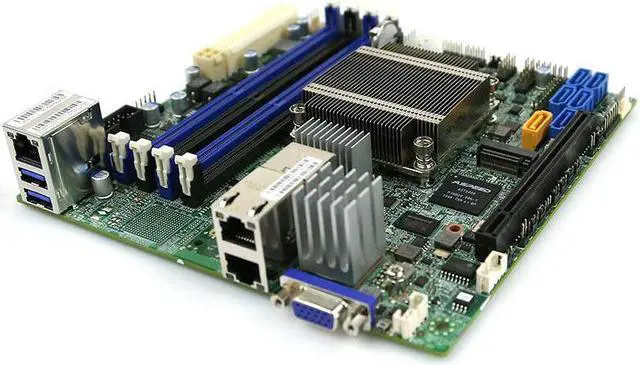

Supermicro X10SDV-4C-TLN2F Motherboard Mini-ITX Xeon D1521
- Intel® Xeon® processor D-1521, Single socket FCBGA 1667; 4-Core, 8 Threads, 45W
- System on Chip
- Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
- 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
- 2 10GbE LAN ports
- 6 SATA3 (6Gbps) ports via SoC
- 2 USB 3.0 ports (rear), 4 USB 2.0 ports (via headers)
- 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
- 12V DC input and ATX Power Source
- Broadwell-DE, Xeon D 4-Core
+
+
Overview
Specs
Reviews
Product SKUs
Motherboard
X10SDV-4C-TLN2F (Bulk Pack)
Physical Stats
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7", (17cm x 17cm)
Processor/Cache
CPU
Intel® Xeon® processor D-1521
FCBGA 1667
CPU TDP support 45W, 6MB, 4 Cores, 8 Threads
System Memory
Memory Capacity
4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SoC controller for 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 RSTe
Network Controllers
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
Aspeed AST2400
TPM
TPM header
Input / Output
SATA
6 SATA3 (6Gbps) ports
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (via headers)
Video
1 VGA port
Serial Port / Header
1 COM port (header)
DOM
1 SuperDOM (Disk on Module) power connector
Chassis (Optimized for X10SDV-4C-TLN2F )
1U Chassis:
SC505-203B
SC504-203B
Important Chassis Notes
To support the new generation Intel®Xeon® processor-based motherboards, Revision N chassis is recommended. Please talk to your sales representative for details.
Expansion Slots
PCI-Express
1 PCI-E 3.0 x16 slot
M. 2
Interface: PCI-E 3.0 x4
Form Factor: M Key 2242/2280
Support SATA devices
System BIOS
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Management
Software
IPMI 2.0
KVM with dedicated LAN
NMI
SUM
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI / APM Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
Monitors for CPU Cores, + 1.8V, +12V, + 3.3V, +5V, Chassis intrusion header, System level control
FAN
Total of three 4-pin fan headers supporting tachometer status monitoring
Dual Cooling Zone
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Other Features
Chassis intrusion detection
Chassis intrusion header
12V DC or ATX Power Source
RoHS
Operating Environment
Operating Temperature Range
0°C - 60°C (32°F - 140°F)
Motherboard
X10SDV-4C-TLN2F (Bulk Pack)
Physical Stats
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7", (17cm x 17cm)
Processor/Cache
CPU
Intel® Xeon® processor D-1521
FCBGA 1667
CPU TDP support 45W, 6MB, 4 Cores, 8 Threads
System Memory
Memory Capacity
4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SoC controller for 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 RSTe
Network Controllers
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI
Support for Intelligent Platform Management Interface v. 2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
Aspeed AST2400
TPM
TPM header
Input / Output
SATA
6 SATA3 (6Gbps) ports
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (via headers)
Video
1 VGA port
Serial Port / Header
1 COM port (header)
DOM
1 SuperDOM (Disk on Module) power connector
Chassis (Optimized for X10SDV-4C-TLN2F )
1U Chassis:
SC505-203B
SC504-203B
Important Chassis Notes
To support the new generation Intel®Xeon® processor-based motherboards, Revision N chassis is recommended. Please talk to your sales representative for details.
Expansion Slots
PCI-Express
1 PCI-E 3.0 x16 slot
M. 2
Interface: PCI-E 3.0 x4
Form Factor: M Key 2242/2280
Support SATA devices
System BIOS
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Management
Software
IPMI 2.0
KVM with dedicated LAN
NMI
SUM
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI / APM Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
Monitors for CPU Cores, + 1.8V, +12V, + 3.3V, +5V, Chassis intrusion header, System level control
FAN
Total of three 4-pin fan headers supporting tachometer status monitoring
Dual Cooling Zone
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Other Features
Chassis intrusion detection
Chassis intrusion header
12V DC or ATX Power Source
RoHS
Operating Environment
Operating Temperature Range
0°C - 60°C (32°F - 140°F)
