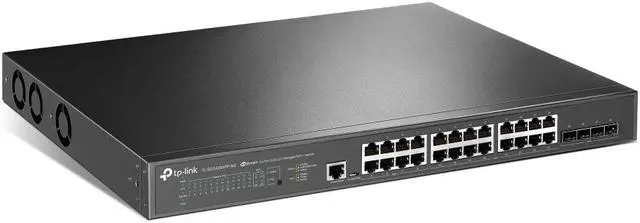

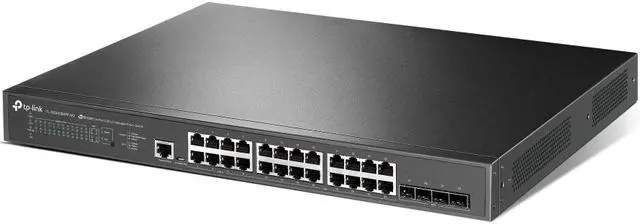

Omada 24-Port 2.5GBASE -T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
SG3428XPP-M2
Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
8x 2.5G PoE++ ports (up to 60 W PoE out per port)
16x 2.5G PoE+ ports (up to 30 W PoE out per port)
4x 10G SFP+ slots
500 W total PoE budget
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Learn more about the TP-Link TL-SG3428XPP-M2
Model
Brand
TP-Link
Model
TL-SG3428XPP-M2
Format & Standards
Format
Rackmount
Network Management Type
Managed
Ports & Interface
Primary Ports
24 x RJ45 + 4 x SFP
Primary Port Speed
10 Gbps
Primary Port Type
24 x 2.5 Gbps RJ45 Ports 4 x 10G SFP+ Slots
Data Transmission
MAC Address Table
32K
VLAN Support
VLAN Group - Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ Voice VLAN
Jumbo Frames
9KB
Details
Buffer Memory
16 Mbit
Security
IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries DoS Defend Static/Dynamic Port Security - Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
PoE
Standard: 802.3bt/at/af compliant PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port Power Budget: 500 W
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
