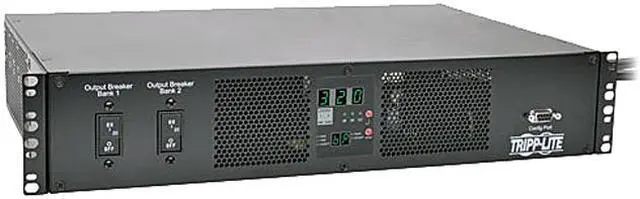

Learn more about the Tripp Lite PDUMH32HVAT
ModelBrand | Tripp Lite |
---|
Model | PDUMH32HVAT |
---|
DetailsType | Metered; Auto-Transfer Switch |
---|
Rack Size | 2U |
---|
Style | Horizontal |
---|

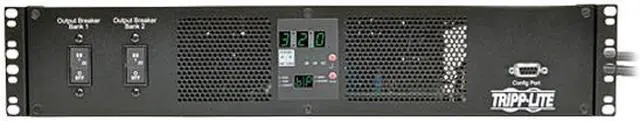

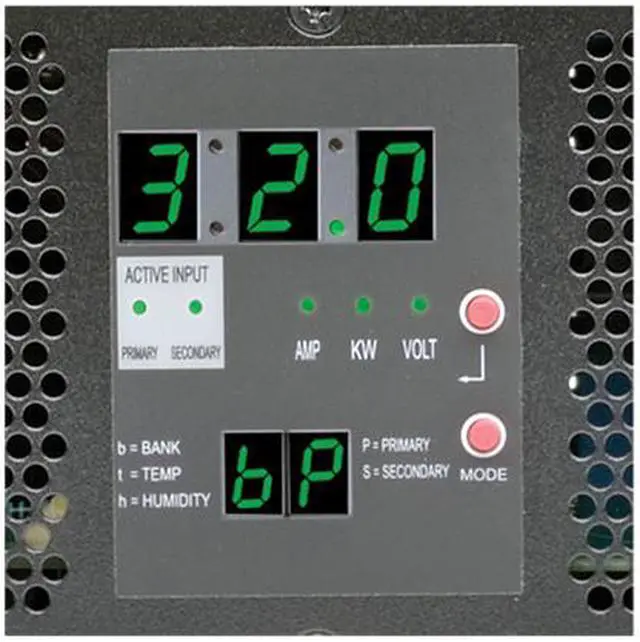

Front Panel LEDs | Front panel LEDs confirm amp / kilowatt / voltage reporting information |
---|
Certifications | Tested to CE / IEC 60950-1, EN CLASS A (Emissions), NOM (Mexico), TAA Compliant |
---|
ROHS | Yes |
---|
InputInput Voltage | 200 - 240V |
---|
Maximum Input Current | 32A |
---|

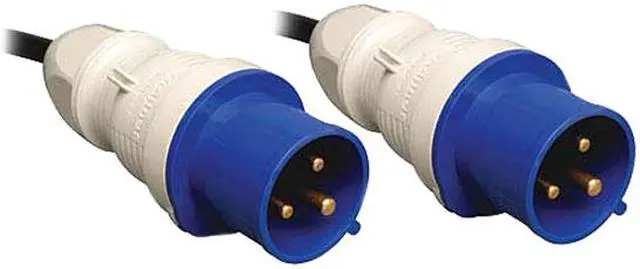

Input Connector(s) | 2 x IEC-309 32A BLUE (2P+E) |
---|
Cord Length | 9.84 Feet |
---|
OutputOutput Voltage | 230V |
---|
Output Frequency | 50/60Hz |
---|
Output Watts (VA) | 7.4kW |
---|

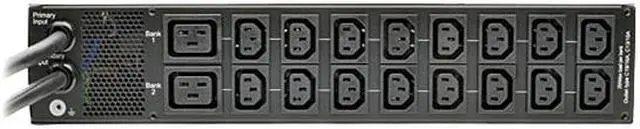

Output Connector(s) | 16 x C13; 2 x C19 |
---|
Overload Protection | Includes two 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 x C13, 1 x C19); Breaker 2 controls the lower row of outlets (8 x C13, 1 x C19) |
---|
EnvironmentalOperating Relative Humidity | 5 to 95% (non-condensing) |
---|
Operating Elevation | 0 - 3000 m |
---|
Storage Temperature | -15 - 50 ºC |
---|
FeatureFeatures | Primary and Secondary Inputs for Power Redundancy
Automatic Transfer Switching
Multifunction Digital Display
20A Circuit Breakers
Cord Retention Brackets
Mounts Horizontally in 2U of Rack Space
TAA-Compliant |
---|
Dimensions & WeightDimensions | 3.46" x 17.48" x 12.48" |
---|
Weight | 13.67 lbs. |
---|

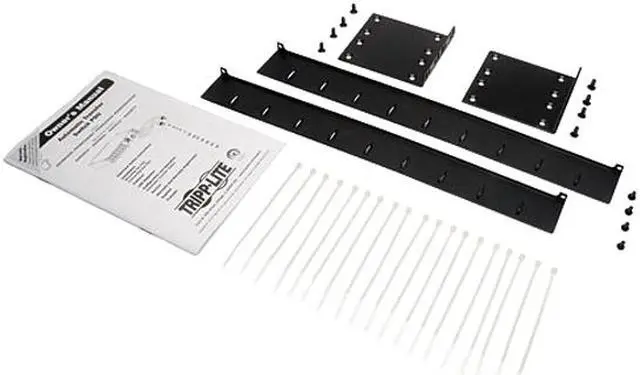

DetailsPackage Includes | PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Switched PDU Rack-mounting brackets Cord retention brackets Cable ties Owner's manual |
---|
Manufacturer WarrantyParts | 2 Year |
---|
Additional InformationDate First Available | April 03, 2025 |
---|
