I have a Compatible control unit and i am looking to extend my battery run time... i am debating either this item or SMX120RMBP2U ?? they look to be about the same can you please tell me the difference ??

Question

I have a Compatible control unit and i am looking to extend my battery run time...  i am debating either this item or SMX120RMBP2U ?? they look to be about the same can you please tell me the difference ??

Accepted Answer

I spent way too much time researching this because I was annoyed that there was a 2U option that I didn't know about - Thanks Stanley...

The only difference that I can see is the layout of the batteries and therefore the depth and height of the item.  The SMX120BP (which I bought) is 4U high and almost square width and depth at 17w and 19D.  The SMX120RMBP2U is 2U high and more rectangle like at 17W and 26D.  My guess would be that the 2u version would be better suited to a 4 post rack system and the 4u a 2 post rack system for weight distribution.

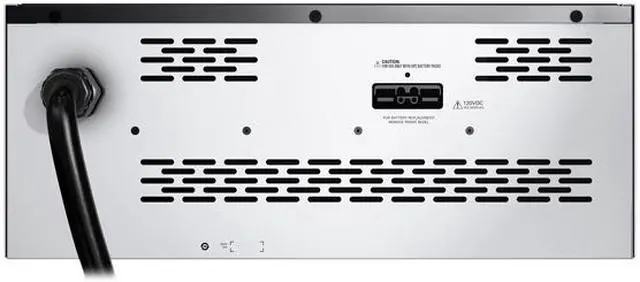

Also something that I did not know was that at least the SMX120BP uses a Nema 5 -30P locking power plug.  For some stupid reason, I thought it would be a standard 120v plug.

Brand	APC
Model	SMX120BP

Type	External Battery Pack
Compatibility	APC Smart-UPS: SMX2000RMLV2 SMX2200RMHV2U SMX2200RMLV2U SMX3000RMHV2U SMX3000RMHV2UNC SMX3000RMLV2U SMX3000RMLV2UNC
Specifications	Battery Life: 3 Years to 5 Years Output Voltage:120

Dimensions	17.00" x 7.00" x 19.00"
Weight	134.28 lb.

Meet Your Seller

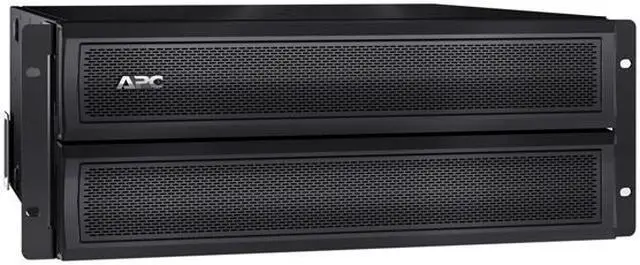

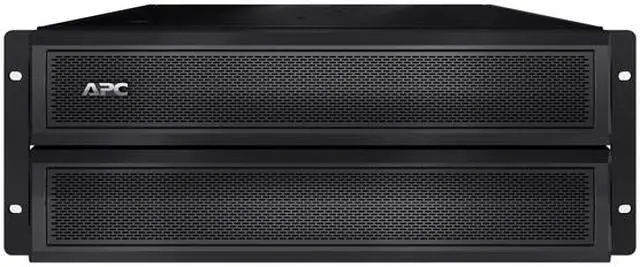

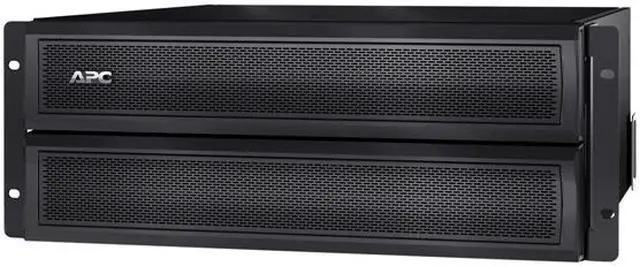

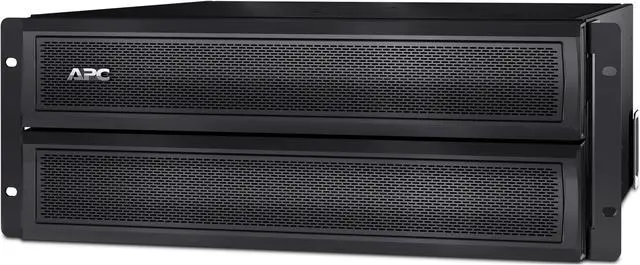

APC External Battery Pack for Smart-UPS Extended Run X-Series, 48V, 4U Rackmount/Tower Convertible (SMX120BP)
