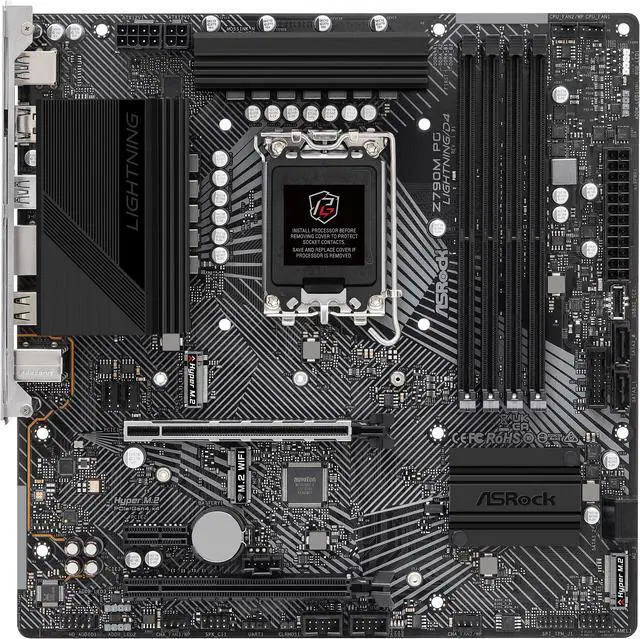

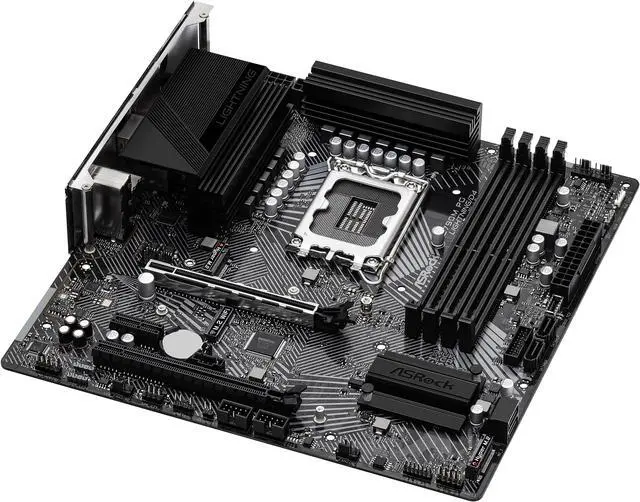

ASRock Z790M PG LIGHTNING/D4 Intel LGA1700 (14th,13th,12th Gen) Micro-ATX Mainboard, 4 slots DDR4, PCIE 4.0 x16, HDMI 2.1port, Intel 1Gb LAN, Dual M.2 slots, 7.1 Nahimic Audio, USB3.2 Gen2 Type-C, 10+1+1 Power Phase
- BIOS update may be required when used with some 14th generation Intel Core processors.
- Supports 14th / 13th / 12th Gen Intel Core Processors (LGA1700).
- Supports DDR4 5333MHz(OC).
- 10+1+1 Power Phase, Dr.MOS for VCore+GT.
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1: 1 M.2 Key E.
- Graphics Output Options: HDMI.
- Realtek ALC897 7.1 CH HD Audio Codec Nahimic Audio.
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4): 1 Hyper M.2 (SATA & PCIe Gen4x4).
- 1 USB 3.2 Gen2 Rear Type-A: 1 USB 3.2 Gen2 Rear Type-C, 1 USB 3.2 Gen1 Front Type-C.
- 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front): 6 USB 2.0 (2 Rear, 4 Front).
- Intel 1G LAN.
- Supports ASRock Auto Driver Installer.
+
+
Specs
Reviews (427)
Learn more about the ASRock Z790M PG LIGHTNING/D4
| Brand | ASRock |
|---|---|
| Model | Z790M PG LIGHTNING/D4 |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors |
| Chipset | Intel Z790 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. Supports Intel Extreme Memory Profile (XMP) 2.0 * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
|---|---|
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* |
| PCI Express x1 | 1 x PCIe 3.0 x1 Slot (PCIE2)* * Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* * Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |

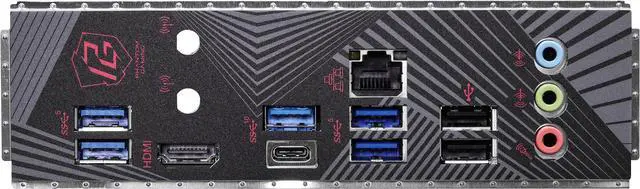

| Back I/O Ports | 2 x Antenna Mounting Points 1 x HDMI Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~4/WP support the fan power up to 2A (24W). ***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
| Features | Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield EZ Update ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|---|
| Package Contents | 1 x User Manual 2 x SATA Data Cables 3 x Screws for M.2 Sockets |
|---|
| First Listed on Newegg | September 27, 2022 |
|---|
