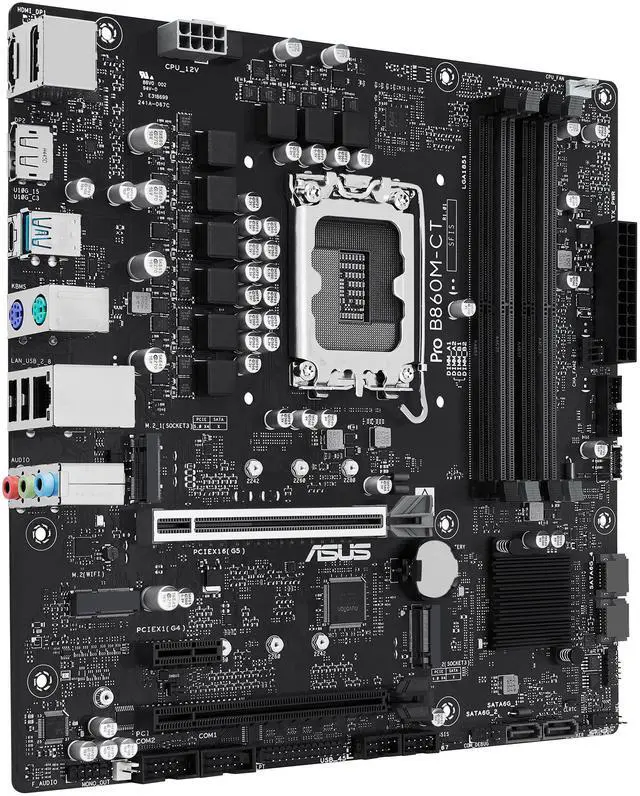

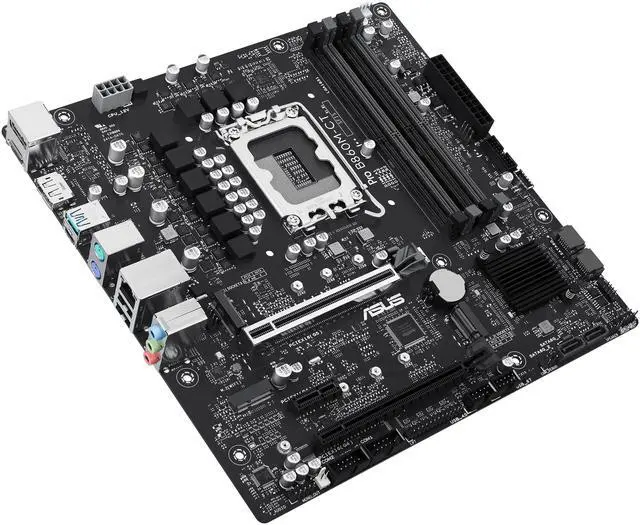

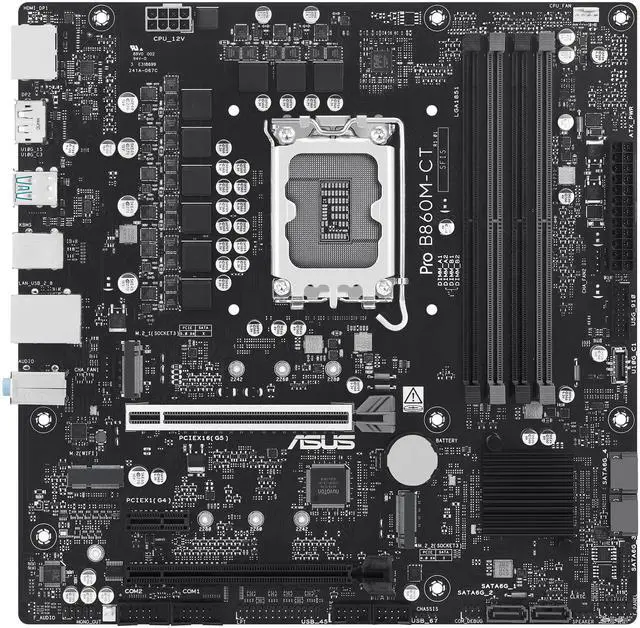

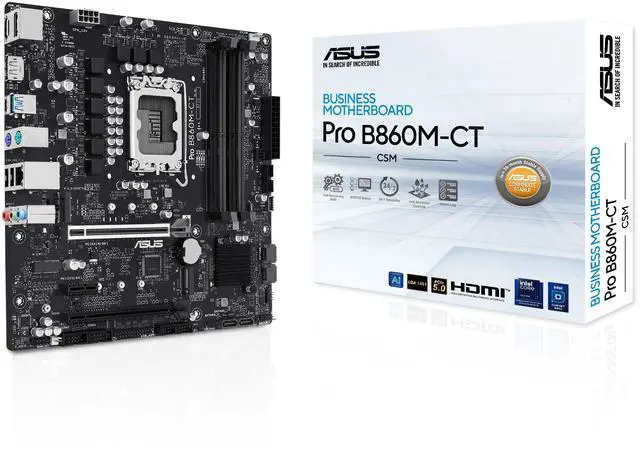

ASUS PRO B860M-CT-CSM Intel B860 (LGA 1851) mATX Motherboard, PCIe 5.0, DDR5, 2x M.2, Intel 1G LAN, 2x DP, HDMI, USB Type-C, TPM IC Onboard with Enhanced Security, Reliability and Manageability
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C
+
+
Specs
Reviews
Learn more about the ASUS PRO B860M-CT-CSM
| Brand | ASUS |
|---|---|
| Model | PRO B860M-CT-CSM |
| Part Number | 90MB1MBM-MVAAYC |
| CPU Socket Type | LGA 1851 |
|---|---|
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Supports up to 8666+ MT/s(OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports up to 8666+ MT/s(OC) , Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| PCI Express x1 | 1 x PCIe 4.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) |
| SATA RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| Max LAN Speed | 1Gbps |
|---|---|
| Wireless LAN | M.2 slot only 2230 (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |

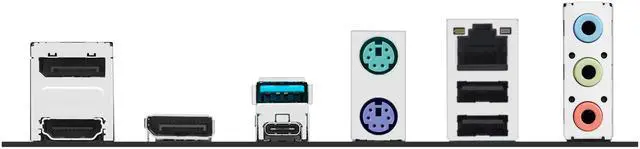

| Back I/O Ports | 1 x USB 10Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x Intel 1Gb Ethernet 3 x Audio jacks |
|---|
| Onboard USB | 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x SMBUS header 1 x 10-1 pin Front Panel System header 1 x SPI header(14-5 pin) |
| BIOS Feature | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Software | ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey |
| Windows 11 | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| Features | ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - Anti-moisture coating - BIOS EZ Deploy - 24/7 reliability - Overcurrent protection TXT support TPM IC onboard * Please contact local FAE for Commercial BIOS kit. |
|---|

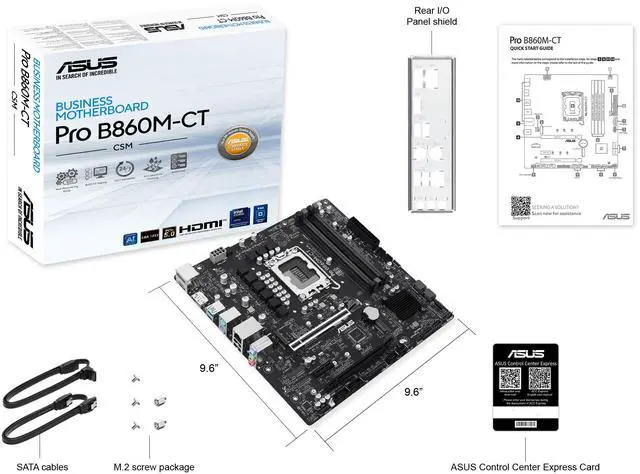

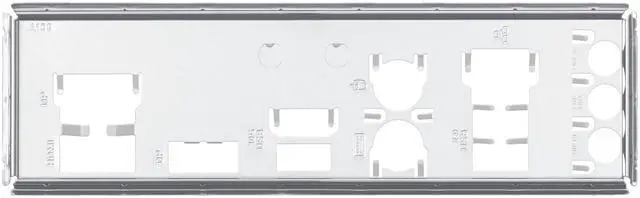

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Screw package for M.2 SSD 1 x I/O Shield 1 x M.2 Key E screw package Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
|---|
| First Listed on Newegg | August 11, 2025 |
|---|
