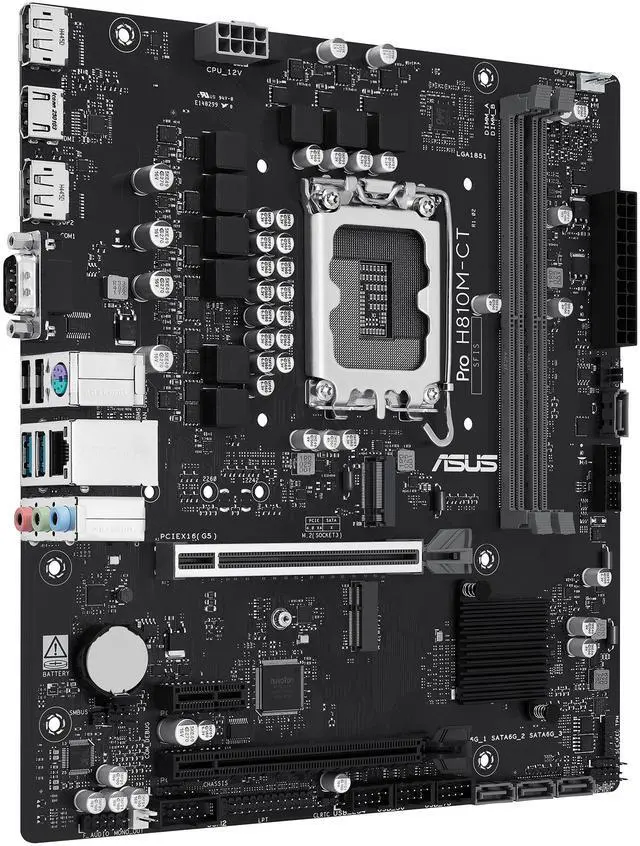

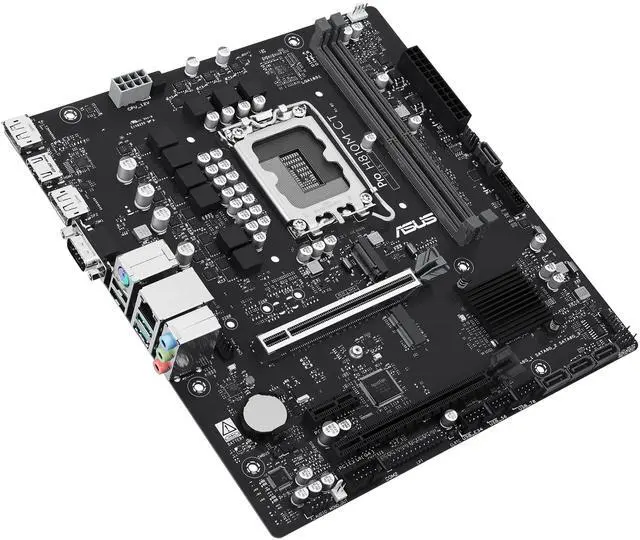

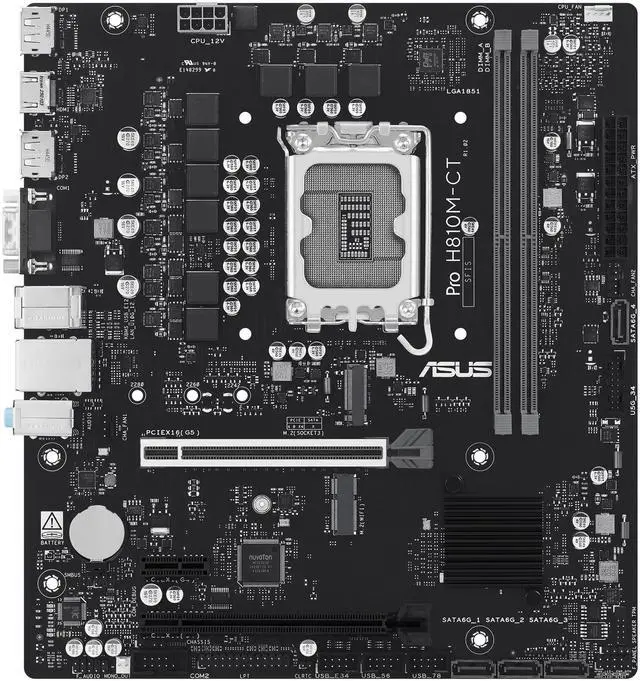

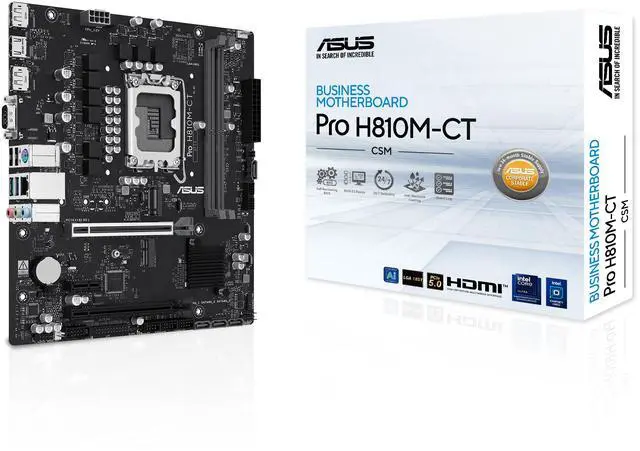

ASUS PRO H810M-CT-CSM Micro-ATX Intel H810 Business Motherboard, Intel Core Ultra Processors (Series 2) Ready, DDR5, M.2, HDMI with Enhanced Security, Reliability, Manageability and Serviceability
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: A self-recovering BIOS, TXT, TPM to safeguard PCs and NIST SP 800-193 compliance
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: BIOS EZ Deploy, an event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5, USB 10Gbps Type-A
+
+
Specs
Reviews
Learn more about the ASUS PRO H810M-CT-CSM
| Brand | ASUS |
|---|---|
| Model | PRO H810M-CT-CSM |
| Part Number | 90MB1MMM-MVAAYC |
| CPU Socket Type | LGA 1851 |
|---|---|
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Supports up to 6400MT/s |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Memory Feature | Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 SafeSlot |
|---|---|
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| PCI Express x1 | 1 x PCIe 4.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 (Support PCIe 4.0 x4) |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | M.2 slot only 2230 (Key E, CNVi & PCIe) * Wi-Fi module is sold separately. |

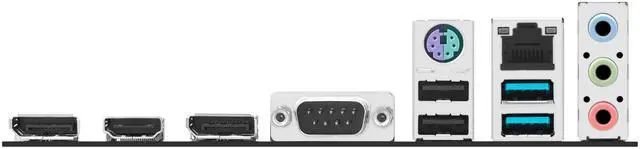

| Back I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 keyboard/mouse combo port |
|---|
| Onboard USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM Debug header 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x SPI header (14-5 pin) 1 x 10-1 pin Front Panel System header |
| BIOS Feature | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Software | ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey |
| Windows 11 | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.75" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| Features | ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - Anti-moisture coating - BIOS EZ Deploy - 24/7 reliability - Overcurrent protection TXT support TPM IC onboard * Please contact local FAE for Commercial BIOS kit. |
|---|

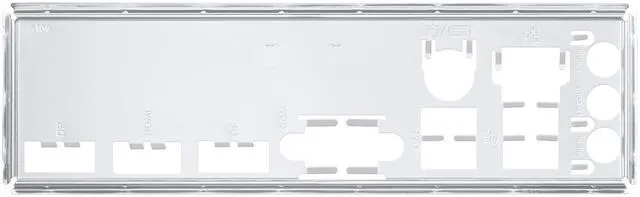

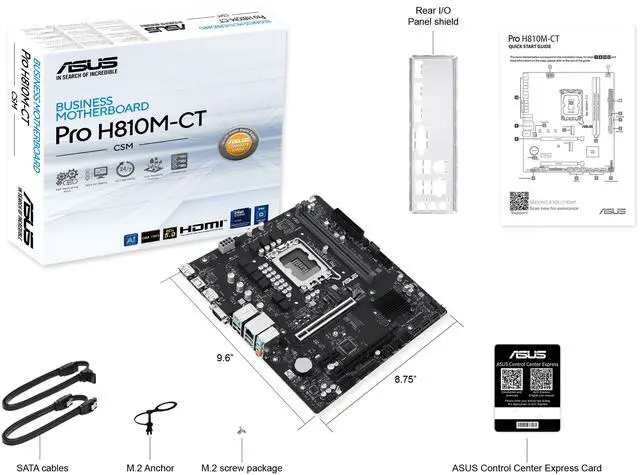

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package 1 x Screw package for M.2 Key E Documentation 1 x ACC Express activation key card 1 x Quick start guide |
|---|
| First Listed on Newegg | July 10, 2025 |
|---|
