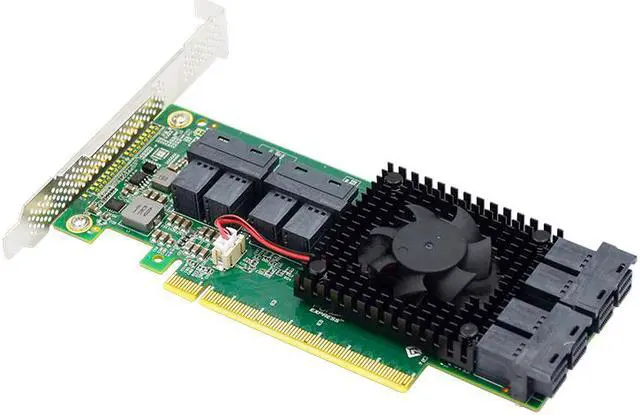

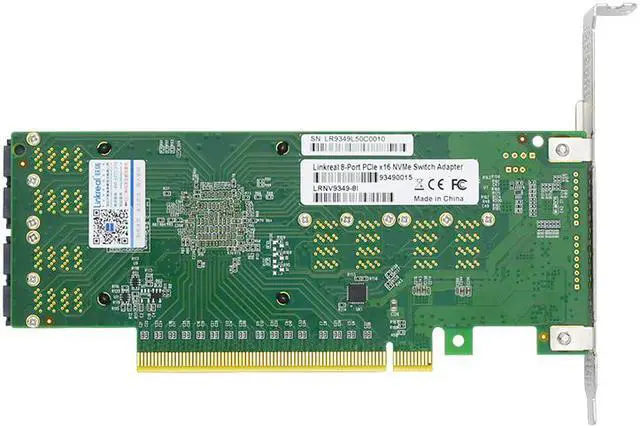

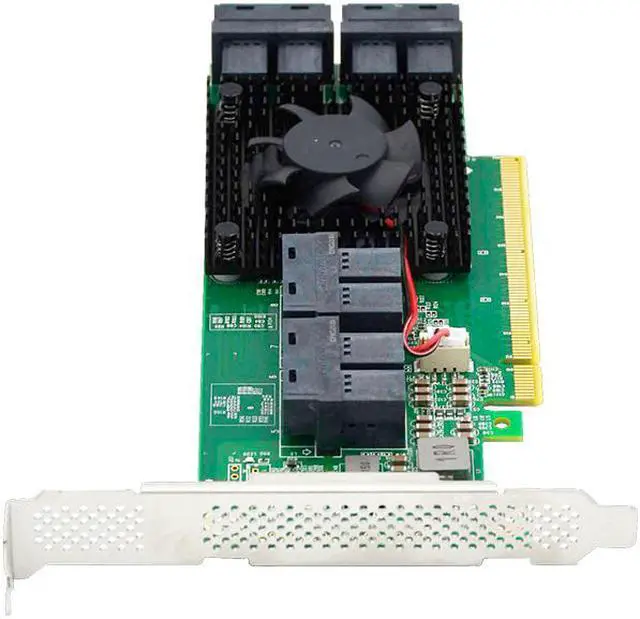

Linkreal 8 Port U.2 to PCI Express x16 SFF-8639 NVMe SSD Adapter with SFF-8643 Mini-SAS HD 36 Pin Connector and PLX8749 chipset for Servers
- 8 Port U.2 to PCI Express x16 SFF-8639 NVMe SSD Adapter Card
- Chipset:PLX 8749
- Interface Type:8*SFF-8643 Connectors
- Support Equipment:8*NVMe SSD or PCIe adapter card
- Host Bus Type:PCIe 3.0 x16
+
+
Overview
Specs
Reviews
Description: LRNV9349-8I NVMe Series is PCI Express x16 Gen3 Multi-Host PCI-e switch Card. It enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.
Parameter Product Model: LRNV9349-8I
Controller Chip: PEX8749
Host Connector: PCIe x16
Drive Connector: SFF-8643 (36Pin Gen3)
Compatible Drive Type: U. 2(PCIe NVMe SSD, SFF8639)
OS Supporting: Red Hat; Suse; Microsoft Windows; V mware; Mac OSX;
Free BSD Humidity: 15%-90%
Operating Temperature: 5? -50? (41? -122? )
Storage Temperature: -25? -70? (-13? -158? )
Dimension: 165 (W) x69 (H) mm
Weight: 180g
Warranty: 2 Years WHAT'S IN THE BOX 1 - SFF-8643 Expansion Adapter Card 1 - low-profile bracket 1 - full-profile bracket (installed) 1 -
Warranty Card After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to U. 2 NVMe SSD adapter has free lifetime technical support
Parameter Product Model: LRNV9349-8I
Controller Chip: PEX8749
Host Connector: PCIe x16
Drive Connector: SFF-8643 (36Pin Gen3)
Compatible Drive Type: U. 2(PCIe NVMe SSD, SFF8639)
OS Supporting: Red Hat; Suse; Microsoft Windows; V mware; Mac OSX;
Free BSD Humidity: 15%-90%
Operating Temperature: 5? -50? (41? -122? )
Storage Temperature: -25? -70? (-13? -158? )
Dimension: 165 (W) x69 (H) mm
Weight: 180g
Warranty: 2 Years WHAT'S IN THE BOX 1 - SFF-8643 Expansion Adapter Card 1 - low-profile bracket 1 - full-profile bracket (installed) 1 -
Warranty Card After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to U. 2 NVMe SSD adapter has free lifetime technical support
