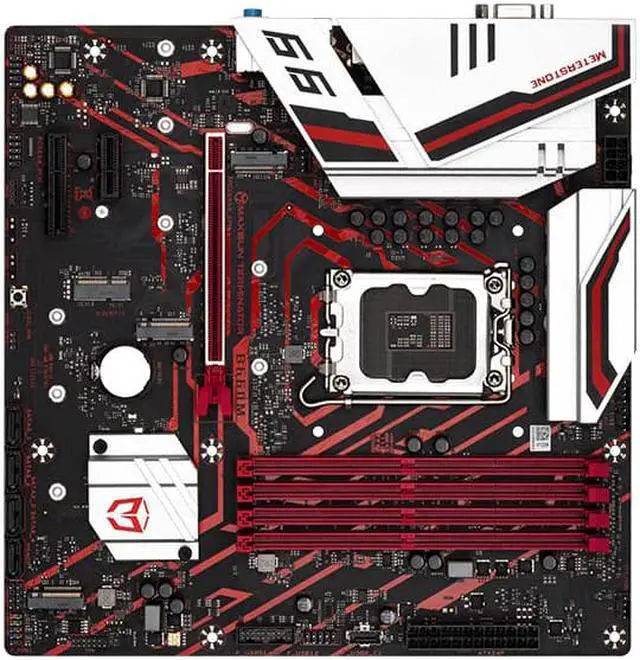

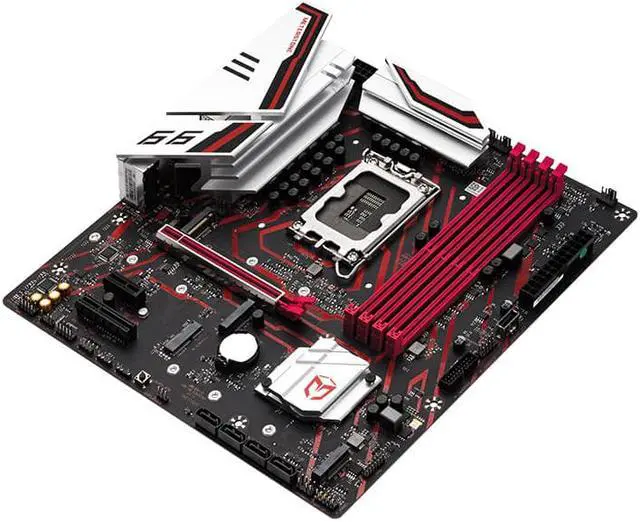

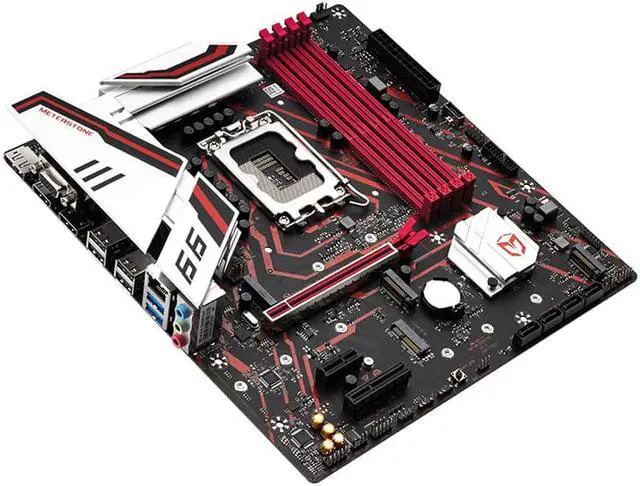

MAXSUN B660M RED Micro ATX Motherboard , Intel LGA 1700/ M-ATX/ DDR4/ M.2/ PCIe 4.0/ USB 3.2 Gen1/ 2.5GbE LAN/HDMI, DP, VGA
- 8+1+1 phase high standard power supply
- 50A High Specification Dr.Mos
- Newly designed alloy power supply and heat dissipation
- 3*M.2 SSD+1*M.2 CNVi
- Debug debug light + onboard one-key Clr Cmos button
- Four display interfaces, DP, 2*HDMI, VGA
Overview
Specs
Reviews
Basic
Board type MATX
Chipset Intel B660 chipset
CPU supports Intel 13/12 generation Core (LGA1700)
Memory supports DDR4 four slots
Integrated Graphics Depends on CPU
extended support
Disk interface 4 SATA 3.0, 2 PCIe 4.0 X4, 1 PCIe X4
PCIe slot 1 PCIe 4.0 X16 full-length slot, 1 PCIe 3.0 X4 slot, 1 PCIe 3.0 X1 slot

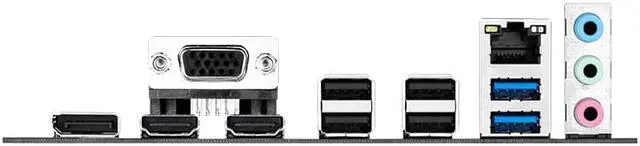

I/O interface
USB interface: 2 USB 3.2 Gen1 interfaces and 4 USB 2.0 interfaces at the IO; 1 USB 3.2 Gen1 interface, 1 USB 3.2 Gen2 Type-C interface, and 2 USB 2.0 interfaces on the front panel
Audio Interface HD Audio
Video interface 1 DP interface, 2 HDMI interfaces, 1 VGA interface
9Pin serial pin support
Other parameters
Power interface 24 pins + 8 pins
Motherboard Accessories Manual, SATA data cable, I/O baffle
Specifications
Board type MATX
Chipset Intel B660 chipset
CPU supports Intel 13/12 generation Core (LGA1700)
Memory supports DDR4 four slots
Integrated Graphics Depends on CPU
extended support
Disk interface 4 SATA 3.0, 2 PCIe 4.0 X4, 1 PCIe X4
PCIe slot 1 PCIe 4.0 X16 full-length slot, 1 PCIe 3.0 X4 slot, 1 PCIe 3.0 X1 slot
I/O interface
USB interface: 2 USB 3.2 Gen1 interfaces and 4 USB 2.0 interfaces at the IO; 1 USB 3.2 Gen1 interface, 1 USB 3.2 Gen2 Type-C interface, and 2 USB 2.0 interfaces on the front panel
Audio Interface HD Audio
Video interface 1 DP interface, 2 HDMI interfaces, 1 VGA interface
9Pin serial pin support
Other parameters
Power interface 24 pins + 8 pins
Motherboard Accessories Manual, SATA data cable, I/O baffle
