L18M4PF1 L18D4PF1 Battery Replacement for Lenovo Yoga 9-15IMH5 82DE Yoga C940-15IRH 81TE IdeaPad S740-15IRH Series 15.36V 69Wh 4500mah (Long Cable)

Method 1: Using System Information to Find Your Laptop Model
Open the Run Window: Press the Windows + R keys simultaneously to bring up the Run window.
Access System Information: Type msinfo32 into the input box and click OK to launch the System Information tool.
Locate the System Model: In the System Summary section, you will find the System Model item listed in the right pane. This will provide you with the exact model of your laptop, which is crucial for identifying the compatible battery.

Method 2: Checking the Battery and Laptop Model Directly
Power Off and Unplug: Before you begin, ensure that your laptop is turned off and the power cord is disconnected to avoid any risk of electric shock.
Remove the Back Panel: Carefully use a screwdriver to remove the back panel of your laptop. Please proceed with caution to prevent any damage to the internal components.
Disconnect and Remove the Battery: Gently disconnect the cable attached to the battery and remove it from the laptop. Once the battery is out, you can easily check its specifications, including the type, capacity, and model number.

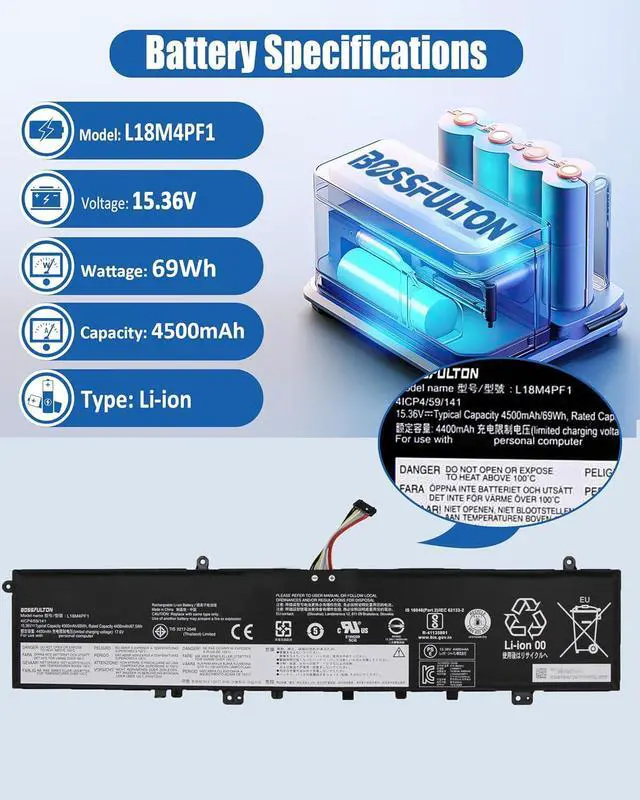

Type: Rechargeable Lithium-ion Battery
Model : L18M4PF1
Voltage: 15.36V
Capacity: 69Wh 4500mAh
cells: 4-Cell
Condition: Grade "A" cells Battery
Battery life: with a cycle at least 1000+ cycles
100% brand New from Manufacturer

L18M4PF1 5B10T83738 5B10W69461
L18D4PF1 5B10T83737 5B10W69450

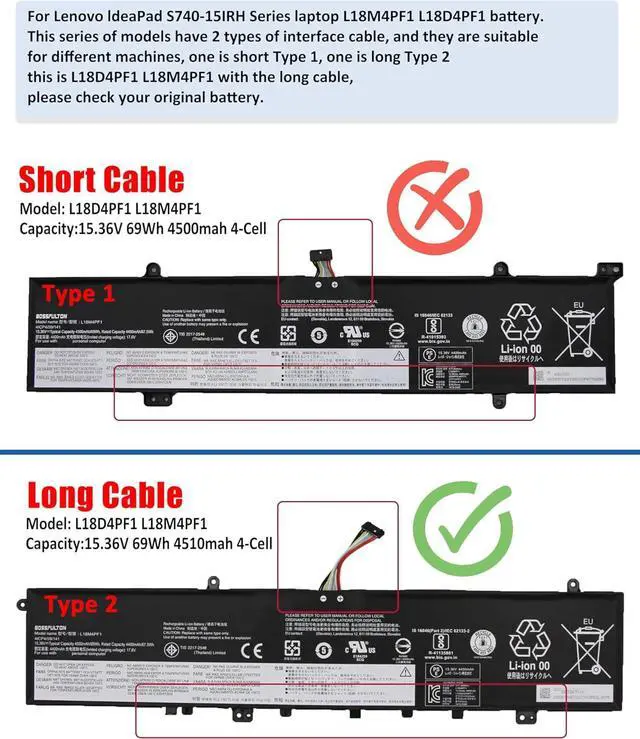

Note: L18D4PF1 L18M4PF1 has two different designs, and they are suitable for different machines, this is L18D4PF1 L18M4PF1 with the long cable, please check your original battery.
1X Battery

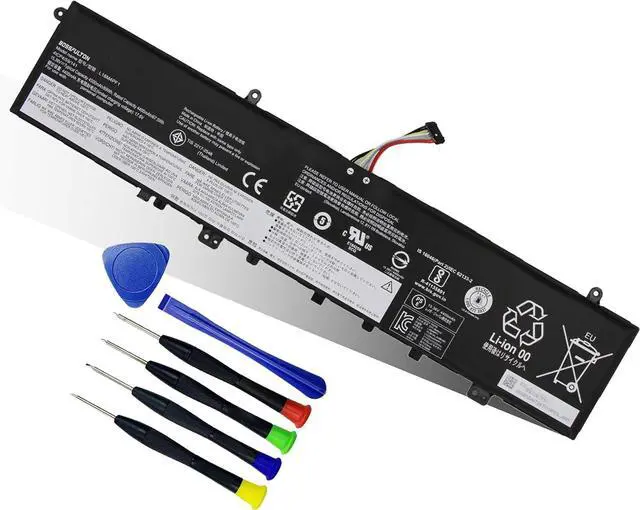

One set of screwdrivers tool
1X User Manual
Lenovo Yoga 9-15IMH5 Series
Lenovo Yoga C940-15IRH Series Type 81TE
Lenovo IdeaPad S740-15IRH Series:
Type 81NW
Type 81NW
Type 81NX

New Batteries: When using a new battery, fully activate the battery by discharging it to 5% (not 0%) and then recharging it to 95% 3-4 times.
Overuse: Do not always use the battery at 0%, as this may damage the battery or shorten its life. 3.
Charging sequence: When charging, install the battery first, then turn on the power, when fully charged, cut off the power first, then unplug the power. 4. Long-term storage: Please store the battery in an unused place.
Long-term storage: Please store the unused batteries fully charged (charging once a month), do not store them at low battery level, which may shorten the life of the batteries.
Charger: Please do not change the laptop adapter arbitrarily, do not connect the adapter for a long time when using the battery, if the original adapter can not be used due to malfunction or damage, please change the model to avoid reducing the life of the battery due to incompatibility.

It may be caused by a missing battery. Please reinstall the battery and make sure the battery connection cable is plugged tightly with the motherboard connector.
It may be due to damage to the conductive material at the positive and negative contacts between the laptop motherboard and the battery, you can try to confirm with the original battery.
Check whether the battery driver is normal, if not, please download the appropriate driver software to update.

1.A free removal kit is included in the package, you need to turn off your laptop and disconnect the power.
2. Remove the old battery, carefully install the new battery on the battery compartment and connect the wires of the new battery.
3. If you still don't understand the above steps, you can go to YouTube/official website to search for videos about laptop battery installation, which may help you.

Upon receipt of the battery, first check if the battery size is the same as the original battery. When installing the battery, please pay attention to whether the battery connecting cable is fixed firmly. If the battery connecting cable is not installed co
