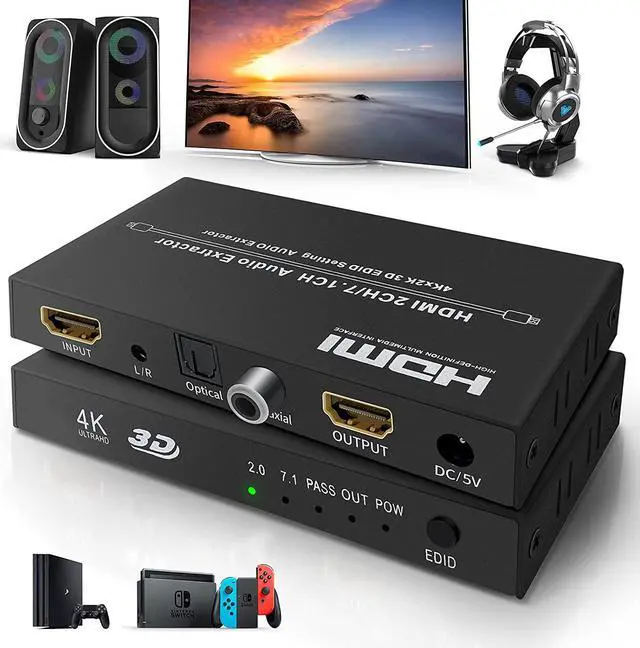

BONAEVER 4Kx2K@30HZ HDMI Audio Extractor Splitter HDMI 2CH / 7.1 CH Audio Output 3D EDID Digital / Analog Audio Extraction

Features:

4K*2K@30Hz High Resolution & Audio Separation: HDMI audio isolator optical digital supports HDMI 2.0 and HDCP 1.4, supports resolutions up to UHD 4K*2K @30Hz, 3D, 1080P etc. HDMI Audio Isolation Optical Digital allows you to view all apps when using a wide screen display, such as TV, monitor, projector, etc. You can enjoy high definition video and high quality audio at the same time. Note: This product supports HDCP1.4, and may not be able to play UHD and HDR content on devices with high HDCP versions such as fire tv stick 4k/amazon prime video 4k ultra hd. Please check the HDCP version before using your device

(3-Way Audio Output & 3 Audio Modes) The hdmi audio separator 4k*2K@30hz is equipped with 3 types of audio output terminals that are optical digital, 0.1 inch (3.5 mm) and coaxial to satisfy your daily audio output. hdmi voice separator 30hz supports three audio modes of PASS, 2CH, and 7.1CH. PASS: Output HDMI signal as it is through the product via HDMI source such as ps4. 2CH: If your monitor/amplifier/speaker does not support 7.1CH, you need to turn the audio output mode of the source device into PCM/LPCM. The audio mode of the product can be switched to 2CH and passed, so you can output the voice. 7.1CH: Your monitor/amplifier/speaker can support 7.1CH In addition, if the audio source of the source device is 7.1 CH, the audio mode of the product can be turned to 7.1 CH and passed, it can be used to output audio. Note: This product only supports 24-bit/32 khz, 44.1 khz, and 48 khz. It cannot support any other format

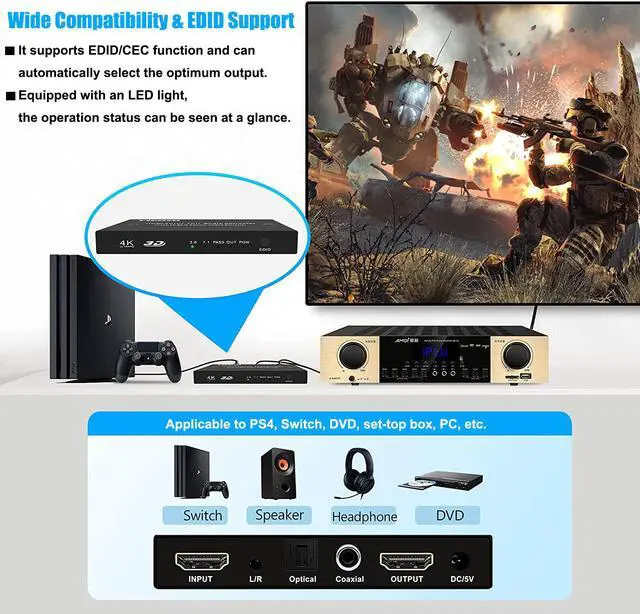

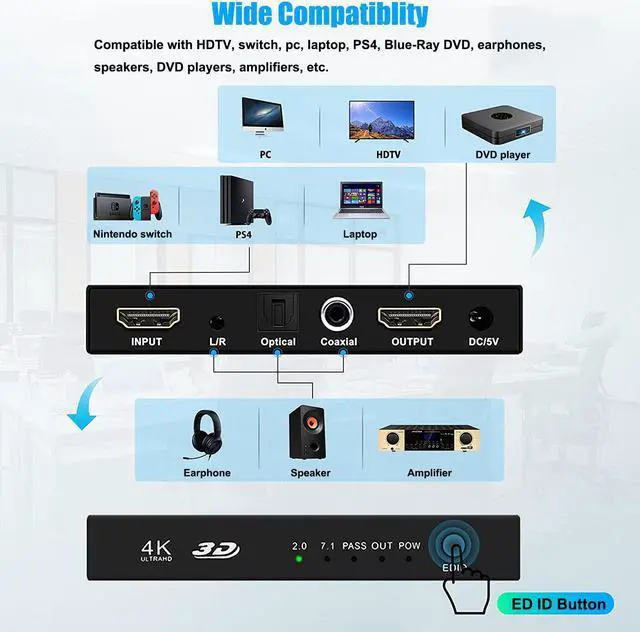

Compatible models: You can separate the image and audio from sources equipped with HDMI ports, such as PS4, Blu-ray recorders, and computers. Input terminal: Compatible with video devices, home game consoles, computers, etc. Output terminal: Compatible with devices with audio side and optical digital (optical angle type) input and devices with analog audio input

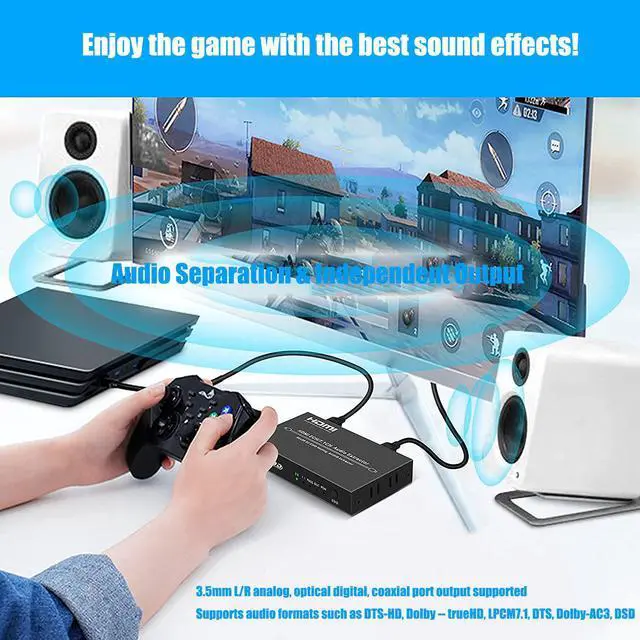

(Compatible with Various Locations) The optical digital audio separator allows you to enjoy powerful sound by separating HDMI audio and output it to an AV amplifier, speaker, earphone, etc. Recommended for those who want to use their HDMI audio and video output for watching movies using a home theater. It is also suitable for use with displays without audio output and audio output from external speakers

Metal housing: The case is made of metal that has excellent durability and heat dissipation. The metal has a high brightness finish that gives it a luxurious feel. It is easy to transfer heat, so it feels cool to the touch and can be used for a long time.

Note: If the image and audio format of the playback exceeds the highest standards of the product, the image and audio may not be outputed. Please check the format if you do not output audio and images

This hdmi Audio Separator 4Kx2K@30Hz HDMI Audio Separator HDMI to HDMI+ Audio (SPDIF+3.5mm+Coaxi)

It can separate the audio contained in the HDMI signal and output from the optical digital terminal/analog audio (0.1 inch (3.5 mm) stereo.

Optical digital output, analog (3.5 mm stereo), and coax output at the same time.HDMI output includes original video and audio

Supported audio formats: DTS-HD/DolbytureHD/LPCM7.1/Dolby-AC3/DSD

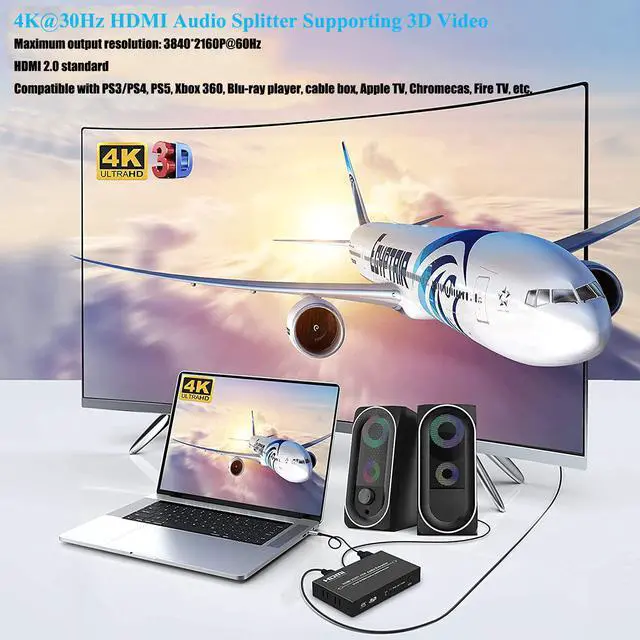

HDMI2.0 & HDCP1.4 & 4K@30Hz & 3D
hdmi voice separator ps4 supports HDMI 2.0, HDCP1.4 standards, compatible with the following standards:

Support UHD 4K (3840x2160p@30Hz), 3D video

It can output beautiful, high definition 4K signals (video/audio) pass-through (non-delay).

Supports three audio modes
hdmi voice separator 30hz supports three audio modes of PASS, 2CH, and 7.1CH.Compatible with most audio outputs, satisfy your daily needs.

About three voice isolation modes:

7.1CH: Output stereo audio from SPDIF terminal (square) or coaxial terminal.

2CH: Output stereo audio from L/R analog terminal.

PASS: It can output audio and image, but it is not compatible with stereo audio.

Button switching

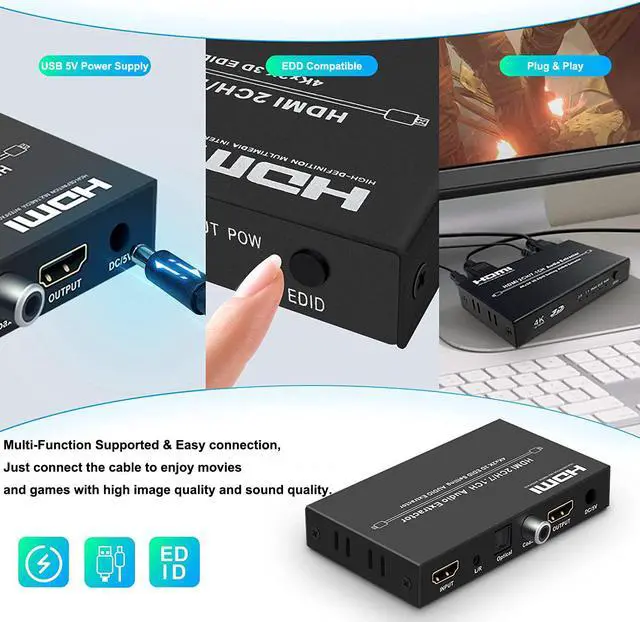

The HDMI Audio Isolation Switch has an EDID button, and you can easily switch the audio output mode with just the press of a button.

Product Specifications
Input port: HDMI port x 1 (Type A female)

Output ports: 1 x HDMI port (Type A female), 1 x Optical digital port, 1 x 3.5mm stereo port (AUX), 1 x coaxial

HDMI Standard: HDMI 2.0

HDCP Standard: HDCP 1.4

HDMI Resolution: 4K x 2K @ 30Hz, 1080P @ 60Hz, supports 3D video

Supported video color formats: 24bit/30bit/36bit

Supported audio formats: DTS-HD/DolbytureHD/LPCM7.1/Dolby-AC3/DSD.

Bandwidth: 10.2Gbps/340MHz

Input Power: DC 5V/1A

Operating Environment: Temperature: -4 - 140°F (-20 - 60°C), Humidity: 20 - 90% (Do not condensate).

Dimension: 11*6*1.9cm

Purchase includes
1 x HDMI Audio Separator
1 x Power Cable
1 x Manual
