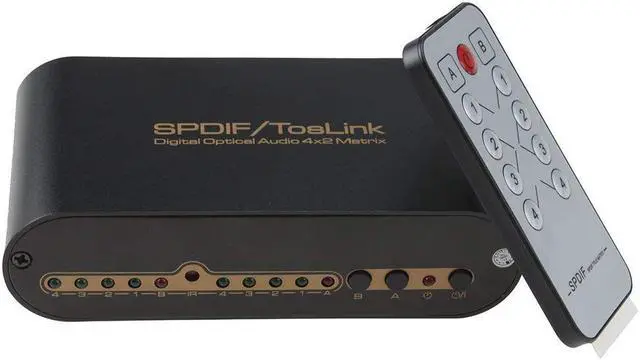

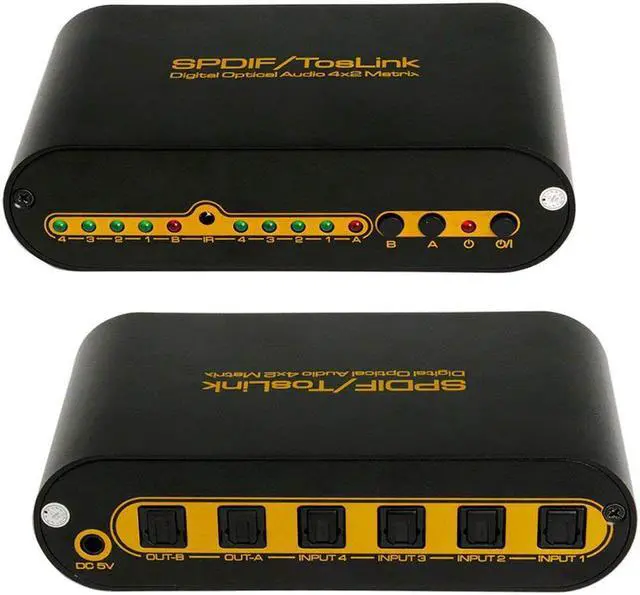

Werleo Audio Switch Box 4X2 Audio Matrix 4 In 2 Out Digital Optical Audio Switcher Video Converters SPDIF TOSLINK Splitter with Remote Control Support DTS-HD Dolby-trueHD LPCM2.0 DTS DOLBY-AC3 DSD
- Easy to Use
- Superior Performance
- LED Status Indication
- Multi-signal Support
+
+
Overview
Specs
Reviews
Highlights:
?Easy to Use?Install in minutes,could put the four sets of spdif output signal source and two spdif input device connected.It can be easily split or switched between four spdif signal and two spdif signal receiving equipment
?Superior Performance?Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m,Support signal retiming and Fast memorisation
?LED Status Indication?Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine,if the light for standby indication flashed, it shows that the output voltage from the power adaptor is too high and the adaptor needs to be changed
?Multi-signal Support?Audio format support : DTS-HD/Dolby-trueHD/LPCM2.0/DTS/Dolby-AC3/DSD
?A PERFECT AFTER-SALES SERVICE?If you received broken or defective items (For example:package damaged,or product defective), please contact us as soon as possible, we will provide replacement!
Specifications:
Supporting audio format: DTS-HD/Dolby-trueHD/LPCM2.0/DTS/Dolby-AC3/DSD
Peak wavelength:650nm
Max baud rate:16Mbps
Output cable distance:up to 40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current:100mA
Input:AC (50HZ, 60HZ) 100V-240V
Output:DC5V/500mA
Operating Temperature range:0 to 40 degrees Celsius
Operating Humidity range:5 to 90%RH (No Condensation)
Dimension:68 x 128 x 34mm(L x W x H)

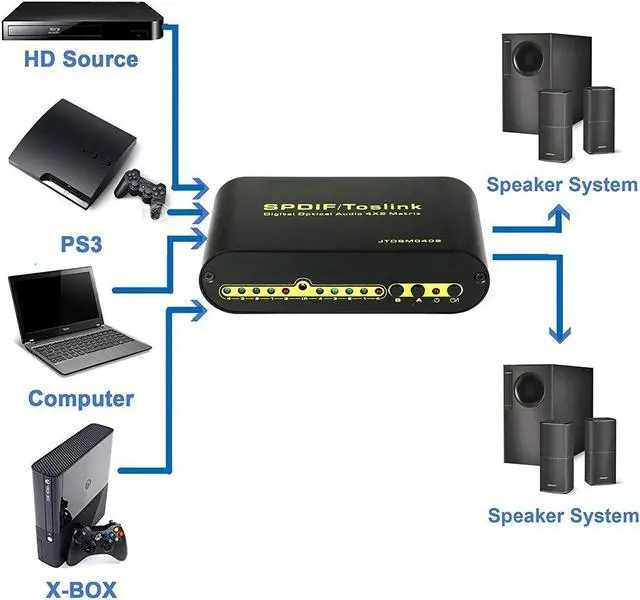

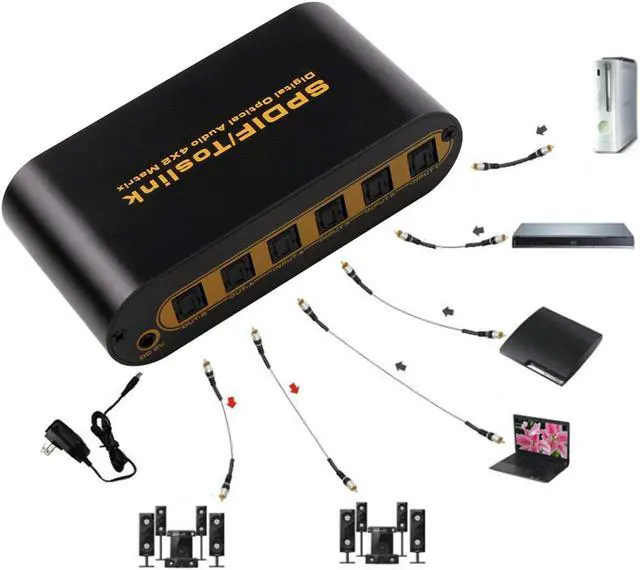

Operating and Connecting:
1.To use the optical fiber cable to connect the optical fiber signal source (such as blue-ray player, the computer and so on) with the matrix input
2.To let the matrix output port connect to the optical fiber signal receiver (such as amplifier, home theater and so on) by using the optical cable
3.Connect 5V power supply to the matrix DC input port
4.Through the remote or button to switch the input source freely Switch only, other device not included.

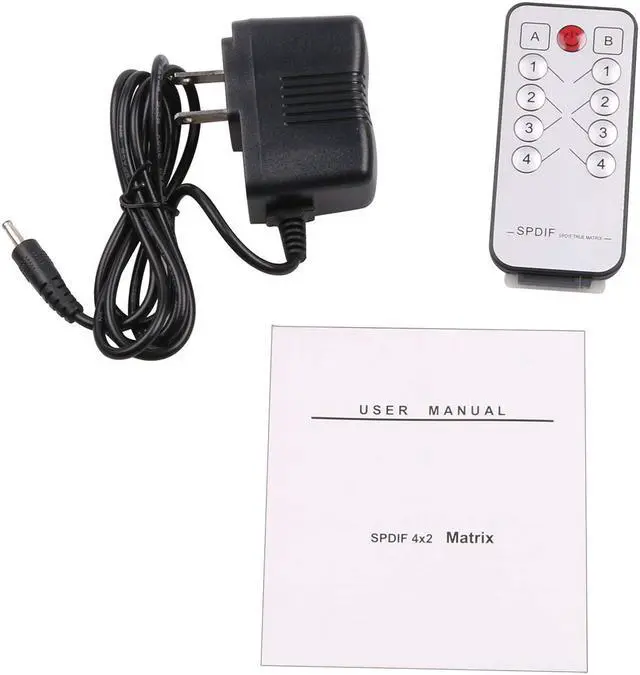

Package:
1 x Switch
1 x Remote Control
1 x Power Adapter
1xOptical cable
?Easy to Use?Install in minutes,could put the four sets of spdif output signal source and two spdif input device connected.It can be easily split or switched between four spdif signal and two spdif signal receiving equipment
?Superior Performance?Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m,Support signal retiming and Fast memorisation
?LED Status Indication?Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine,if the light for standby indication flashed, it shows that the output voltage from the power adaptor is too high and the adaptor needs to be changed
?Multi-signal Support?Audio format support : DTS-HD/Dolby-trueHD/LPCM2.0/DTS/Dolby-AC3/DSD
?A PERFECT AFTER-SALES SERVICE?If you received broken or defective items (For example:package damaged,or product defective), please contact us as soon as possible, we will provide replacement!
Specifications:
Supporting audio format: DTS-HD/Dolby-trueHD/LPCM2.0/DTS/Dolby-AC3/DSD
Peak wavelength:650nm
Max baud rate:16Mbps
Output cable distance:up to 40m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current:100mA
Input:AC (50HZ, 60HZ) 100V-240V
Output:DC5V/500mA
Operating Temperature range:0 to 40 degrees Celsius
Operating Humidity range:5 to 90%RH (No Condensation)
Dimension:68 x 128 x 34mm(L x W x H)
Operating and Connecting:
1.To use the optical fiber cable to connect the optical fiber signal source (such as blue-ray player, the computer and so on) with the matrix input
2.To let the matrix output port connect to the optical fiber signal receiver (such as amplifier, home theater and so on) by using the optical cable
3.Connect 5V power supply to the matrix DC input port
4.Through the remote or button to switch the input source freely Switch only, other device not included.
Package:
1 x Switch
1 x Remote Control
1 x Power Adapter
1xOptical cable
