4-Way AV Switch RCA Switcher 4 in 1 Out Composite Video L/R Audio Selector Box for DVD STB Game Consoles

Features:

4-way AV RCA Audio Video Switcher Selector for XBOX DVD PS2 PS3 Wii Cable Box to TV's yellow-white-red RCA connectors

Mechanical design, simple push-button switching

Metal enclosure, excellent stability and longevity

Easy installation and operation, no extra power supply or software drive needed

Support devices with A/V connection, provide clean video and audio

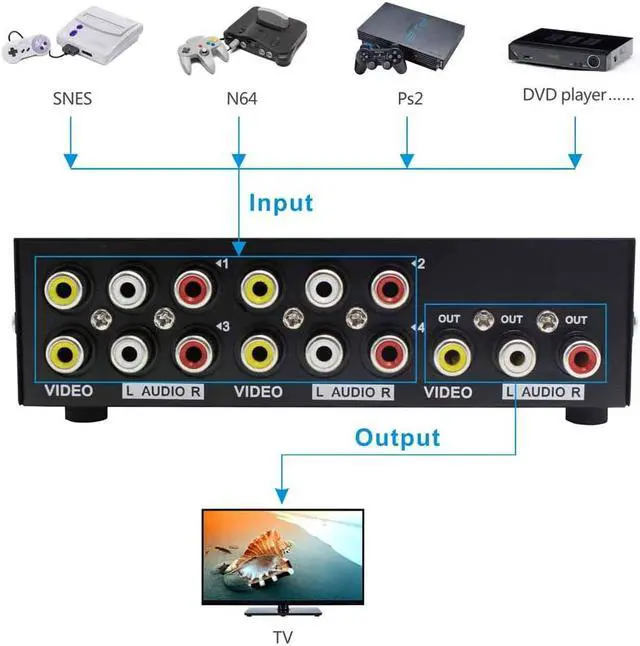

This AV switch allows you to connect multiple video devices with AV out (such as Wii, XBOX, DVD, PS2, Cable Box) to one set of standard yellow-white-red RCA connectors of your TV using AV cables. Then you will be able to easily switch the input signal without the need to disconnect and re-connect your AV devices.

Specifications:
1. Video
- Input level Resistance: VS 0.8-1.0Vp-p/75O
- Output level Resistance: VS 0.8-1.0Vp-p/75O
- Bandwidth: 50Hz-5.5MHz
- Input Connector: 4
- Output Connector: 1

2. Audio
- Input level Resistance: 2V(RMS)/47KO
- Output level Resistance: 2V(RMS)/1KO
- Frequency: 10Hz-20KHz,0db
- Input Connector: 4 (R+L)
- Output Connector: 1 (R+L)
- Switch: Manual
- Enclosure: Metal
