Question 1

Hi,

Is this motherboard compatible with  Intel Xeon E5-2620 v3?

thank you

Accepted Answer

Yes, this board is compatible with all of the E5-26xx v3 and E5-16xx v3 Xeons.  This would include the E5-2620 v3.

Question 2

Can anyone tell me what ATX power supply you used?  Seems like the board requires an SSI EPS 12v compatible one and I'm having trouble finding a PSU which meets this spec.

Accepted Answer

This worked with the Supermicro PSU that came in the supermicro server chassis.  It essentially needs a 24 pin cable and 8 pin power cable.

Question 3

Does this come with I/O Shield ?

Accepted Answer

Yes, it comes with an I/O shield that fits any typical ATX case.

Question 4

Can someone recommend a basic cpu cooler that FITS this board/socket?

Accepted Answer

I always used the SuperMicro SNK-P0050AP4 cooler, available on this site if you search. Would post the link but it says "Please do not include contact information in your posts, including phone numbers". LOL.

Question 5

I have to use it as a Workstation "now". Is it possible that a  Asus PH-GTX1050TI-4G Nvidia GeForce PCIe 3.0 x16 Video Card makes problem with this board? Thanks in advance

Accepted Answer

I already use a Hewlett-Packard AMD FirePro W2100 an happy with the result But the card is x8. That's right. Card with a x16 lane in an x8 lane slot will slow card's performance down. I need it for video edit. May be I will be happy with the performance result, otherwise card will return to seller. Thanks for the quick answer. :)

Question 6

Hello, is it compatible with cpu Intel Xeon E5-2670 @ 2.60GHz? Thank you for the prompt reply.

Accepted Answer

The Xeon E5-2670 you specify is a Sandy Bridge-EP LGA 2011 socket processor. This is a Haswell/Broadwell E/EP LGA 2011-V3 motherboard. They are unfortunately not compatible. If you want something to stick that E5-2670 in, look for a "C602" or "X79" motherboard. Also look at used Dell, HP, and Lenovo workstations that specify C602 chipset. You are going to need a motherboard that supports DDR3,  another thing to look for when purchasing. Good luck!

Question 7

Is this motherboard compatible Windows server 2016?

Accepted Answer

It is for 2012R2 so good chance it will run 2016

Question 8

Will this work with a Xeon E5 2630 v4? The Supermicro website states that they have new boards out and this is one of the ones that works with it, but it requires BIOS v2.0 for it to work and I don't know if Newegg has the most up to date version of this motherboard (same model number).

Accepted Answer

I don't think so. All you need is the new bios. Intel always do tick-tock change with Haswell (E5-v3/HSX) being the tock, and Broadwell  (E5-v4/BDX). HSX & BDX motherboard should be compatible.

But it does need bios new bios to recognize the proper CPU.

If anything can be hardware related, it would be the supported memory speed. HSX's top speed is 2133 and BDX's is 2400. Hence, there might be a chance that the motherboard you will be limited to HSX's memory speed if the motherboard was not designed to support 2400.

Question 9

this motherboard is compatible with this procesor? Intel Xeon E5-2620 V4 Broadwell-EP 2.1 GHz 8 x 256KB L2 Cache 20MB L3 Cache LGA 2011-3 85W

Accepted Answer

Yes, this motherboard will work with your E5-2620 v4. Old inventory with BIOS that doesn't support v4 processors should be long gone.

Question 10

Does this motherboard support the cache allocation technology and cache monitoring technology found on E5-2658v3, 2648Lv3, 2628Lv3, 2618Lv3, and 2608Lv3?

Accepted Answer

This motherboard supports Xeon E5 v3 and v4 processors - I have a v3 installed in this very motherboard. Socket LGA 2011 R3 (in the product listing title) is the motherboard socket for Xeon E5 v3 and v4 processors.

Product SKUs
MBD-X10SRL-F -B	X10SRL-F (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6", (30.5cm x 24.4cm)
Processor/Cache

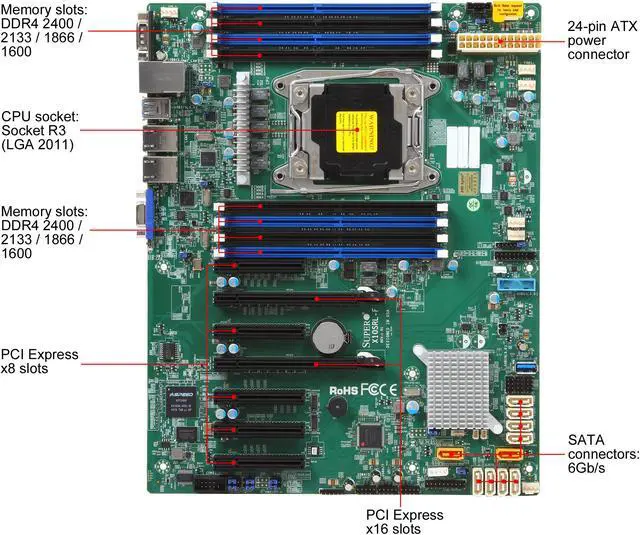

CPU	Intel® Xeon® processor E5-2600/1600 v3 family (up to 145W TDP **) Single Socket R3 (LGA 2011)
Core / Cache	Up to 18 Cores / Up to 45MB Cache
Note	Motherboard supports this maximum TDP. Please verify your system can thermally support E5-1600 series CPU does not support LRDIMM type memory
System Memory
Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM
Memory Type	2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel C612 chipset
SATA	SATA3 (6Gbps) via C612 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i210 Dual Port Gigabit Ethernet Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC
Input / Output
SATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear + 1 via header + 1 Type A) 8x USB 2.0 ports (2 rear + 6 via header)
Video	1x VGA port
Serial Port / Header	1x serial port, 1x header
SuperDOM	2x SuperDOM (Disk on Module) ports with built-in power
TPM	1x TPM 1.2 20-pin Header

Brand	SUPERMICRO
Model	MBD-X10SRL-F-O

CPU Socket Type	Single Socket R3 (LGA 2011)
CPU Type	Supports: Intel Xeon Processor E5-1600 v3 Intel Xeon Processor E5-1600 v4 Intel Xeon processor E5-2600 v3 Intel Xeon processor E5-2600 v4

Number of DDR4 Slots	8 x 288-pin
DDR4 Standard	2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
Maximum Memory Supported	Up to 1TB ECC 3DS LRDIMM Up to 512GB ECC LRDIMM Up to 256GB ECC RDIMM
ECC Supported	Yes

PCI Express x8	2 x PCI-E 3.0 x8 (in x16) slots 2 x PCI-E 3.0 x8 slots
PCI Express x4	2 x PCI-E 3.0 x4 (in x8) slots Auto-switch to 1 x8 and 1 x0 1 x PCI-E 2.0 x4 (in x8) slot

Meet Your Seller

SUPERMICRO MBD-X10SRL-F Server Motherboard LGA 2011 R3

SUPERMICRO MBD-X10SRL-F Server Motherboard

Features

Specifications

Gallery

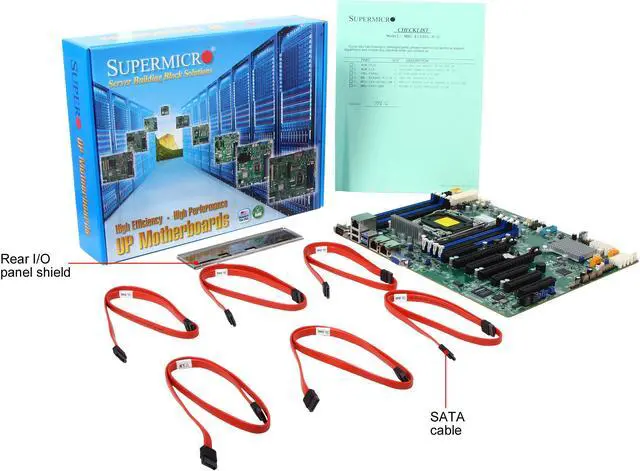

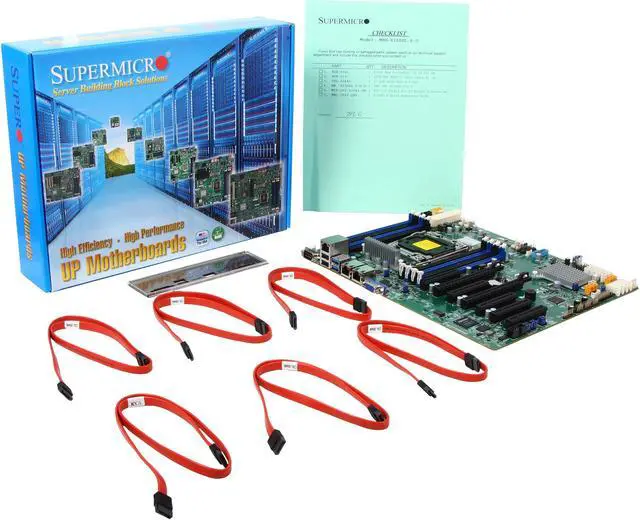

Whats in the Box

Learn more about the Supermicro MBD-X10SRL-F-O

Customer Reviews of the Supermicro MBD-X10SRL-F-O

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Video Ports	1 x VGA port
RJ45	2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.0

Storage Devices
SATA	10 x SATA 6.0Gb/s
SATA RAID	0/1/5/10

Onboard LAN
LAN Chipset	Intel I210
LAN Speed	10/100/1000Mbps

Dimensions
Form Factor	ATX

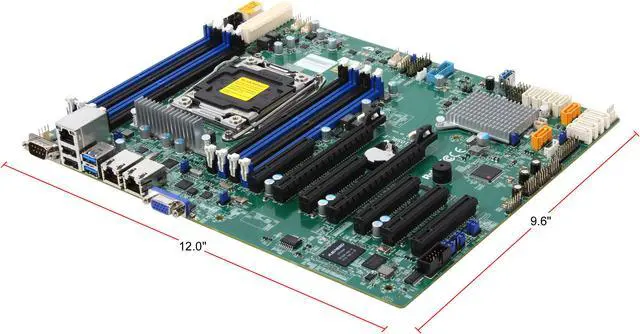

Dimensions (W x L)	12.0" x 9.6"

Item#: 9SIAD6HKGF0642
