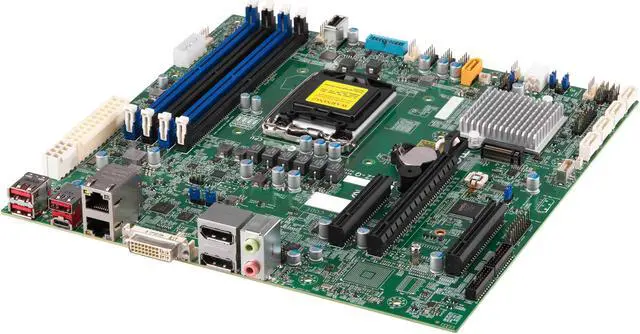

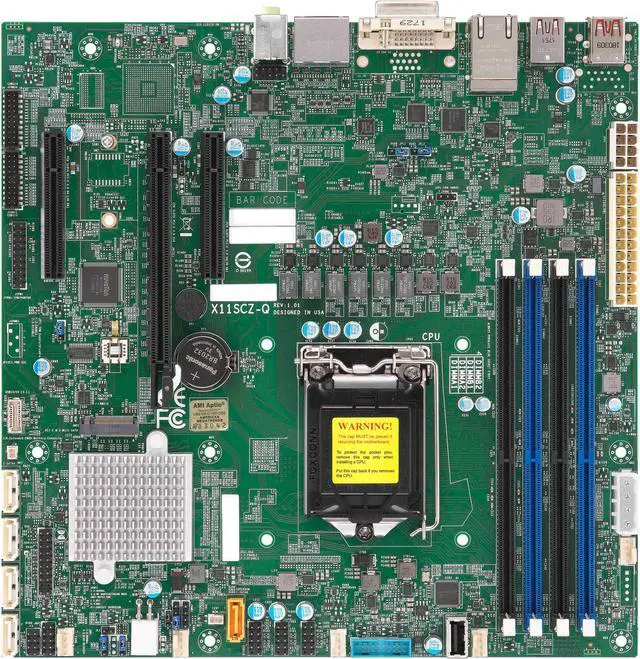

SUPERMICRO MBD-X11SCZ-Q-O LGA 1151 (300 Series) Intel Q370 uATX Intel Motherboard
- Intel Q370
- 8th Generation Intel Core i7/i5/i3/Pentium/Celeron Processor
- * Not backward compatible with older generation of LGA 1151 CPUs
- DDR4 2666/ 2400/ 2133/ 1866/ 1600
+
+
Specs
Reviews
Learn more about the Supermicro MBD-X11SCZ-Q-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SCZ-Q-O |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | 8th Generation Intel Core i7/i5/i3/Pentium/Celeron Processor * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel Q370 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2666/ 2400/ 2133/ 1866/ 1600 |
| Maximum Memory Supported | 64GB |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x8 | 2 x PCI-E 3.0 x4 (in x8 slot) |
| Serial ATA (SATA) | 5 x SATA 6Gb/s |
|---|---|
| M.2 | M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | ALC 888S HD Audio |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| Second LAN Chipset | Intel I219-LM |
| Max LAN Speed | 2 x 1Gbps |
| Video Ports | 1 x DVI-I |
|---|---|
| RJ45 | 2 x RJ45 |
| DisplayPort | 2 x DisplayPort |
| Form Factor | uATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Features | 8th Generation Intel Core i7/i5/i3/Pentium/Celeron Processor, Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP Intel Q370 Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4 (in x8 slot) 1 DVI-I port, 2 DP (DisplayPort) ports, 3 Independent Displays Intel Q370 controller for 5 SATA3 (6Gbps) ports; RAID 0,1,5,10 Single LAN with Intel Ethernet Controller I210-AT Single LAN with Intel PHY I219LM LAN controller |
|---|
| First Listed on Newegg | June 16, 2025 |
|---|
