SUPERMICRO X11SSH-LN4F-B Supermicro X11SSH-LN4F-B LGA1151 Intel C236 DDR4 SATA3 and USB3.0 V and 4GbE MicroATX Motherboard
+
+
Overview
Specs
Reviews

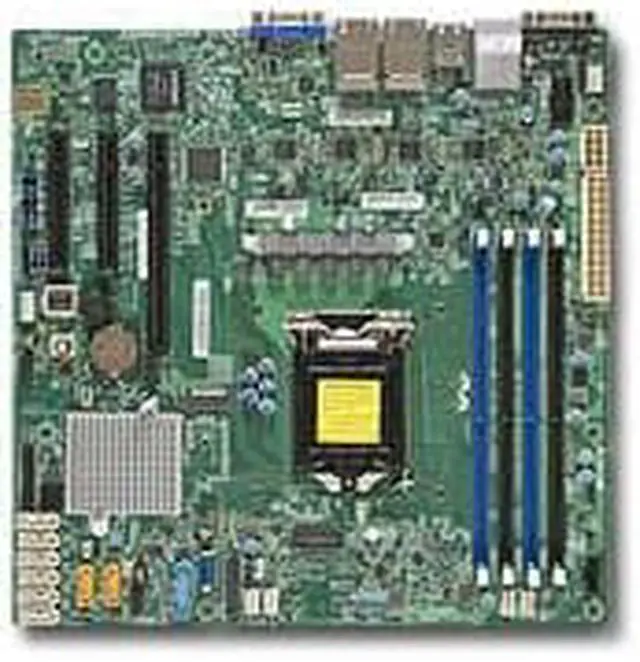

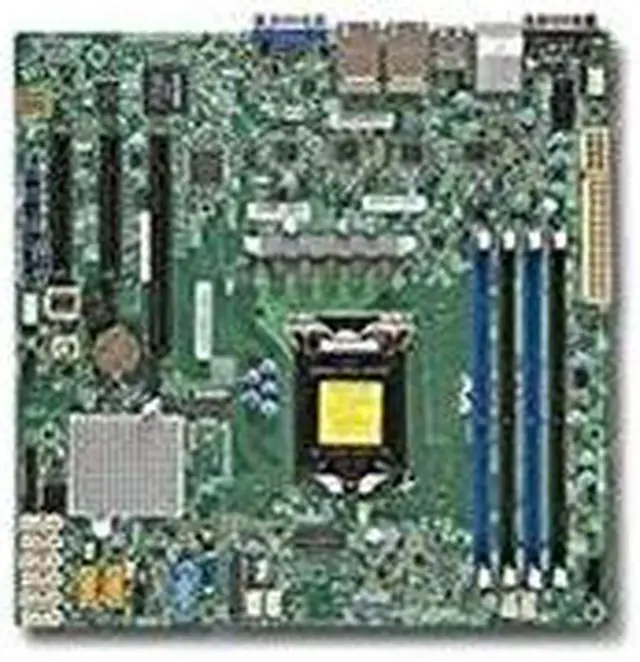

SUPERMICRO X11SSH-LN4F-B Supermicro X11SSH-LN4F-B LGA1151 Intel C236 DDR4 SATA3 and USB 3.0 V and 4GbE MicroATX
Motherboard
MPN: X11SSH-LN4F-B
SpecificationsMfr
Part Number:
X11SSH-LN4F-BCPU: LGA1151Supports Intel Xeon E3-1200 v5 ProcessorSupports 6th Generation Intel Core i3/ Pentium/ Celeron ProcessorsSupport up to 80W TDP
Chipset: IntelÂ
C236Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max
Capacity of 64GBSlots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 2x PCI-Express 3.0 x8
Slots (one runs at x4) SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10Video: ASPEED
AST2400 BMC GraphicsLAN: 4x Intel I210-AT Gigabit
Ethernet ControllersPorts: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 4x RJ45 Gigabit Ethernet LAN Ports, 1x RJ45 Dedicated IPMI
LAN PortForm Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cmRoHS Compliant
Motherboard
MPN: X11SSH-LN4F-B
SpecificationsMfr
Part Number:
X11SSH-LN4F-BCPU: LGA1151Supports Intel Xeon E3-1200 v5 ProcessorSupports 6th Generation Intel Core i3/ Pentium/ Celeron ProcessorsSupport up to 80W TDP
Chipset: IntelÂ
C236Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max
Capacity of 64GBSlots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 2x PCI-Express 3.0 x8
Slots (one runs at x4) SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10Video: ASPEED
AST2400 BMC GraphicsLAN: 4x Intel I210-AT Gigabit
Ethernet ControllersPorts: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 4x RJ45 Gigabit Ethernet LAN Ports, 1x RJ45 Dedicated IPMI
LAN PortForm Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cmRoHS Compliant
