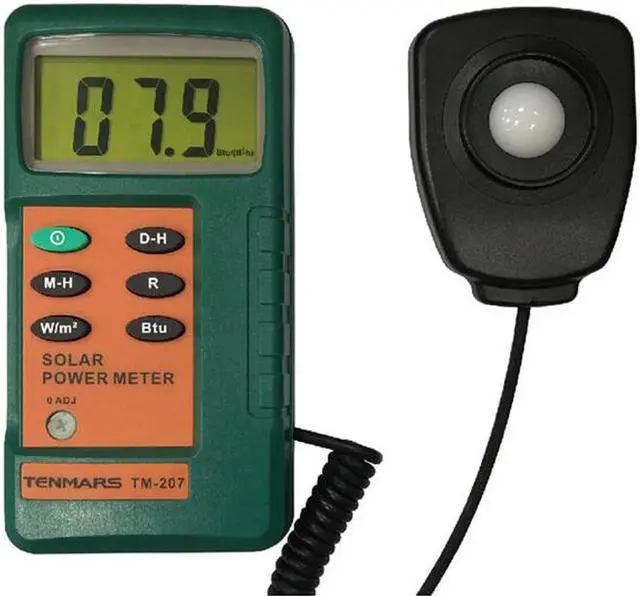

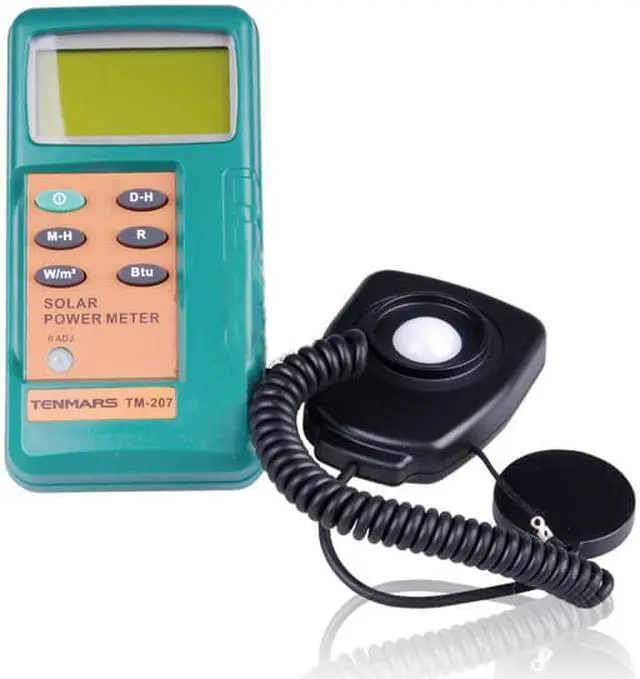

TENMARS TM-207 Solar Power Meter 3½ digits, 2000 readings Data Hold/ MAX/MIN
- TENMARS TM-207 Solar Power Meter 3½ digits, 2000 readings Data Hold/ MAX/MIN
+
+
Overview
Specs
Reviews
TM-207 _ Solar Power Meter
- 3½ digits LCD display with maximum reading of 2000.
- External sensor.
- Measuring the Solar radiation emitted by the sun.
- Display units: W/m2 (Watts per square meter) or BTU.
- Data Hold/ MAX/MIN functions.
Product Character
M-207 Solar Power meter is ideal for the measurement of the solar radiation that is emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy.
The spectrum of solar radiation is close to that of a black body with a temperature of about 5800 K. About half of the radiation is in the visible short-wave part of the electromagnetic spectrum. The other half is mostly in the near-infrared part, with some in the ultraviolet part of the spectrum.
The units of measure are Watts per square meter or BTU, the typical test and measuring applications are:
- Meteorology applications
- Agriculture applications
- Physics and optical laboratories
- Solar radiation measurement.
- Solar transmission measurement
- Solar power research
- Identify high performance windows
- Helpful to set up Solar PV Panels at optimum angles of incidence
- Light Intensity Measurement for the car windows
Battery not included
Specification
Display
3 1/2 digits. Max. indication 2000
Range
2000W/m²,634 BTU (ft²*h)
Resolution
0.1W/m², 0.1 BTU (ft²*h)
Accuracy
Typically within ±10 W/m² ?±3 BTU (ft²*h)?or ±5%, whichever is greater in sunlight ; additional temperature induced error ±0.38 W/m² /°C ?±0.12 BTU (ft²*h) /°C?from 25°C
- 3½ digits LCD display with maximum reading of 2000.
- External sensor.
- Measuring the Solar radiation emitted by the sun.
- Display units: W/m2 (Watts per square meter) or BTU.
- Data Hold/ MAX/MIN functions.
Product Character
M-207 Solar Power meter is ideal for the measurement of the solar radiation that is emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy.
The spectrum of solar radiation is close to that of a black body with a temperature of about 5800 K. About half of the radiation is in the visible short-wave part of the electromagnetic spectrum. The other half is mostly in the near-infrared part, with some in the ultraviolet part of the spectrum.
The units of measure are Watts per square meter or BTU, the typical test and measuring applications are:
- Meteorology applications
- Agriculture applications
- Physics and optical laboratories
- Solar radiation measurement.
- Solar transmission measurement
- Solar power research
- Identify high performance windows
- Helpful to set up Solar PV Panels at optimum angles of incidence
- Light Intensity Measurement for the car windows
Battery not included
Specification
Display
3 1/2 digits. Max. indication 2000
Range
2000W/m²,634 BTU (ft²*h)
Resolution
0.1W/m², 0.1 BTU (ft²*h)
Accuracy
Typically within ±10 W/m² ?±3 BTU (ft²*h)?or ±5%, whichever is greater in sunlight ; additional temperature induced error ±0.38 W/m² /°C ?±0.12 BTU (ft²*h) /°C?from 25°C
