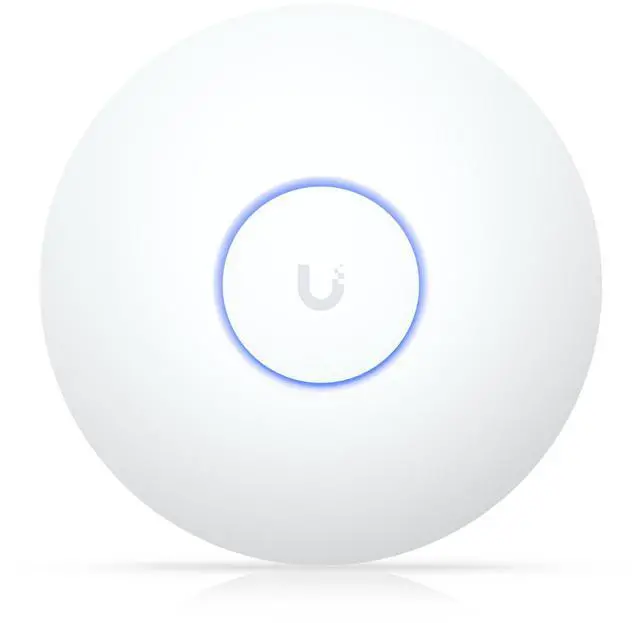

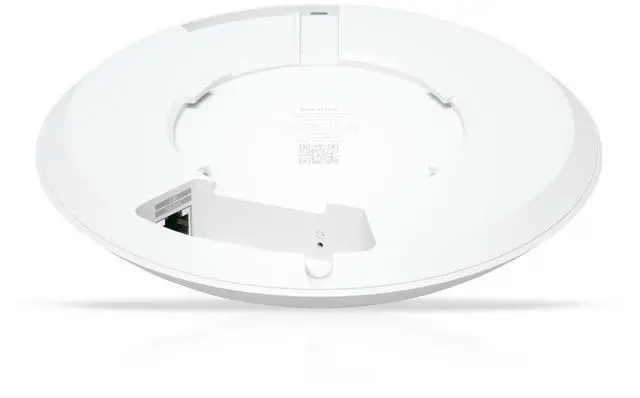

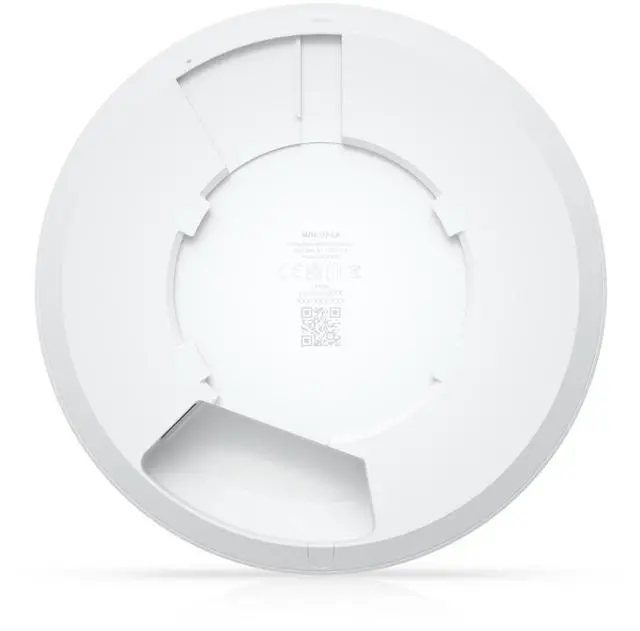

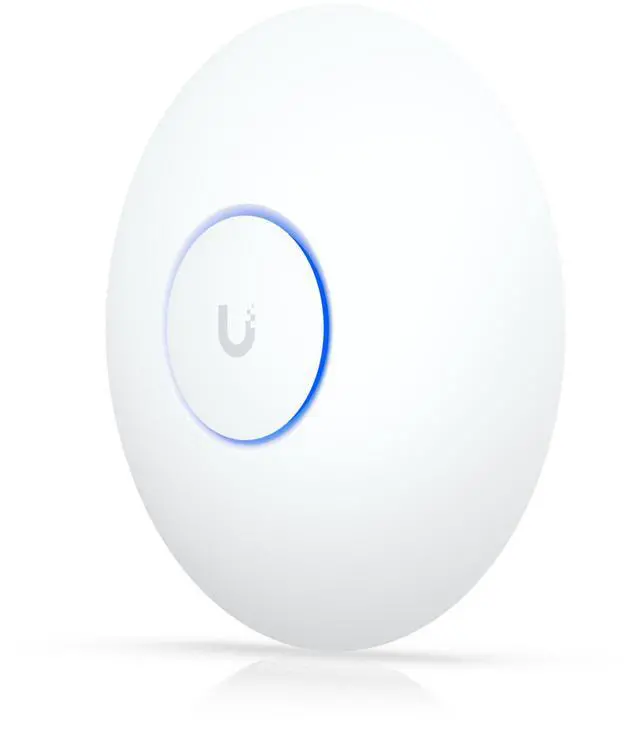

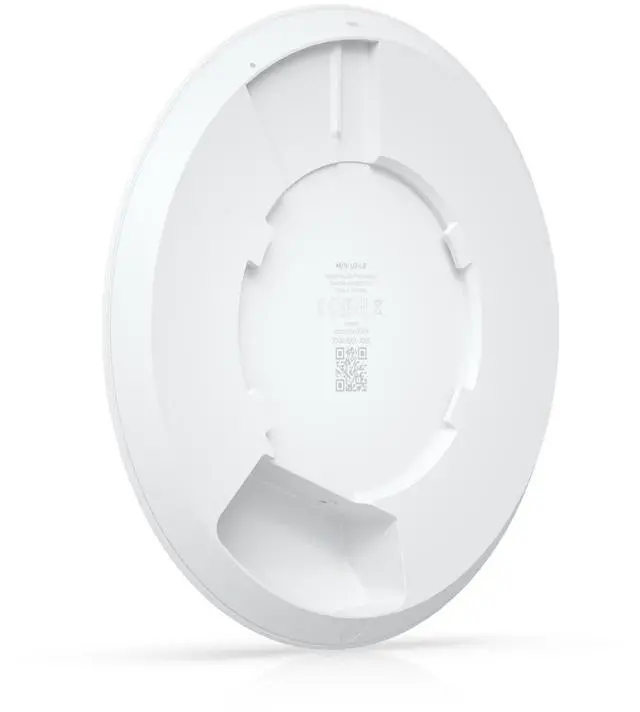

Ubiquiti Networks U7 Long Range, Compact Ceiling-mount WiFi 7 Access Point (U7-LR)
- Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
- Max. Client Count: 300+
- Coverage Area: 160 m² (1,750 ft²)
+
+
Specs
Reviews
Learn more about the Ubiquiti Networks U7 Long Range
| Brand | Ubiquiti Networks |
|---|---|
| Model | U7 Long Range |
| Part Number | U7-LR |
| Color | White |
|---|---|
| # of Users | 300+ |
| WiFi Generation | Wi-Fi 7 |
| Antenna | Performance MIMO 5 GHz: 3 x 3 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 5 GHz: 4.3 Gbps (BW160) 2.4 GHz: 688 Mbps (BW40) Antenna Gain 5 GHz: 6 dBi 2.4 GHz: 4 dBi Max. TX Power 5 GHz: 27 dBm 2.4 GHz: 26 dBm Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40) |
| Mounting Location | Indoor |
| LEDs | System: White/Blue |
| Power Supply | PoE |
| Max Power Consumption | 14 W |
| Features | Wireless Meshing Band Steering 802.11v BSS Transition Management 802.11r Fast Roaming 802.11k Radio Resource Management (RRM) Advanced Radio Management Passpoint (Hotspot 2.0) Captive Hotspot Portal Custom Branding Landing Page Voucher Authentication Payment-Based Authentication External Portal Server Support Password Authentication Guest Network Isolation Private Pre-Shared Key (PPSK) WiFi Speed Limiting Client Device Isolation WiFi Schedules RADIUS over TLS (RadSec) Dynamic RADIUS-assigned VLAN |
|---|
| Date First Available | June 13, 2025 |
|---|
