Name: Ubiquiti Pro Max 24 PoE, 24-Port Layer 3 PoE Switch (USW-Pro-Max-24-PoE (400W))
Brand: Ubiquiti Networks
SKU: 0XP-000A-00699
Price: 371.69 OMR
Availability: InStock
Rating: 5 (3 reviews)

Ubiquiti Pro Max 24 PoE, 24-Port Layer 3 PoE Switch (USW-Pro-Max-24-PoE (400W))

Model: Pro Max 24 PoE

Pro Max 48 PoE
Pro Max 24 PoE
Pro Max 16 PoE
Pro Max 48
Pro Max 16

Primary Port: 24 Port

16 Port
48 Port
24 Port

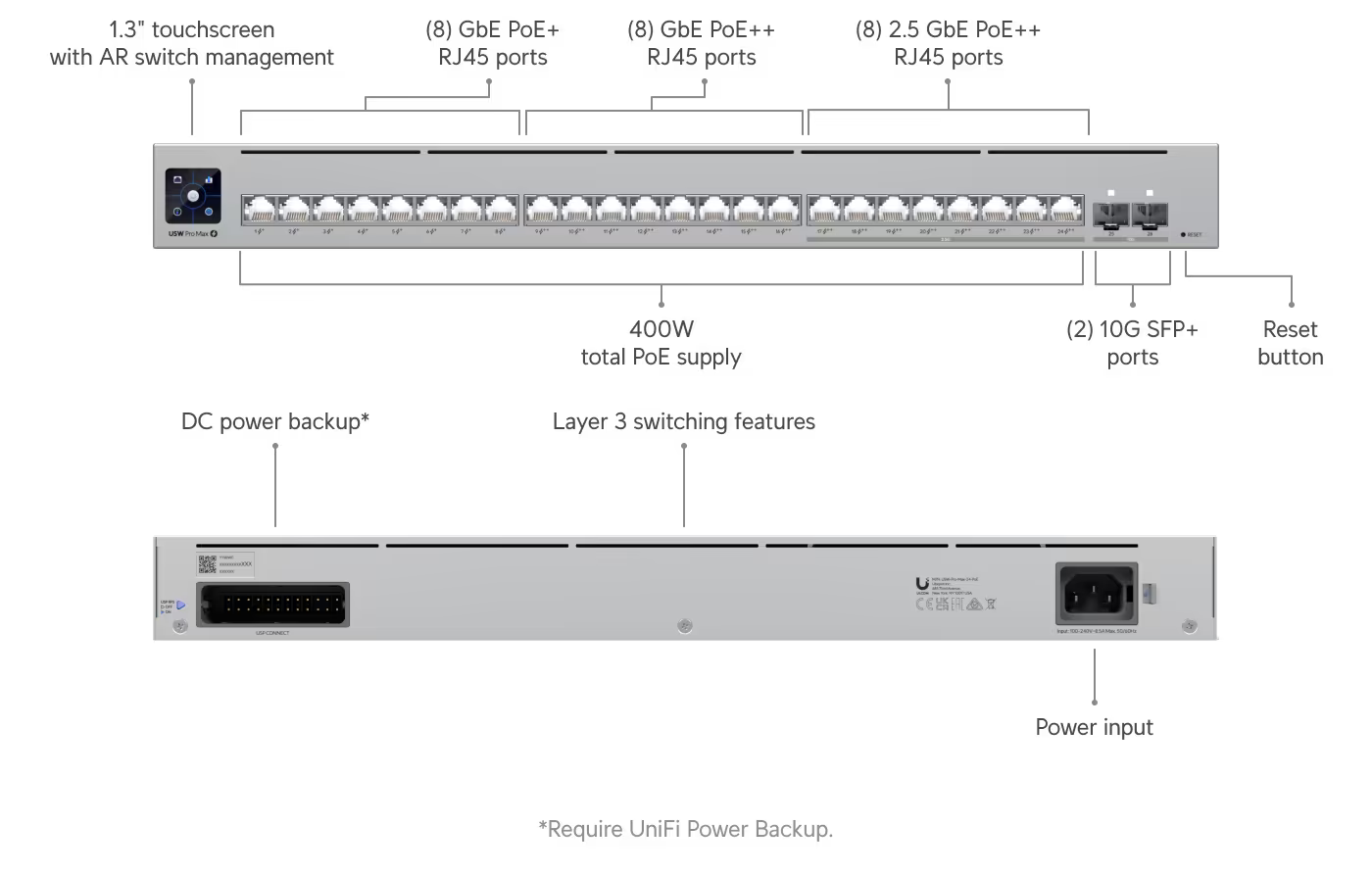

A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Pro Max 24 PoE

USW-Pro-Max-24-PoE

Layer 3 Switch

Uplink Speed: Up to 10 Gbps for high-speed back- bone connectivity, ensuring low latency and maximum throughput between aggregation switches, servers.
Downlink Speed: The Pro Max 24 PoE Switch delivers up to 2.5 Gbps downlink for modern networks.
Pro A/V Support: Supports AV over IP solutions out of the box. Apply port profiles to speed Pro AV deployment, supporting protocols.

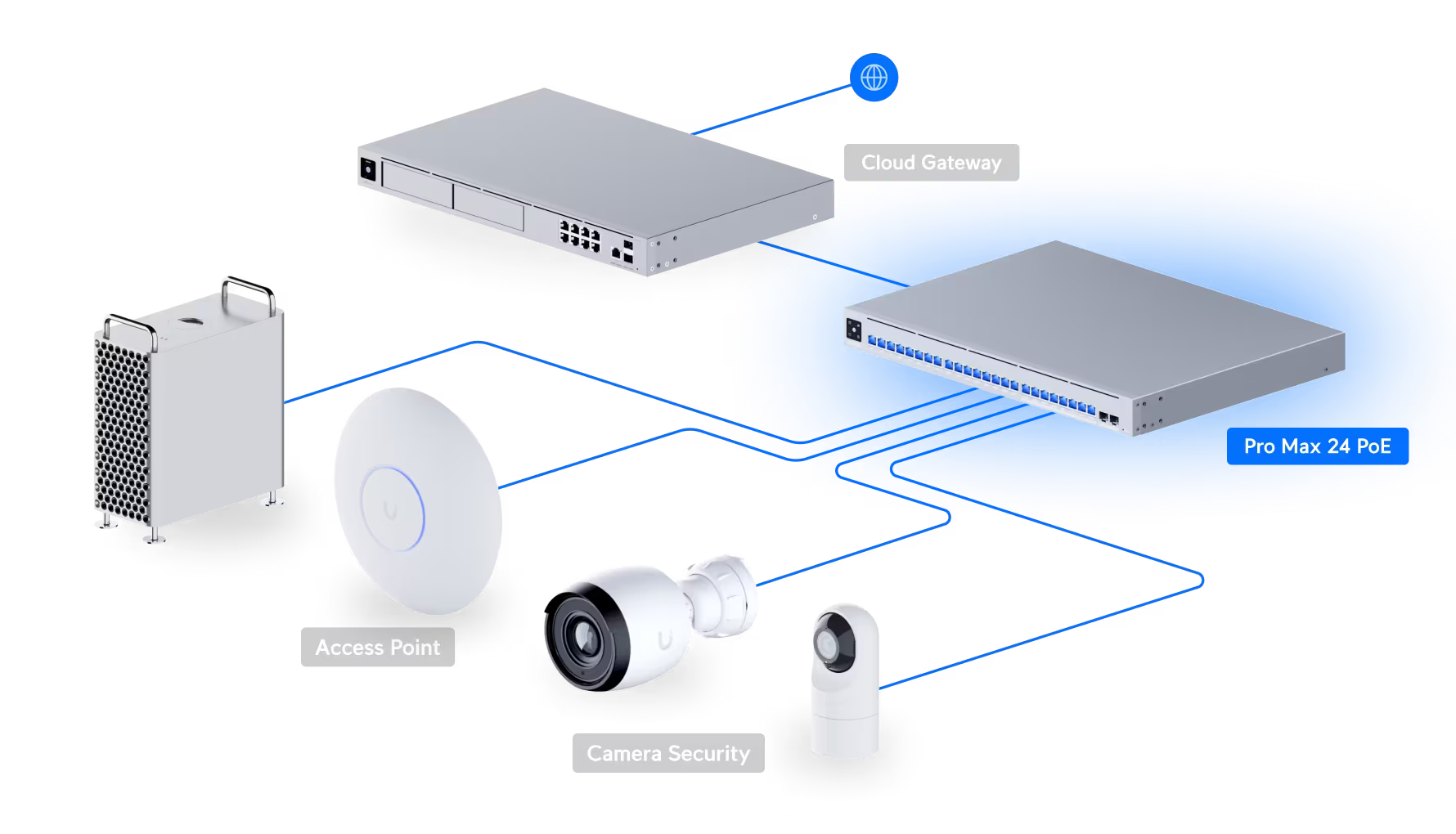

Deployment

The Pro Max 24 PoE switch offers seamless deployment, ideal for high-performance networks requiring advanced Layer 3 features and robust PoE++ support.

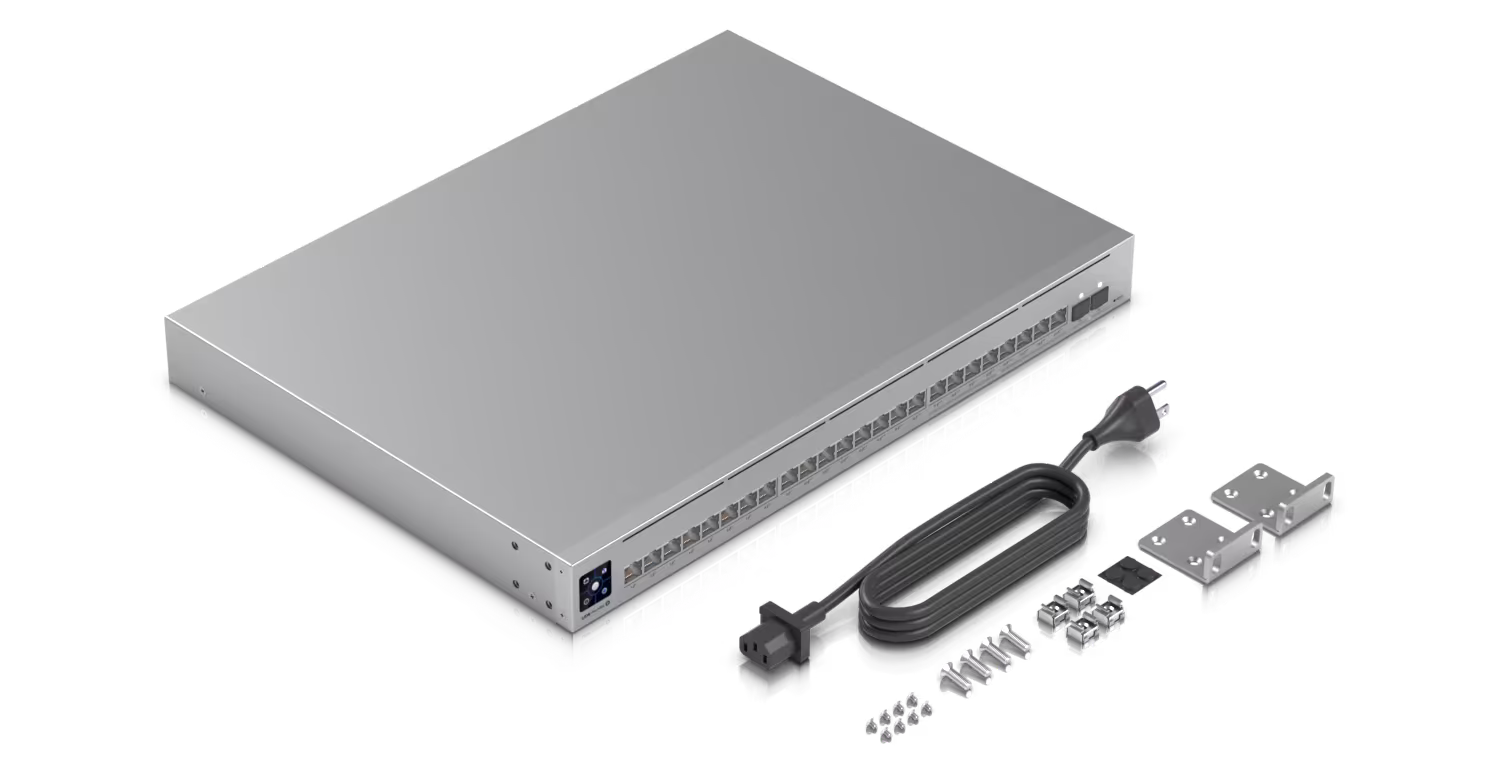

Package Content

Included:

(1) Switch
(1) Mounting Accessories

Product Comparison

	Pro Max 48 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE	Pro Max 24 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output	Pro Max 24 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE	Pro Max 16 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output	Pro Max 16 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Port Count	48 + 4 SFP+	24 + 2 SFP+	24 + 2 SFP+	16 + 2 SFP+	16 + 2 SFP+
Downlink Speed	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps
Uplink Speed	10 Gbps	10 Gbps	10 Gbps	10 Gbps	10 Gbps
PoE Output	-	Up to PoE++	-	Up to PoE++	-
PoE Availability	-	400 W	-	180 W	-
Etherlighting™	-	-	-	-	-
Pro A/V Support	✓	✓	✓	✓	✓
Mounting	Rack	Rack	Rack	Desktop Wall Rack*	Desktop Wall Rack*
Redundancy	UniFi Power Backup ready	UniFi Power Backup ready	UniFi Power Backup ready	-	-

Notes:

* With optional Rack Mount accessory.

Format	Rackmount
Network Management Type	Managed

Primary Ports	24 x RJ45 + 2 x SFP+
Primary Port Speed	Total non-blocking throughput 56 Gbps Switching capacity 112 Gbps Forwarding rate 83.328 Mpps
Primary Port Type	(16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports

Management Interface	Ethernet In-Band
VLAN Support	Yes
Jumbo Frames	Yes

PoE	Yes
Layer	3
Layer 2 Features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 Features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Port Mirroring	Yes
LEDs	System Status RPS Status
Button	Factory reset

PoE Ports	(8) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input
Max Power Consumption	50W (Excluding PoE output)
