Pro 24
USW-Pro-24
Layer 3 Switch
- Uplink Speed: Up to 10 Gbps for high-speed backbone connectivity, ensuring low latency and maximum throughput between aggregation switches, servers.
- Downlink Speed: The Pro 24 Switch delivers up to 1 Gbps downlink for modern networks.
- Pro A/V Support: Supports AV over IP solutions out of the box. Apply port profiles to speed Pro AV deployment, supporting protocols.

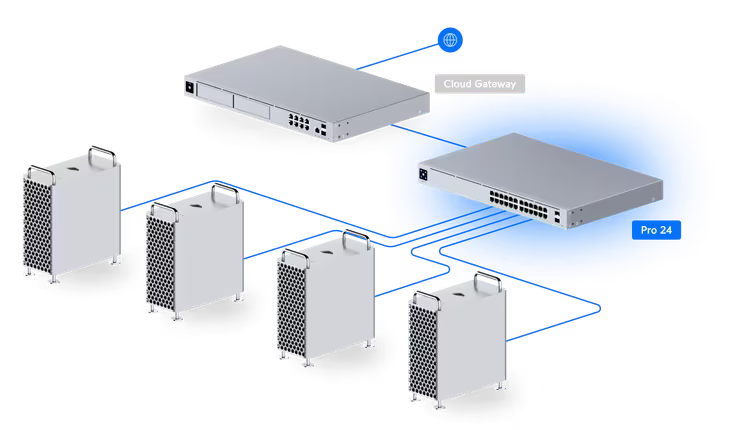

Deployment
The Pro 24 switch offers seamless deployment, ideal for medium-sized networks requiring advanced Layer 3 features and high-speed connectivity.

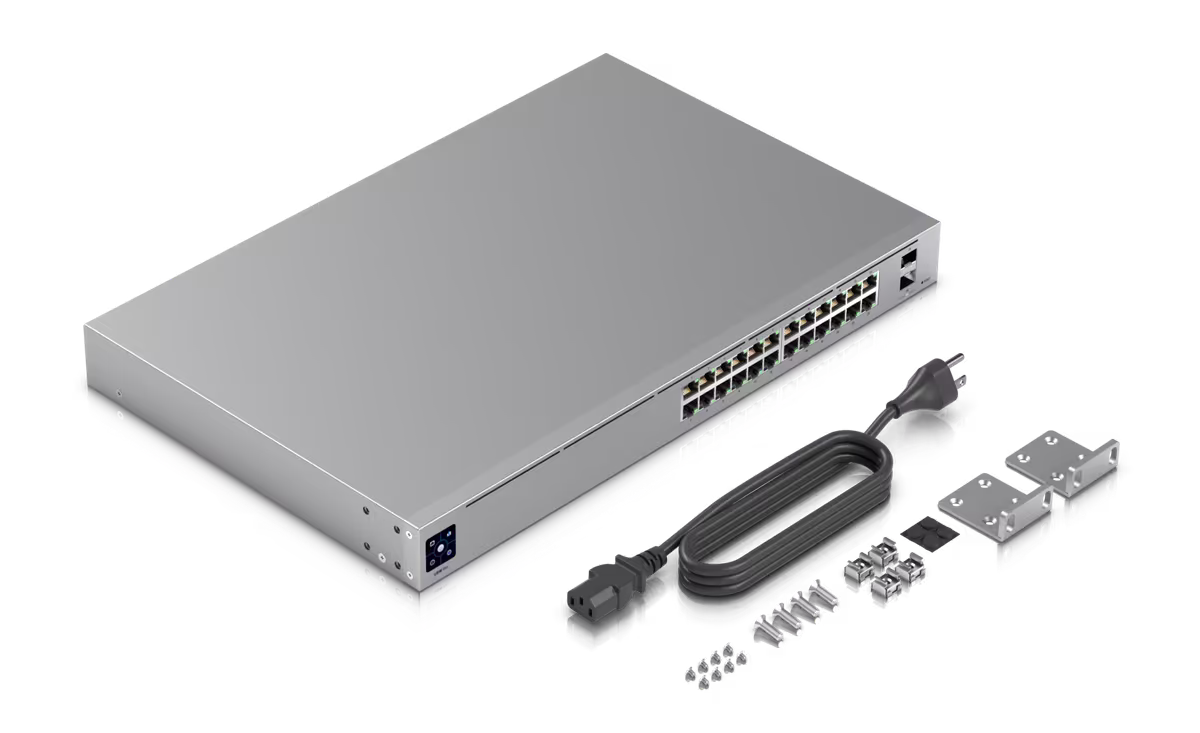

Package Content
Included:
- (1) Switch
- (1) Mounting Accessories
Product Comparison
|
Pro 48 PoE Layer 3 switch capable of high-power PoE++ output. |
Pro 24 PoE Layer 3 switch capable of high-power PoE++ output. |
Pro 48 Layer 3 switch with 10G SFP+ and fanless cooling. |
Pro 24 Layer 3 switch with 10G SFP+ and fanless cooling. |
|
|
Dimensions |
442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
|
Port Count |
48 | 24 | 48 | 24 |
|
Downlink Speed |
1 Gbps | 1 Gbps | 1 Gbps | 1 Gbps |
|
Uplink Speed |
10 Gbps | 10 Gbps | 10 Gbps | 10 Gbps |
|
PoE Output |
Up to PoE++ | Up to PoE++ | - | - |
|
PoE Availability |
600 W | 400 W | - | - |
|
Etherlighting™ |
- | - | - | - |
|
Pro A/V Support |
✓ | ✓ | ✓ | ✓ |
|
Mounting |
Rack | Rack | Rack | Rack |
|
Redundancy |
UniFi Power Backup ready | UniFi Power Backup ready | UniFi Power Backup ready | UniFi Power Backup ready |
