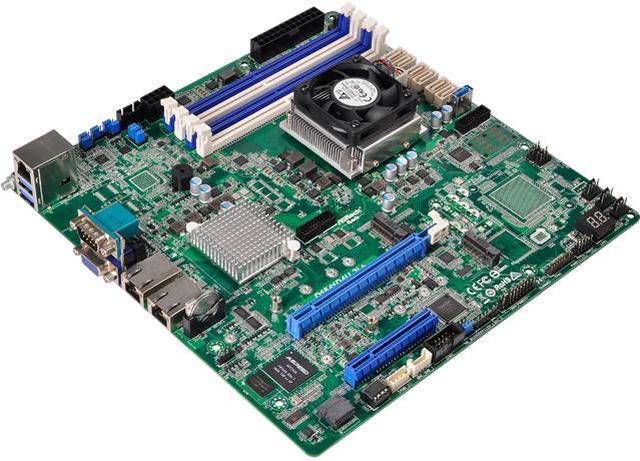

Learn more about the ASRock Rack D1521D4U-2L+
ModelBrand | ASRock |
---|
Model | D1521D4U-2L+ |
---|
Supported CPUCPU Type | Support Intel Xeon D1521 Processor |
---|
ChipsetsOther Chipset | SoC |
---|
MemoryMaximum Memory Supported | Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC / non-ECC UDIMM |
---|
Channel Supported | Dual Channel |
---|
Expansion SlotsOther Slots | PCIe 3.0 x 16: 1 slot (x16) PCIe 3.0 x 8: 1 slot (x8) M.2: 2 slots |
---|
Storage DevicesSATA | 6 x SATA 6.0Gb/s |
---|
Onboard VideoOnboard Video Chipset | Aspeed AST2400 |
---|
Onboard LANLAN Chipset | Intel I350 |
---|
LAN Speed | 10/100/1000Mbps |
---|

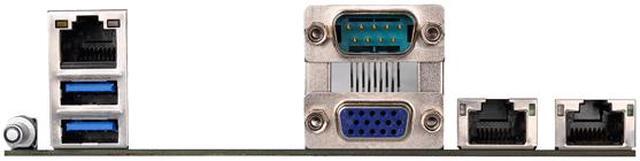

Rear Panel PortsVideo Ports | D-Sub |
---|
RJ45 | 2 x RJ45 |
---|
USB 3.0 | 2 x USB 3.0 |
---|
FeaturesFeatures | Intel Xeon D1521 Processor
Supports Dual channel DDR4 2133 / 1866 ECC DIMM max 64 / 128 GB
Support 6 SATA3 by D1521
Supports 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 2 x M.2 slots
Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Supports 2 x GLAN by Intel i350 |
---|
DimensionsForm Factor | uATX |
---|
Dimensions (W x L) | 9.6" x 9.6" |
---|
Additional InformationDate First Available | April 22, 2021 |
---|
