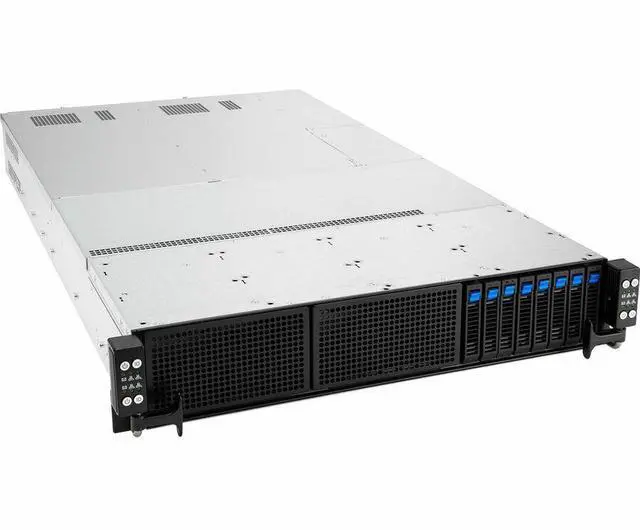

RS720Q-E11-RS8U
2U4N high density server powered by 5th Gen Intel Xeon Scalable processors that designed for liquid cooling solutions and support up to dual processors, 16 DIMMs, 2 PCIe 5.0 slots, 8 NVMe, and two 10G LAN per node
- Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
- Scale-out infrastructure: The four-node architecture design is ideal for CDN, HCI and cloud workloads to drive IT agility and digital transformation
- Direct liquid cooling (DLC): Fully designed for cooling integration and installation, including CPU with higher TDP to increase data center efficiency and power density
- Scale-up node design: Each node supports for dual processors, 16 DIMMs, 8 NVMe, two PCIe 5.0 x16 slots, two M.2, and two 10G LAN
- High power efficiency: Redundant 3000W Titanium power supplies
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
System Layout
* SAS support only from optional CB board.
Panel Layout
Front Panel
* Optional 3008 SAS Controller is required to support SATA/SAS hard drives
Rear Panel
Block Diagram
Massive Compute Performance
Transform your data center TCO with the high-density server powered by 5th Gen Intel® Xeon® Scalable Processors. With an innovative design that fits four nodes in a 2U chassis, RS720Q-E11-RS8U accommodates dual-socket CPUs, PCIe 5.0 to satisfy the increasing demands for efficiency, density and TCO-optimization for data centers, web servers, virtualization, cloud and hyperscale environments.
High CPU Performance
2 sockets
PCIe 5.0 Expansion
2 slots
DDR5 4800
16 DIMM
NVMe Drive up to
8 bays
Networking
10 Gigabit
Liquid Cooling Solution
Data Center Sustainability – Cooling Solutions
A comprehensive liquid cooling solution
This server is a purpose-built for intensive workloads for HPC data centers, with optimized space design to fit direct-to-chip and immersive cooling solutions, delivering lower PUE and Operating Expenditures to balance power consumption and green energy awareness. By working with our partners, we’re able to deliver a total solution — from servers to liquid-cooling modules, and even data-center floor plans and suggested infrastructure.
8
350W CPUs With Direct-to-chip(D2C)
171%
CPU TDP increase
Over
92%
Fan Power comsupmtion decrease
Over
22.8 dBA
Noise level decrease
Direct-to-chip cooling solution
ASUS direct-to-chip cooling is a quick, simple option that’s based on existing infrastructure. D2C can be deployed quickly, and lower PUE (power-usage effectiveness). ASUS servers can support manifolds and cool plates to enable diverse cooling solutions. Moreover, ASUS servers can support a rear-door heat exchanger that complies with standard rack-server designs, so there’s no need to replace all racks — just the rear door. This lowers the total cost of ownership, and increases data-center utilization ratio.
Immersive cooling solution
ASUS Immersion cooling is another highly-effective solution from ASUS. This technique offers more advantages on PUE and encompasses higher-density servers. However, it also demands more space, and may require retooling of the data-center infrastructure. But immersion cooling can control temperatures more rapidly, efficiently and cost-effectively than traditional methods. For users of supercomputers in particular, immersion cooling is the preferred option.
More model for immersion cooling
RS720Q-E10-IM
5th Gen Intel® Xeon® Scalable Processors
5th Gen Intel® Xeon® processors unleashes up to 21% average general-purpose performance gain, significantly improving AI inference and training, all via the drop-in-compatible LGA-4677 socket. This innovation powerhouse accelerate AI, HPC, Analytics, Networking, Storage and offer eight DDR5-5600 memory channels for up to 2 TB capacity, 80 PCI Express® 5.0 lanes with CXL 1.1 support, and a 350 W TDP for 1P and 2P configurations — ready for the future of computing.
World Records Leadership
ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.
Computing Performance
ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.
Core Optimizer
Maximizes the processor frequency in multi-core operations, avoiding frequency shifting for reduced latency.
Engine Boost
Automatic power acceleration with an innovative voltage design to increase server overall performance.
Workload Presets
Preconfigured BIOS server profiles based on workloads and benchmarks for improved performance and efficiency.
* SPEC is a corporation formed to establish and endorse standardized benchmarks and tools to evaluate performance and energy efficiency of computer systems.
Power Efficiency
ASUS select servers achieved most power efficiency positions on the SPEC Power benchmark for energy efficiency and demonstrate to customers how they can achieve faster deployments and higher energy efficiency for their IT infrastructure.
ASUS Power Balancer
Adjust overall loading automatically based on real-time monitoring to decrease overall power consumption for Improved efficiency and cost/performance optimization.
Thermal Radar 2.0
Features intelligent fan-curve adjustments to fit the real-time server usage patterns and lower fan power consumption.
Server-management Solution
BMC
Remote server management
ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
IT Infrastructure Management Software
Streamline IT operations via a single dashboard
ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.
Enhanced Security
Hardware Root-of-Trust Solution
Detect, recover, boot and protect
ASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.
Trusted Platform Module 2.0
ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
