Question 1

is it 14th gen compatible?

Accepted Answer

First, a little advice about this board.
When you buy this board, buy the cheapest 12th gen processor that will fit in it.  If you get it right after the 14th gen processors are released, it will not come with 14th gen BIOS installed.  The board won't work and you can't update the BIOS from a flash drive without a working processor.
As for your question:  The 14th gen is using LGA 1700 sockets so it should be compatible.

Question 2

What case should I use for this?

Accepted Answer

I bought this MB and put it into Fractal Design Focus G Black ATX Mid Tower Computer Case.  The ATX PSU fits right under the board and the front peripherals don't interfere with the board.  Plus it isn't too big to sit under or on my desk.  I have a liquid cooler in it and a RTX3060Ti GPU

Question 3

Will this support Noctua NH-D15?

Accepted Answer

Yes, I am using a NH-D15 on one right now. Just be sure when you buy your NH-D15, it's the version that supports LGA 1700's as they rolled those out not too long ago. If you own one from an older build and want to reuse it, you probably can't unless you get the mounts for LGA 1700's which am guessing would be off their website or something.

Question 4

does this motherboard support ddr4 ram?

Accepted Answer

No. only ddr5

Question 5

Will this comes with the latest BIOS?

Accepted Answer

The product description mentions that the ASUS TUF Gaming Z690-Plus WiFi motherboard supports 13th gen Intel Core desktop processors, but may require a BIOS update to boot the 13th gen processors. This suggests that the motherboard may not come with the latest BIOS out of the box and might require a BIOS update.

Question 6

Does this board support Windows 10 or do I have to use Windows 11 only?

Accepted Answer

It works fine with Windows 10. (I don't think there's such a thing as a Windows 11–only motherboard. Any motherboard that meets Windows 11 system requirements will also run Windows 10.)

Question 7

Will I need any extra cables for case fans if I use this MOBO with the Fractal Design Pop XL Air RGB Black TG ATX case? Also, will I be able to change the fan color with  the Aura Sync features?

Accepted Answer

You should not need any extra cables for the case fans, as this motherboard includes 4 x 4-pin Chassis Fan headers which should be sufficient. Yes, you will be able to change the fan color with the Aura Sync features, as the motherboard supports AURA Sync with AURA RGB headers and Addressable Gen 2 headers.

Question 8

Will a msi gaming GeForce RTX 3060 work with this mother board?

Accepted Answer

Yes, the RTX 3060 will work with this mother board

Brand	ASUS
Series	TUF
Model	GAMING Z690-PLUS WIFI
Part Number	90MB1AW0-MVAAY0

CPU Socket Type	LGA 1700 * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
CPU Type	Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel

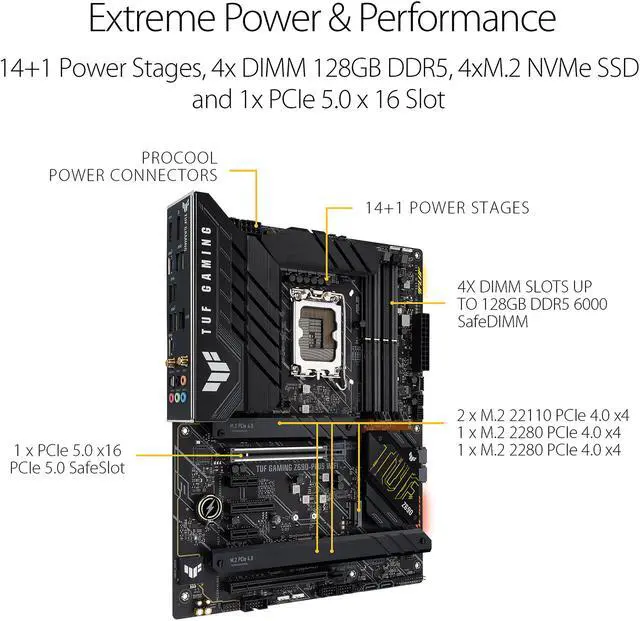

PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Please check PCIe bifurcation table in support site.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Supports x4 mode.
PCI Express x4	1 x PCI Express 3.0 x4
PCI Express x1	2 x PCIe 3.0 x1

Serial ATA (SATA)	4 x SATA 6Gb/s * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Z690 Chipset:* M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) * Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes

ASUS TUF Gaming Z690-Plus WiFi LGA 1700(Intel 12th,13th & 14th Gen) ATX gaming motherboard(PCIe 5.0, DDR5,4xM.2/NVMe SSD,14+1 power stages,WiFi 6,front USB 3.2 Gen 2 Type-C®,Thunderbolt 4

Learn more about the ASUS GAMING Z690-PLUS WIFI

Customer Reviews of the ASUS GAMING Z690-PLUS WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

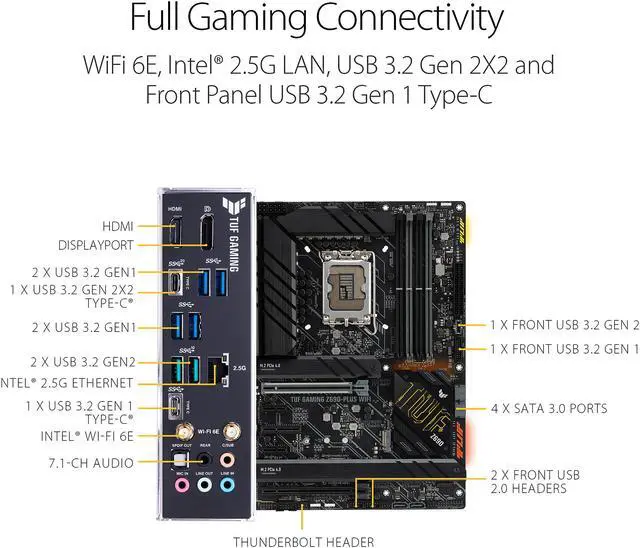

LAN Chipset	Intel 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

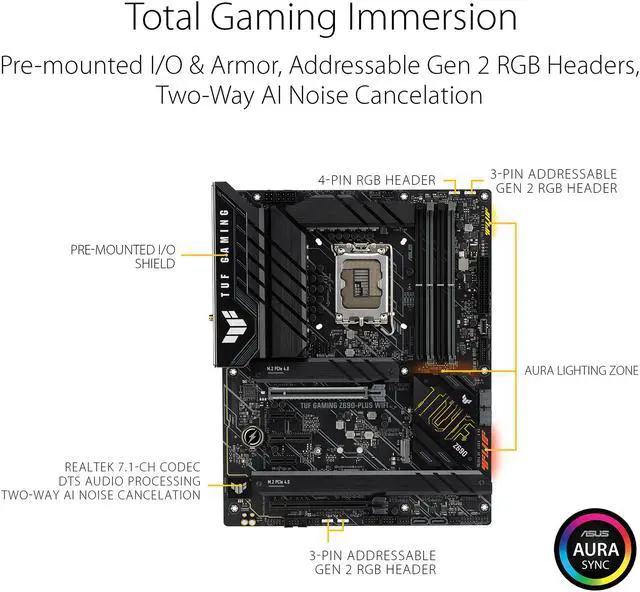

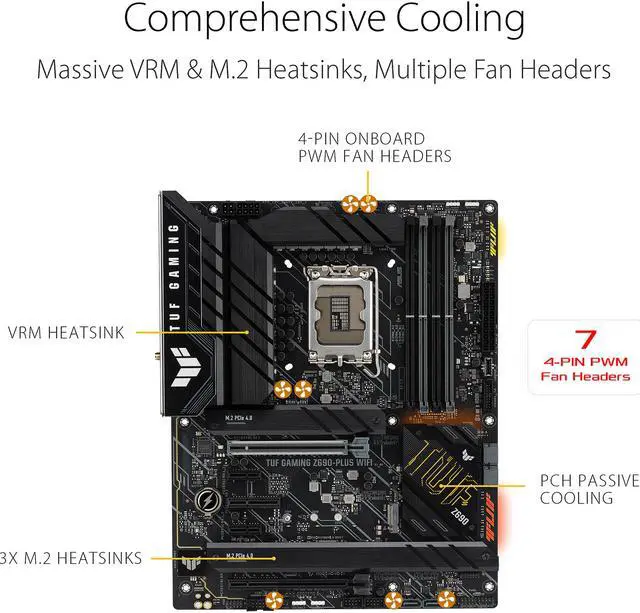

Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Item#: N82E16813119554
