PWM FAN SPLITTER Y-CABLE connects 2 computer PWM fans to a single motherboard fan header;
1 to 2 fan converter cable connects an additional fan to increase airflow in your computer case

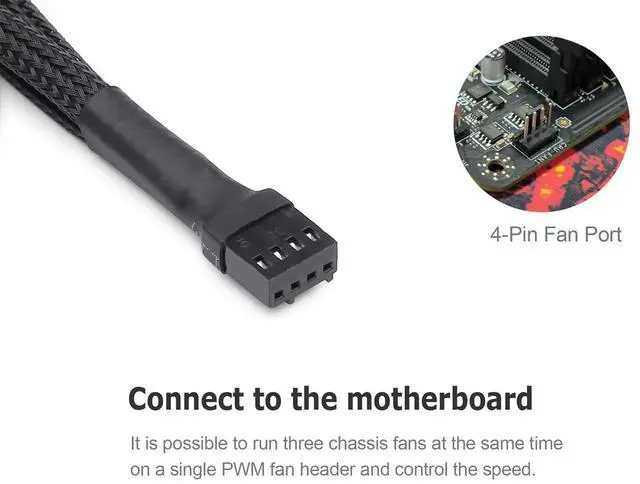

MOBO 4-Pin receptacle connects to the 4-Pin header on the motherboard and splits the signal to 2 PWM fans;
Fans can spin at the same speed using software from a motherboard equipped with PWM control

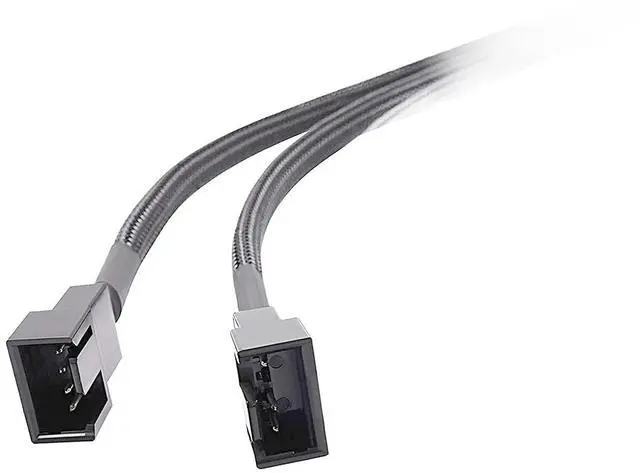

MASTER/SLAVE FAN PLUGS have a 4 pin fan connector a wire that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan;
3 pin fan connector omits the RPM signal pin for tandem fan speeds with both fans

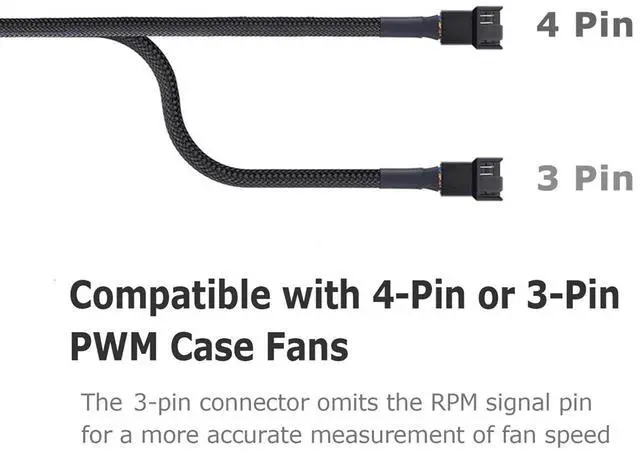

3-PIN & 4-PIN FAN COMPATIBLE with popular brands of computer case cooling fans
PWM 4pin to 2 ports fanout splitter cable
Supports two fans connect to motherboard CPU_FAN header
10 inches in cable length
PWM TX4 4Pin header connect to motherboard CPU_FAN or SYS_FAN
Just one header include 4 wires for PWM control
The other header just include 3 wires
Please make sure the header with full 4pin tips always connect fan preferentially
| Type | PWM Fan Power Splitter Cable |
|---|---|
| Cable Length | 10 inches |
| Conductor | 22AWG Copper |

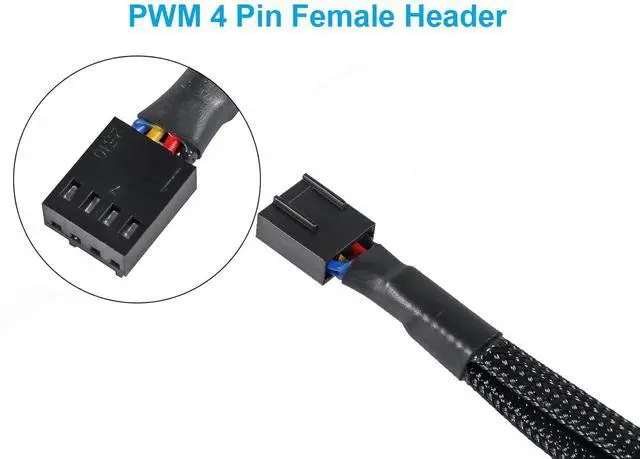

| Connector A | 1 x 4pin PWM fan TX4 Female |
| Connector B | 2 x 4pin PWM Fan TX4 Male |
| Power supports | Motherboard CPU_FAN or SYS_FAN |
| Compatible | Compatible with 3-Pin & 4-Pin Fan |

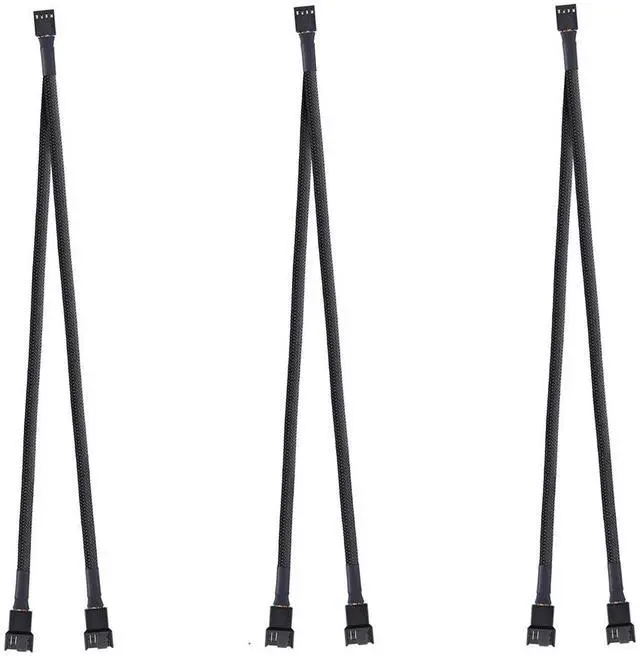

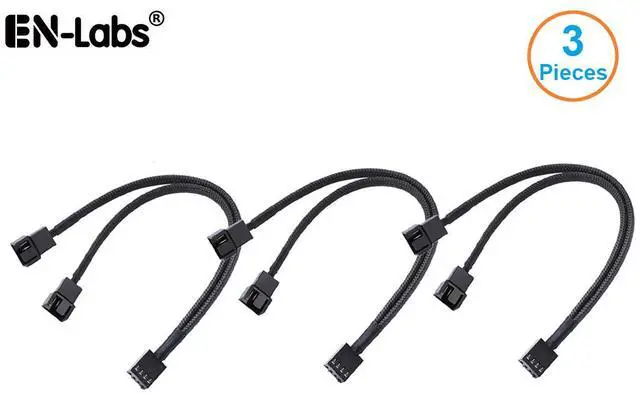

| Package Contents | 3 Pieces PWM fan splitter cable |
Note:
Please make sure the header with full 4pin tips always connect fan preferentially
Support PWM controlling, all connected PWM fans running in same speed
Compatible with 3pin fans, but just running in full speed
