₱1,401.11
VAT-Inclusive Price
Ships from China.
Most customers receive within 7-17 days.
Meet Your Seller

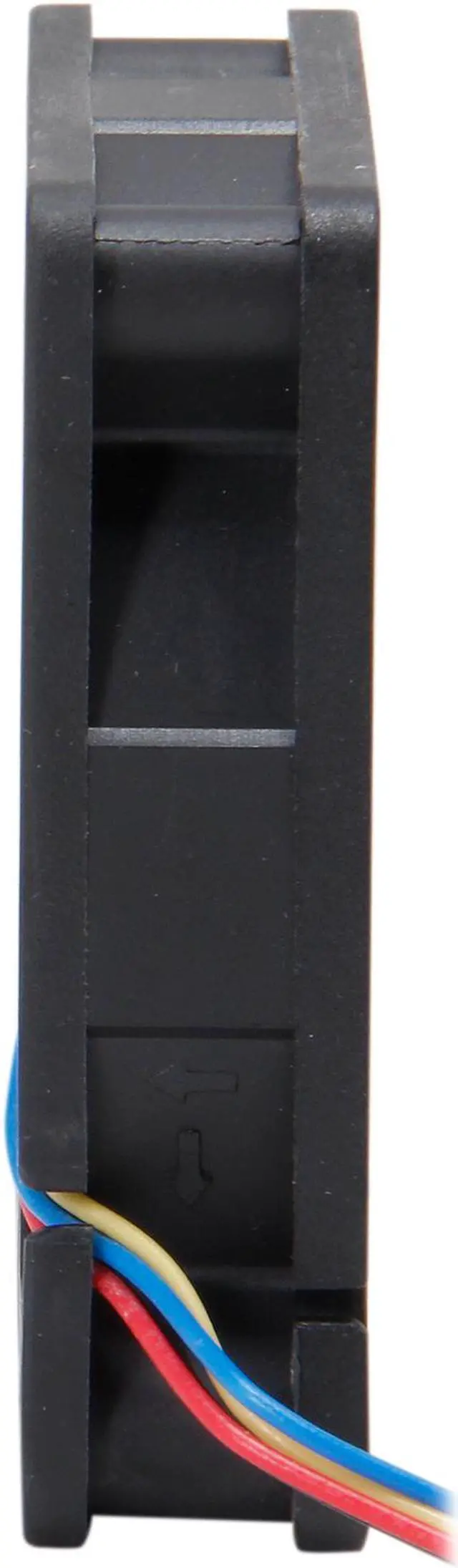

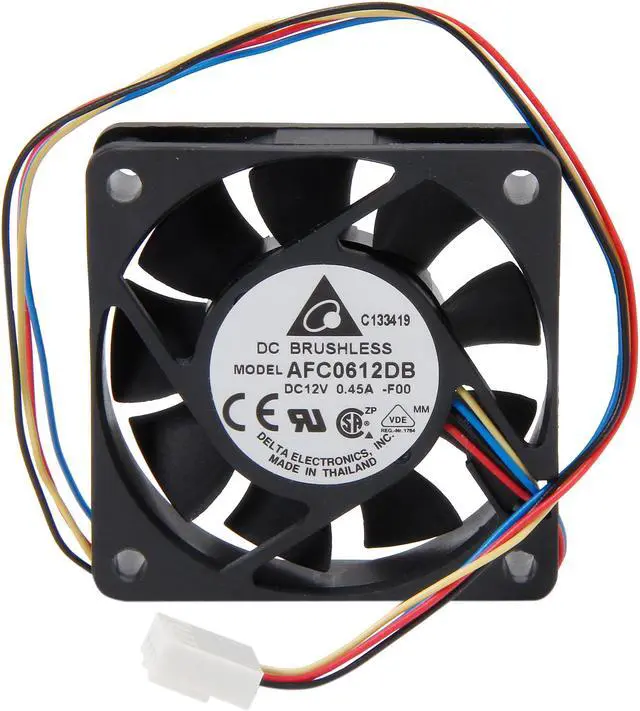

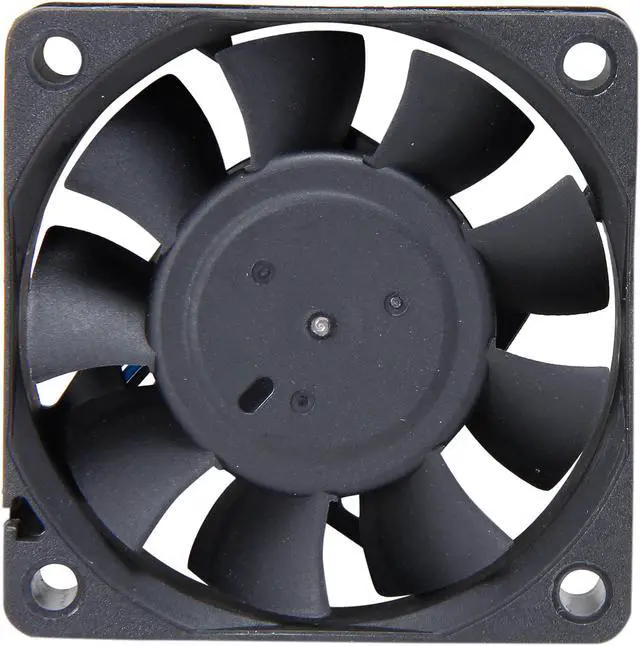

Delta AFC0612DB-PWM 60mm Case cooler
- 60mm
- 7200 RPM 29.24 CFM
- Dual Ball
- 47.5 dBA
+
+
Specs
Reviews (3)
Learn more about the 1ST PC CORP. AFC0612DB-PWM
| Brand | Delta |
|---|---|
| Model | AFC0612DB-PWM |
| Type | Case Fan |
|---|---|
| Compatibility | Case |
| Fan Size | 60mm |
| Bearing Type | Dual Ball |
| RPM | 7200 RPM |
| Air Flow | 29.24 CFM |
| Noise Level | 47.5 dBA |
| Power Connector | PWM 4 pin |
| Features | Rated Voltage: 12 VDC Operating Voltage Range: 8 - 13.2 VDC Input Current: 0.33 Amp Input Power: 3.96W Maximum Air Pressure: 13.12 mmH2O or 0.517 inchH2O The Delta AFC0612DB-PWM is a high speed, low profile cooling fan at 60 x 60 x 15mm. It can be placed into more tight spaces where air cooling is needed. Air flow is 29.24 CFM, or 0.828 cubic meter per minute. With the fan's PWM output, fan speed can be controlled automatically based on CPU load and BIOS setting, so you can easily achieve a balance between noise and cooling capacity. Life expectance is 70,000 hours (or almost 24 years if you operate the fan 8 hours a day) at 40 Degree C with 15 - 65% RH, all thanks for industrial grade materials plus top notched, high quality dual ball bearing. Suitable applications include but are not limited to home media computer systems, ITX or low profile desktop computing systems, media entertainment systems, or low profile industrial rack mount systems. Operating temperature is -10 to +60 Degree C with 5 - 90% RH. Protection includes Over Current Shut-Down Protection when rotor is locked, and Polarity Protection which can withstand reverse connection on positive and negative leads. This fan does not contain ozone depleting substances such as PBBs, PBBOs, CDCs, PBBEs, PBDPEs and HCFCs. This fan has 4 wires lead with PWM sensor and fan speed sensor output and a standard PWM 4 pin fan connector. You can still plug it to a standard 3 pin fan header found on most computer motherboards, but you will lose the PWM function that way. For controlling fan speed manually you can consider using a fan speed controller (sold separately). Wire lead is approximately 12.8 inches long. |
|---|
| Dimensions | 60.00 x 60.00 x 15.00mm |
|---|
| First Listed on Newegg | October 10, 2023 |
|---|
