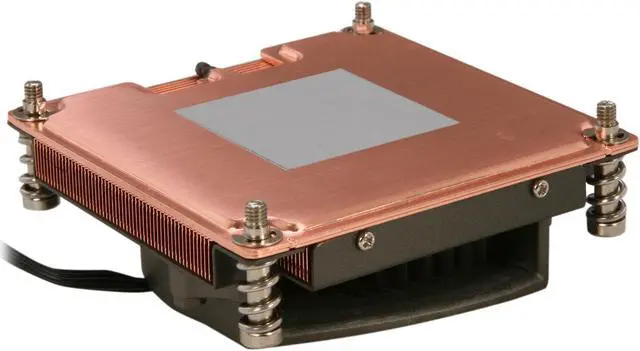

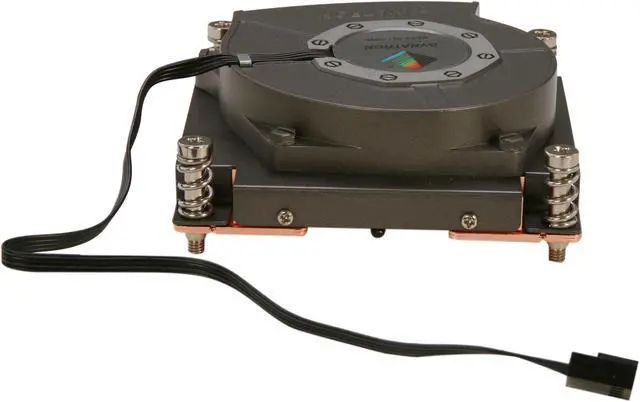

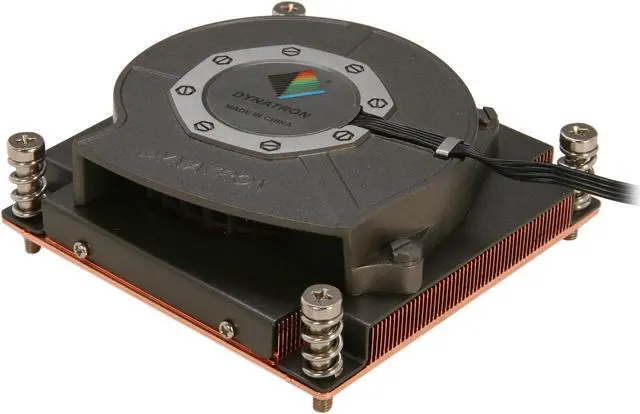

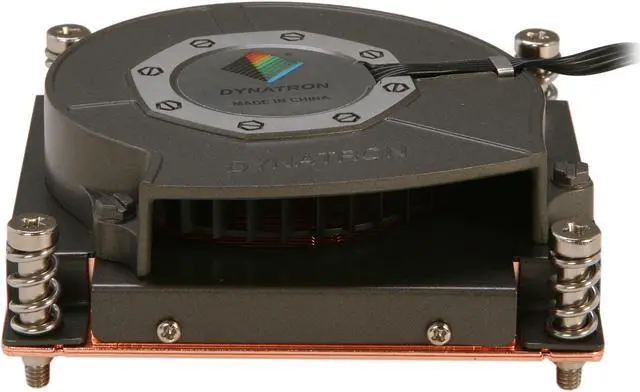

Dynatron R16 80mm 2 Ball CPU Cooler
- At Duty Cycle 20%: 1000 RPM
- At Duty Cycle 50%: 3500 RPM
- At Duty Cycle 100%: 6000 RPM
- At Duty Cycle 20%: 6.5 CFM
- At Duty Cycle 50%: 11.2 CFM
- At Duty Cycle 100%: 19.1 CFM
- Vapor Chamber Base with Copper Stacked Fin
+
+
Overview
Specs
Reviews (4)
CPU Support
Intel Sandy Bridge EP/EX Processors
Solution
1U Solution
Material
Vapor Chamber Base with Copper Stacked Fin
Fan Dimension
80 x 80 x 15 mm
Speed
At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 6000 RPM
Bearing
2 Ball Bearing
Rated Voltage
12 V
Power
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W
Air Flow
At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 19.1 CFM
Noise Level
At Duty Cycle 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 55.8 dBA
Air Pressure
At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Item Dimension (L"xW"xH"):
3.6 x 3.6 x 1.12
Warranty Information:
NA
Intel Sandy Bridge EP/EX Processors
Solution
1U Solution
Material
Vapor Chamber Base with Copper Stacked Fin
Fan Dimension
80 x 80 x 15 mm
Speed
At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 6000 RPM
Bearing
2 Ball Bearing
Rated Voltage
12 V
Power
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W
Air Flow
At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 19.1 CFM
Noise Level
At Duty Cycle 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 55.8 dBA
Air Pressure
At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Item Dimension (L"xW"xH"):
3.6 x 3.6 x 1.12
Warranty Information:
NA
