Banana Pi BPI-R2 Pro Open Source 5 Gigabit Port Wireless Smart WiFi Router 2G LPDDR4 and 16G EMMC Developement Based in Linux OpenWRT for NAS VPN Server and DIY Software

Be the first to review this product...
  • [WiFi Router Development Board]The Banana Pi R2 PRO is a router based development board, With MediaTek MTK MT7531BE ,Mali-G52 1-Core-2EE GPU and 2G LDDR4 SDRAM,It has 4 Gigabit LAN ports, 1 Gigabit WAN, AC wifi AP function, Highly integrated 802.11n and Bluetooth 5.0 system-on-chip
  • [Rich interface] Banana Pi R2 PRO Wifi Router features a variety of interfaces,including 2x USB 3.0 host; Dual Band Wifi 2.4GHz/ 5GHz. Mini PCIE interface support 4G Module,1x SATA interface,1080P high-definition video output

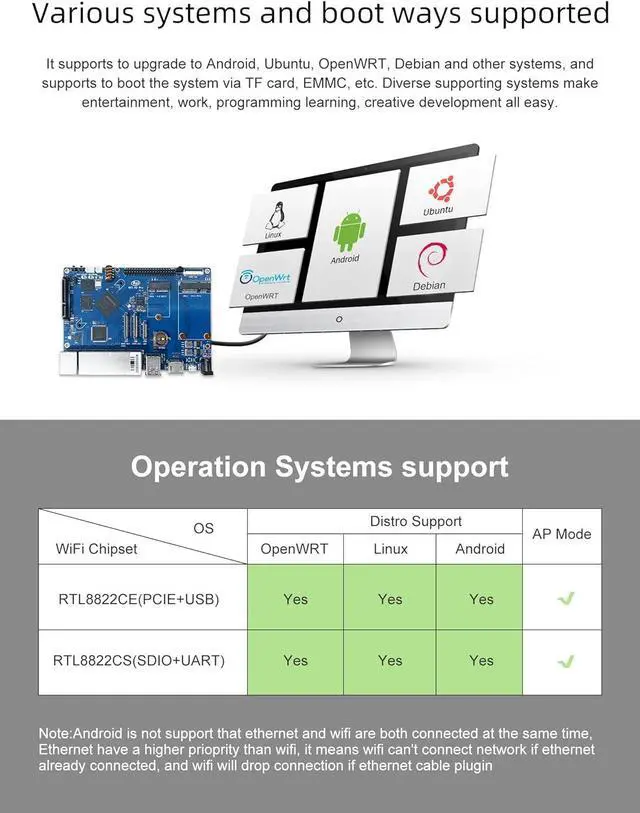

  • [Multi-system support]It can run on a variety of open source operating systems including OpenWRT & LEDE, Android, Ubuntu, Debian,Linux
  • [Wide application]it can be used for high wireless performance, home entertainment, home automation,NAS server, Smart home control gateway, Network cache server,Industrial grade network aggregation server, Security video intelligent terminal,4G routing intelligent terminal etc
  • [Video:]H.265 HEVC/MVC Main10 Profile [email protected] up to 4096x2304@60fps,H
+
+
Overview
Specs
Reviews
-Description-
CPU: Rockchip RK3568 Quad-core ARM Cortex-A55 CPU 2GHz
GPU: Mali-G52 1-Core-2EE OpenGL ES3.2 Vu1kn 1.1 OpenCL 2.0
Memory2G DDR3 SDRAM (option 4G)
Storage: Onboard 16GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port,SPI flash

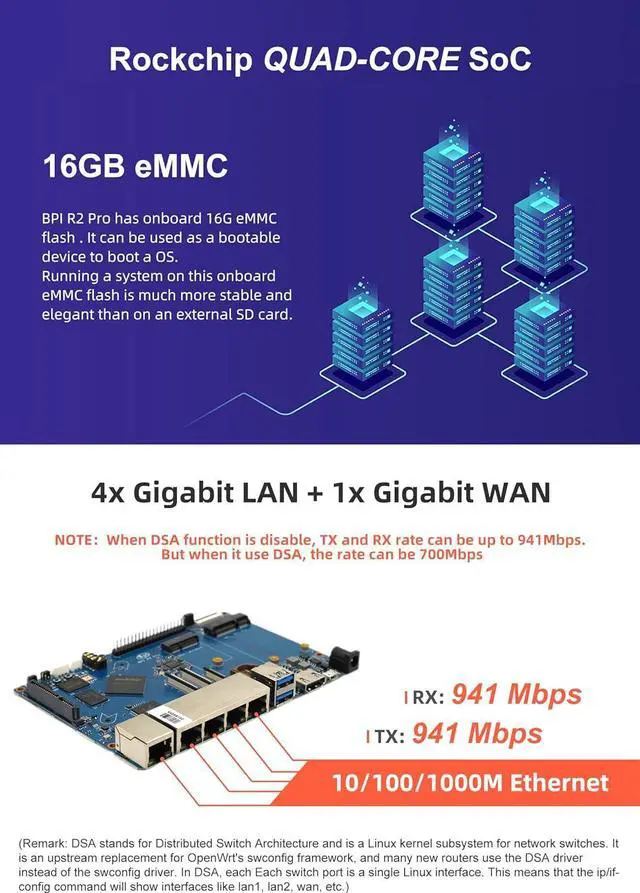

Network: 5 x 10/100/1000 Mbit/s Ethernet
Audio: HDMI & I2S & Speaker & Headphone
Video decoder(s): H.265 HEVC/MVC Main10 Profile [email protected] up to 4096x2304@60fps,H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps
USB: USB 3.0 PORT (x2), micro USB OTG (x1)
Video encoder(s): H.264/AVC BP/MP/[email protected] to 1920x1080@100fps, H.265/HEVC [email protected], up to 1920x1080@100fps (4096x4096@10fps with TILE)
GPIO: 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
Power Source: 12 volt @2A via DC Power and/or Micro USB (OTG)
MINI PCIE: 1 mini pcie interface & 1 M.2 key-e interface

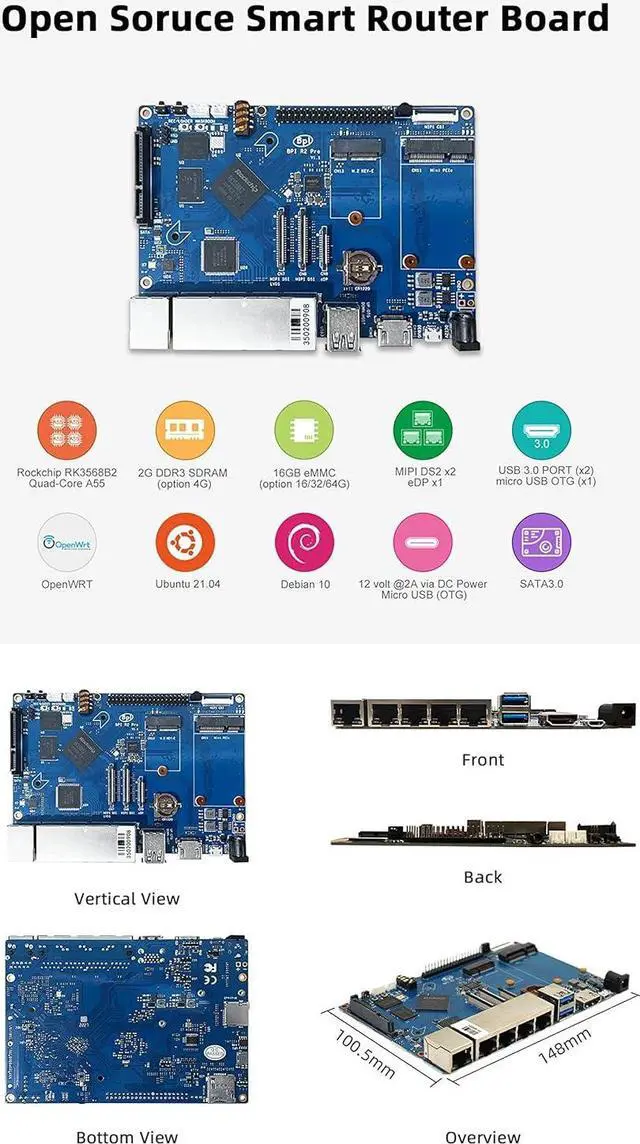

Size:148 mm × 100.5mm 100g
Weight:100g
-OS/Software-
OS Support
OpenWRT, ,Android, Ubuntu, Debian,Linux
-Package Includes-
1 x Banana Pi R2 Pro Development Board
