₱13,400.93
VAT-Inclusive Price
Ships from Hong Kong.
Most customers receive within 10-17 days.
Sold by GuoLongSheng Shop
Shipped by GuoLongSheng Shop
Meet Your Seller

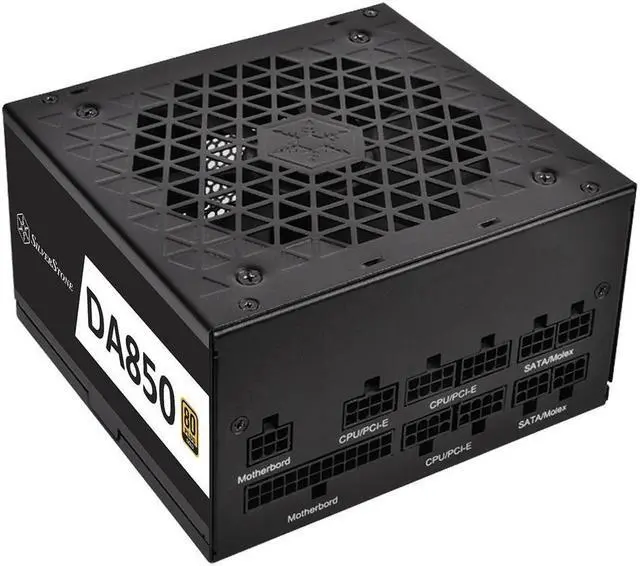

SilverStone Technology DA850R Gold 80 PLUS Gold 850W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- High efficiency with 80 PLUS Gold certification
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 40operating temperature
- Silent running 120mm FDB fan with 18 dBA minimum
- All Japanese electrolytic capacitors
- Compact design with a 140mm depth for easy integration
+
+
Overview
Reviews
Product No.
SST-DA850R-GM
Model (safety certification)
SST-AX0850MCGD-B
Color
Black (lead-free paint)
Max. DC Output
850W
Power density
471W/L
Load Range
Output + 3.3V +5V +12V +5VSB -12V
Max. (Amps) 20A 20A 70.5A 2.5A 0.3A
Peak (Amps) / / / / 3.0A
Min. (Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg. (%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 60mV 40mV 80mV
Combined + 3.3V & +5V
110W
Combined +12V
846W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF> 0.9 at full load)
Efficiency
87% & <89%
MTBF
100, 000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connectors
6 x 4-Pin Peripheral connector
2 x 4-Pin Floppy connector
Cooling System

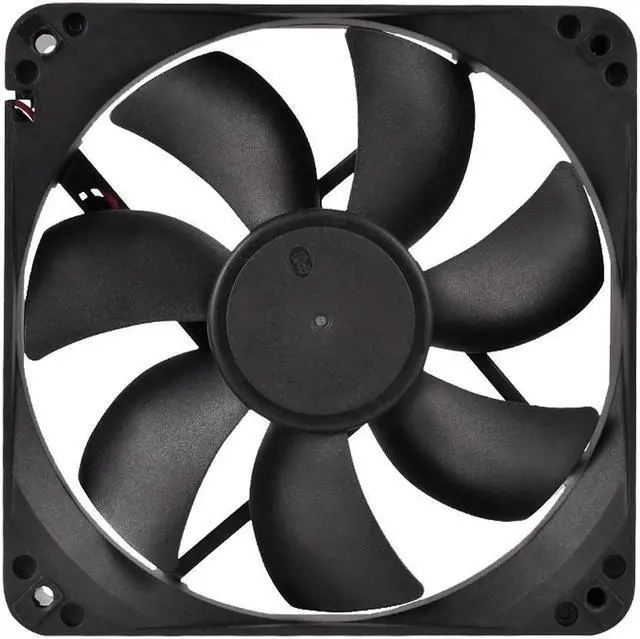

120mm FDB fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension

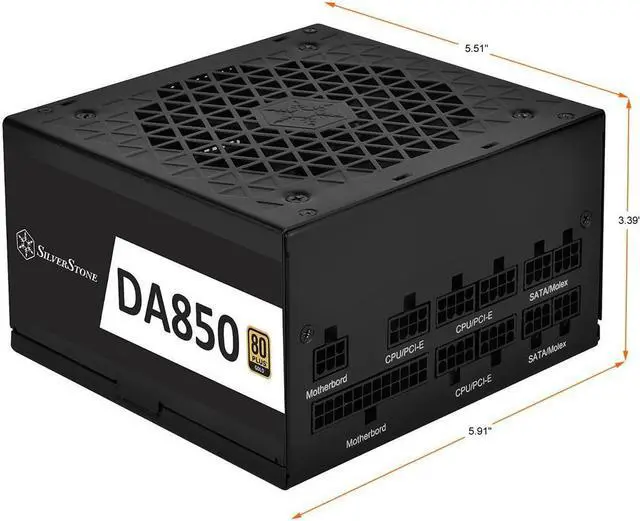

150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.46 kg
SST-DA850R-GM
Model (safety certification)
SST-AX0850MCGD-B
Color
Black (lead-free paint)
Max. DC Output
850W
Power density
471W/L
Load Range
Output + 3.3V +5V +12V +5VSB -12V
Max. (Amps) 20A 20A 70.5A 2.5A 0.3A
Peak (Amps) / / / / 3.0A
Min. (Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg. (%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 60mV 40mV 80mV
Combined + 3.3V & +5V
110W
Combined +12V
846W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF> 0.9 at full load)
Efficiency
87% & <89%
MTBF
100, 000 hours
Operating temperature
0°C ~ 40°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
No load operation
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12+4-Pin 12VHPWR connector
8 x SATA connectors
6 x 4-Pin Peripheral connector
2 x 4-Pin Floppy connector
Cooling System
120mm FDB fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.46 kg
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by GuoLongSheng Shop Return Policy
- *Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
