Solar Charge Controller 60A PWM 50V PV Input 12V / 24V 1360W Solar Panel Charging Regulators with LCD Monitor Overload Protection Temperature Compensation

Highlights:

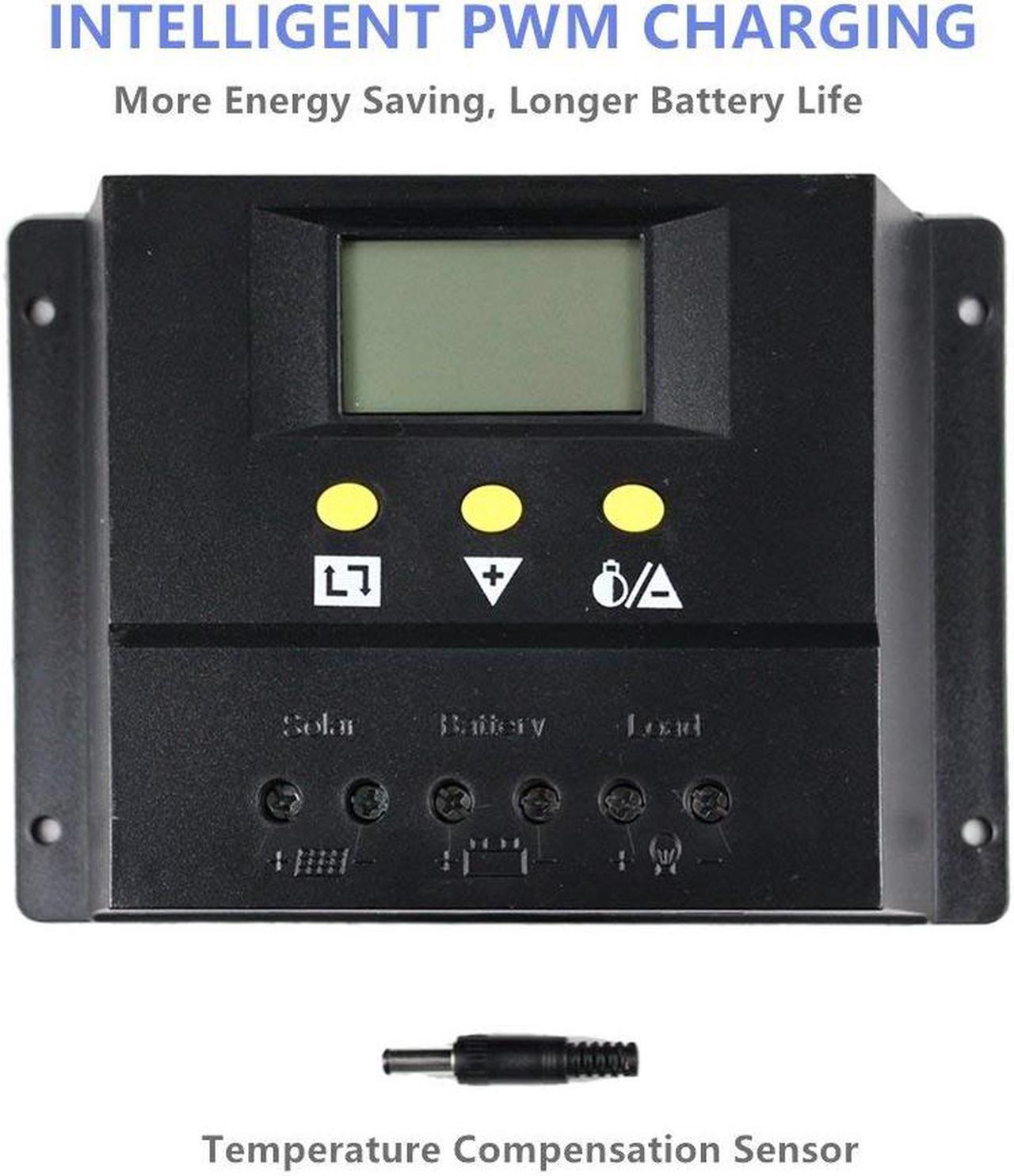

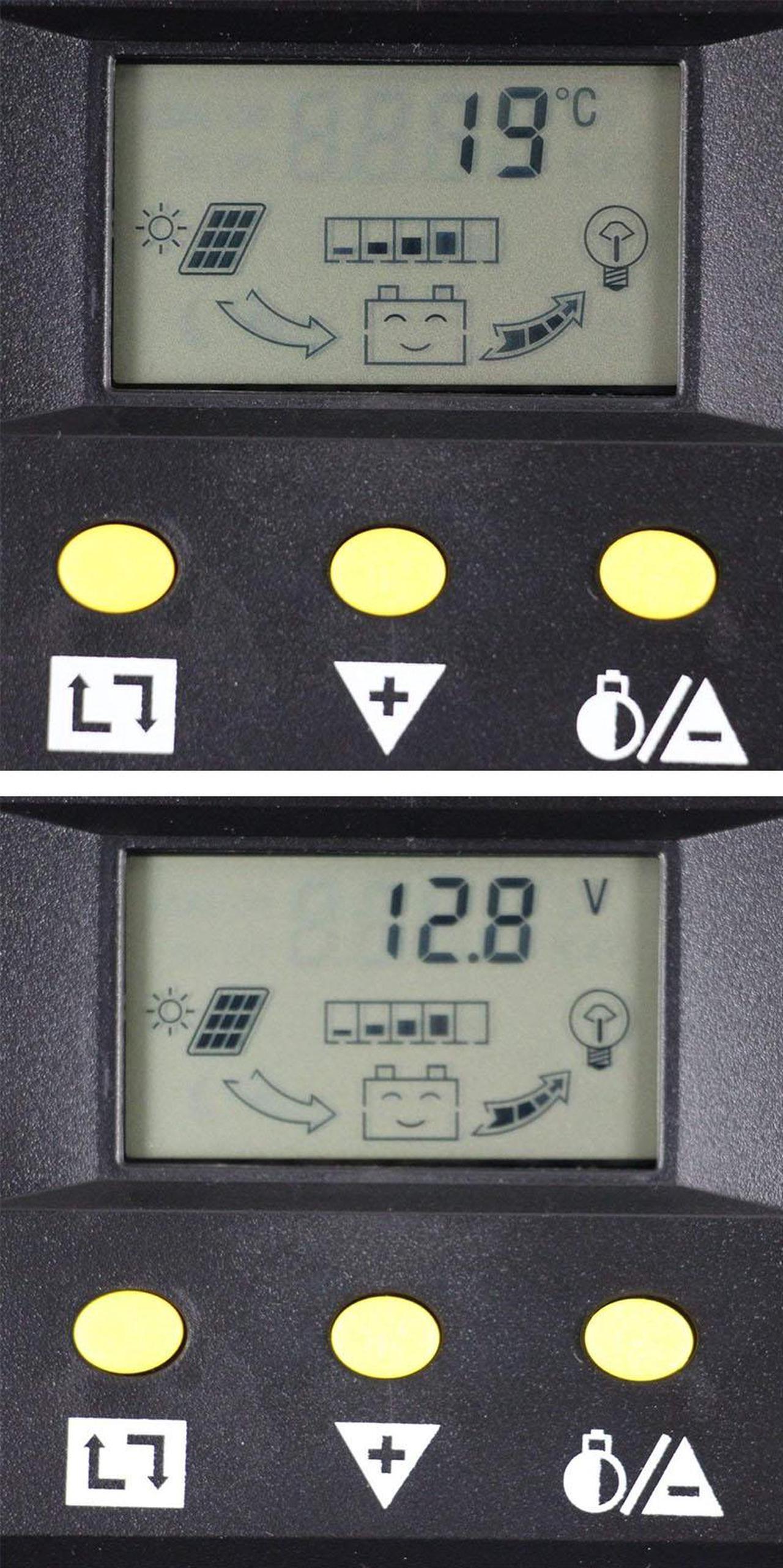

This 60 amp solar charge controller has a Intelligent Control Interface LCD Display: 1. Graphic Symbols Display 2. System Voltage Identification 3. Intelligent PWM Charge Mode 4. Automatic Temperature Compensation 5. Charge-Discharge Amp-hr Statistics for Clear Use Condition

Simple Operation: 1. Simple & Easy Button Operation 2. Adjustable Charge-Discharge Parameter, Timer & Brightness Control 3. Operation Mode of Load is Settable

Intelligent Batteries Protect Extend Lifetime: Reverse-discharge Protection, Low Voltage Disconnection (LVD), Reverse Connection Protection, Load Short-circuit Protection, Temperature Sensor Equipped for Automatic Temperature Compensation

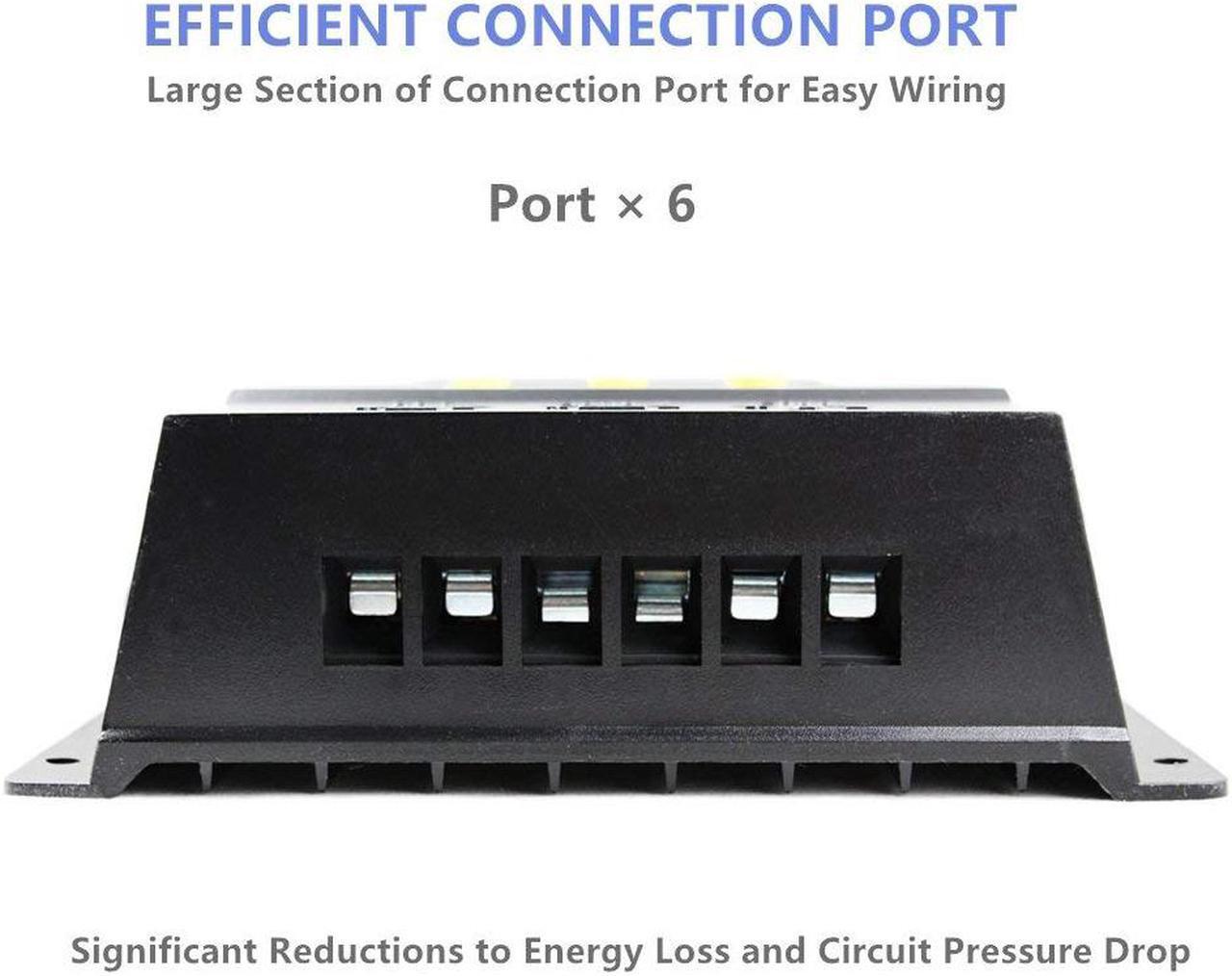

Efficient Connection Port : Large Section of Connection Port for Easy Wiring, Significant Reductions to Energy Loss and Circuit Pressure Drop

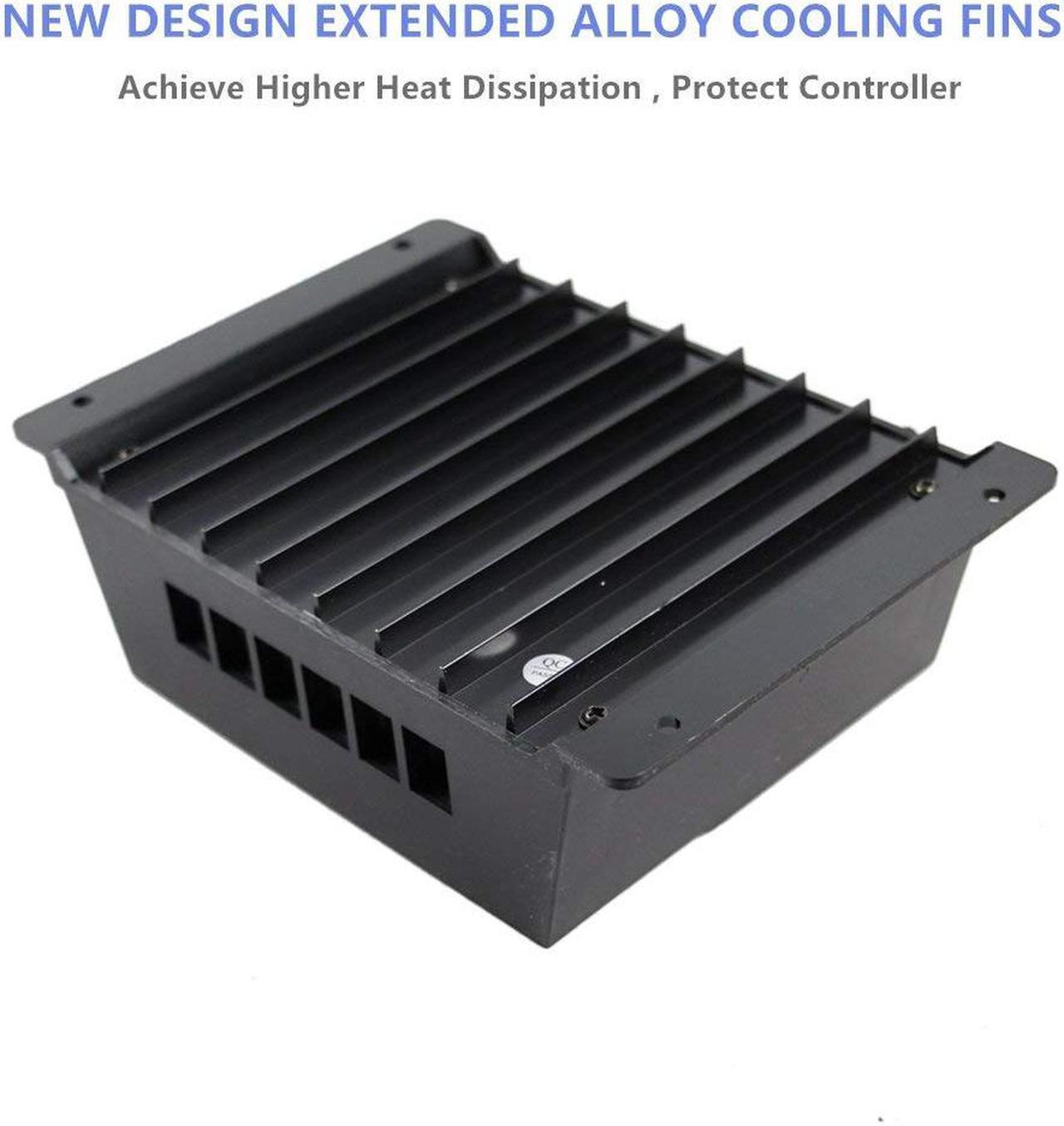

Engineering Overall Design: New Design Extended Alloy Cooling Fins to Achieve Higher Heat Dissipation


CM series is a kind of intelligent 60a solar controller, multi-purpose solar charge controller. This series of products using a custom LCD display has a friendly interface, The control parameters can be set flexible, fully meet your requirements of different applications.

Benefits

60A Model Capable Solar Panel Power: 720W/12V 1020W/24V
80A Model Capable Solar Panel Power: 960W/12V 1360W/24V

Technical Parameter

Model: 60 amp PWM Solar Charge Controller
Rated Working Current: 60 Amps

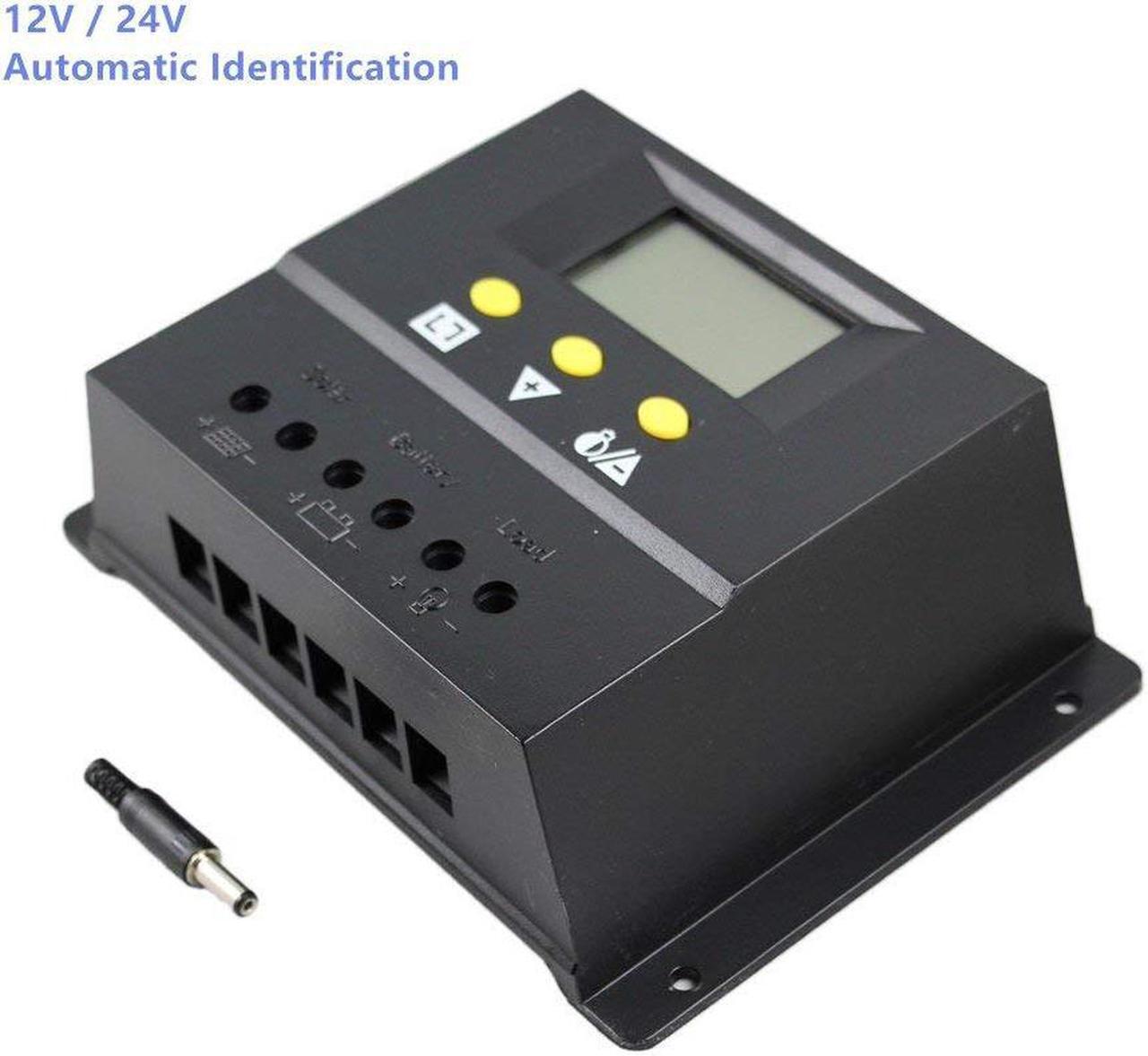

Rated Working Voltage: 12V/24V DC Auto
Voltage of Solar Panel: =50V
Float Charging Voltage (Settable) :13.7V/27.4V
Low Voltage Protection (Settable) :10.7V/21.4V
Low Voltage Recovery (Settable) :12.5V/25.2V
No Load Loss : <30mA
Loop Voltage Drop : =200mV
Temperature Compensation: -4mv//cell
Installable Max. Cable: 3# AWG (25mm2)
Working temperature: -20?~50? / -4?~122?
Storage temperature: -30?~70? / -22?~158?
Temperature Requirement: =90%, No Condensation
Dimension: 130 mm×188 mm×62 mm
Mounting Hole Spacing: 98 mm×178 mm -F5 / 3.85 in×7 in -F0.2 in
Weight: 590g / 20.81 oz
