ISA Motherboard 945 ISA Slot Industrial Computer Mainboard LGA775 2* ISA Slots 5* PCI Slots, ATX Motherboard with ISA Slots ATX Motherboard with PCI Slot,Replace AIMB-769

ISA motherboard computer desktop ,945G ATX Board,945GC ISA Slot Mainboard
ISA Mainboard ATX Motherboard,Compatible devices: Server,PC,Computer
Chipset type: int. 945GC Chipset
Cpu model socket: LGA775 for Pentium HT,Pentium D,Pentium 4,Celeron D,Conroce , Conroce L FSB 533/800/1066 CPU , Ram memory technology: 2*DDR2
PCI Slots:5, PCI-E X16 :1,ISA Slots :2,RTL8111C Ethernet controllers RJ45 LAN ports :2

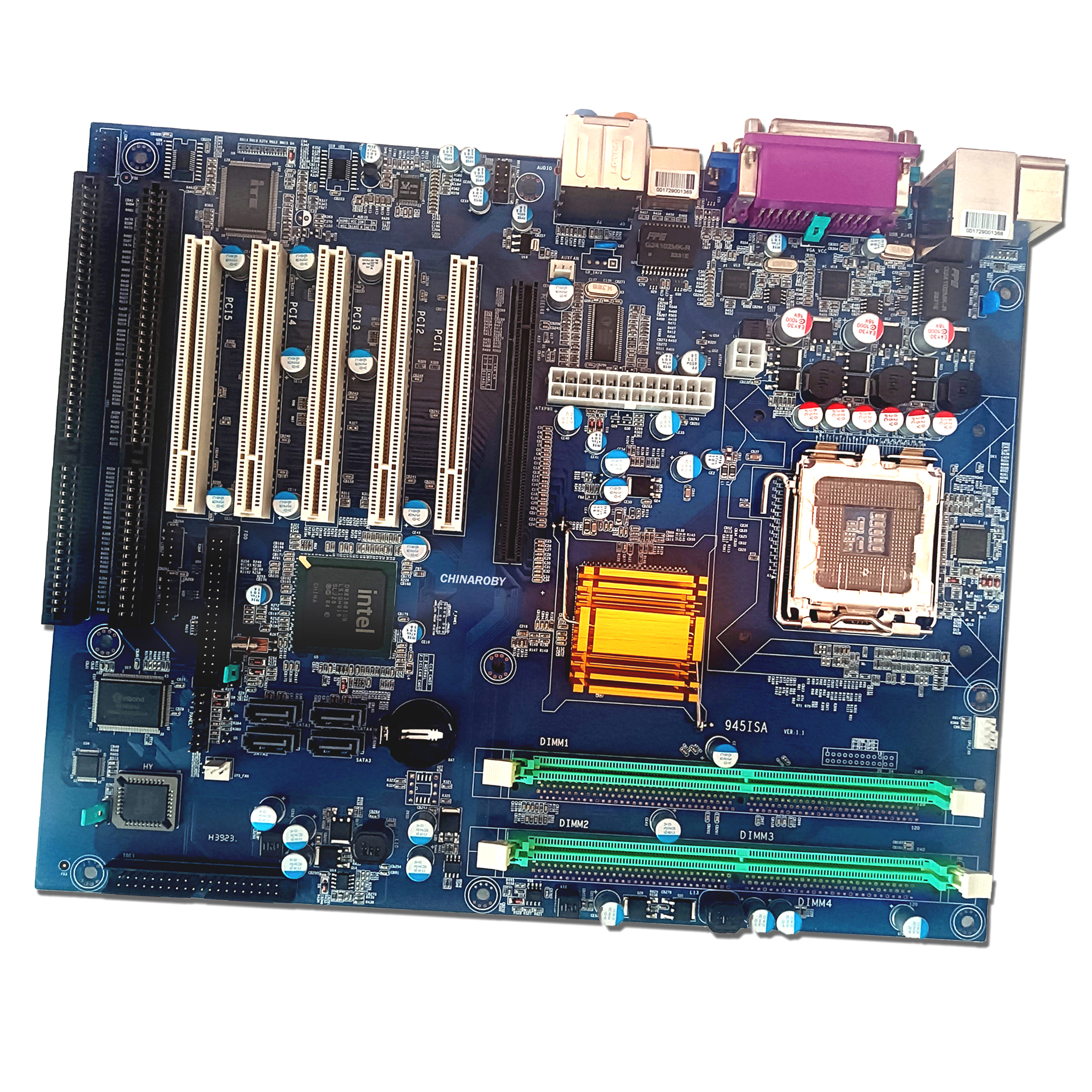

ISA Motherboard

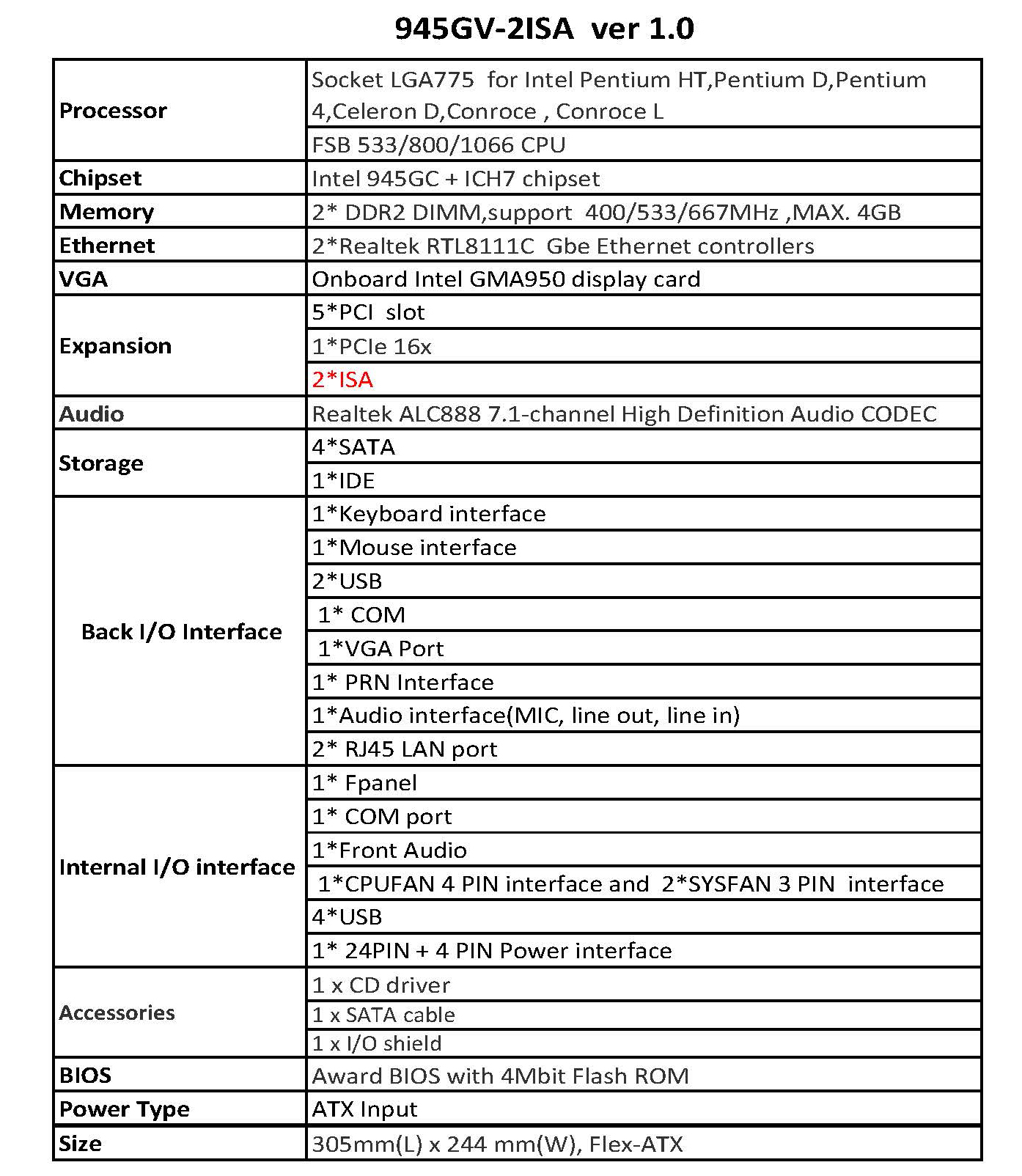

Specification

CHIPSET: Features the Intel 945GV chipset, delivering reliable and stable performance for everyday computing tasks.
CPU SOCKET: Equipped with an LGA775 socket, compatible with a wide range of Intel Pentium processors.
ISA PCI SLOT: Includes 2 ISA slots and 5 PCI slots, making it ideal for systems that require compatibility with older expansion cards.
FORM FACTOR: ATX form factor design fits standard ATX cases and supports multiple expansion slots for added versatility.
ISA PCI motherboard computer ,945G ATX Board,945GC ISA Slot Mainboard
ISA PCI Mainboard ATX Motherboard,Compatible devices: Server,Computer desktop PC

ISA Motherboard

945 GV

Processor CPU

Socket LGA775 for Pentium HT, Pentium D, Pentium 4, Celeron D, Conroce, Conroce L FSB 533/800/1066 CPU

Chipset

945GC + ICH7 chipset

Memory

2* DDR2 DIMM, support 400/533/667MHz, MAX. 4GB

Ethernet

2*Realtek RTL8111C Gbe Ethernet controllers

ATX ISA Motherboard

Interface

Expansion

5 * PCI slots ,

1 * PCIe 16x ,

2 * ISA slots

Audio

Realtek ALC888 7.1 channel High Definition Audio CODEC

Storage

4 * SATA,

1 * IDE

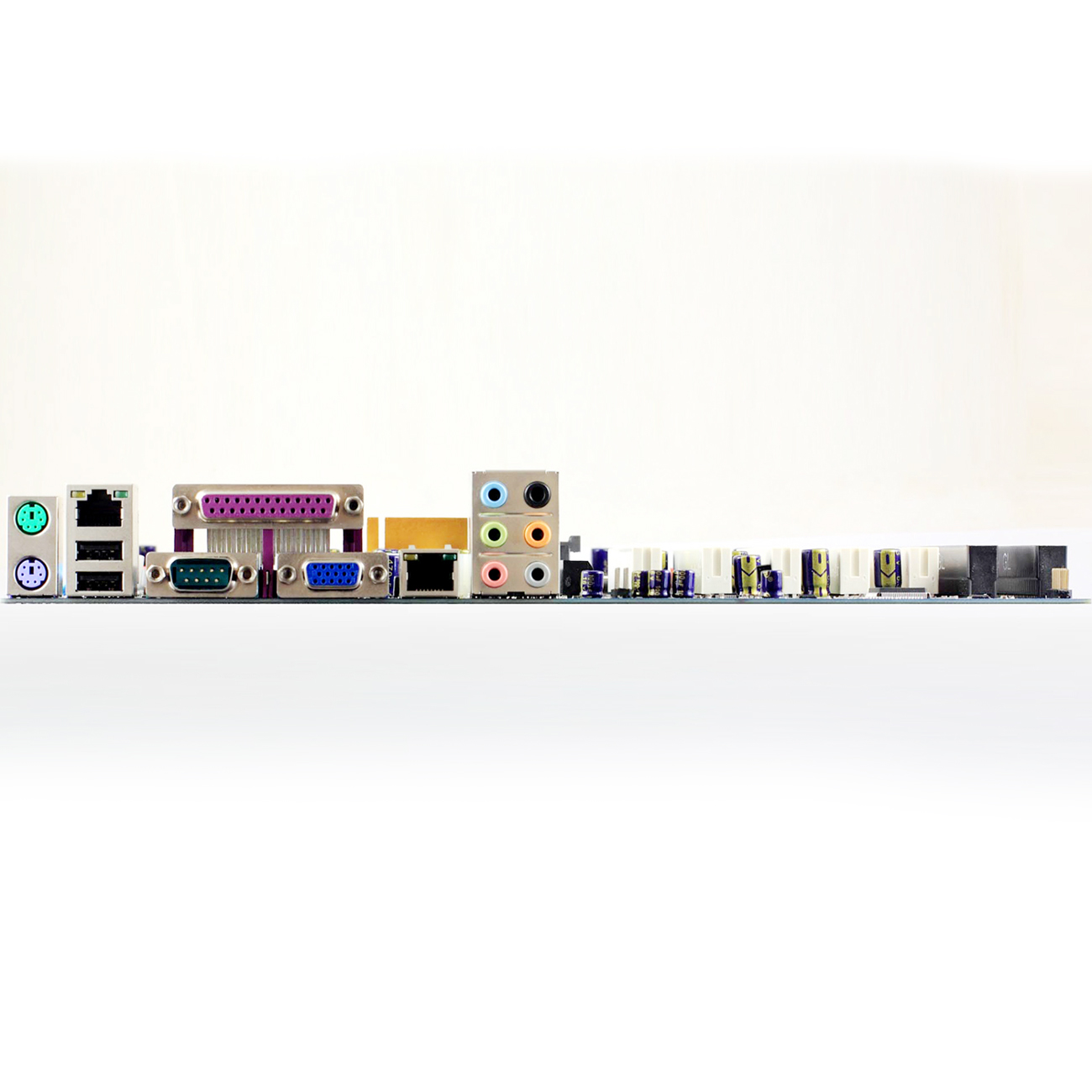

Back I/O Interface

1 * Keyboard interface

1 * Mouse interface

2 * USB ports

1 * COM

1 * VGA Port

1 * PRN Interface

1 * Audio interface(MIC, line out, line in)

2 * RJ45 LAN port

BIOS Award BIOS with 4Mbit Flash ROM

Power Type ATX Input

Size

305mm (L) x 244 mm (W),

FlexATX

Internal I/O interface

1 * Fpanel

1 * COM port

1 * Front Audio

1 * CPUFAN 4 PIN interface and 2*SYSFAN 3 PIN interface

4 * USB ports

1 * 24PIN + 4 PIN Power interface

945GV ISA Mainboard

Description

The 945GV ATX ISA Motherboard is a reliable and feature-packed solution for building or upgrading a desktop PC.
Powered by the Intel 945GV chipset and featuring an LGA775 socket, this motherboard supports a wide range of Intel processors, making it a versatile choice for everyday computing needs.
One of its standout features is the inclusion of 2 ISA slots and 5 PCI slots, making it ideal for users who need to run older expansion cards alongside modern hardware.
The board offers 4 SATA connectors for fast storage connectivity.
With a full ATX form factor, it fits standard mid-tower and full-tower cases with ease.
The rear I/O panel includes essential ports to connect your peripherals right out of the box. Whether you are building a budget workstation, a legacy-compatible system, or a reliable office PC, this motherboard delivers solid performance and broad compatibility.
Please verify socket and chipset compatibility with your chosen components before purchasing.
