SFX Brand EDM-8C Portable EDM Machine Fast Speed M2-M20 Broken Tap Removal, Stud Remover, Small Mini Spark Erosion Bolt Extractor Machine Remove Broken Tap, Drill, Bolt, Screw Tap Burner Machine

800W Fast Speed Portable EDM-8C M2-M20 Broken Tap Remover Small Mini Spark Erosion Bolt Extractor Machine Remove Broken Tap/Drill/Bolt/Screw Tap Burner Machine Functions and Features

1. EDM-8C abide by the principle of Electrolytic Corrosion to remove broken tools, no direct contact, no external force and damage to the work piece.


2. Portability: Light weight. Small Size. Carrying handle on the top of the power case.

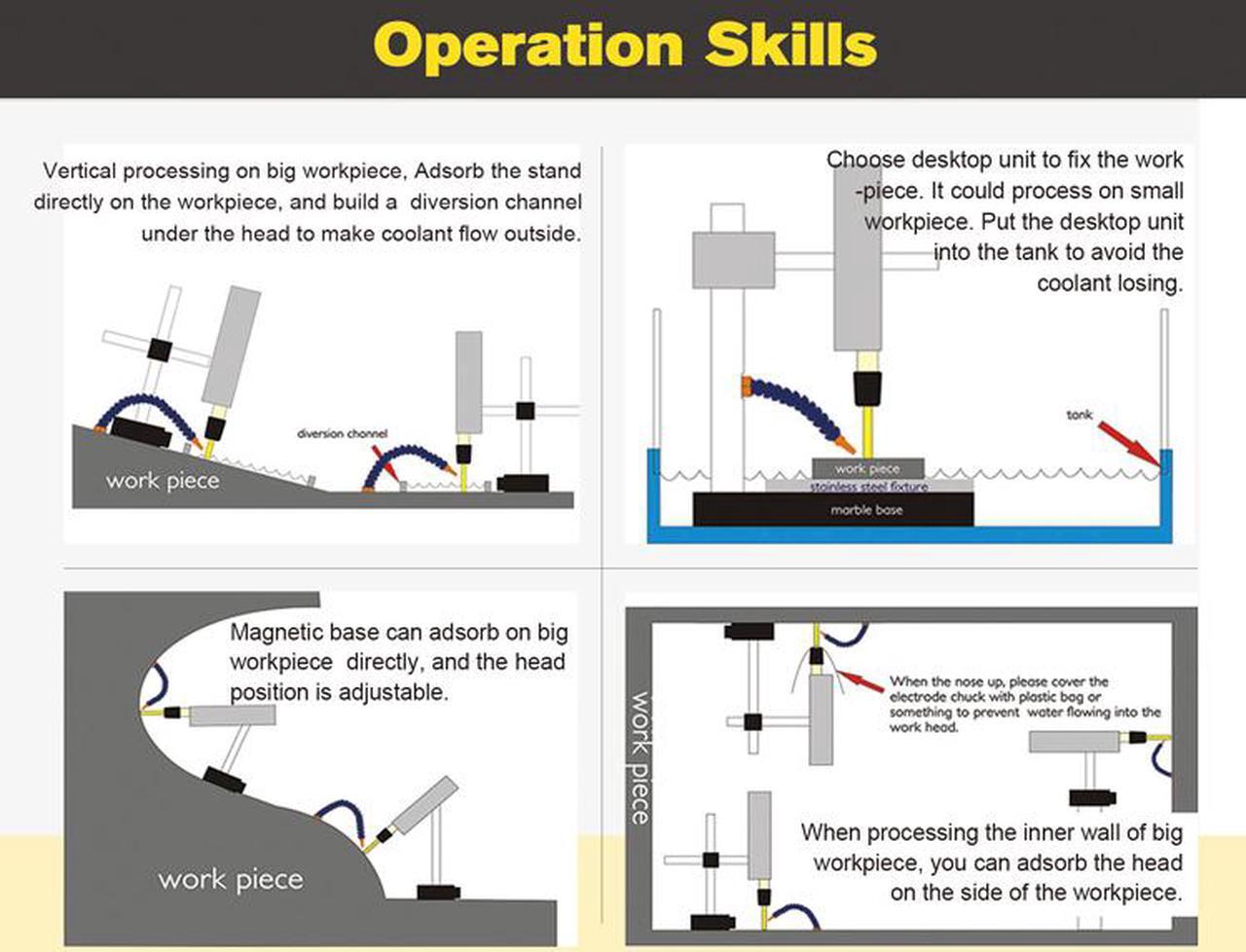

3. Convenient Operation: The magnetic base could be absorbed on work piece to finish peocessing easily.


4. Economical and Convenient: The working liquid is ordinary tap water. Powerconsumption is moderate. The inlet pipe is detachable.


5. Wide Processing Range: Broken taps and drills (conductive material) above diameter 2mm (2mm is included)


6. Long Working Hours: A cooling fan installed ensures the ventilation, which keeps the machine working continuously.

Application:

1. Fast removing broken taps, drills, screw without damage to the work piece;


2. Processing non-precision holes and marking on metal materials such as hardened steel, hard alloy steel and copper.

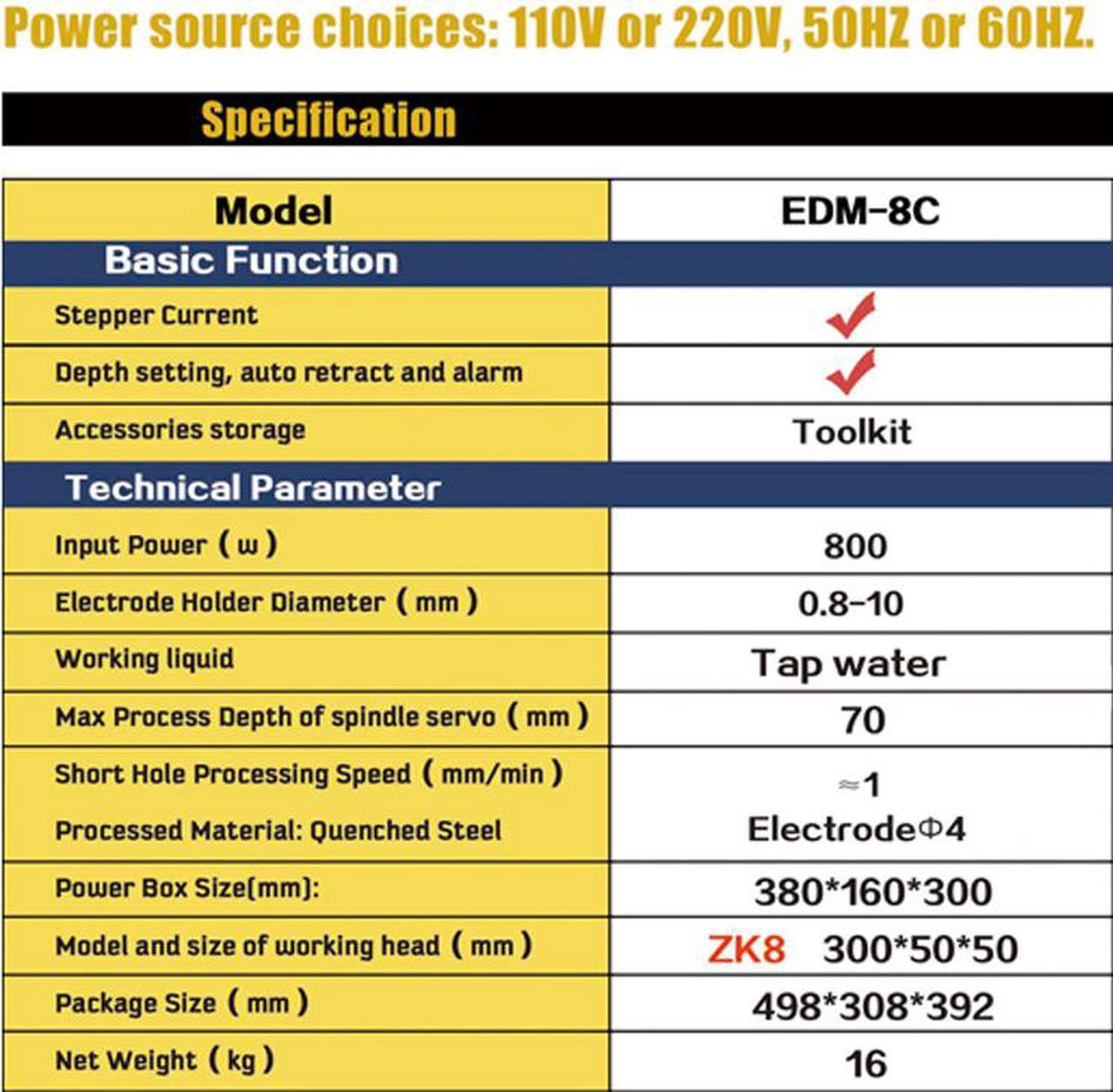

Product parameters:

Model NO.: EDM-8C

Input Voltage: AC 220V/110V

Input Power: 800W Max Travel of

Work Head: 70mm

Max Processing Speed: 1mm/Min

Working Liquid: Tap Water Remove Broken

Tap Size: M2-M20

Holdelectrode Diameter: 0.8 -10mm

Packing Size: 498*308*392mm

Net weight: 15kg

Gross Weight: 18kg Warranty Terms 1 year We will provide free international online technical support, If your machine is damaged within 1 year, message anytime. We will reply within 24 hours and solve your machine questions ASAP. If it is needed
to change the parts, we will free deliver from our factory, the buyer no need to under any fees.
