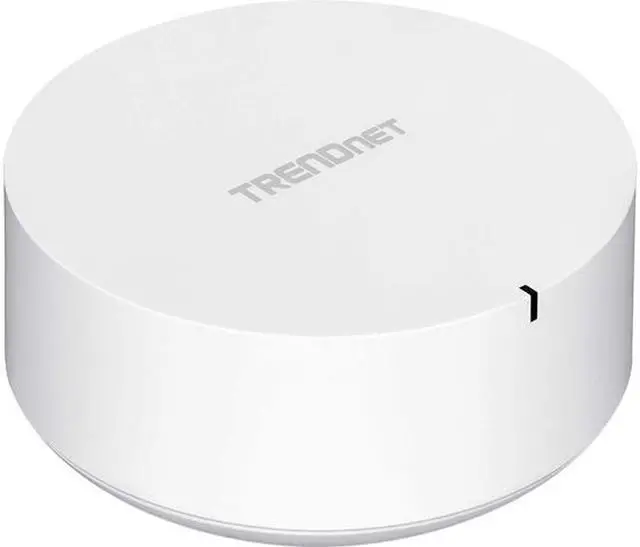

TRENDnet TEW-830MDR AC2200 WiFi Mesh Router

AC2200: 5GHz1: 867Mbps WiFi AC | 5GHz2: 867Mbps WiFi AC | 2.4GHz: 400Mbps WiFi N
Includes 1 x AC2200 WiFi Mesh Router
Designed to replace older WiFi routers, extenders, and signal boosters
Intelligent WiFi mesh technology always connects users to the best WiFi Mesh Router
Add to existing AC2200 Mesh Router System for expanded WiFi coverage in larger home applications
Airtime fairness balances wireless client bandwidth resources
Content filtering with Router Limits
Pre-encrypted for your convenience
LAN/WAN IPv6 support
Multi-User MIMO for increased bandwidth efficiency and better user experience*
Seamless WiFi roaming
USB 3.0 port with Samba support
Implicit/Explicit Beamforming

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

WiFi Generation	Wi-Fi 5
Wireless Standard	IEEE 802.11a / IEEE 802.11ac / IEEE 802.11b / IEEE 802.11g / IEEE 802.11n / IEEE 802.3 / IEEE 802.3ab / IEEE 802.3u / IEEE 802.3x
Device Management	HTTP/HTTPS local/remote web-based management Internal system logging Mesh connection quality display Client device list Internet speed test Manual or online firmware upgrade and notification Backup and restore configuration Internal logging Restore to factory default Router/Bridge operation modes Static routes
Security	WiFi Guest network Hide WiFi Name/SSID Wireless client isolation NAT Port forwarding DMZ host UPnP DoS prevention Allow/deny WAN ping requests Parental controls (Set schedules for Internet access or filter by keyword or custom websites) Manage screen time, filter content, monitor bandwidth, and track browsing history with Router Limits web management system
WPA	WPA2
WAN Ports	1 x 10/100/1000M
LAN Ports	1 x 10/100/1000M
Wireless Data Rates	AC2200 / Up to 2.2Gbps
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Frequency Band	2.412 - 2.472 GHz; 5.180 - 5.825 GHz
Antenna	2.4GHz: 2 x 4.03 dBi (max.) / 5GHz: 4 x 5.64 dBi internal antennas
Channels	2.4GHz: FCC: 1-11 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Receiver Sensitivity	802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -90 dBm (typical) @ 11Mbps 802.11g: -76 dBm (typical) @ 54Mbps 802.11n (2.4GHz): -89 dBm (typical) @ 300Mbps 802.11n (5GHz): -86 dBm (typical) @ 300Mbps 802.11ac: -83 dBm (typical) @ 867Mbps
Power Supply	Input: 100 - 240V AC, 50/60Hz Output: 12V DC, 1.5A external power adapter Max. Consumption: 15.12W
Dimensions	4.96" x 4.96" x 2.36"
Weight	0.82 lb.
Temperature	Operating Temperature: 0° - 40° C (32° - 104° F)
Humidity	Operating Humidity: Max. 90% non-condensing
