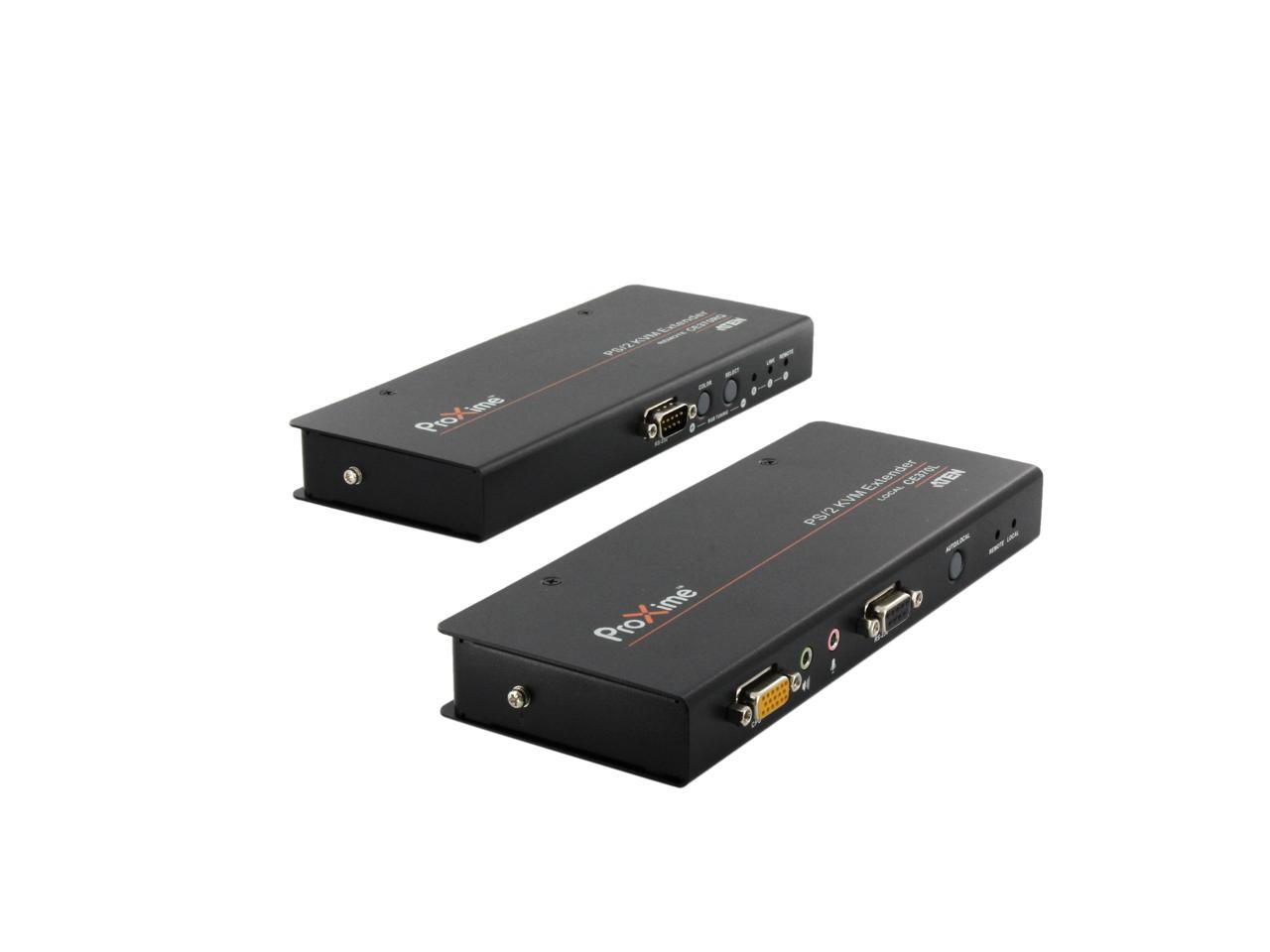

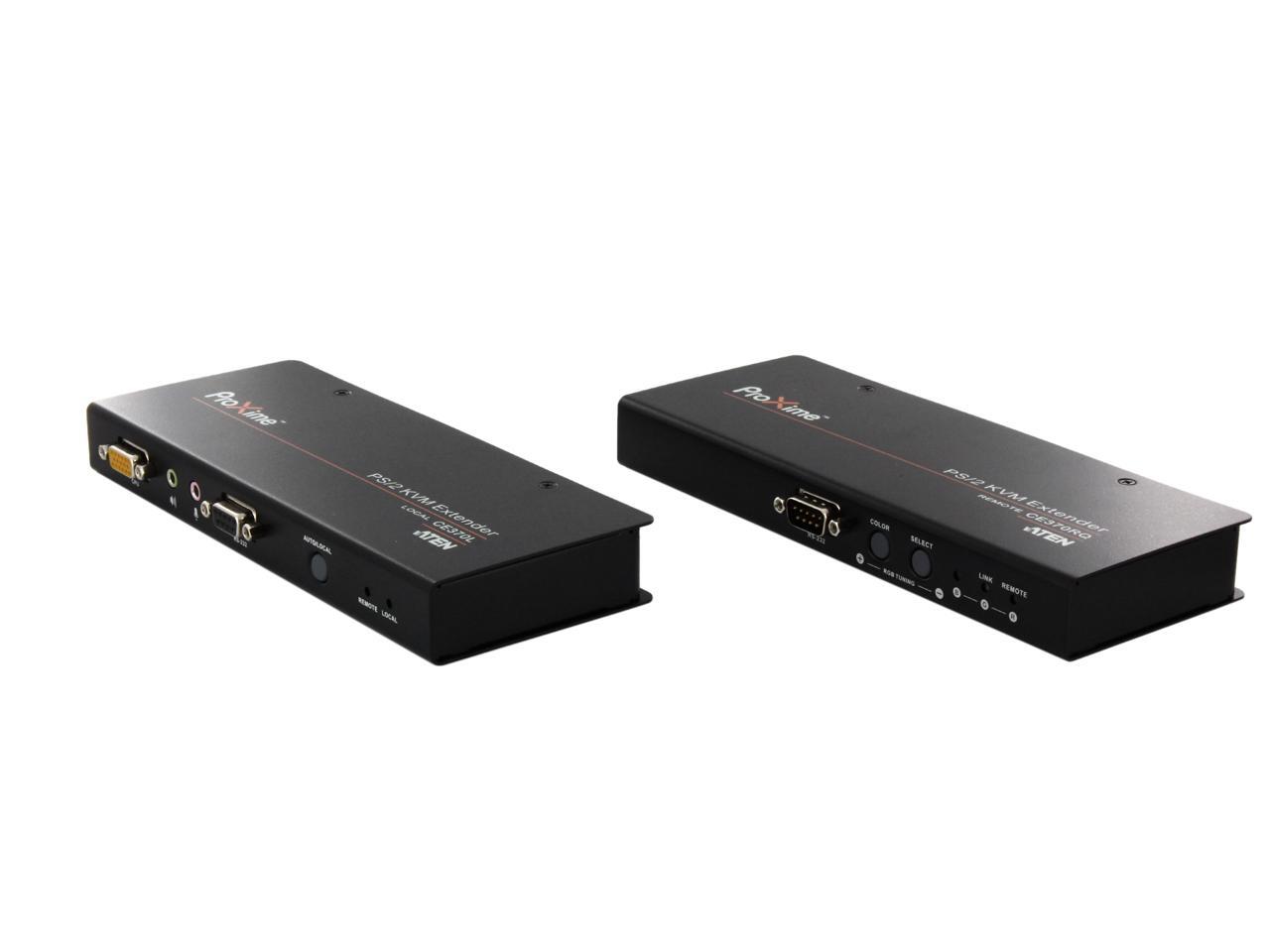

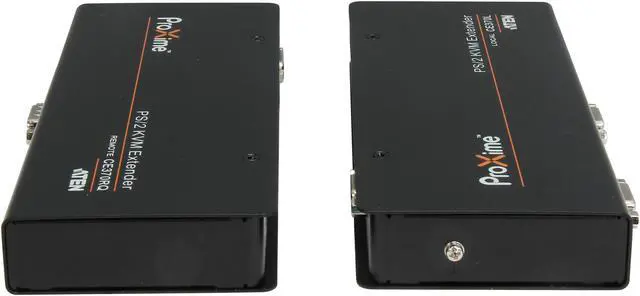

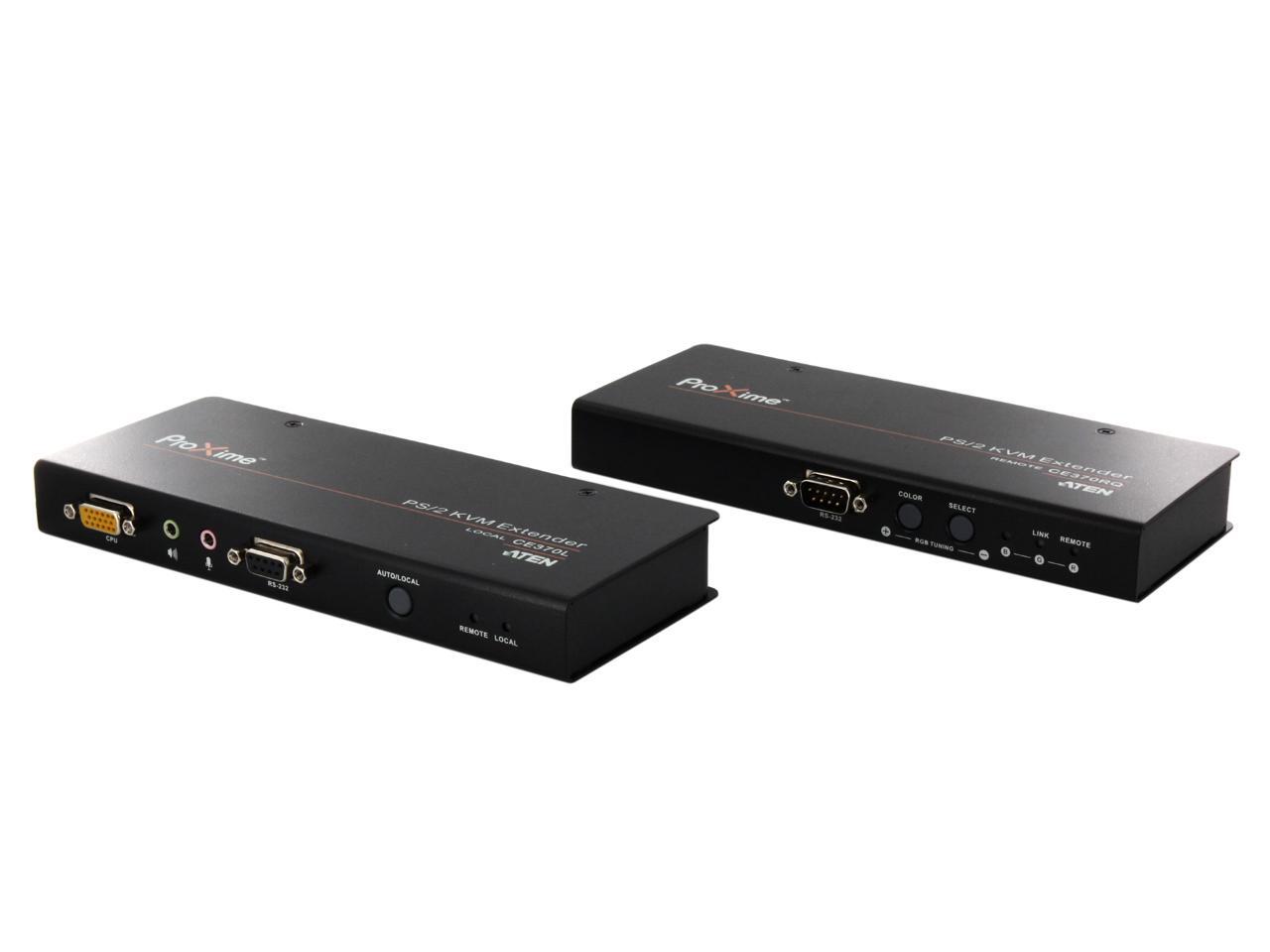

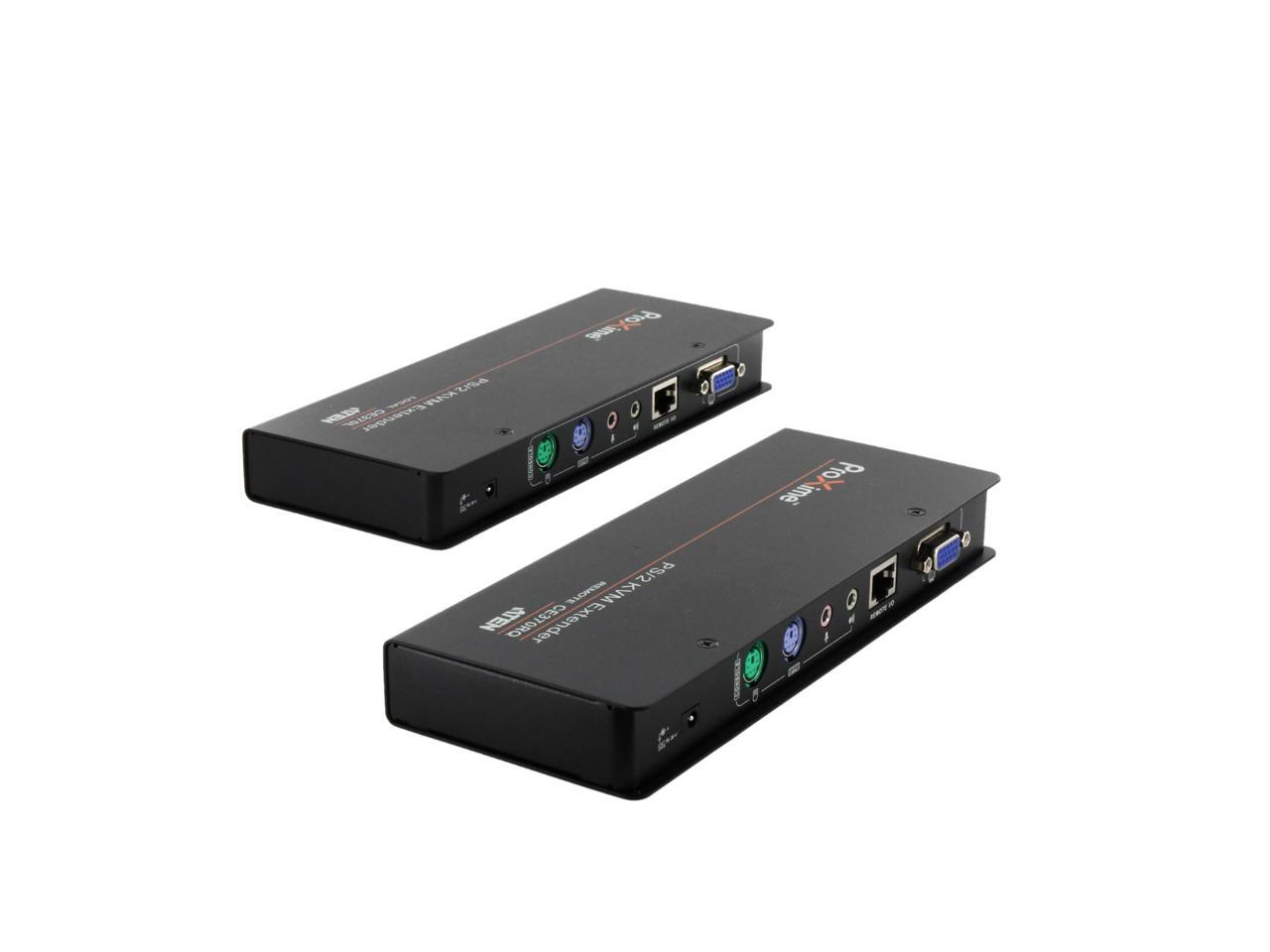

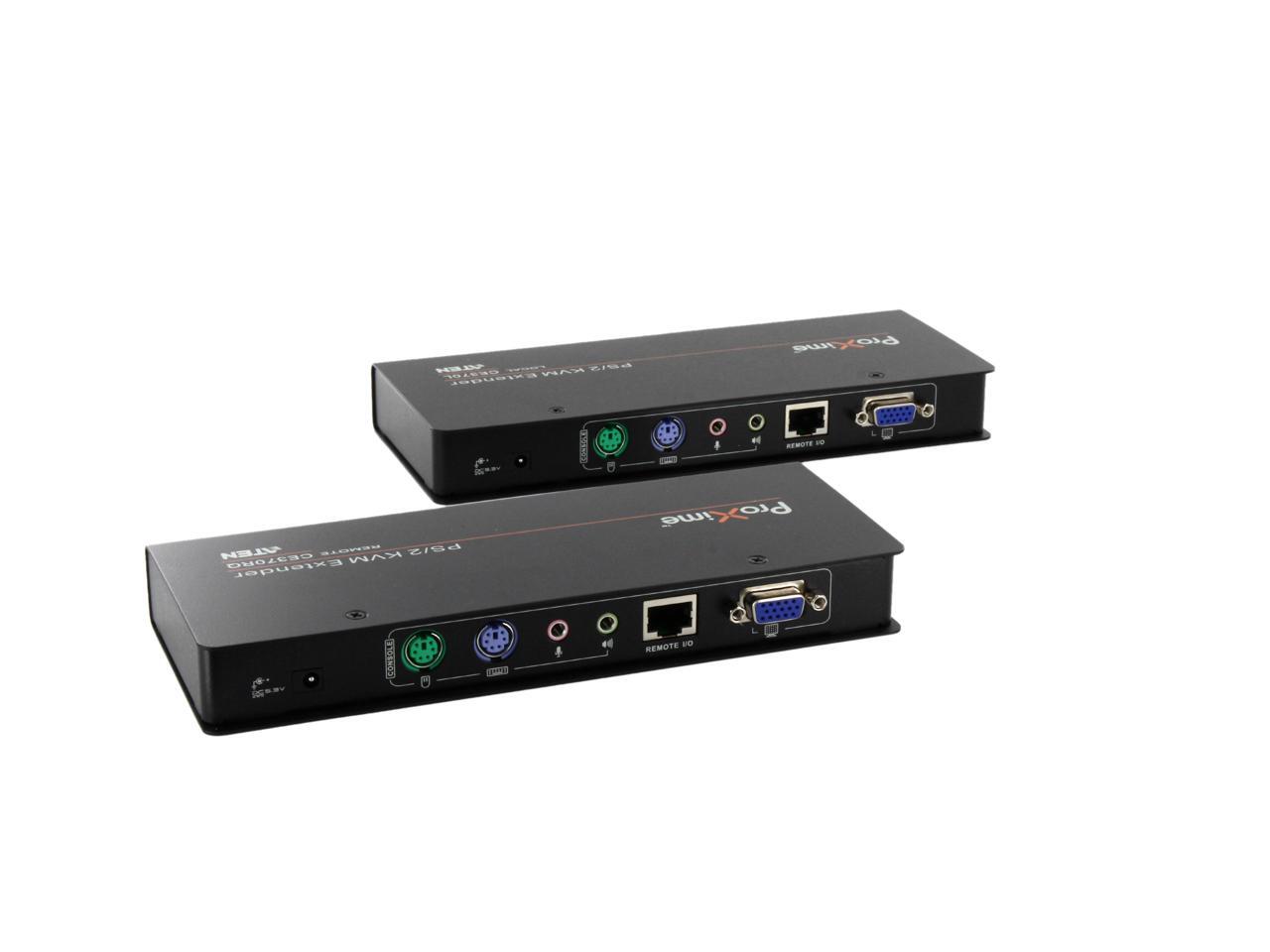

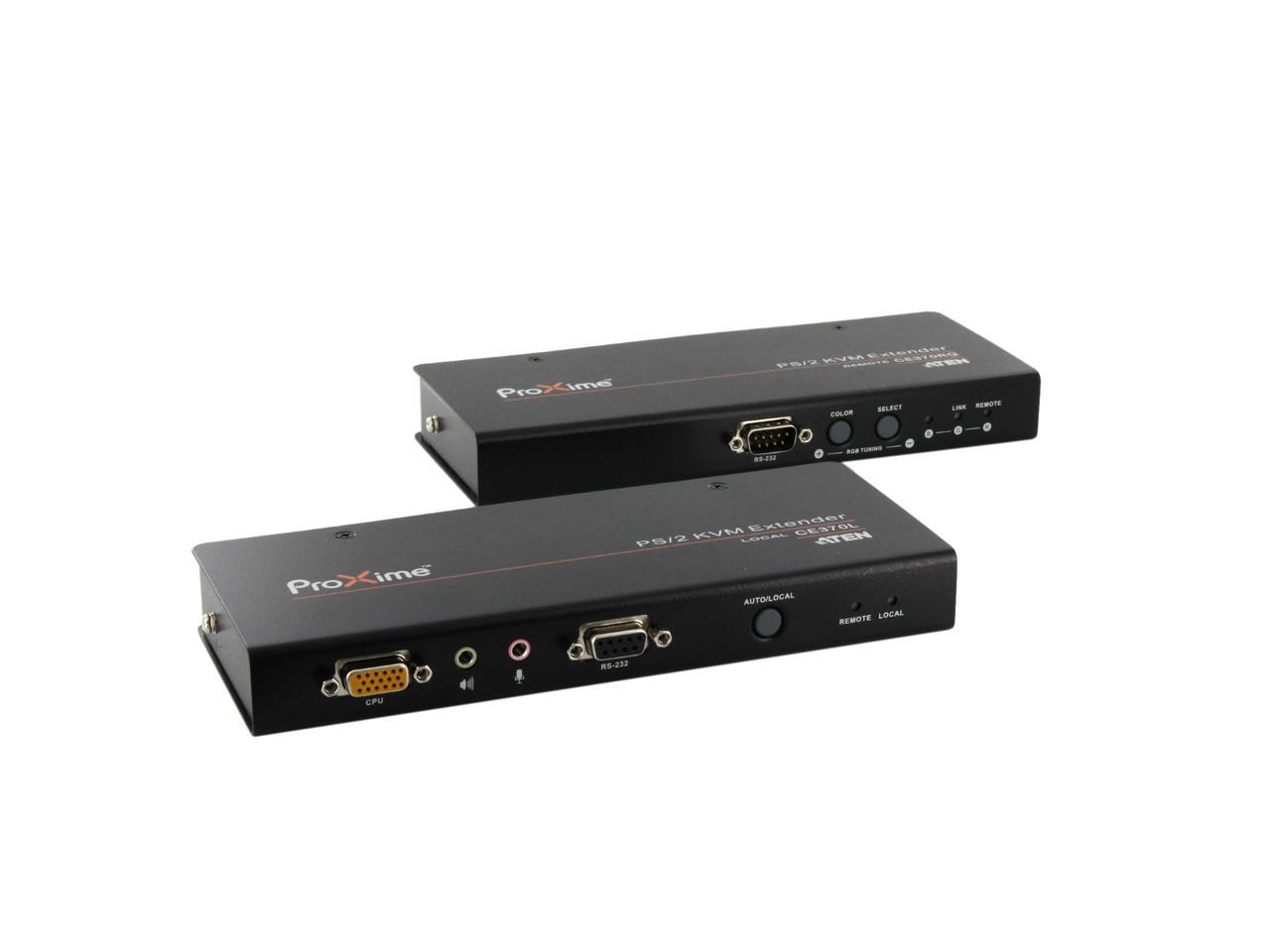

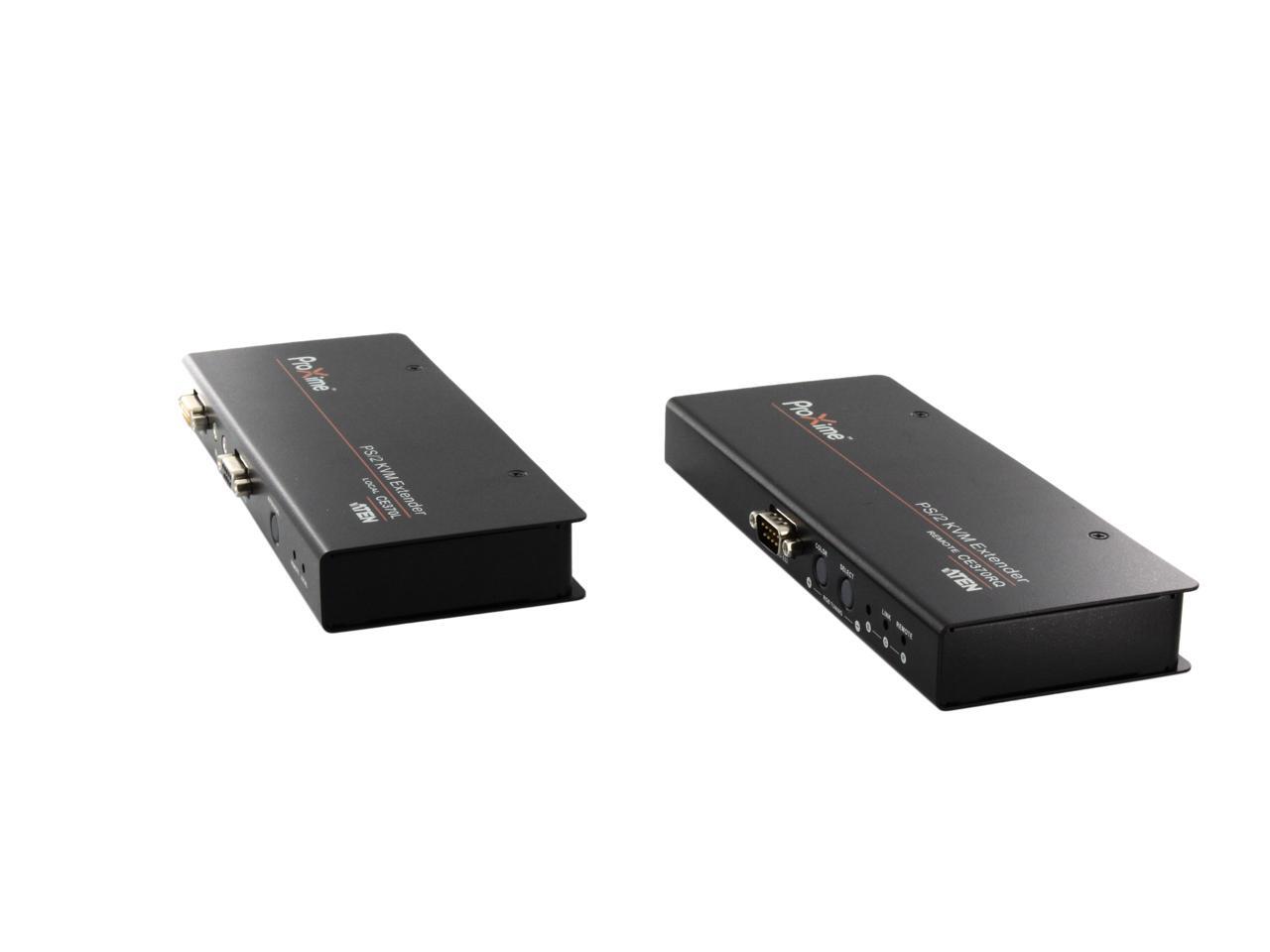

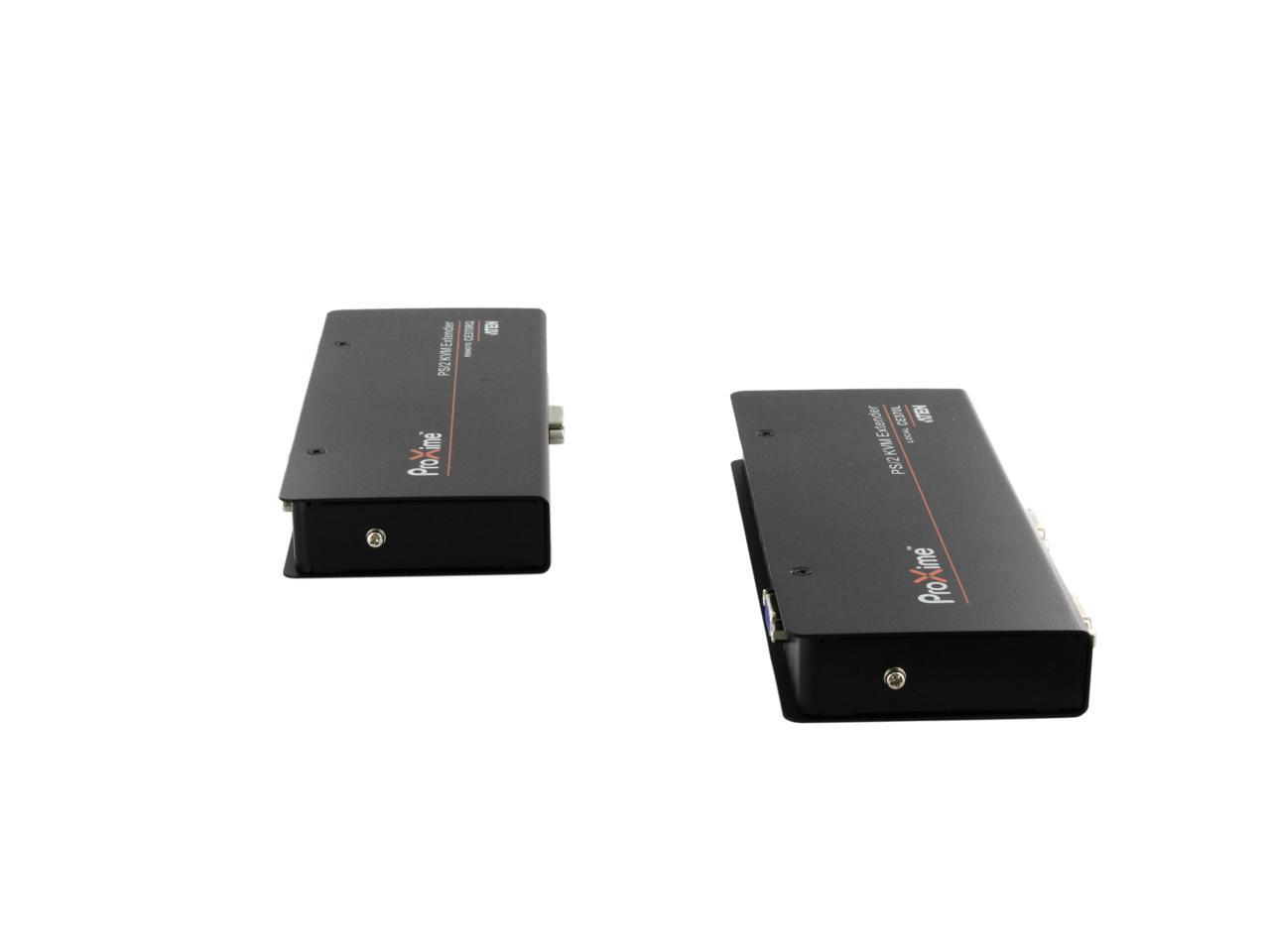

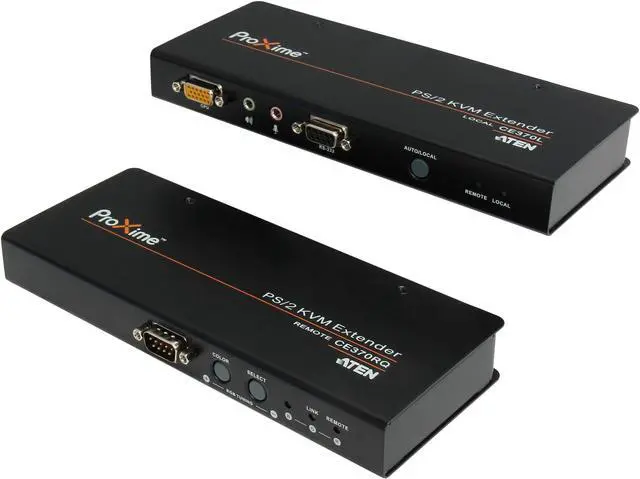

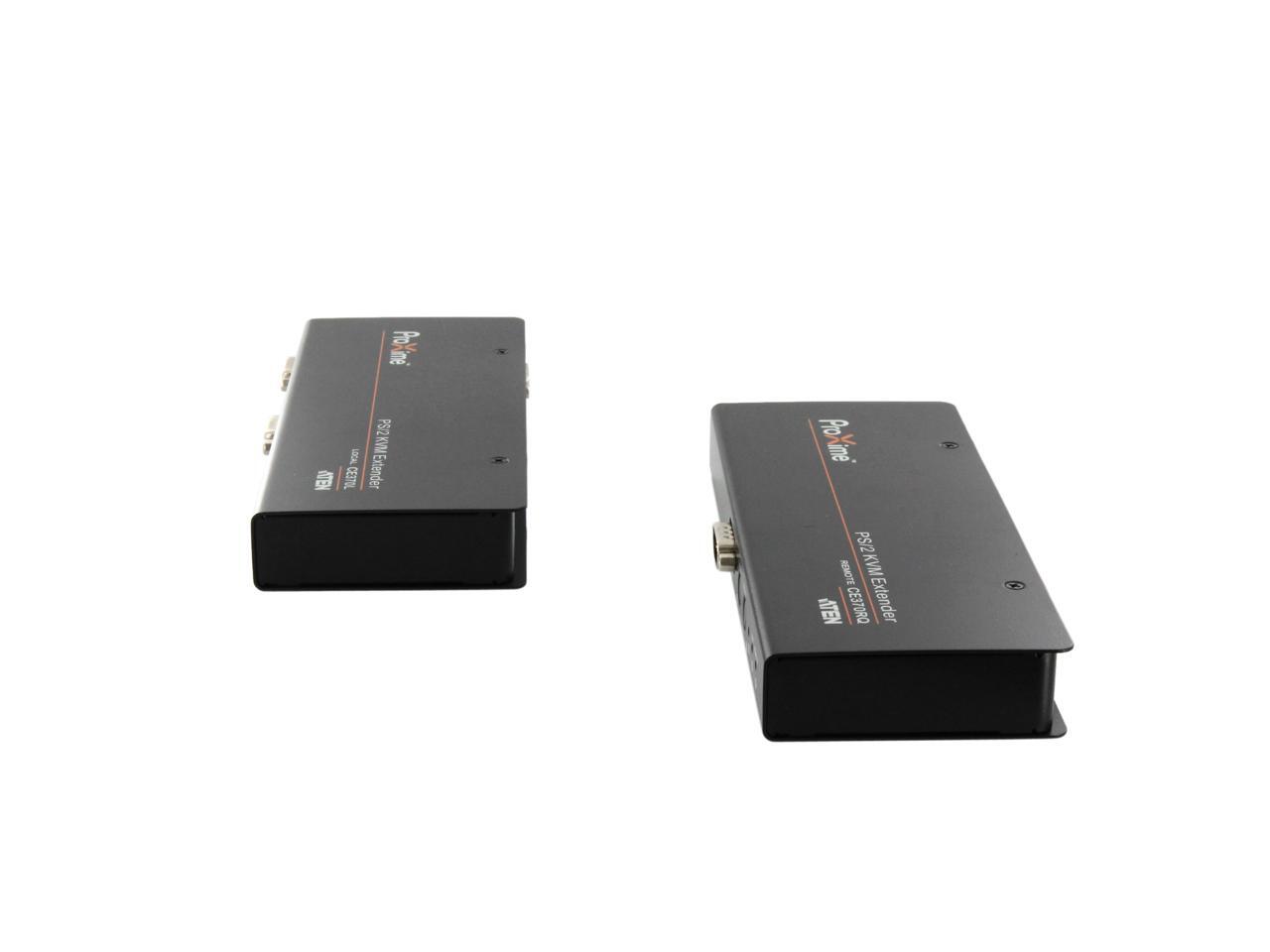

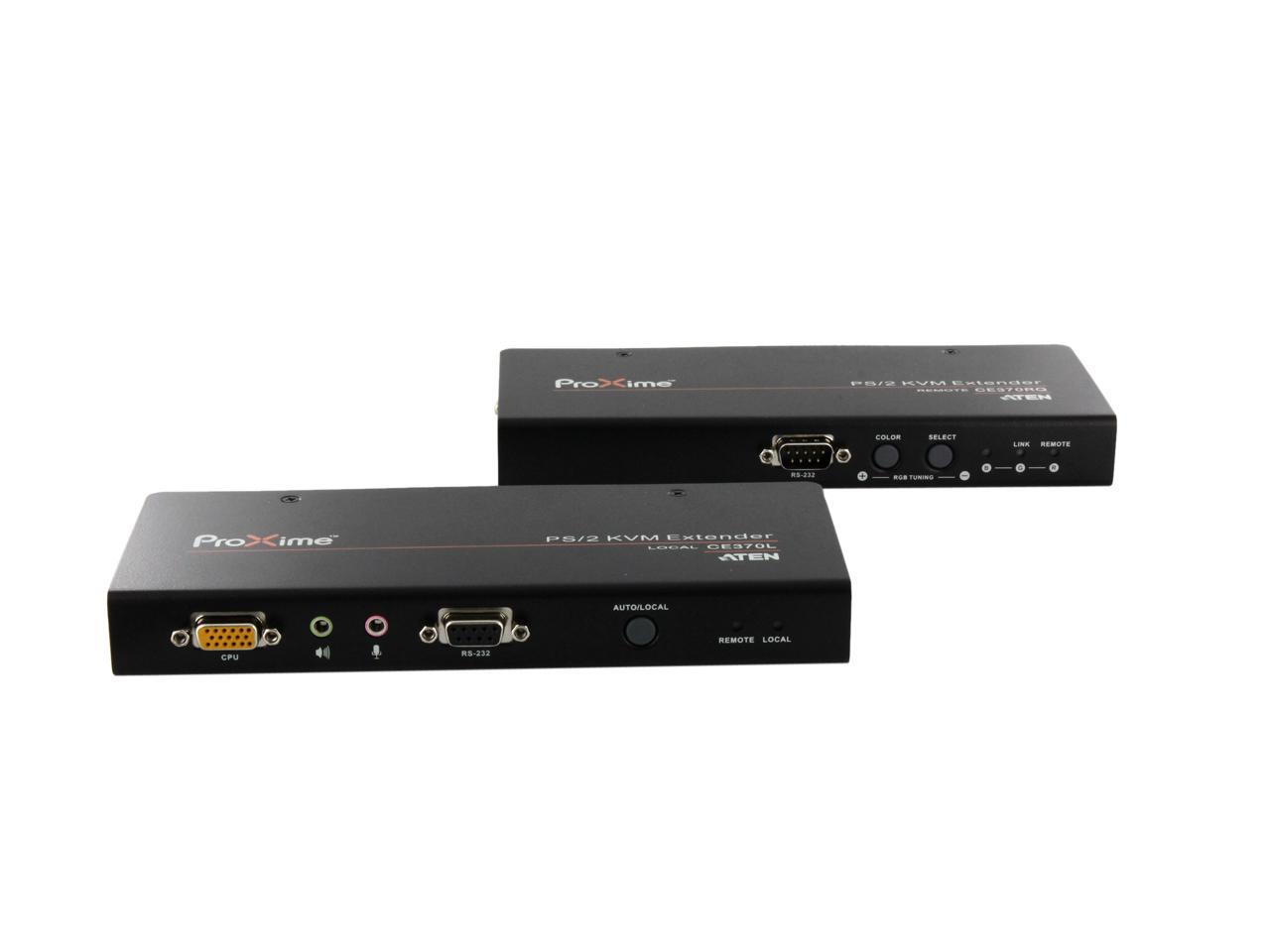

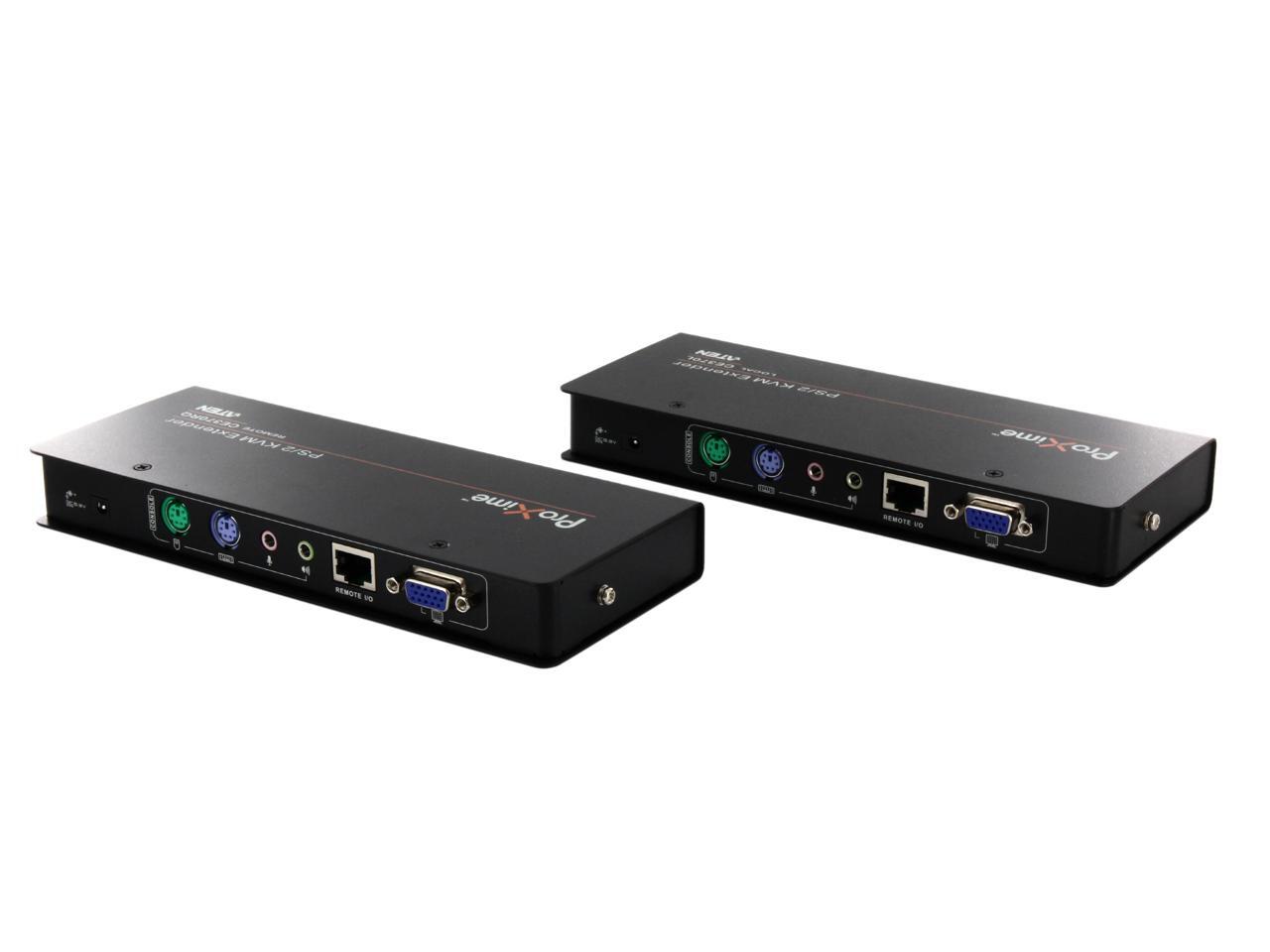

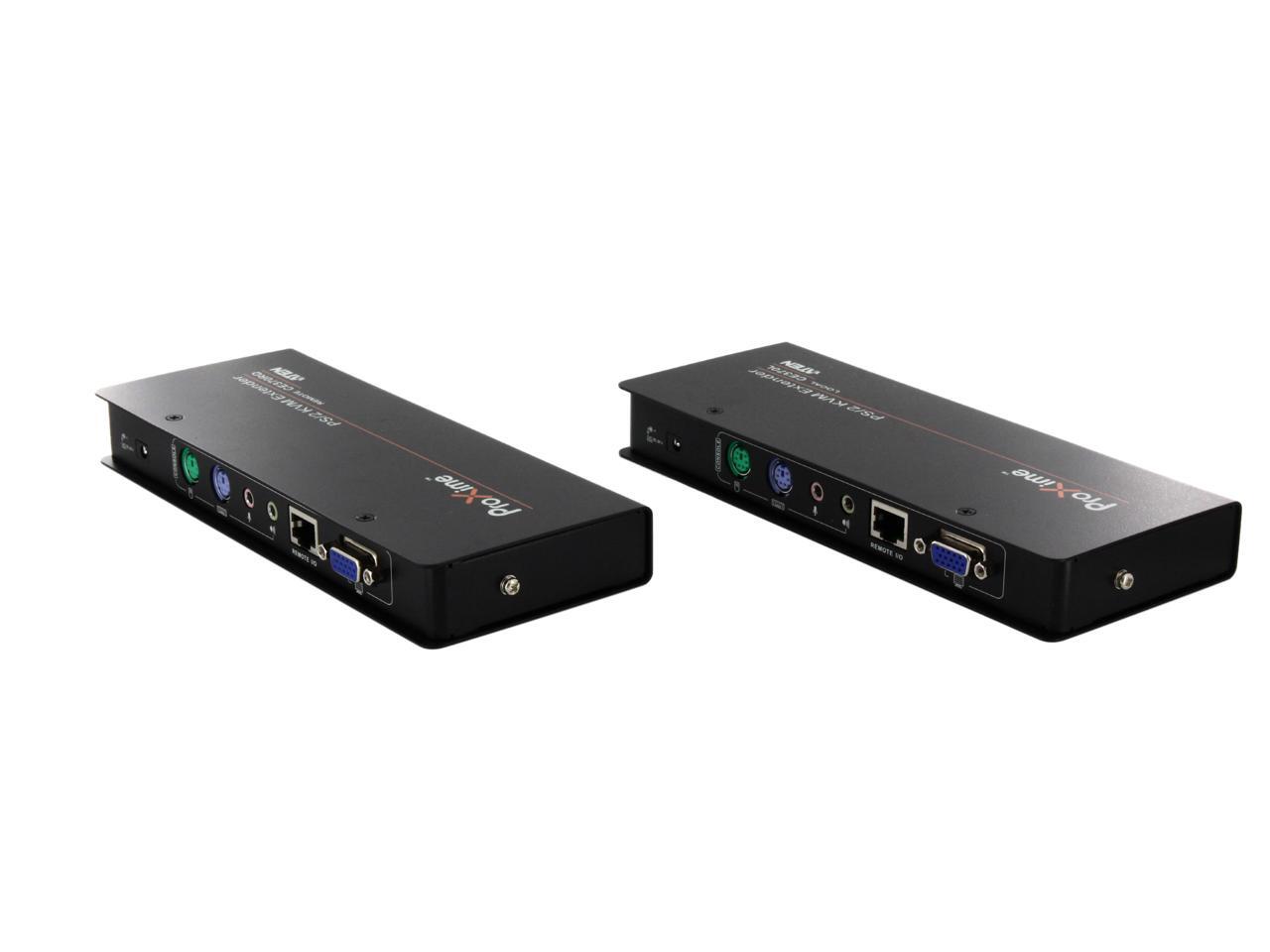

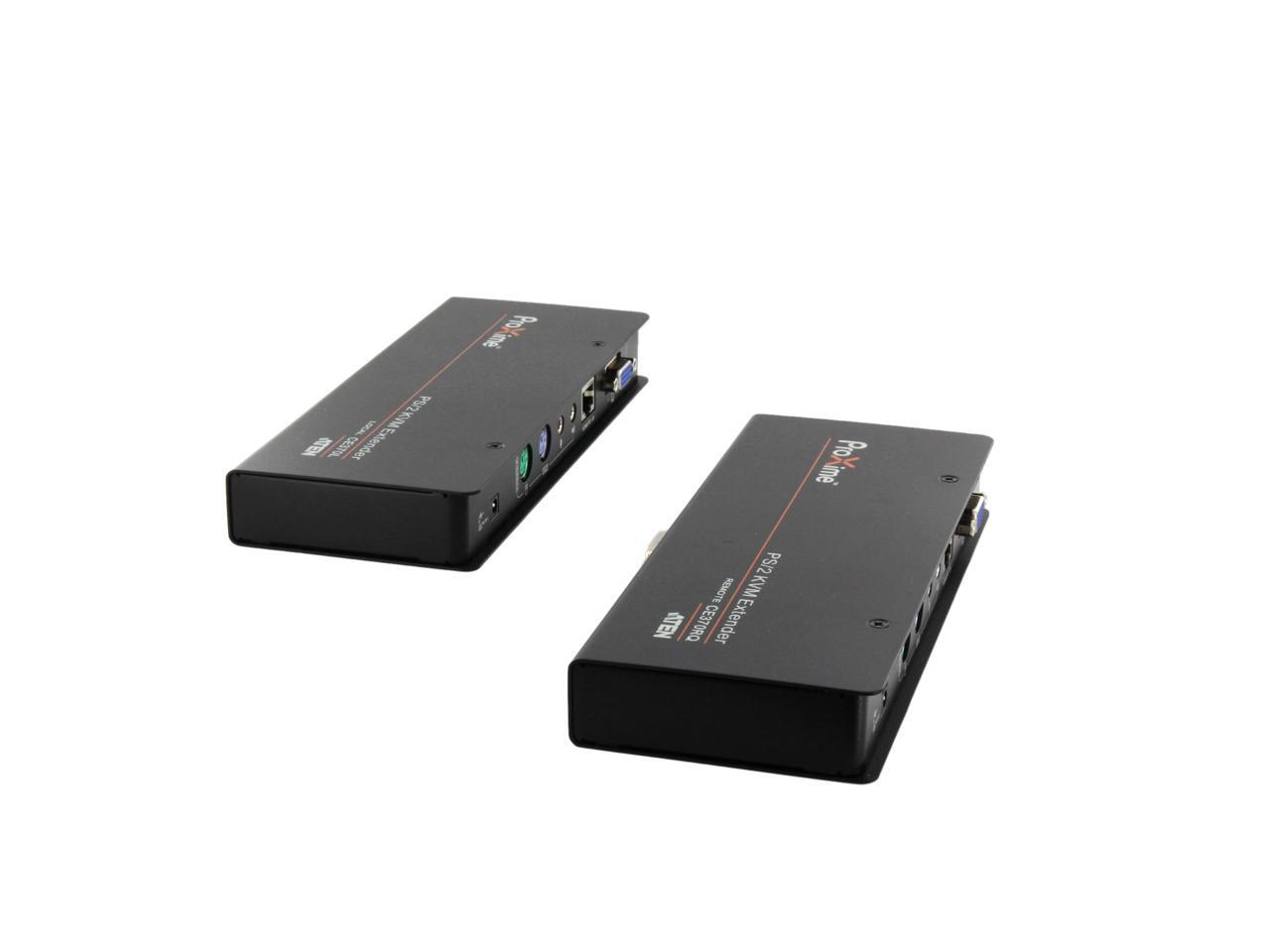

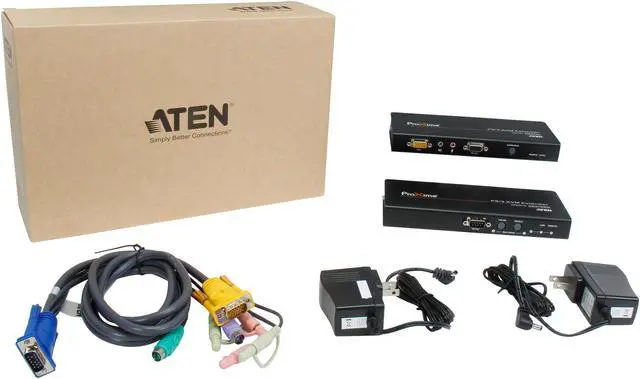

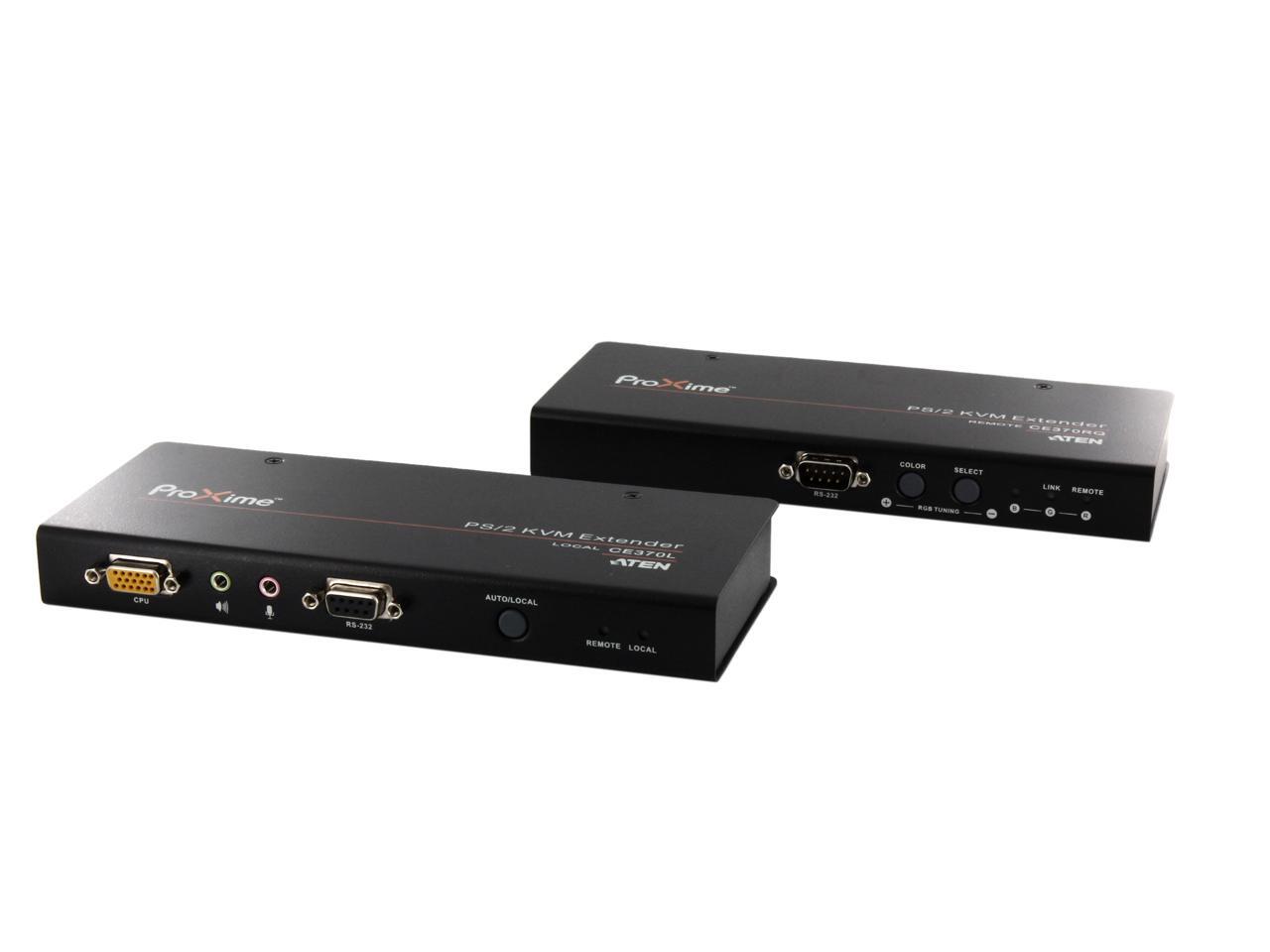

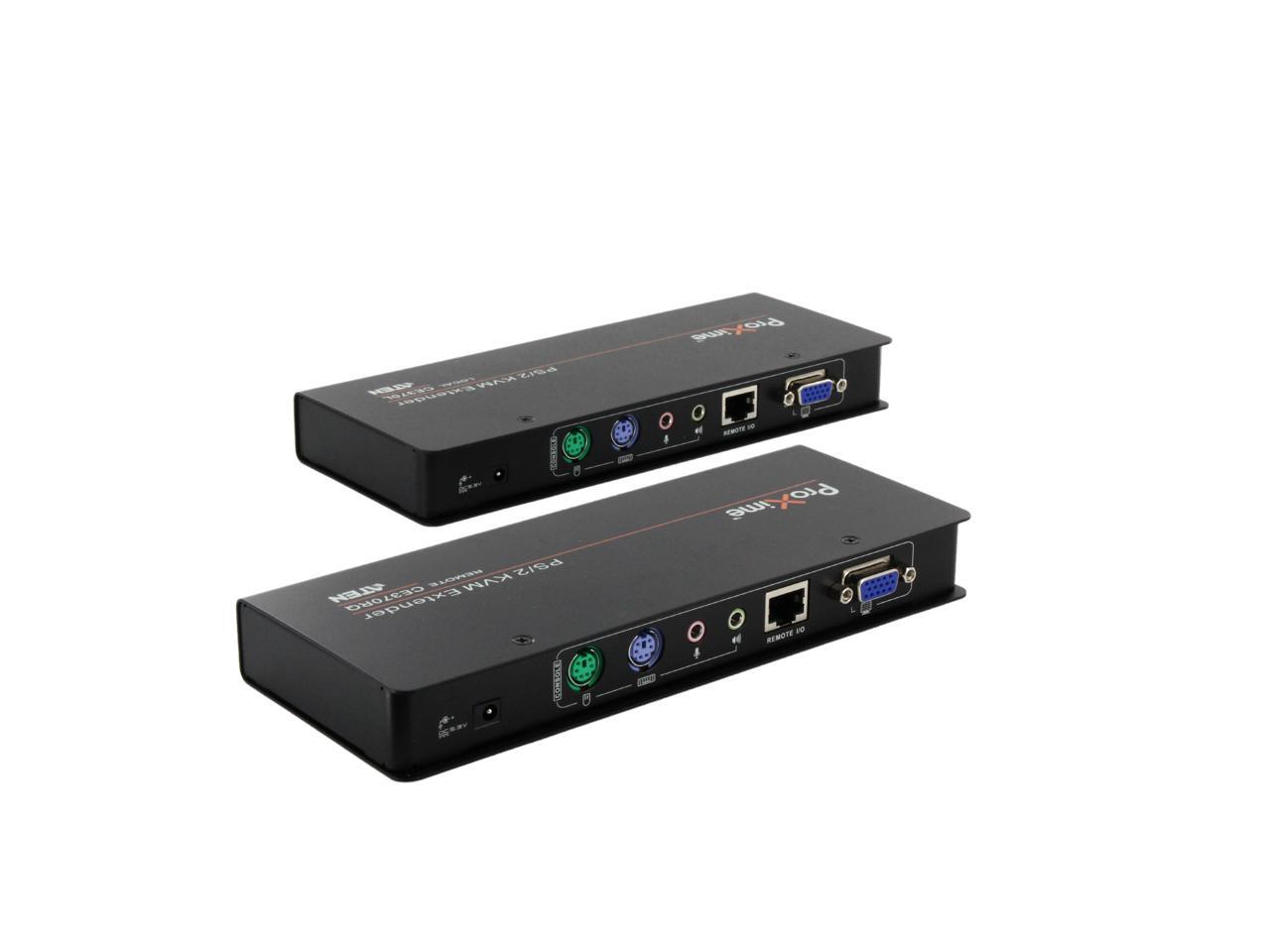

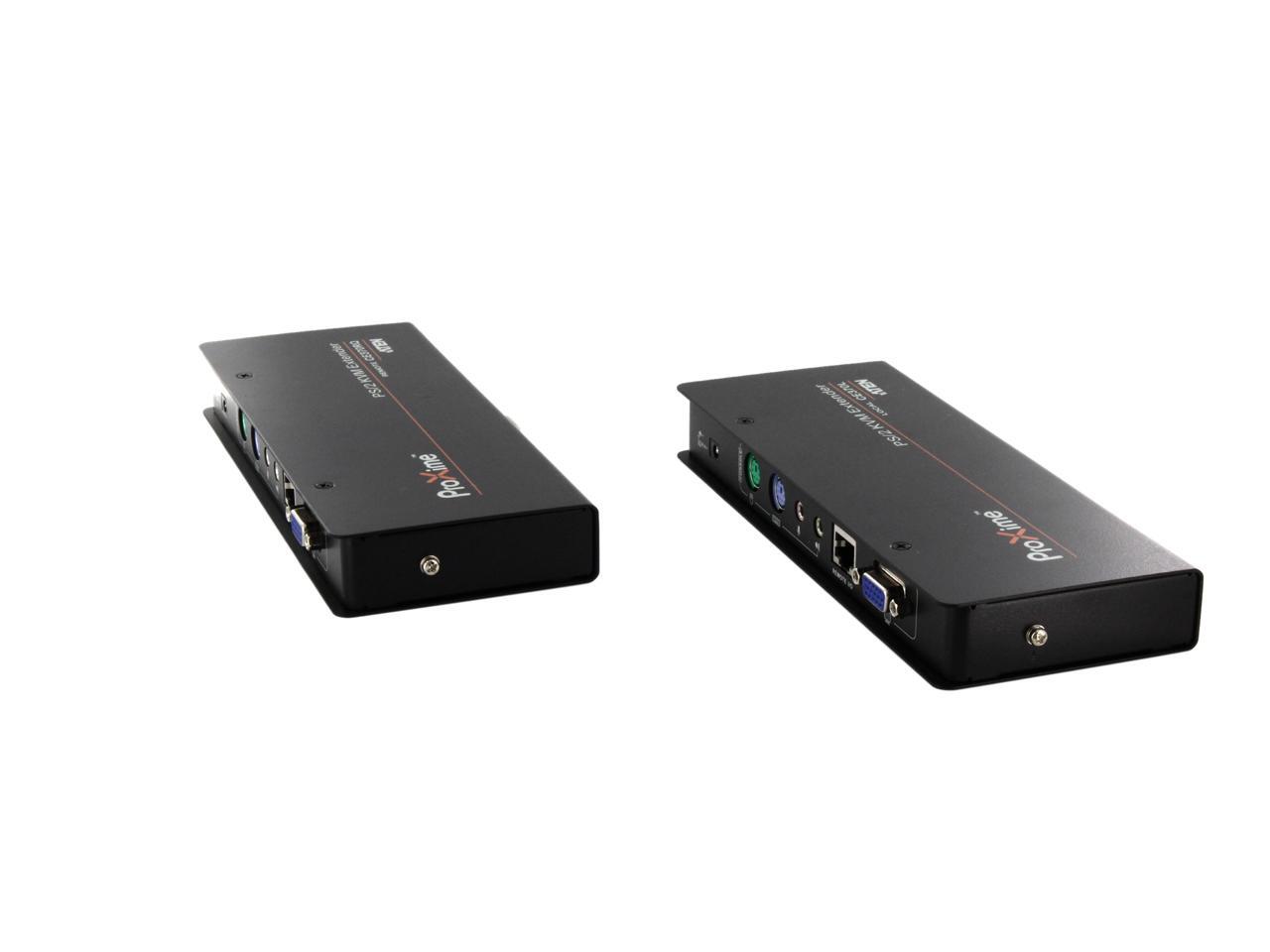

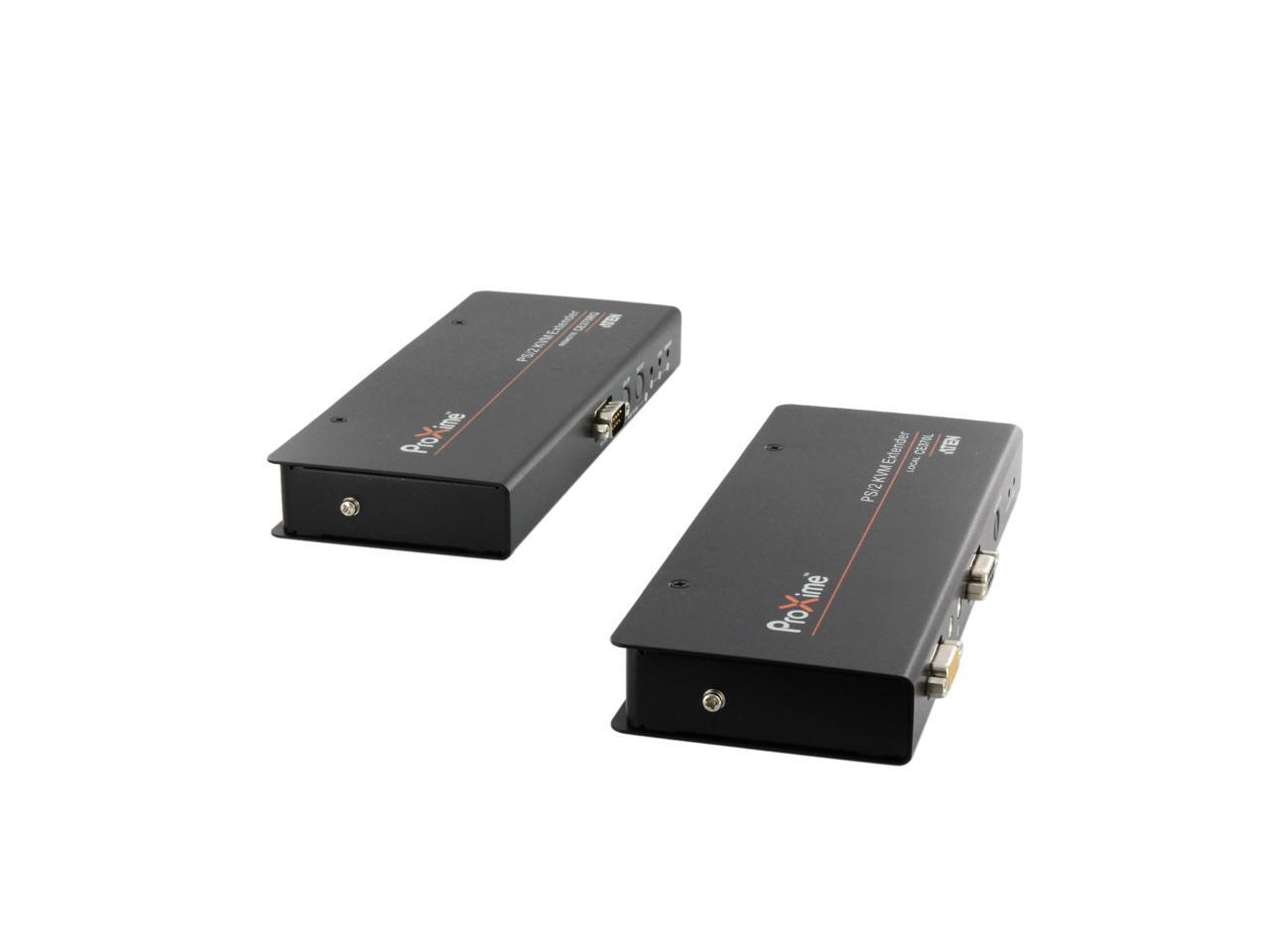

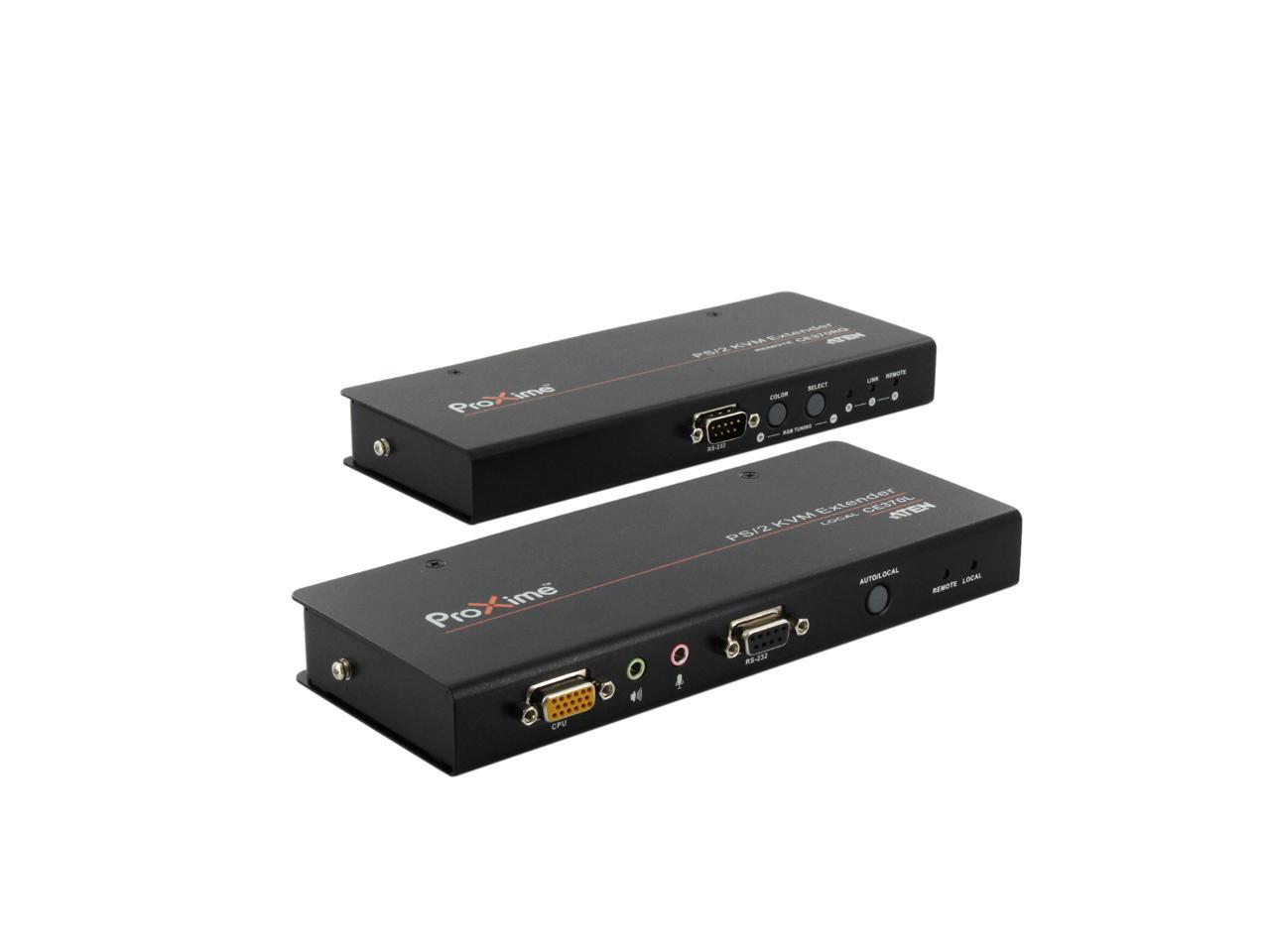

MAIN OVERVIEW FEATURES: Connectivity Technology: WiredKVM Technology: AnalogNumber of Computers Supported: 1Maximum Operating Distance: 492.13 ftGraphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Network (RJ-45): YesPS/2 Port: YesVGA: YesProprietary Interface: YesNumber of VGA Ports: 2Number of Network (RJ-45) Ports: 2Number of PS/2 Ports: 4Input Voltage: 5.3 V DCForm Factor: Rack-mountablePackage Contents: ProXime CE370 KVM Console/Extender1 x Custom PS/2 KVM Cable Set (1.8 m)2 x Power Adapters1 x Rack Mount Kit2 x Grounding Wires1 x User Manual1 x Quick Start GuideEnvironmentally Friendly: YesEnvironmental Certification: RoHS,WEEE
Learn more about the ATEN CE370
Model
Brand
ATEN
Model
CE370
Details
Type
D-Sub
PC Connectors
KB / Video /Mouse: 1 x SPHD-17 Female (Yellow) N/A Speakers: 1 x Mini Stereo Jack (Green) Mic: 1 x Mini Stereo Jack (Pink)

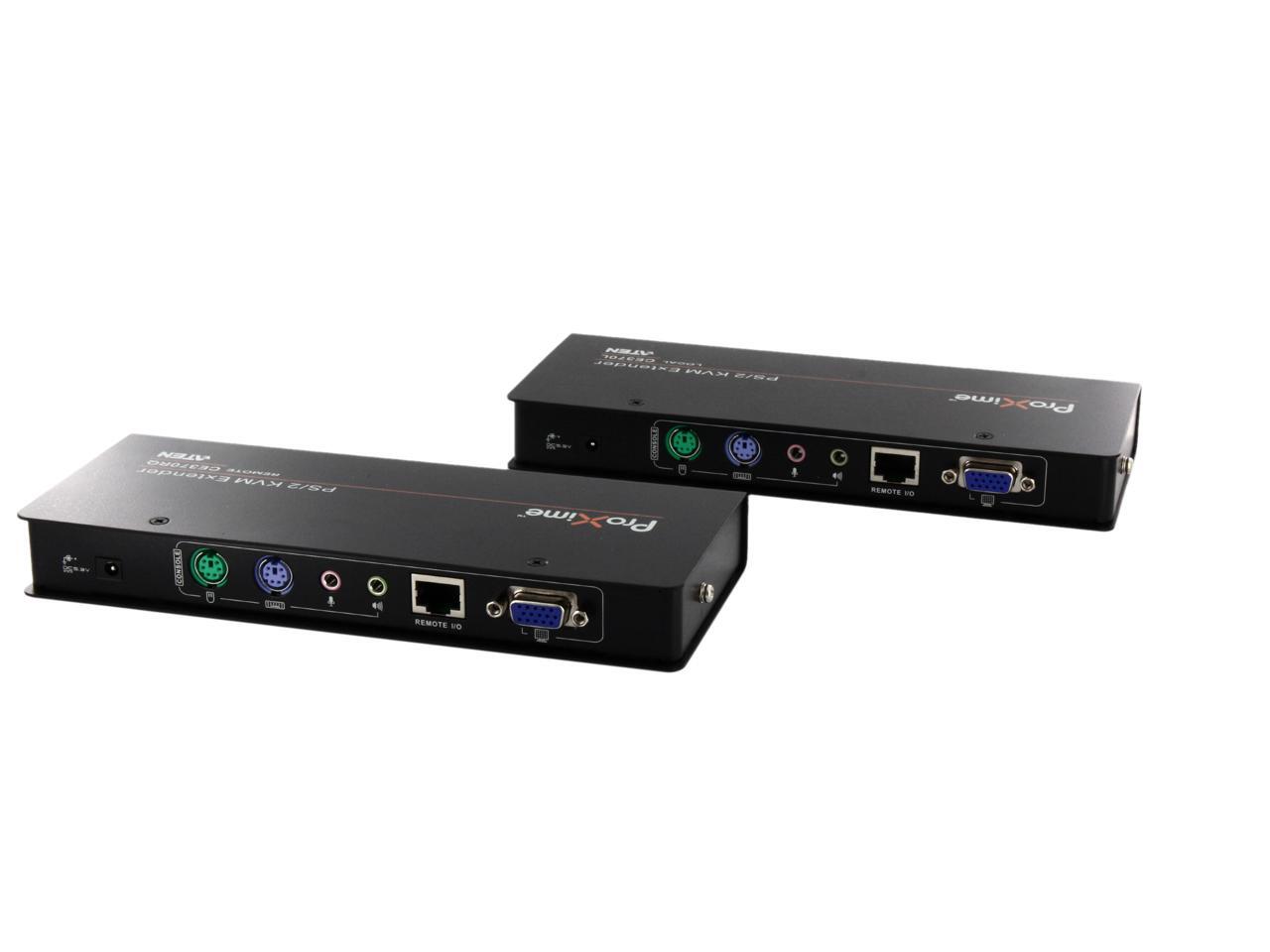

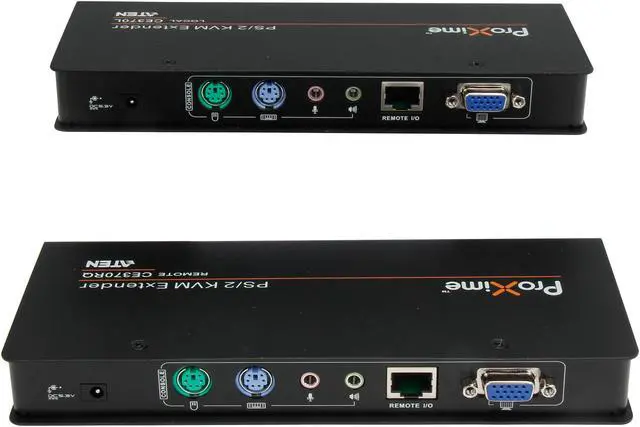

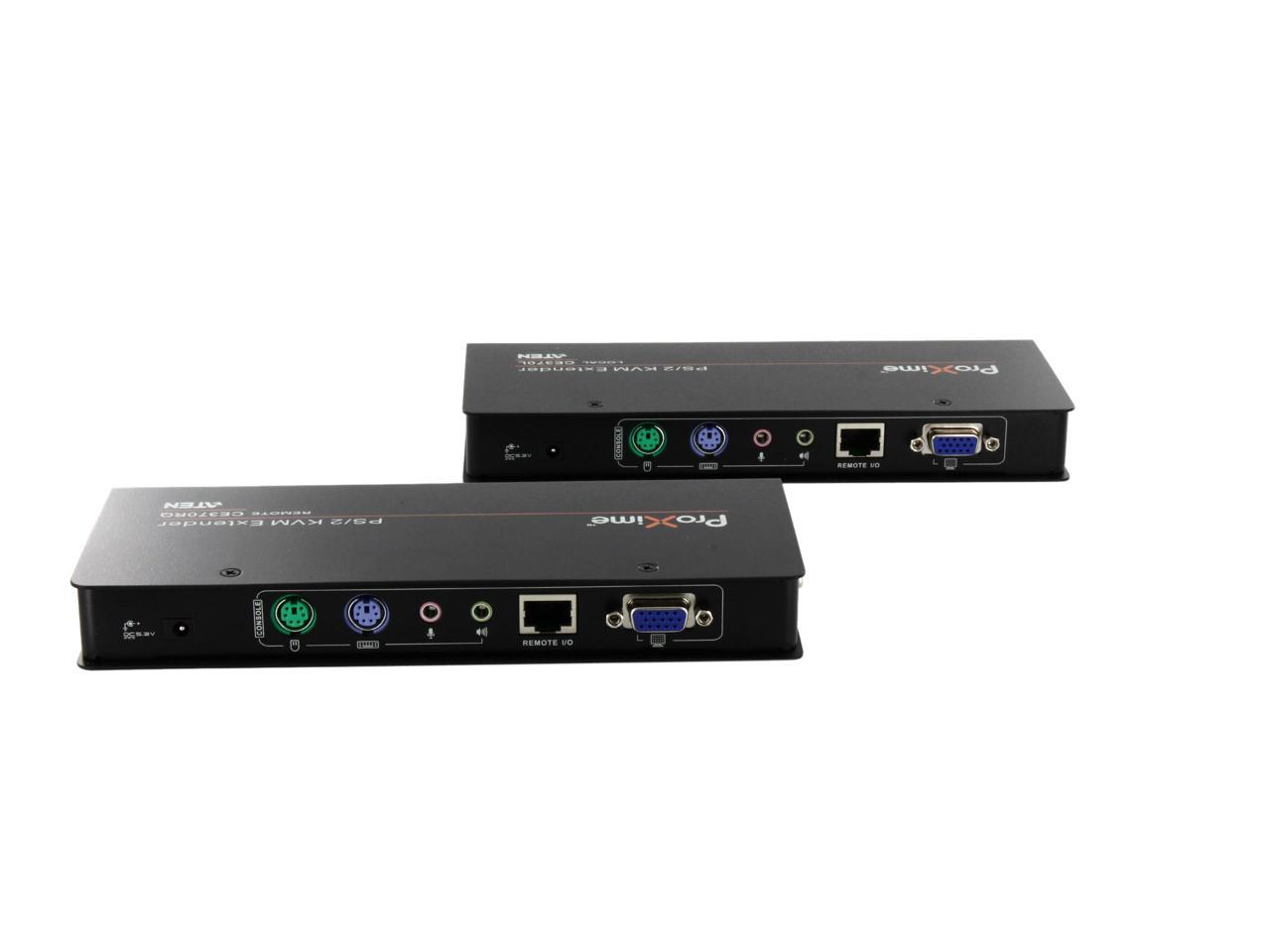

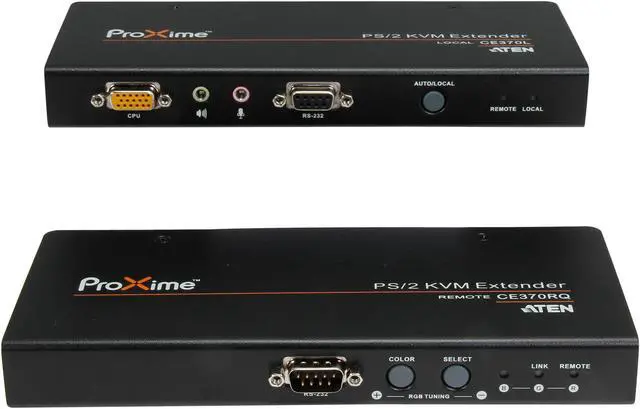

Console Connectors
Keyboard: 1 x 6-pin Mini-DIN Female (Purple) Video: 1 x HDB-15 Female (Blue) Mouse: 1 x 6-pin Mini-DIN Female (Green) Speaker: 1 x Mini Stereo Jack Female (Green) Mic: 1 x Mini Stereo Jack Female (Pink)
Video Resolution
1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz(300 m); DDC, DDC2, DDC2B
Monitors Supported
VGA, SVGA, XGA and MultiSync with DDC1, DDC2B, DDC
Environmental
Temperature
0ºC to 50ºC(32ºF to 122ºF)
Humidity
0% to 80%,Non-Condensing
Features
Features
Local and Remote Units connect at distances up to 300 m using Cat 5e cable
Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
Manually tune the R/G/B settings, store and retrieve
Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
Auto Signal Compensation (ASC) and storage of settings
RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
Audio Enabled - supports stereo speakers and microphone
Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
Superior Audio - no loss in audio quality at 300 m
Supports Wide Screen formats
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
Hot pluggable
Rack mountable
Easy to install - no software required - connecting cables to the devices is all it takes
