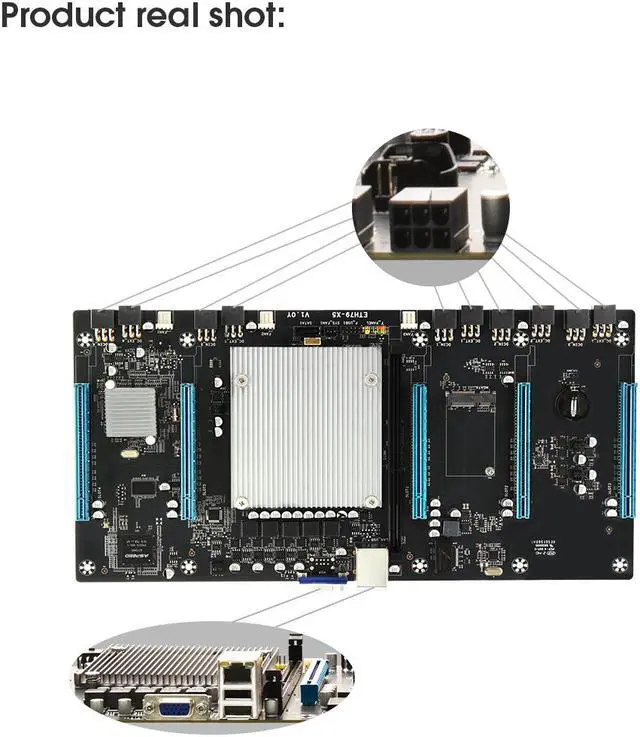

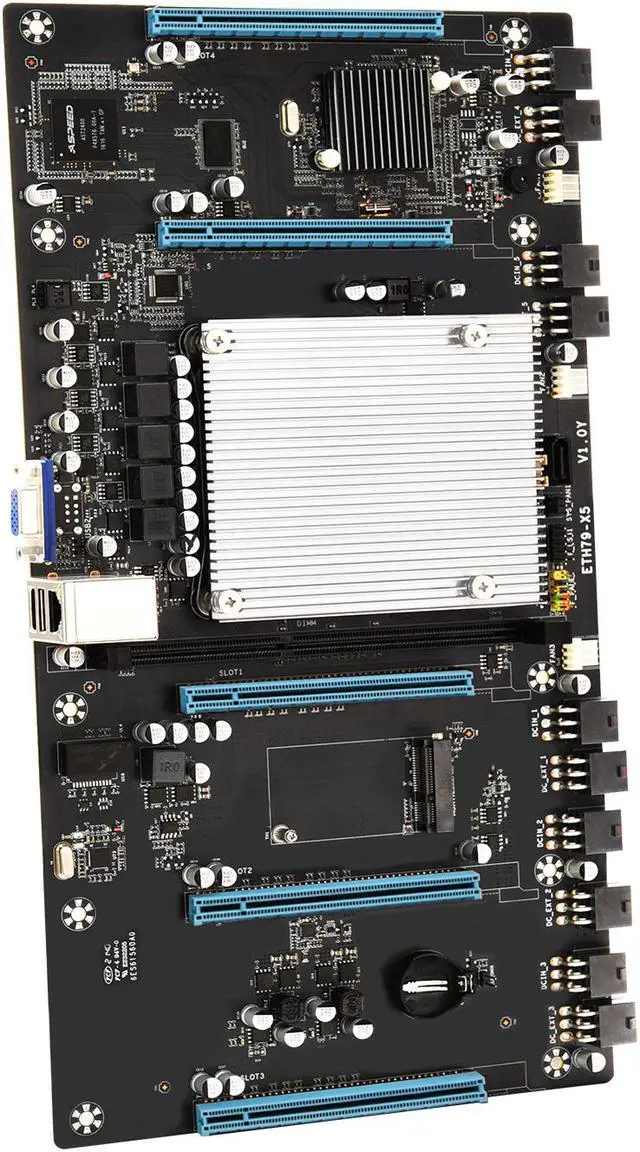

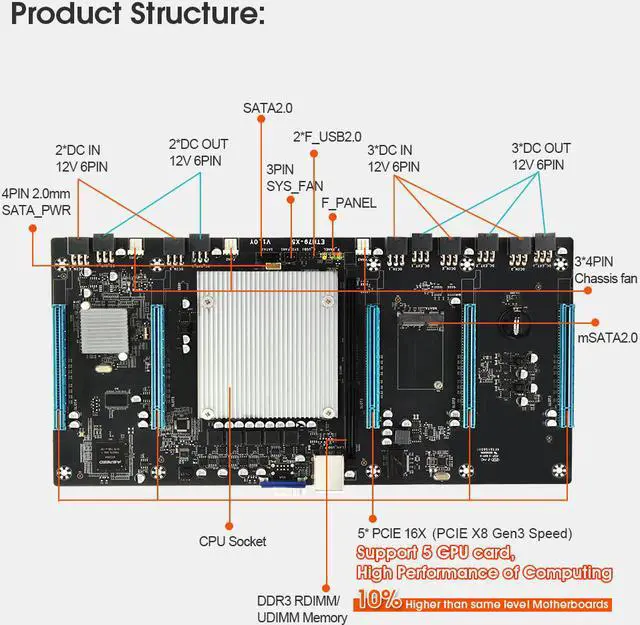

The BTC79X5 V1.0 motherboard uses the H61 chip and the 2011 slot, 5 Pcie3.0 X8 card interfaces are designed with a spacing of 60mm, which can support RTX3060 and RTX3080 cards, and the single card computing power is up to 48MH/s or more. It perfectly supports 4G video memory and card, which greatly improves the mining function of computing power.
Network card chip: 1 x REALIEK 8105E 100M network card
CPU interface: LGA(2011)
USB interface: 4 x USB2.0
USB pin: 1 x USB2.0
Hard disk interface: 1 x SATA2.0
Hard disk interface: 1 x MSATA 2.0
Network card interface: 1 x LAN
Memory slot: 1 x DDR3
Chipset: BGA (H61)
BIOS initial restoration: JCMOS

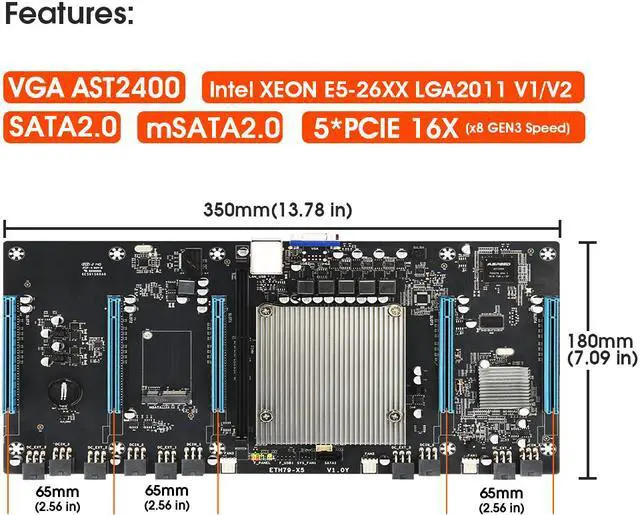

card interface: 5 x PCI Express 3.0 16X, pitch 65mm
Motherboard/ card power supply: 6 _PE
Self-initiated call: AUTO_ON
