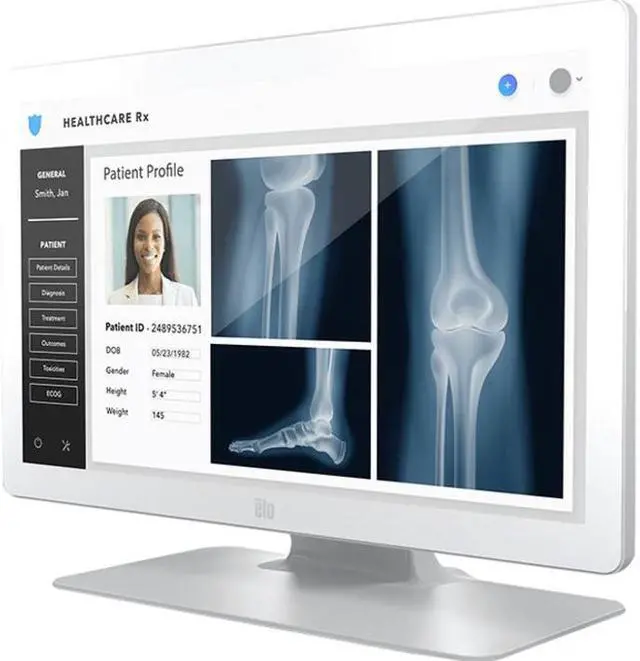

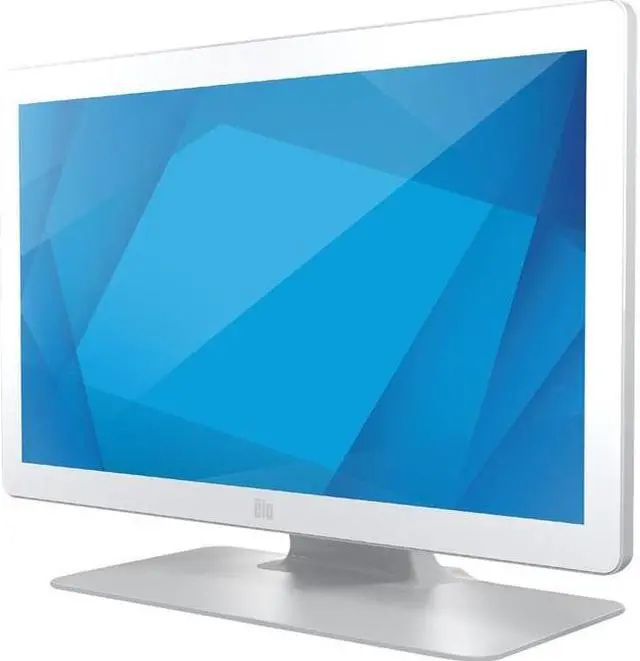

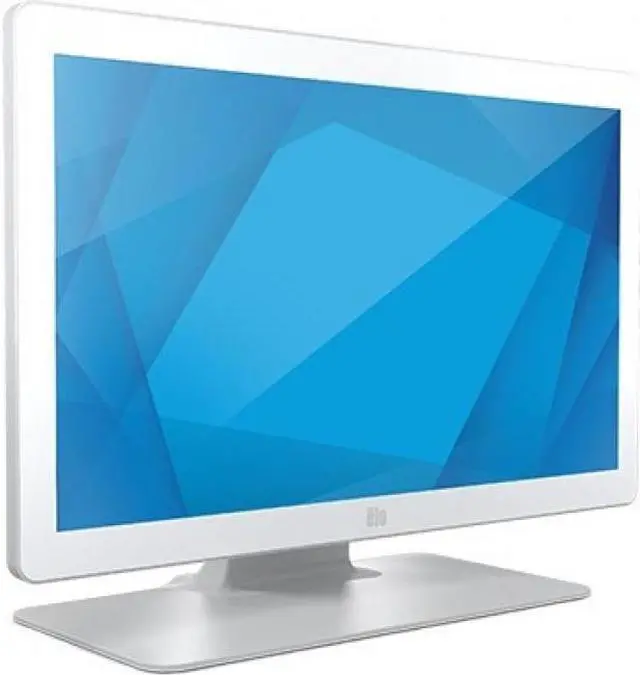

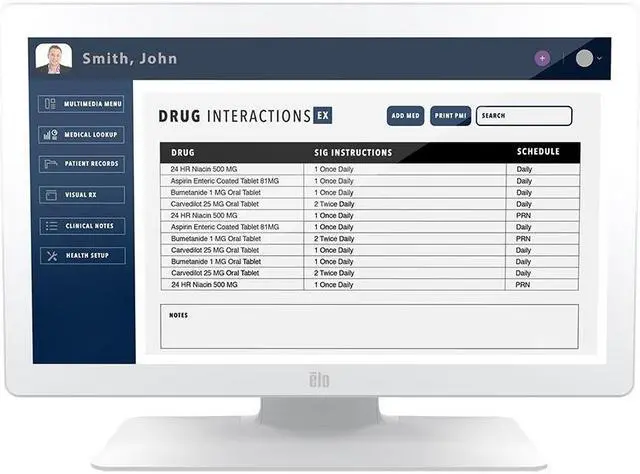

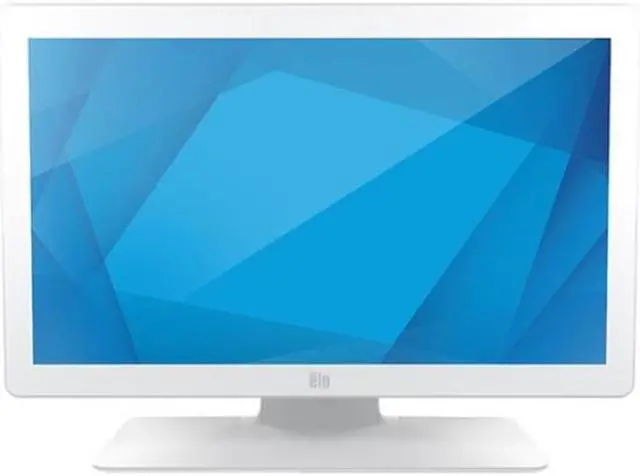

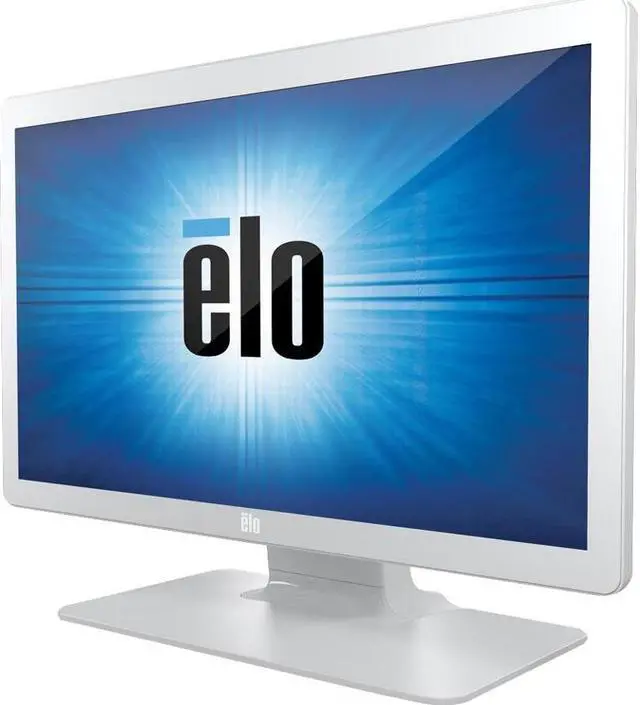

Elo Touch Solutions 2203LM (E658992) White 21.5'' Diagonal USB, Serial (via VGA) PCAP (TouchPro Projected Capacitive) - 10 Touch Medical Grade Touchscreen Monitor 225 nits 1000:1 Built-in Speakers

Specs

Reviews

Learn more about the Elo Touch Solutions 2203LM (E658992)

Display
Touchscreen Type	PCAP (TouchPro Projected Capacitive) - 10 Touch
Panel	Active matrix TFT LCD (LED)
Screen Size	21.5'' Diagonal
Aspect Ratio	16:9
Resolution	1920 x 1080
Refresh Rate	60 Hz
Viewing Angle	Horizontal: +/- 89° or 178° total / Vertical: +/- 89° or 178° total
Display Colors	16.7 Million
On-Screen Display(OSD)	Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean Lockouts: OSD, Power
Brightness	225 nits
Contrast Ratio	1000:1
Response Time	14ms
Horizontal Refresh Rate	30 - 82KHz
Vertical Refresh Rate	50 - 75Hz

Connectivity
Touchscreen Interface	USB, Serial (via VGA)
Connectors	VGA (RS232 touch supported via E810917) HDMI Combo Jack DC jack USB Type B USB 2.0 Type A 4 x Micro USB
D-Sub	VGA (RS232 touch supported via E810917)

Power
Power Supply	12VDC +/- 5% 100-240VAC, 50/60Hz
Power Consumption	Monitor + AC/DC adapter ON (Default - 80% Brightness): 14.4 W ON (Typical - 100% Brightness): 16.05 W SLEEP: 0.78 W OFF: 0.36 W

Convenience
Built-in Speakers	Two x 2W Internal Speakers

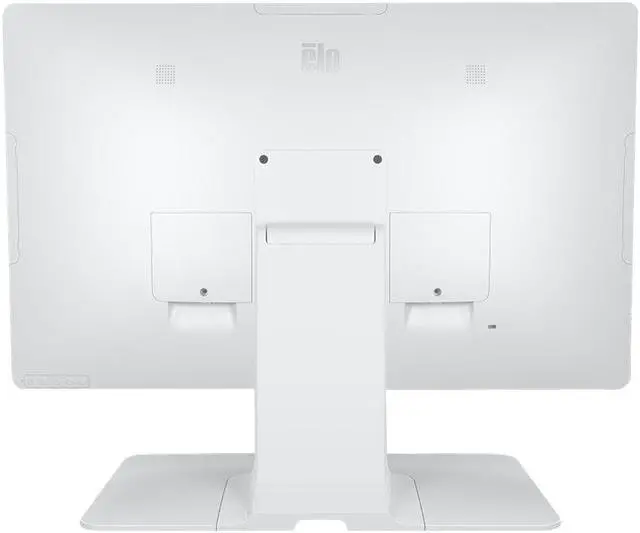

VESA Compatibility - Mountable	VESA 4-hole 100mm mounting interface on rear of unit
MTBF	50,000 hours demonstrated

Dimensions
Dimensions (H x W x D)	15.11" x 20.74" x 7.61" (with Stand)
Weight	With Stand: 14.88 lbs. Without Stand: 10.47 lbs.
Humidity Range	Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
Temperature Range	Operating Temperature: 0°C to 40°C / 32°F to 104°F Storage Temperature: -20°C to 60°C / -4°F to 140°F

Packaging
Package Contents	Touchmonitor Quick Install Guide 3 x Tie wraps VGA cable HDMI cable Touch USB cable Audio cable Power brick (E323104) NA Power cable EU Power cable EEI Label DICOM calibration sheet

Additional Information
Date First Available	April 04, 2022
