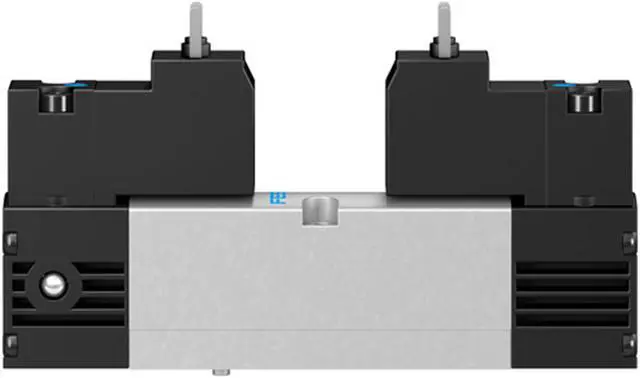

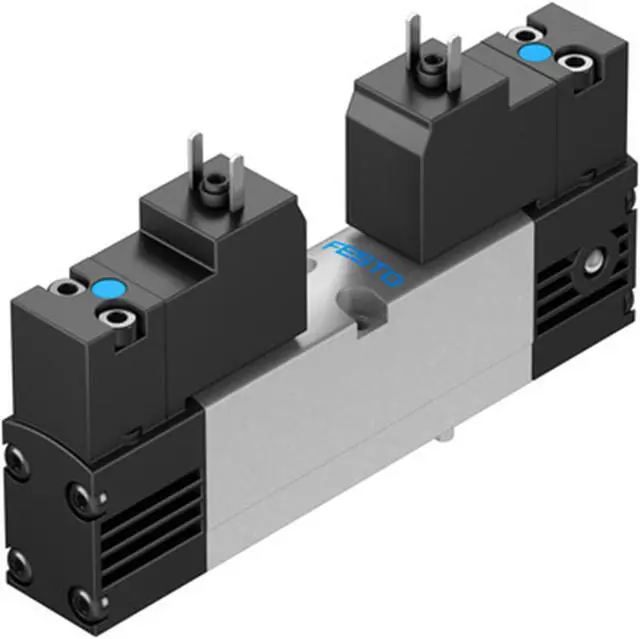

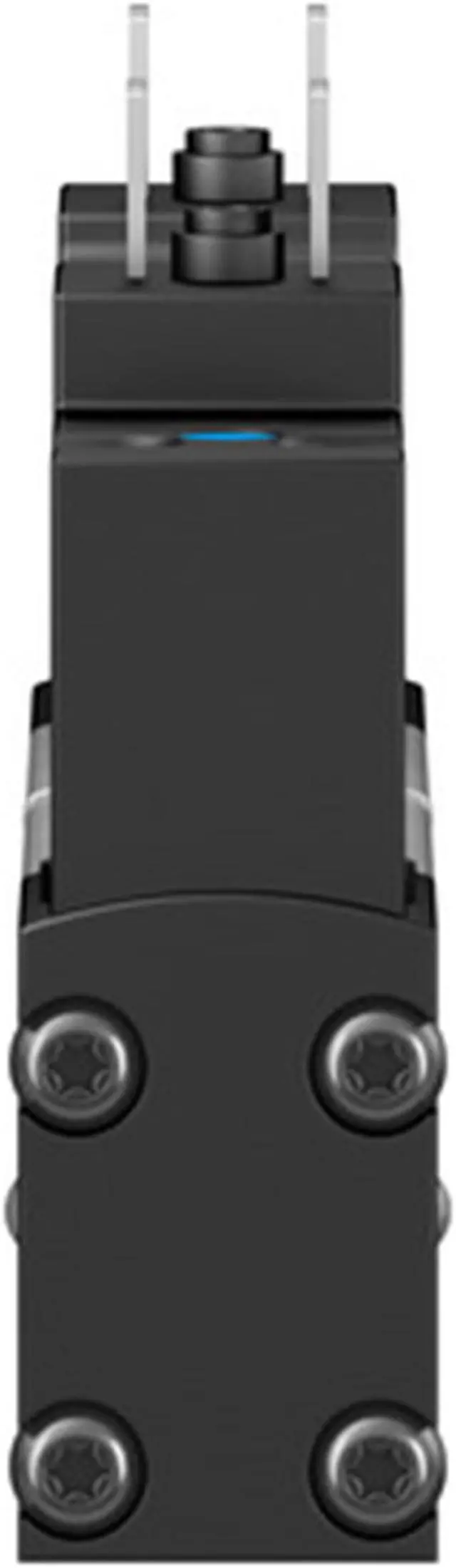

FESTO VSVA-B-D52-H-A2-5C1 547137 Air Solenoid Valve New
- FESTO VSVA-B-D52-H-A2-5C1 547137 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
550 l/min
Operating voltage
12V DC
Operating pressure
2 bar ... 10 bar
Design
Piston gate valve
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Symbol
00991059
Signal status display
LED
Flow rate of pneumatic valve
750 l/min
Flow rate of pneumatic valve on individual sub-base
550 l/min
Changeover time
15 ms
Duty cycle
100%
Coil characteristics
12 V DC: 1.8 W
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
1 Nm
Product weight
174 g
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
550 l/min
Operating voltage
12V DC
Operating pressure
2 bar ... 10 bar
Design
Piston gate valve
Nominal width
5 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Symbol
00991059
Signal status display
LED
Flow rate of pneumatic valve
750 l/min
Flow rate of pneumatic valve on individual sub-base
550 l/min
Changeover time
15 ms
Duty cycle
100%
Coil characteristics
12 V DC: 1.8 W
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
1 Nm
Product weight
174 g
