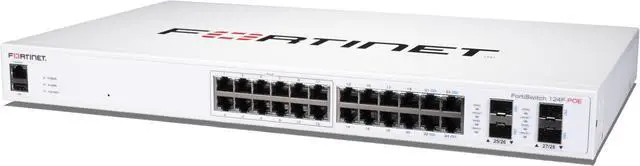

Fortinet FortiSwitch 124F-POE, 24-port managed PoE Switch, L3, rack-mountable, FS-124F-POE

Standalone or Integrated FortiLink deployment option
Zero-touch deployment
On premise and cloudbased management options
Intuitive management allows for ease of set up for network access and security
Easy-to-use network access control (NAC) at no cost
User- and device-based access control and policy enforcement
Secure access service edge (SASE) support
Scalable and flexible for branches or small business
Up to 48 access ports in a compact 1 RU form factor
Power over Ethernet and PoE+ support
Wire-speed switching with up to 10GE uplinks

Overview

Specs

Reviews

L2+ MNGD POE SW W/24GE+4SFP+ 24P POE W/MAX 185W LIMITSMART FAN

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Format	Rackmount
Network Management Type	Managed

Management Interface	24x GE RJ45 and 4x 10GE SFP+
Management Feature	Automation Stitches Display Average Bandwidth and Allow Sorting on Physical Port / Interface Traffic Dual Firmware Support HTTP / HTTPS IPv4 and IPv6 Management Link Monitor Managed from FortiGate Packet Capture POE Control Modes Provide warning if L2 table is getting full RMON Group 1 SNMP v1/v2c/v3 SNMP v3 traps SNTP Software download/upload: TFTP/FTP/GUI SPAN, RSPAN, and ERSPAN Standard CLI and Web GUI Interface Support for HTTP REST APIs for Configuration and Monitoring Syslog UDP/TCP System alias command System Temperature and Alert Telnet / SSH
Packet Forwarding Rate	190 Mpps
Buffer Memory	Packet Buffers: 2 MB
IPv4 Features	RFC 2697: A Single Rate Three Color Marker RFC 3168: The Addition of Explicit Congestion Notification (ECN) to IP RFC 5227: IPv4 Address Conflict Detection RFC 5517: Cisco Systems' Private VLANs: Scalable Security in a Multi-Client Environment RFC 7039: Source Address Validation Improvement (SAVI) Framework

PoE	Yes
QoS	Egress priority tagging Explicit Congestion Notification IEEE 1588 PTP (Transparent Clock) IEEE 802.1p Based Priority Queuing IP TOS/DSCP Based Priority Queuing Percentage Rate Control
Layer	Full Layer 3
Layer 2 Features	Auto-negotiation for Port Speed and Duplex Auto topology Dynamically shared packet buffers Edge Port / Port Fast IEEE 802.1ad QinQ IEEE 802.1AX Link Aggregation IEEE 802.1D MAC Bridging/STP IEEE 802.1Q VLAN Tagging IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3ad Link Aggregation with LACP IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3az Energy Efficient Ethernet IEEE 802.3ba, 802.3bj, and 802.3bm 40 and 100 Gigabit Ethernet IEEE 802.3bz Multi Gigabit Ethernet IEEE 802.3 CSMA/CD Access Method and Physical Layer Specifications IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control and Back-pressure IEEE 802.3z 1000Base-SX/LX Ingress Pause Metering Jumbo Frames LAG min/max bundle Loop Guard MAC, IP, Ethertype-based VLANs MDI/MDIX Auto-crossover Per-port storm control Priority-based Flow Control (802.1Qbb) Private VLAN Rapid PVST interoperation Spanning Tree Instances (MSTP/CST) Storm Control STP BPDU Guard STP Root Guard Time-Domain Reflectcometry (TDR) Support Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac) Virtual-Wire VLAN Mapping
Layer 3 Features	Bidirectional Forwarding Detection (BFD) DHCP Relay DHCP server Dynamic Routing Protocols: OSPFv2, RIPv2, VRRP, ISIS * Filtering routemaps based on routing protocol IP conflict detection and notification IPv6 route filtering Static Routing (Hardware-based) Unicast Reverse Path Forwarding - uRPF

PoE Ports	12 (802.3af/at)
PoE Power Budget	185 W
Power	100–240V AC, 50-60 Hz
Max Power Consumption	Average: 235.9W Max: 237.4W

Dimensions	Height x Depth x Width (inches) 1.73 x 10.24 x 17.32 Height x Depth x Width (mm) 44 x 260 x 440
Weight	7.85 lbs (3.56 kg)

Fortinet FortiSwitch 124F-POE, 24-port managed PoE Switch, L3, rack-mountable, FS-124F-POE

Learn more about the Fortinet 124F-POE

Customer Reviews of the Fortinet 124F-POE

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Brand	Fortinet
Series	100F Series
Model	124F-POE
Part Number	FS-124F-POE

Item#: 0XP-0011-00171
