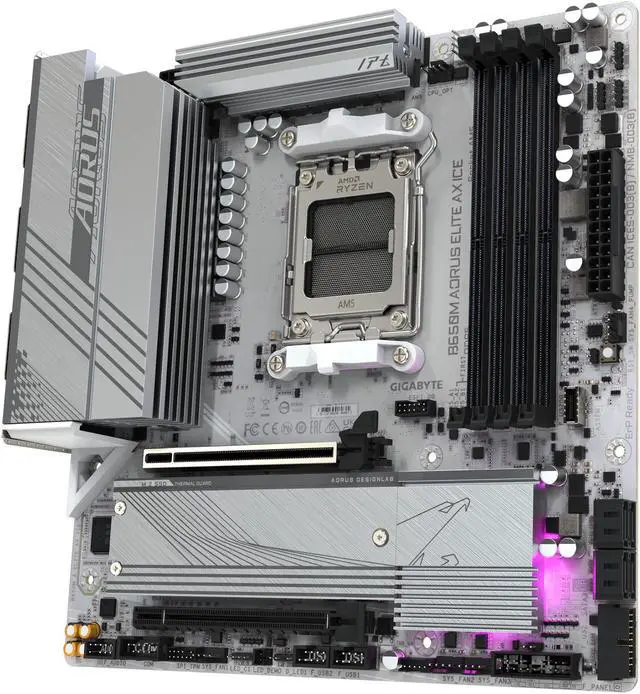

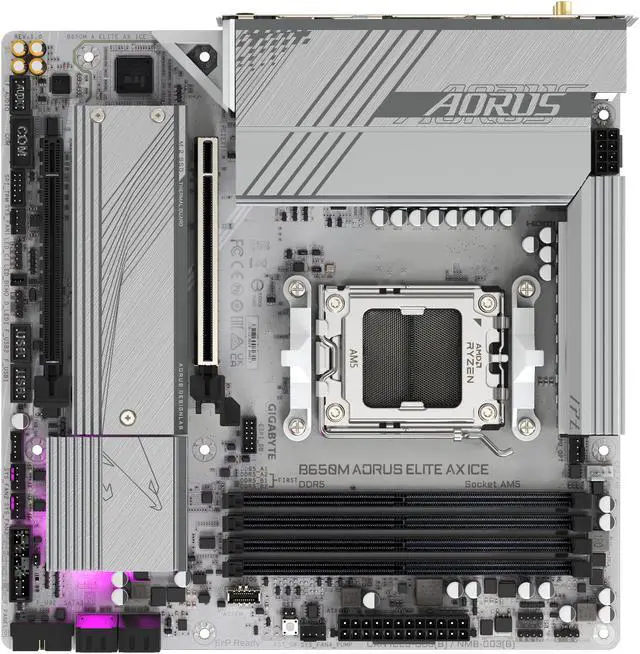

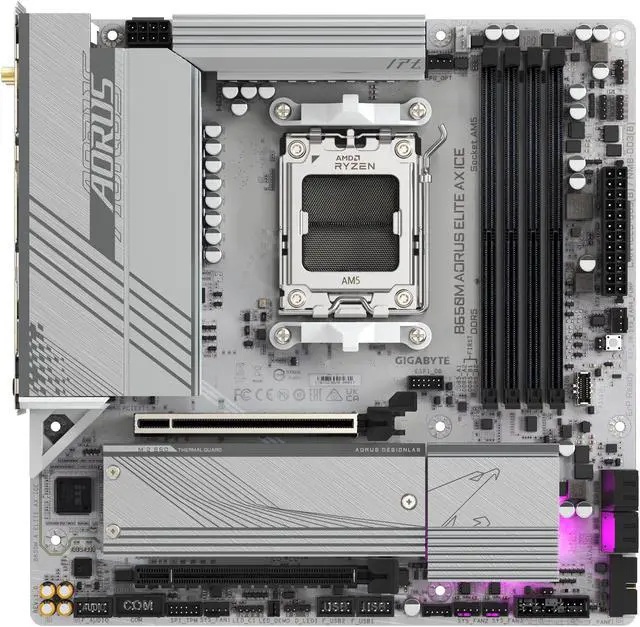

GIGABYTE B650M AORUS ELITE AX ICE AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, 2x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, Q-Flash Plus, EZ-Latch
- AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
- Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Superfast Storage: 1*PCIe 5.0 x4 and 1*PCIe 4.0 x4 M.2 Connector
- Advanced Thermal Design & M.2 Thermal Guard
- EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networking: 2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity: HDMI, DP, Front USB-C 20 Gb/s, Rear USB-C 10 Gb/s
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and GPU
+
+
Specs
Reviews (3)
Learn more about the GIGABYTE B650M AORUS ELITE AX ICE
| Brand | GIGABYTE |
|---|---|
| Model | B650M AORUS ELITE AX ICE |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 5200 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Memory Feature | Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Channels | 7.1 Channels |
|---|
| Max LAN Speed | 2.5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |

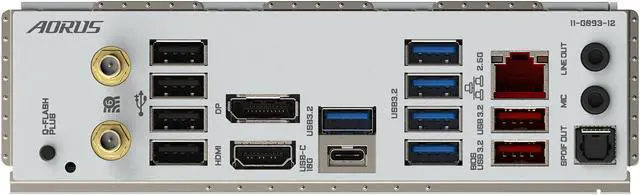

| Back I/O Ports | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
|---|
| Date First Available | October 01, 2024 |
|---|
