Intel Xeon W-3500 & W-2500 Platform
Compute heavy workloads rely on the best and latest CPU technology to deliver excellent performance while the new Xeon line of processors with Intel spans from high-end to more affordable chips. Intel new workstation processors bring many important technological advancements that greatly benefit a wide range of disciplines from Engineering to Data Science to Media & Entertainment. PCIe 5.0 provides the highest possible throughput between CPU and GPU or SSD, including support for CXL devices. Couple that with higher CPU performance across all workloads, these new Xeon workstation CPUs can also crunch memory intensive workloads faster with DDR5 memory and AI/DL workloads have more floating point formats to choose from.

Chipset: Intel W790 Chipset
P-core Count: Up to 60 cores
Memory Channel: 8-channel
DDR5 Memory: 1DPC 4800MT/s and 2DPC 4400MT/s
Memory Capacity: Up to 4TB
CPU PCIe 5.0 Lanes: Up to 112 lanes
TDP: Up to 385W

Chipset: Intel W790 Chipset
P-core Count: Up to 26 cores
Memory Channel: 4-channel
DDR5 Memory: 1DPC 4800MT/s and 2DPC 4400MT/s
Memory Capacity: Up to 2TB
CPU PCIe 5.0 Lanes: Up to 64 lanes
TDP: Up to 250W

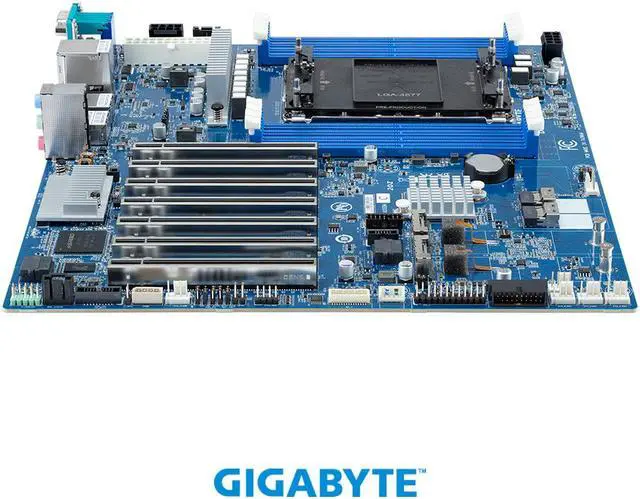

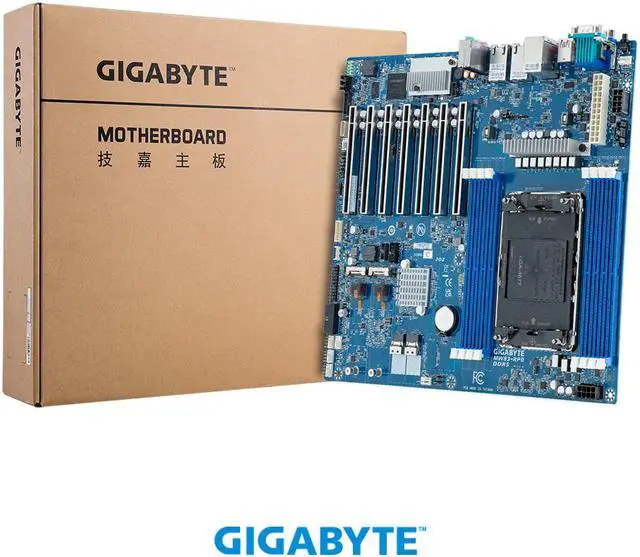

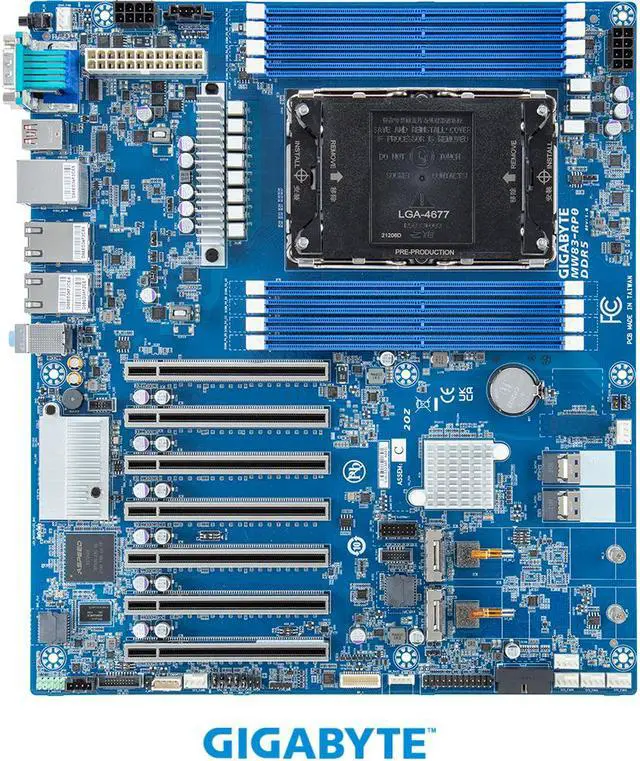

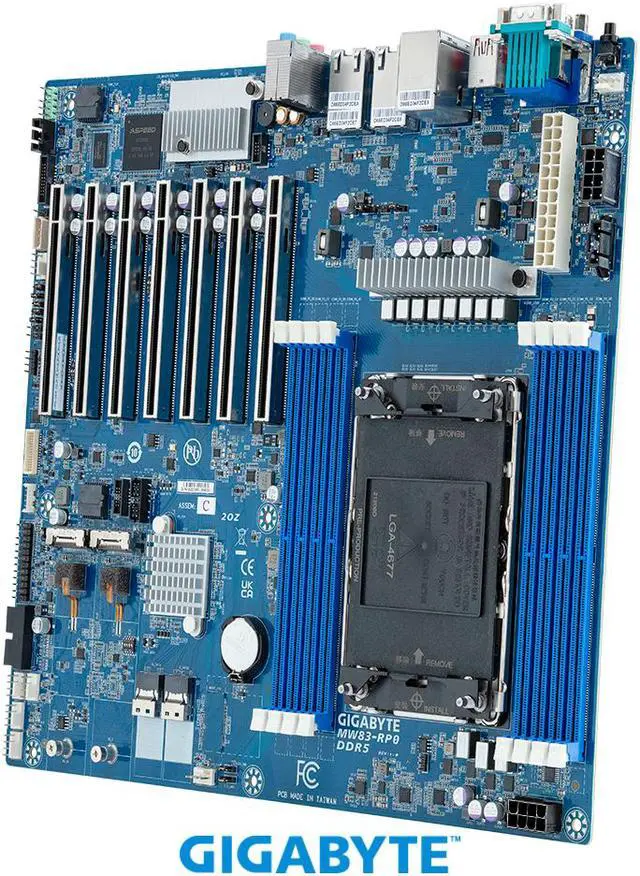

MW83-RP0 is an expert workstation motherboard which is designed to support Intel® Xeon® W-3500/3400 & W-2500/2400 Processors including the all-new architecture optimizes CPU performance so that creatives, engineers and data scientists can work at their best computing environment.

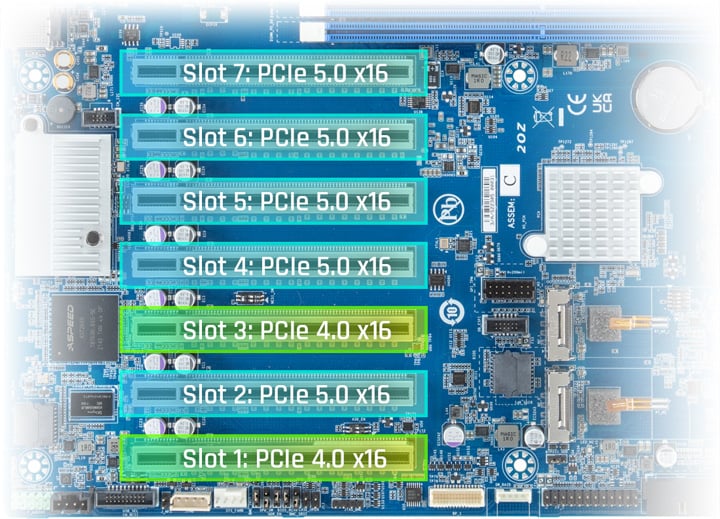

ntel Xeon W-3500/3400 with up to 112 PCIe 5.0 lanes for multi-GPU support gives creators more configuration flexibility to equip the variety combination of hardware accelerators.
MW83-RP0 equips several new components to ensure the best PCIe 5.0 signal bandwidth and quality, including low-loss PCB, PCIe Slots, Re-drivers, Switches that are specifically designed for PCIe 5.0. There will be no compromise on PCIe 5.0 performance on PCIe interface.

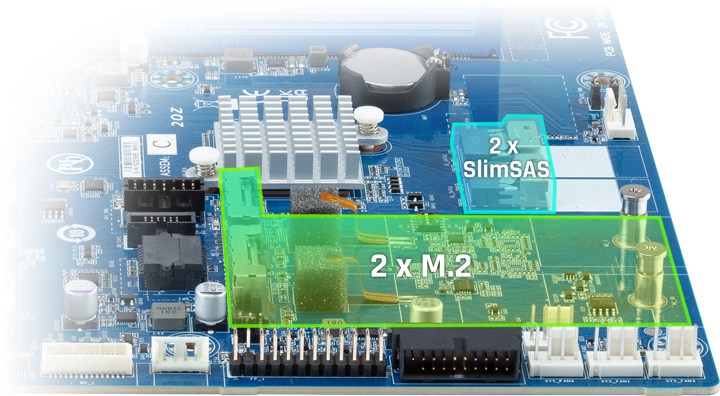

Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.
- 2 x M.2 2280 SSD slots (PCIe 4.0x4)
- 2 x SlimSAS ports (8 x SATAIII)

The Intel X710-AT2 supports 2 x 10GbE configuration which is the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrators computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
