The H5 Flow boosts airflow and GPU cooling with its fully perforated PSU shroud, mesh panels, and robust radiator support.
The Coolers Graphics: Designed for enhanced GPU cooling, the mesh PSU shroud maximizes air intake from bottom-mounted fans.
Go Big On Cooling: The front supports up to a 360mm radiator, and the top supports up to 240 mm or 280mm if using low-profile RAM - for powerful cooling potential.
Performance Paneling: Ultra-fine mesh panels optimize airflow for intake and exhaust while doubling as dust filters.

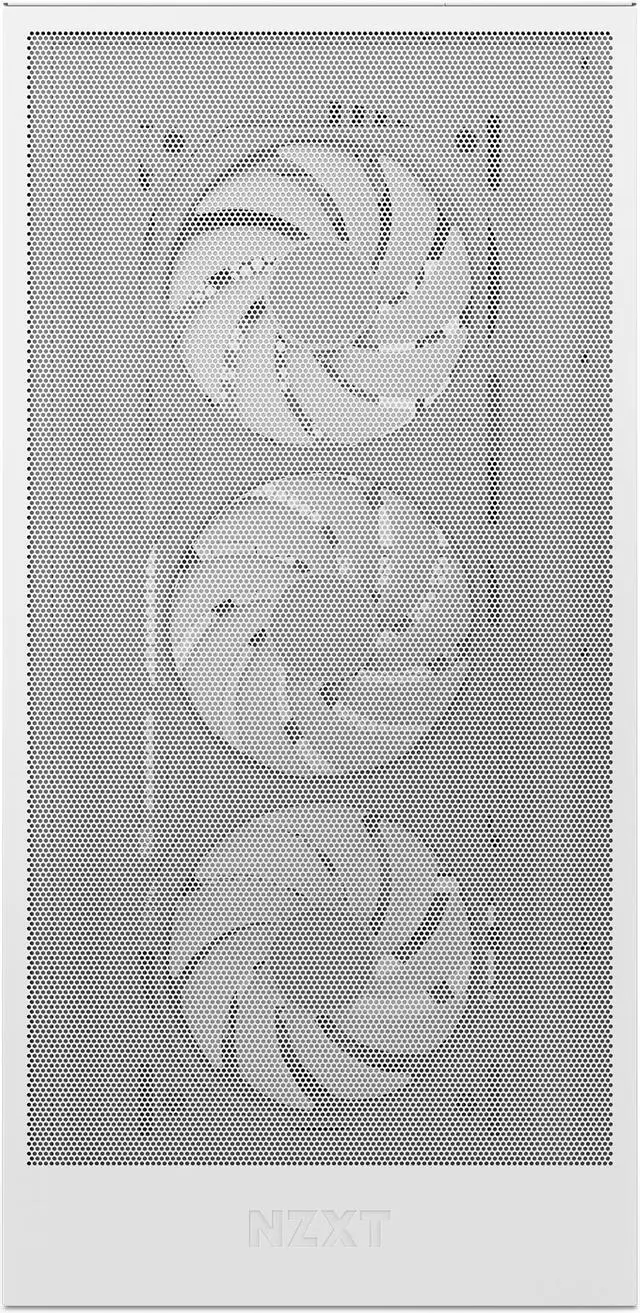

RGB: Equipped with a front-mounted F360 RGB Core fan for exceptional out-of-the-box cooling and lightning.
+
+
Overview
Specs
Reviews (12)

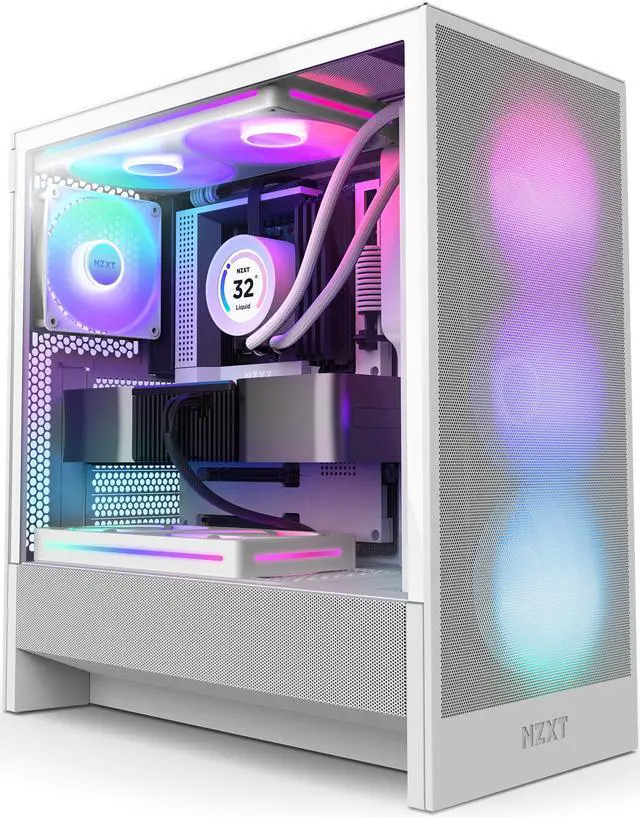

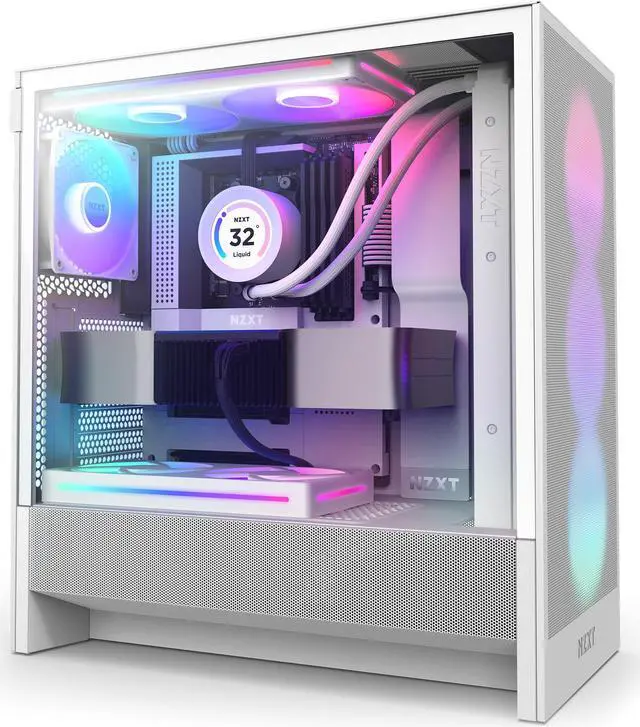

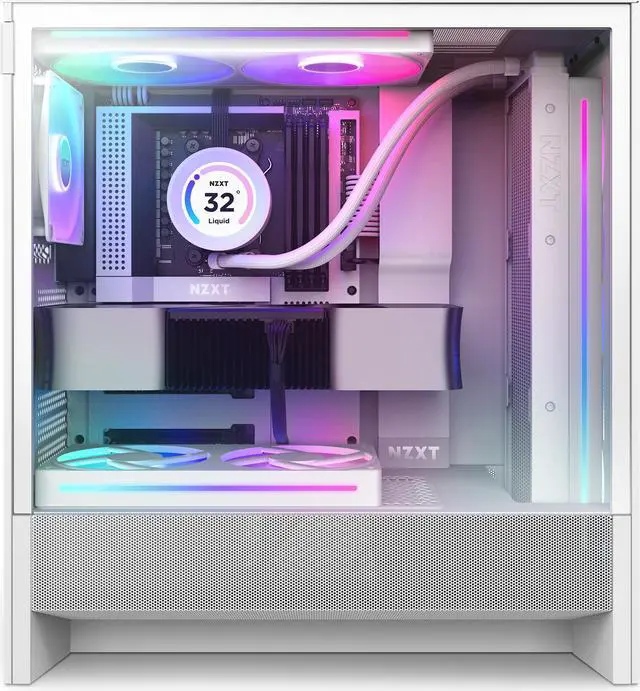

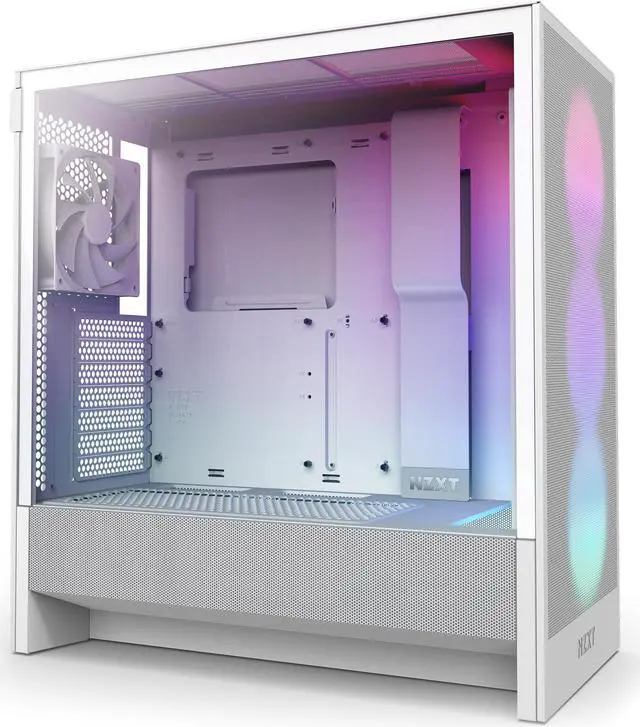

Just imagine a computer case that combines style, functionality, and superior cooling capabilities the NZXT H5 Flow RGB Compact Tempered Glass ATX Mid-Tower Airflow Computer Case in White does just that. This compact mid-tower chassis is expertly designed to enhance airflow and GPU cooling, thanks to its innovative perforated PSU shroud and mesh panels. The H5 Flow RGB is optimized for high airflow, featuring ultra-fine mesh panels that not only facilitate exceptional airflow but also act as a barrier against dust particles. This ensures your components remain cool and clean, prolonging their lifespan and performance.

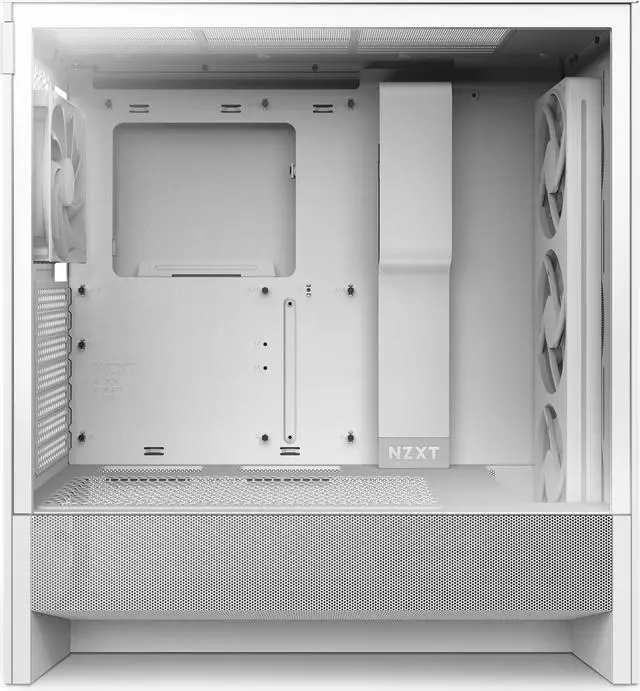

The case supports large radiators, accommodating a 360mm radiator at the front and a 240mm radiator on top, making it ideal for powerful liquid cooling setups. For immediate cooling and vibrant lighting, the case comes with a pre-installed front-mounted F360 RGB Core fan and a rear F120Q fan. These fans provide out-of-the-box cooling efficiency and customizable RGB lighting to match your aesthetic preferences. The mesh PSU shroud is designed to maximize air intake from two 120mm bottom-mounted fans (not included), directing more air to the GPU for optimal cooling performance. Cable management is made effortless with wide channels, hooks, and straps that allow you to neatly route and conceal cables, maintaining a clean and organized interior.

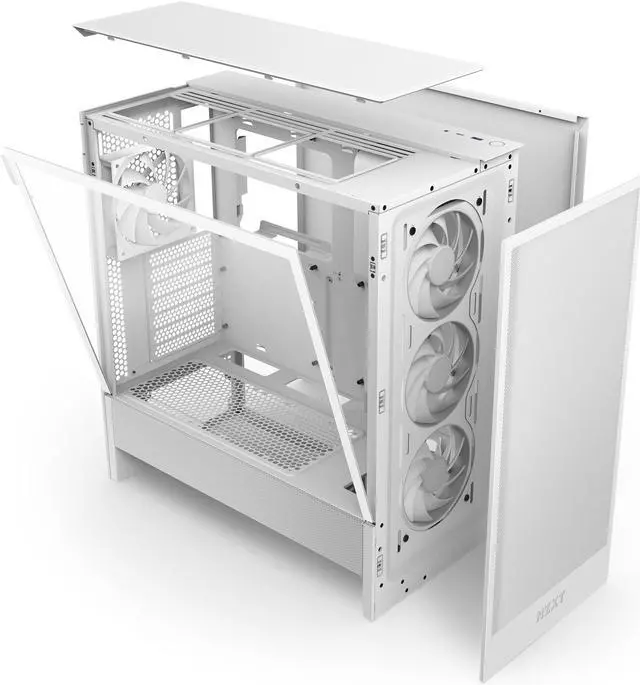

Accessing the interior of the case is a breeze with tool-less front, side, and top panels, allowing for quick and easy upgrades or maintenance. Constructed from thick steel and tempered glass, the H5 Flow RGB is not only strong and durable but also sleek and modern, making it a stylish addition to any setup.
Learn more about the NZXT CC-H52FW-R1
Model
Brand
NZXT
Series
H5 Flow RGB
Model
CC-H52FW-R1
Details
Type
ATX Mid Tower
Color
White
Case Material
SGCC Steel / Ultra-Clear Tempered Glass
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
ATX / E-ATX / Micro ATX / Mini ITX
Side Panel Window
Yes
LED
RGB
Dust Filters
Bottom / Front / Top
Expansion
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
2
Expansion Slots
7
Front Panel Ports
Front Ports
1 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 1 x Audio
Cooling System
Fan Options
Front: 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (2 x F120Q Case Version included)
Radiator Options
Front: Up to 360 mm Top: Up to 240 mm (280mm with low-profile memory only)
Dimensions & Weight
Max GPU Length
410 mm
Max CPU Cooler Height
170 mm
Max PSU Length
200 mm
Dimensions (H x W x D)
465 x 225 x 430 mm / 18.31" x 8.86" x 16.93"
Weight
7.28 kg / 16.04 lbs.
Additional Info
Package Content
1 x H5 Flow RGB 1 x F360 RGB Core (CV) 2 x F120Q (CV) 1 x Installation accessories 1 x User guide
