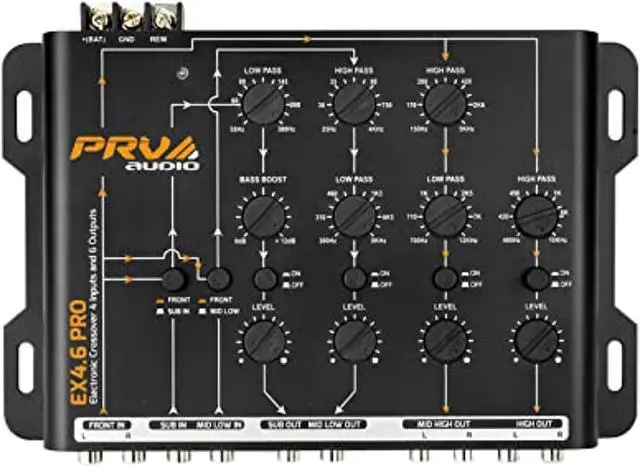

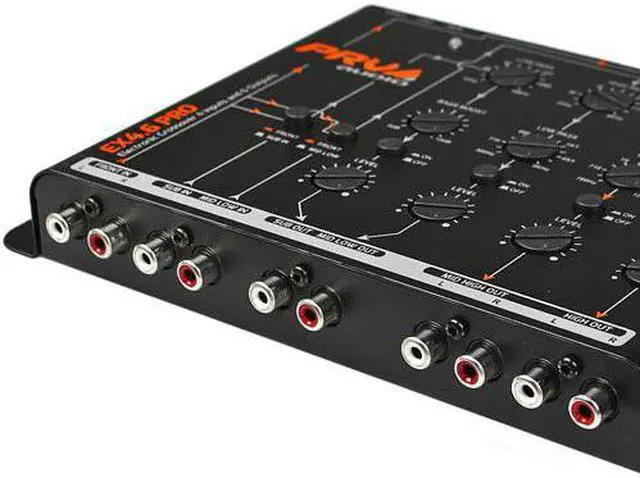

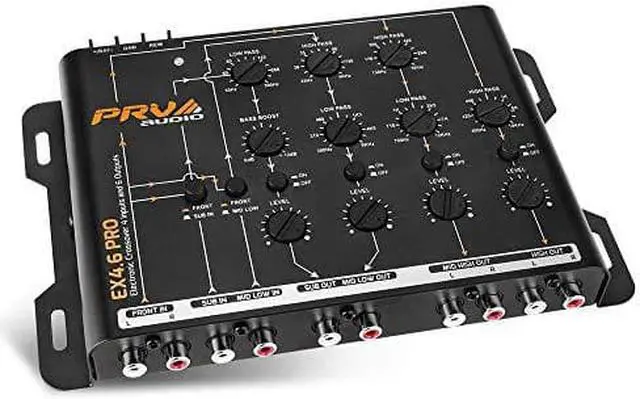

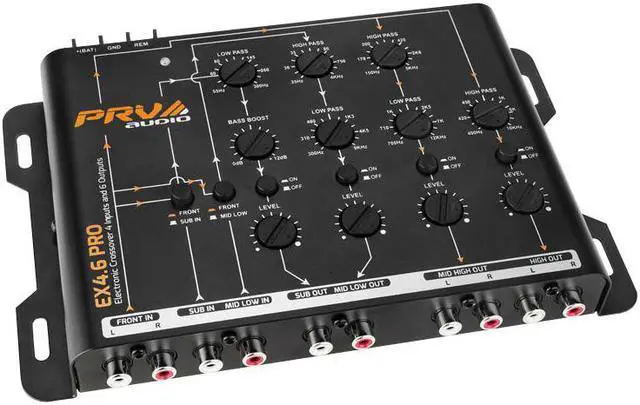

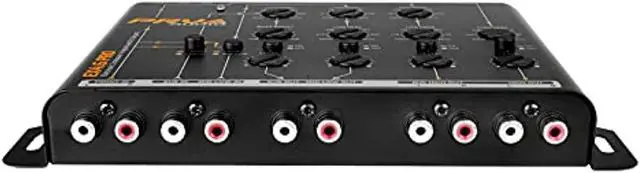

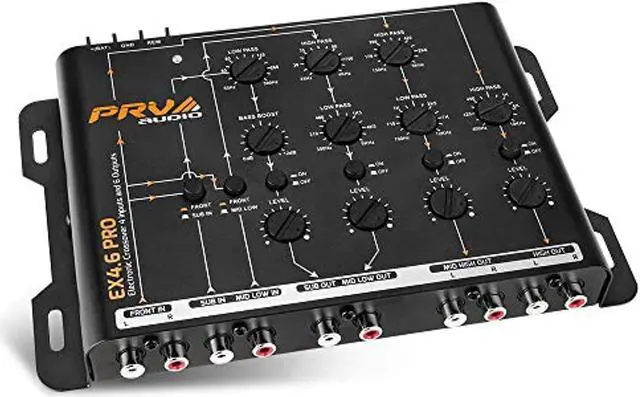

PRV 4 Way Electronic Crossover 4 Inputs and 6 Outputs EX 4.6PRO
Bringing innovation and technology to the automotive sound market, PRV Audio launches the EX 4.6 PRO electronic crossover, giving you the power to customize your sound with a wide frequency of filter adjustments. Featuring 4-way adjustable high pass and low pass filters and also output level control on each channel, plus adjustable bass-boost option on the Sub Out channel.
Features
High Out Channel: High Pass 400Hz 10KHz (12dB/8a)
Mid High Out Channel: High Pass 150Hz 5KHz (12dB/8a)
Mid Low Out Channel: High Pass 25Hz 3KHz (12dB/8a)

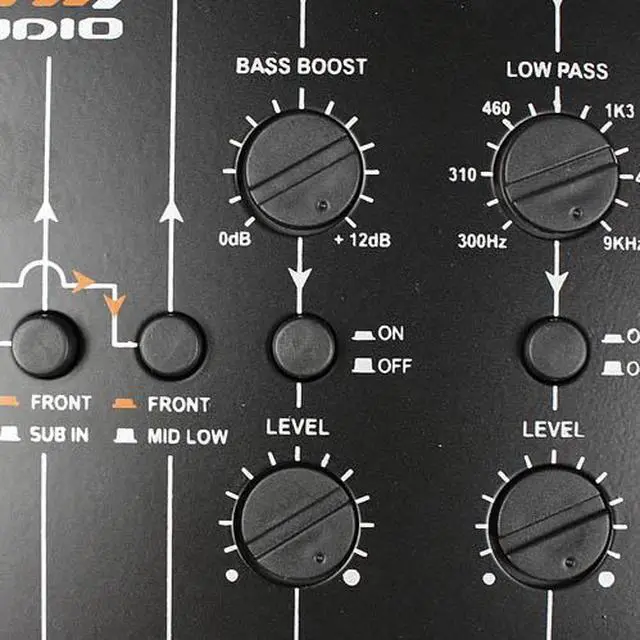

Sub Out Channel: Low Pass 50Hz 250KHz (12dB/8a) Bass Boost 25Hz 110Hz (0 +12dB; 45Hz)
Maximum Output Voltage: 9V RMS
Maximum Input Voltage: 4V RMS
Signal to Noise: >90dB
Input Impedance: 10K Ohms
Harmonic Distortion: < 0.02% THD
Channel Separation: > 80dB
Frequency Response: 20Hz-200KHz
Supply Voltage: 10V 16V DC
Current Consumption: 200mA
Impedance Output: 470 Ohms
Dimensions (H x W x L): 1.30 x 9 x 6.30
